Hanwha ARN-410S 4-Channel 8MP H.265 NVR with 4-Port PoE Switch
Skip to product information
1
/
of
4
Vendor:
Hanwha
Hanwha ARN-410S 4-Channel 8MP H.265 NVR with 4-Port PoE Switch
SKU: ARN-410S
Description
- 4-Channel 8MP Recording, Built-In PoE Switch: 4 PoE ports plus 1 WAN uplink means one appliance covers 4 cameras — no separate PoE switch, no extra rack unit.
- 35W PoE Budget Across the 4 Channels: comfortably powers standard PoE Class 3 cameras (single-lens dome, bullet or turret) with plug-and-play provisioning for Hanwha A-series cameras.
- 4K HDMI Local Monitor Output: display live feeds and playback on any 4K monitor for control-room use; 40Mbps recording bandwidth handles four 8MP H.265 streams without frame drops.
- Storage Up to 6TB in a Single SATA Slot: 60-90 days of continuous 8MP H.265 retention on a 6TB drive, meeting typical Australian commercial compliance windows.
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
Hanwha ARN-410S 4-Channel 8MP H.265 NVR with 4-Port PoE Switch
1
/
of
4
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Optional extras
Accessories & upgrades
—
Complete setup from
$656.95
01Overview
What the ARN-410S is

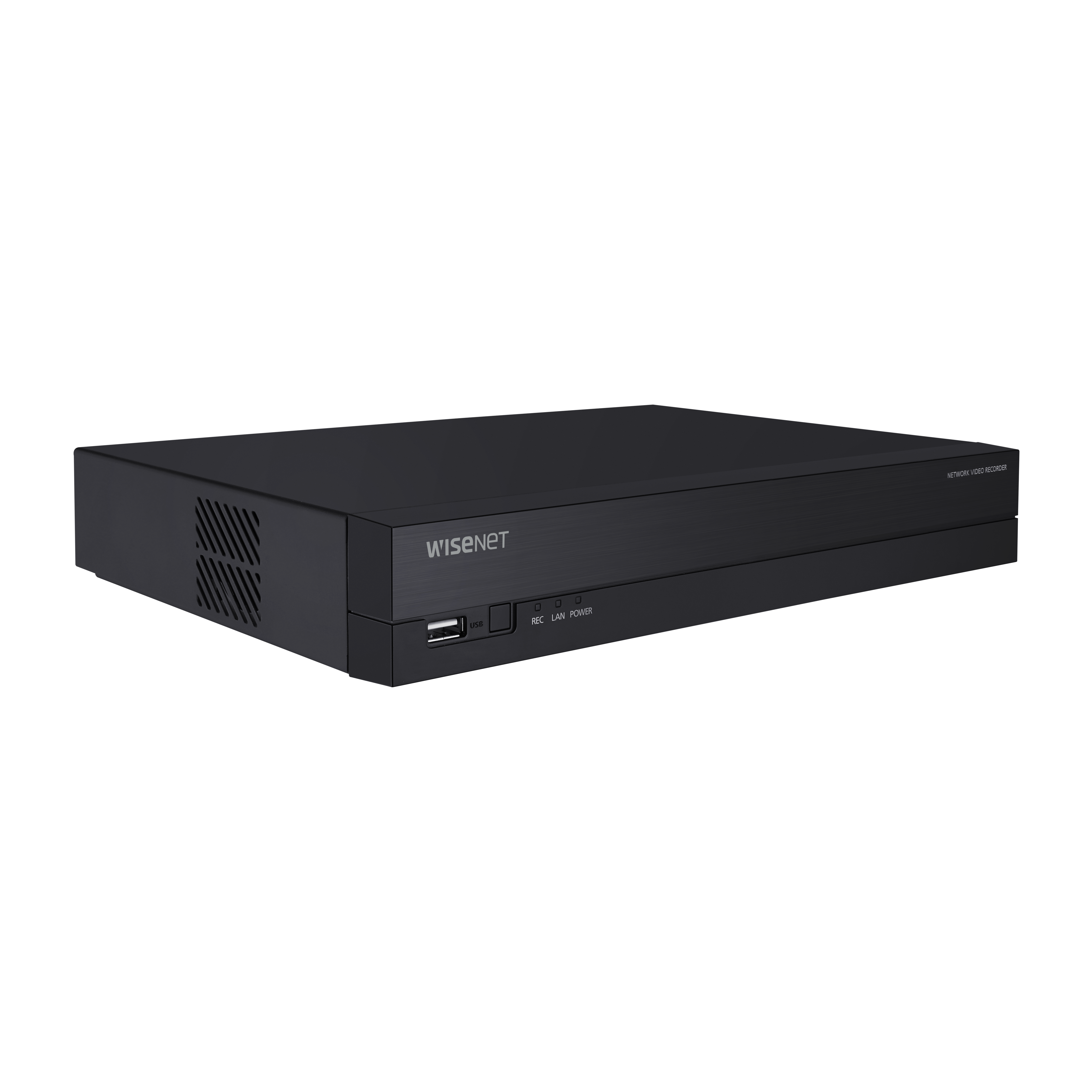

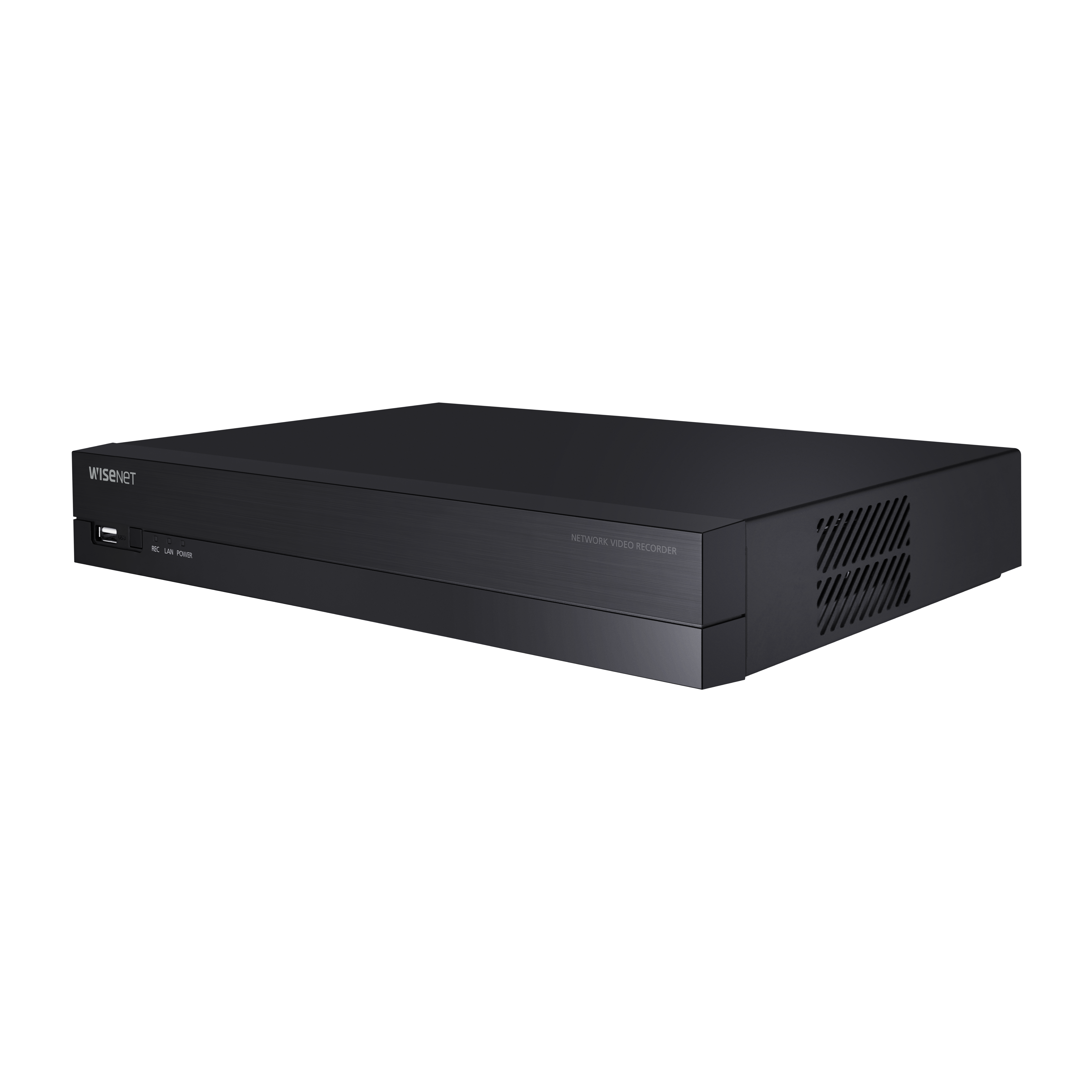

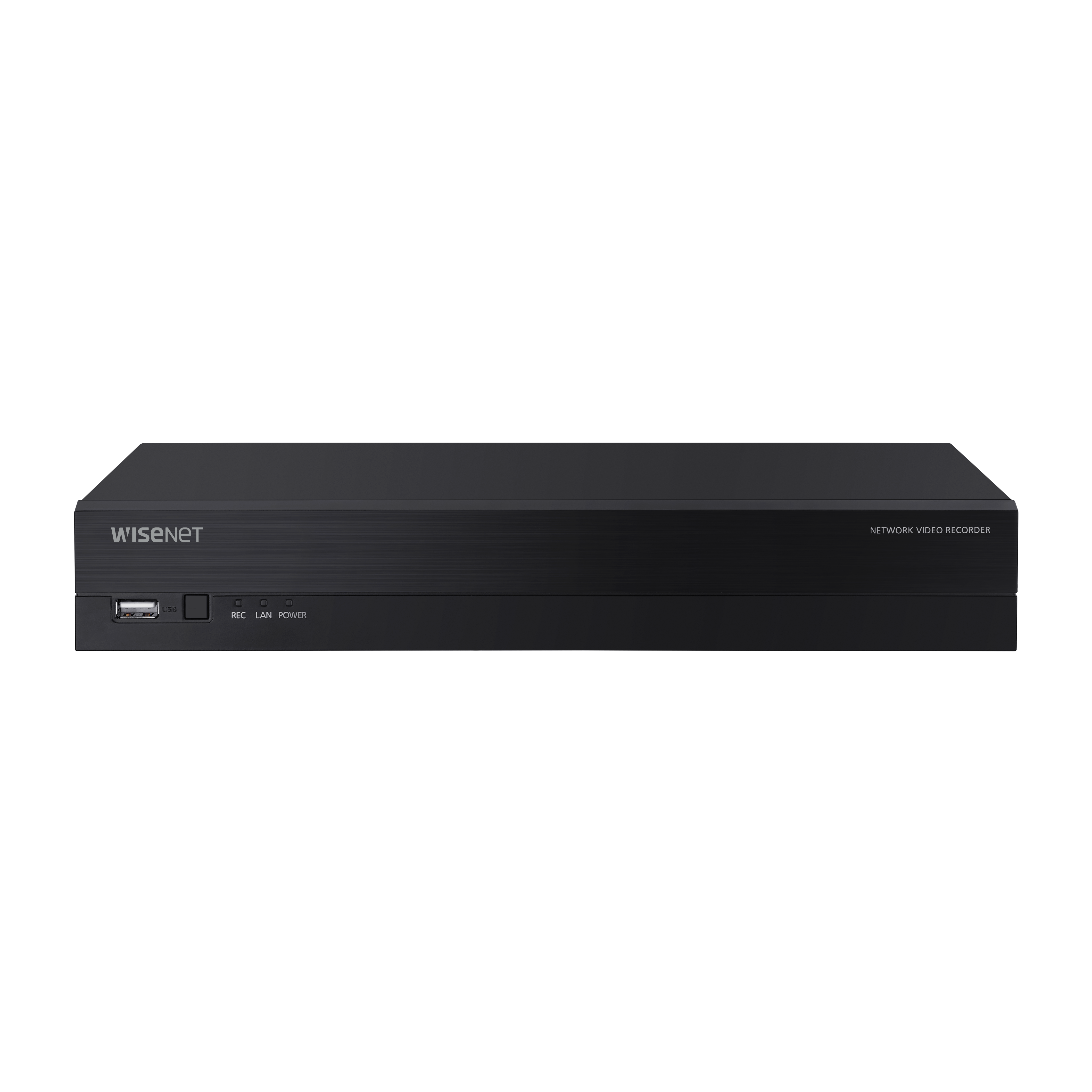

The Hanwha ARN-410S is a 4-channel network video recorder from the Wisenet A Series — Hanwha's essential-value NVR range — combining a 4-port built-in PoE switch, H.265 recording, and a single-drive SATA slot into a compact 1U appliance.
The 35W PoE budget powers up to four standard PoE Class 3 IP cameras (single-lens dome, bullet, or turret) directly from the recorder — no separate PoE switch needed.
Recording bandwidth reaches 40Mbps, enough to handle four 8MP H.265 streams simultaneously, with a single SATA slot accepting HDDs up to 6TB for ~60-90 days of continuous retention.
Local viewing is via 4K HDMI monitor output at 3840x2160 30Hz; remote access supports P2P (QR-code onboarding), the Wisenet Mobile app on iOS/Android, and PC/Mac Wisenet Viewer CMS.
N+1 Failover and ARB (Auto Recovery Backup) provide redundancy against network drops.
Compatible with all Hanwha A-series cameras out of the box (plug-and-play provisioning) plus ONVIF Profile S third-party cameras.
Compact 1U chassis, DC-adapter powered.
02Engineering
ARN-410S specifications
- 4-channel NVR supporting cameras up to 8MP resolution
- Built-in 4-port PoE switch (10/100 LAN) + 1 RJ-45 WAN uplink
- 35W PoE budget for camera power delivery
- H.265, H.264, MJPEG compression
- 40Mbps recording bandwidth, 32Mbps playback bandwidth
- Single SATA slot supporting HDDs up to 6TB
- 4K HDMI local monitor output (3840x2160 30Hz)
- SUNAPI + ONVIF Profile S protocol support
- P2P (QR-code) remote setup + Wisenet Mobile iOS/Android app
- N+1 Failover redundancy + ARB (Auto Recovery Backup)
- Compact 1U form factor, 1.03Kg
- 300 PTZ preset positions
- Built-in 4-port PoE switch (10/100 LAN) + 1 RJ-45 WAN uplink
- 35W PoE budget for camera power delivery
- H.265, H.264, MJPEG compression
- 40Mbps recording bandwidth, 32Mbps playback bandwidth
- Single SATA slot supporting HDDs up to 6TB
- 4K HDMI local monitor output (3840x2160 30Hz)
- SUNAPI + ONVIF Profile S protocol support
- P2P (QR-code) remote setup + Wisenet Mobile iOS/Android app
- N+1 Failover redundancy + ARB (Auto Recovery Backup)
- Compact 1U form factor, 1.03Kg
- 300 PTZ preset positions
04Why choose this
Built for the way you actually use the ARN-410S
Plug-and-Play With Hanwha A-Series Cameras
Hanwha A-series IP cameras are provisioned automatically when plugged into the built-in PoE ports — no manual IP assignment, no protocol configuration, no VMS setup dance. Small integrators can get a 4-camera system operational inside an hour rather than a morning.
Native Australian Commercial Retention
A 6TB HDD delivering 60-90 days of continuous 8MP H.265 recording covers most Australian commercial site compliance windows without recycling policies. On dial-up compliance requirements (e.g., certain aged care standards), that headroom matters.
Straightforward Remote Access via P2P
Scan the QR code with the Wisenet Mobile app and remote access is live — no port forwarding, no dynamic DNS, no public IP requirement. Small business operators who don't want IT overhead can manage the system from a phone.
05Where it fits
Right at home in these scenarios
Small Retail Storefront
4 channels cover front kerb, entrance, till point and back door — the standard 4-camera coverage pattern for small retail with one appliance and one power cable.
Home Office & Residential
Front door, side gate, garage and back yard on one integrated NVR + PoE switch — no separate power adapters at each camera location.
Cafes & Small Hospitality
Kitchen, service counter, dining area and cash till on a compact 1U appliance that fits under a counter or in a small comms cupboard.
Small Warehouse or Workshop
Perimeter door, loading bay approach, main aisle and stock area — the 40Mbps recording bandwidth handles four 8MP streams for detailed after-hours forensic capability.
Petrol Station Forecourt
Four cardinal cameras: forecourt canopy, pump islands, till counter and kerb — 60-90 day retention at 6TB covers the typical AFP / insurance evidence window.
06Setup
Installation & setup
-
01
What's in the Box
- Hanwha ARN-410S NVR (no HDD) x 1
- DC Power Adapter x 1
- Mouse x 1
- Quick Start Guide x 1
-
02
Installation Requirements
- Power: DC adapter provided; 54VDC input, max 52W consumption with 1 HDD + PoE fully loaded.
- Storage: 1 x SATA HDD (sold separately) up to 6TB — surveillance-grade recommended (WD Purple, Seagate Skyhawk).
- Rack space: standard 1U depth — fits any 19-inch rack or sits on a shelf; lightweight for wall/shelf mount.

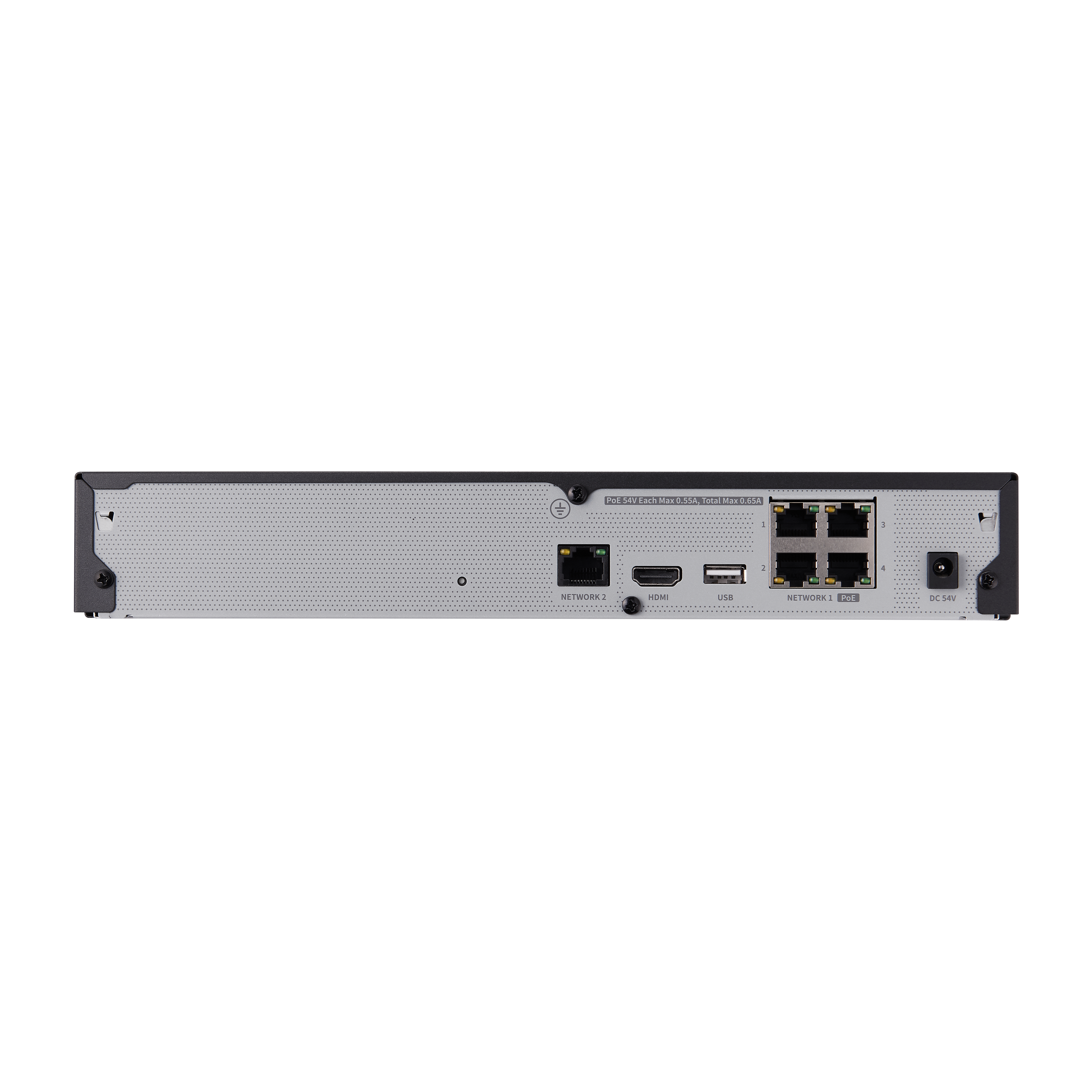

- Network: 4 x PoE ports (10/100) for cameras + 1 x RJ-45 WAN for internet uplink and remote access.
-
03
App & Setup
- Connect HDMI monitor + mouse to the front USB, plug cameras into the 4 PoE ports.
- Follow the on-screen installation wizard; set admin password (brute-force prevention enforced).
- For Hanwha A-series cameras: plug-and-play, they auto-register on the NVR.
- Scan the P2P QR code with Wisenet Mobile on iOS/Android for phone-based live view and playback.
08Questions
Frequently asked about the ARN-410S
Q.01
How many PoE cameras can the built-in switch actually power?
Four standard PoE Class 3 cameras (single-lens dome, bullet, turret) fit inside the 35W PoE budget. If you're deploying higher-draw cameras — long-range IR bullets, PTZ, or multi-sensor — check each camera's PoE consumption and consider using an external PoE+ switch for the higher-power channels.
Q.02
What's the practical difference between this ARN-410S and the 16-channel ARN-1610S?
Channel count and PoE budget. The 410S is the 4-channel version with a 35W budget and a single 6TB drive slot for small sites. The 1610S runs 16 channels with a substantially larger PoE budget and dual drive slots for higher-capacity storage — choose it when you need 16 camera positions or dual-drive redundancy.
Q.03
Does this NVR work with non-Hanwha cameras?
Yes. It supports ONVIF Profile S, so ONVIF-compliant cameras from other manufacturers can be registered and record on this NVR. Plug-and-play auto-provisioning is Hanwha-A-series only; ONVIF cameras need manual registration through the setup wizard.
Q.04
How long can I store recordings on a 6TB drive?
For four 8MP cameras recording 24/7 in H.265, expect roughly 60-90 days of continuous retention on a 6TB drive. Actual retention depends on scene complexity (busier scenes produce higher bitrates) and whether cameras use event-only vs continuous recording modes.
Q.05
Do I need public IP or port forwarding for remote access?
No. The P2P setup (QR-code scan via Wisenet Mobile) establishes remote access through Hanwha's cloud relay service — no public IP, DDNS, or router port forwarding required. Suitable for residential and small-business ADSL/NBN connections behind CGNAT.
Q.06
What compression does it use and how does that affect storage?
H.265, H.264 and MJPEG are supported. H.265 is roughly 50% more efficient than H.264 at similar quality, so the same drive stores about twice the retention time with H.265 versus H.264 — practical difference on 4-camera 8MP continuous recording.
Q.07
What VMS platforms can I use for centralised monitoring?
Wisenet WAVE and SSM are Hanwha's native VMS platforms with full integration. The NVR also exposes SUNAPI (HTTP API) for custom third-party integration and complies with ONVIF Profile S for standard VMS platforms.
