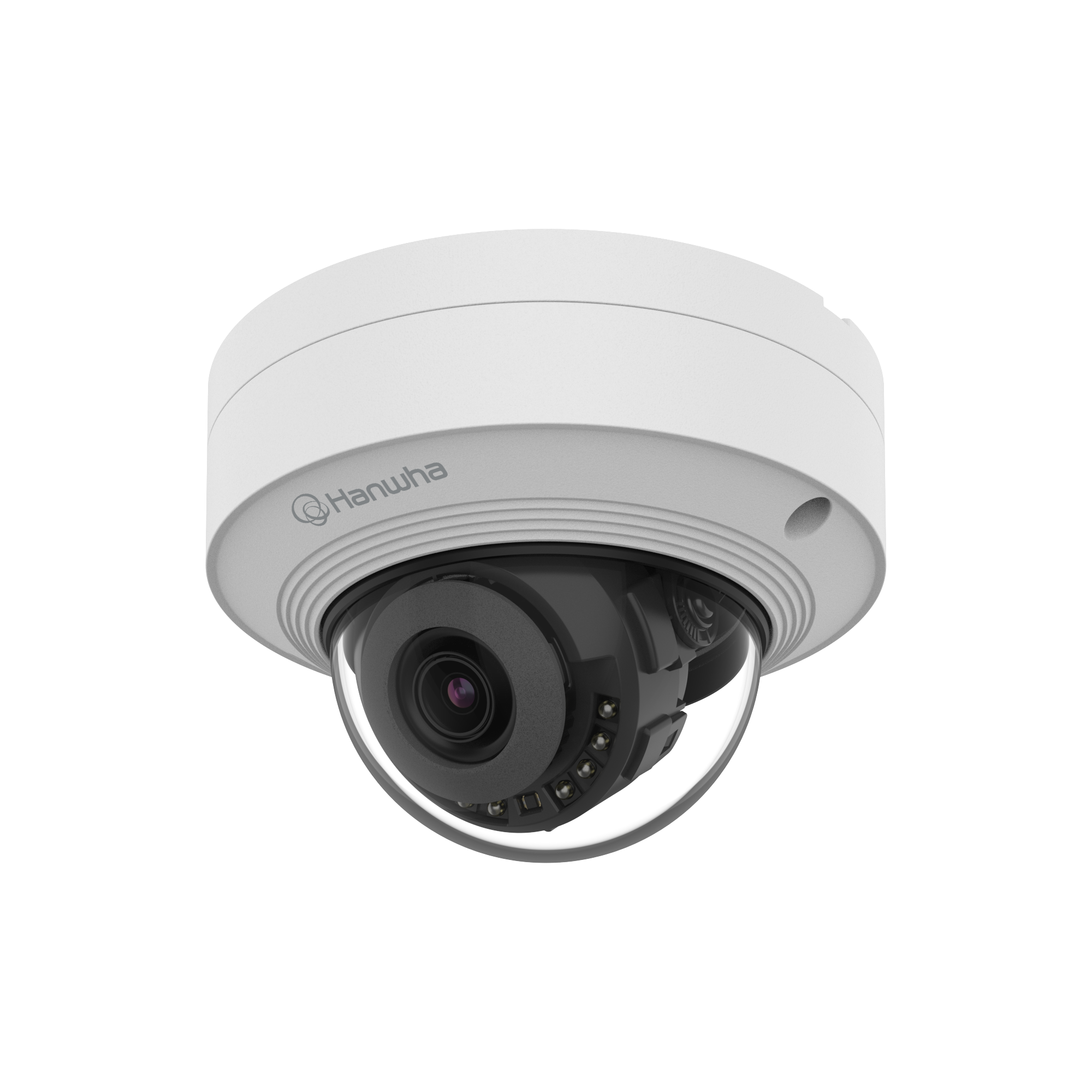

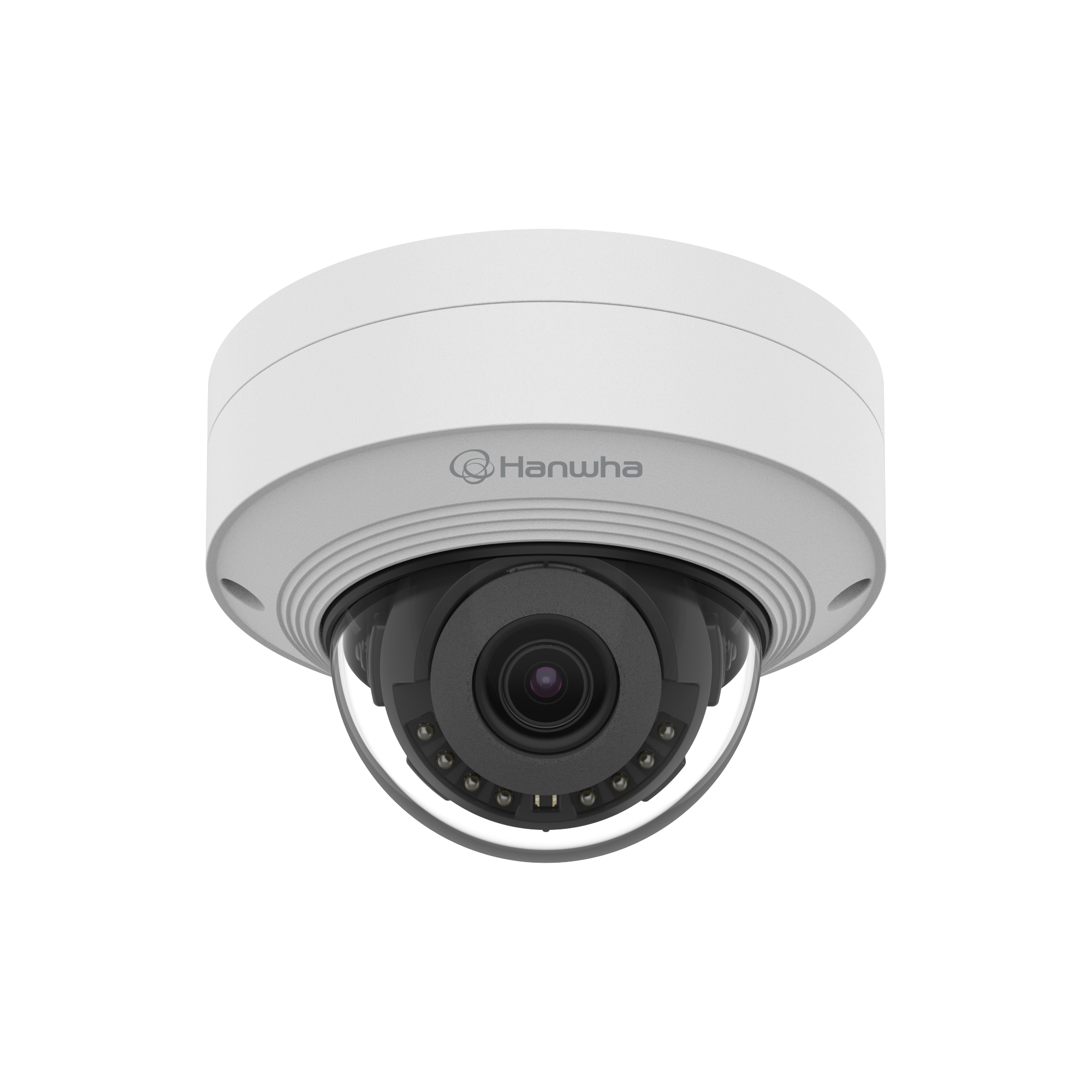

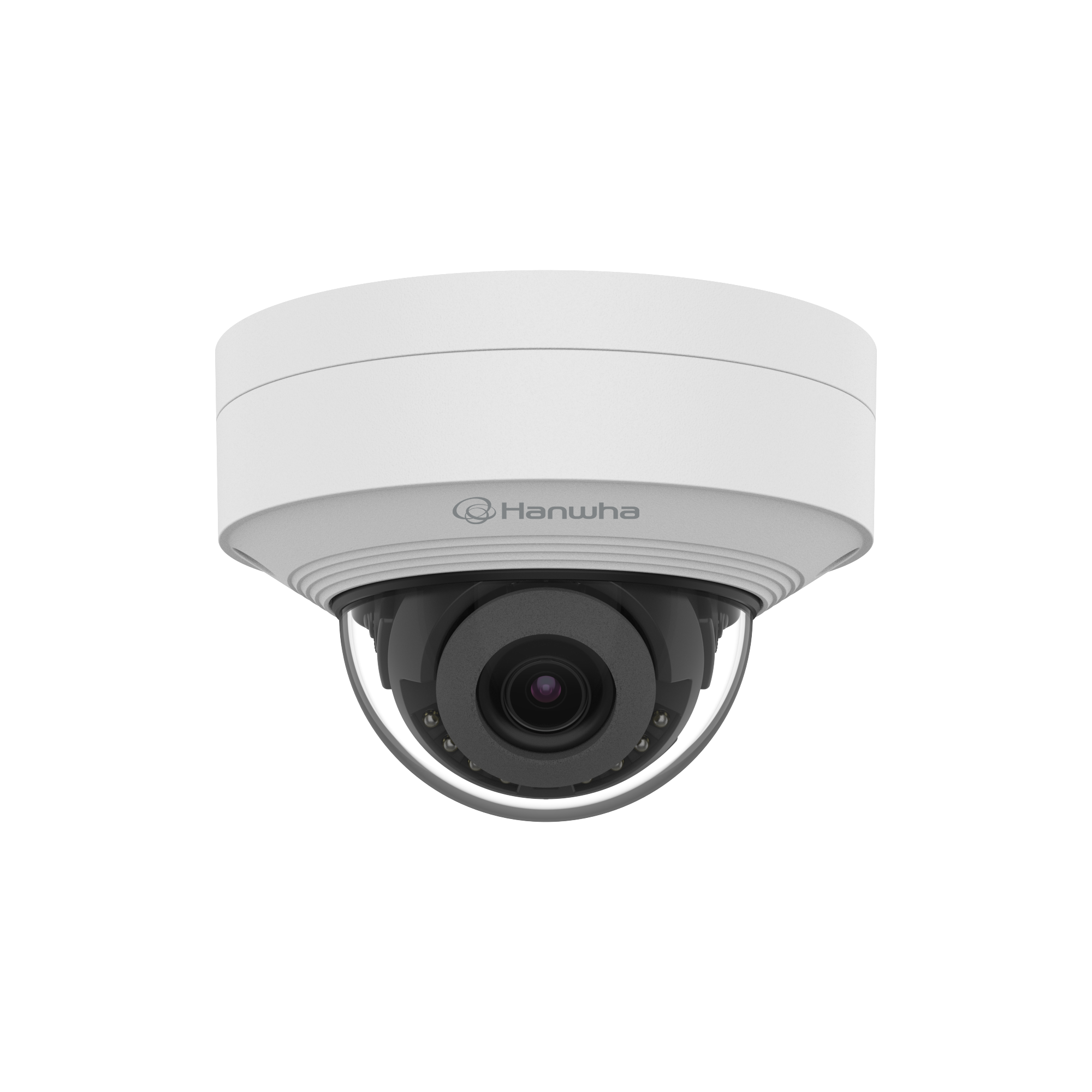

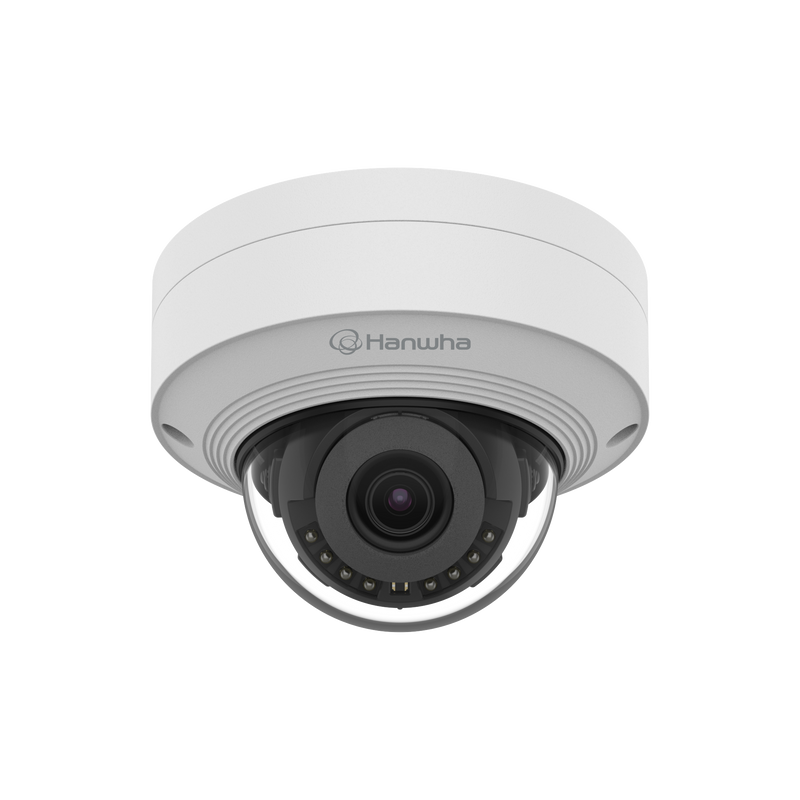

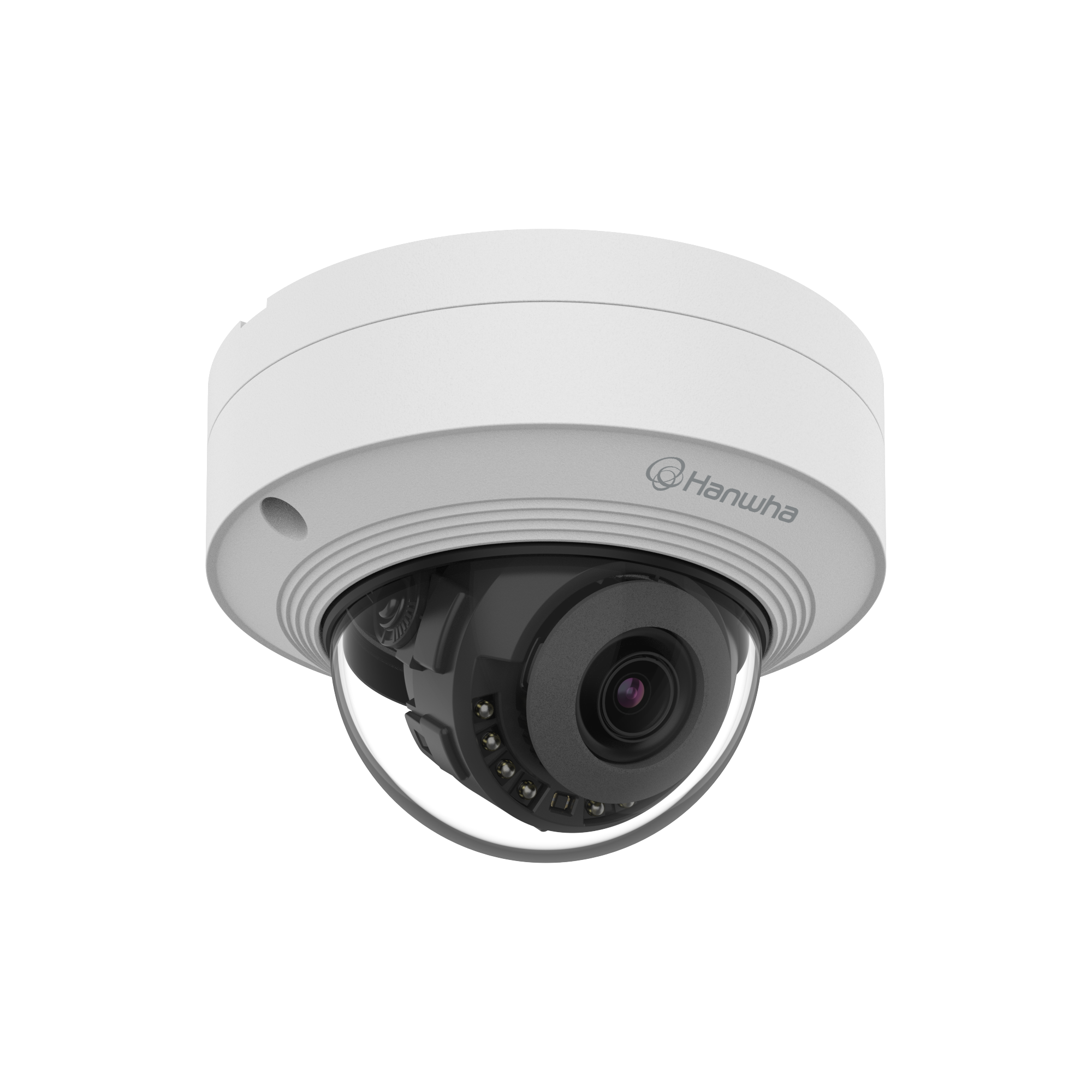

Hanwha QNV-C8011R 5MP AI Vandal Dome 3mm — Person/Vehicle Detect, 20m IR, 120dB WDR, IP66/IK10/NEMA4X
1 4
Hanwha

Hanwha QNV-C8011R 5MP AI Vandal Dome 3mm — Person/Vehicle Detect, 20m IR, 120dB WDR, IP66/IK10/NEMA4X

SKU: QNV-C8011R
Description

- On-Device AI Classification: Distinguishes people and vehicles from general motion — reducing false alerts from wind, shadows, and animals on retail and perimeter sites.
- 5MP Wide Coverage at 3mm: A single dome frames ~100° horizontal — building entrances, walkways, and perimeter walls from one compact mount.
- 120dB WDR + WiseNR II: Preserves detail against strong backlight while WiseNR II cuts sensor noise in low-light scenes.
- IP66 + IK10 + NEMA4X: Adds corrosion resistance to the standard weatherproof + vandal combo — suits coastal, industrial, and publicly accessible outdoor mounts.
$523.05 AUD $523.05 AUD $539.21 AUD
Sale 3.0% $16.16 AUD (3.0%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $893.05

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $523.05

§ 01Overview

What the QNV-C8011R is

The Hanwha QNV-C8011R is a 5MP AI outdoor vandal dome camera on the Q-Core platform, built for building entrances, outdoor walkways, and perimeter walls where a compact tamper-resistant housing meets intelligent detection.

A fixed 3mm lens provides approximately 100° horizontal coverage from a single ceiling or wall mount, capturing 2592x1944 resolution at up to 30fps.

The on-board AI engine classifies detected objects as people or vehicles, supporting virtual line crossing, intrusion detection, and motion detection — shifting alerting from raw motion pixels to semantically meaningful events.

WiseStream III combined with WiseNR II keeps bandwidth and storage demands manageable while preserving low-light image quality.

Built-in IR extends usable coverage to 20m, and 120dB Wide Dynamic Range preserves detail across strongly contrasted scenes.

The IP66, IK10, and NEMA4X-rated housing suits exposed outdoor conditions and publicly accessible mounts including retail entries, apartment common areas, and coastal or industrial installations where salt spray or chemical vapours affect standard IP66 housings over time.

§ 02Engineering

QNV-C8011R specifications

- 5MP resolution (2592x1944) at up to 30fps H.265/H.264
- Fixed 3mm lens, 100° horizontal field of view
- On-device AI person and vehicle classification
- Virtual line crossing, intrusion detection, motion detection
- 120dB Wide Dynamic Range for backlit scenes
- WiseStream III smart codec + WiseNR II noise reduction
- 20m IR viewable length
- H.265, H.264, MJPEG multi-profile streaming
- Q-Core platform for AI-focused deployments
- IP66 / IK10 / NEMA4X housing (weather + vandal + corrosion resistance)
- PoE powered

§ 04Why choose this

Built for the way you actually use the QNV-C8011R

Meaningful Alerts, Not Motion Noise

On-device AI classifies people and vehicles separately from general motion — cutting false triggers from wind-blown vegetation, shadows, and animals that clutter standard motion detection on retail and perimeter sites.

Wide Coverage From One Compact Dome

The 3mm fixed lens frames approximately 100° horizontal — enough for a full building entry, walkway, or perimeter wall section from one ceiling or soffit mount without needing a second unit.

Storage-Friendly Under WiseStream III

WiseStream III with H.265 dynamically adjusts bitrate to scene activity, protecting shared NVR storage on multi-camera deployments while WiseNR II keeps low-light detail from sensor noise.

Corrosion-Rated for Coastal and Industrial Sites

The NEMA4X rating adds corrosion resistance to the standard IP66/IK10 combination — practically relevant on Australian coastal properties or industrial installations where salt spray or chemical vapours reduce plain IP66 housing life.

§ 05Where it fits

Right at home in these scenarios

Retail Entry Points and POS Perimeters

AI person/vehicle classification filters out shadow flicker and shopfront reflections, generating alerts only on real people entering the area. 120dB WDR keeps detail readable against Australian shopfront glazing during peak trading.

Apartment Common Areas and Building Entrances

Compact vandal dome sits flush against ceilings and soffits in strata foyers, lift lobbies, and mailrooms. IK10 impact rating handles publicly accessible mounts where deliberate interference is a considered risk.

Coastal Property Perimeters

NEMA4X corrosion resistance materially extends housing life on properties near ocean spray or bushland with salt-heavy air, where plain IP66 domes show corrosion damage within 2-3 years.

Small Industrial Sites and Loading Areas

Virtual line crossing and intrusion zones flag people entering restricted areas after hours, reducing operator review time compared to reviewing raw motion clips from a shift.

§ 06Setup

Installation & setup

01

What is in the Box

1. Hanwha QNV-C8011R Camera x 1 2. Mounting Screws & Anchors x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE — verify PoE switch/injector budget when adding multiple AI-enabled cameras. 2. Mounting: ceiling, soffit, or wall — Q-Core AI vandal dome housing. 3. Sealing: preserve the IP66/NEMA4X rating by sealing all conduit and cable entries. 4. Network: allow the camera to reach an NTP source for accurate AI event timestamps.

03

App/Software Setup

1. Access via web viewer, or add to Hanwha Wisenet WAVE or SSM software. 2. Power the camera via PoE and allow it to initialise. 3. Configure AI analytics: draw virtual lines and intrusion zones, enable person/vehicle classification. 4. Confirm AI event alerting into your VMS or notification pipeline before commissioning.

§ 08Questions

Frequently asked about the QNV-C8011R

Q.01

Q: How is the AI different from standard motion detection?
A: Standard motion detection triggers on any pixel change — wind-blown vegetation, shadow flicker, or a passing bird all fire alerts. On-device AI classifies whether the movement is a person or a vehicle before deciding to alert, cutting false triggers substantially on outdoor sites.
Q.02

Q: What field of view does the 3mm lens cover?
A: Approximately 100° horizontal — enough to frame a full building entry, walkway section, or perimeter wall from a single mount. Fixed focal so no remote adjustment is needed post-install.
Q.03

Q: How far does the night vision reach?
A: Built-in IR sustains scene coverage to 20m — appropriate for building entrances, apartment common areas, and short-to-mid perimeter runs.
Q.04

Q: What's NEMA4X and does it matter for me?
A: NEMA4X is a North American rating that adds corrosion resistance on top of the standard IP66/IK10 combination. On Australian coastal properties or industrial sites where salt spray or chemical vapours affect standard IP66 housings, NEMA4X materially extends housing life over 2-5 year deployments.
Q.05

Q: What AI events can the camera detect?
A: Person and vehicle classification, virtual line crossing (with direction), intrusion into a defined zone, and standard motion detection. Configure zones and lines through the web viewer or Wisenet WAVE during commissioning.
Q.06

Q: How does WiseStream III help with storage?
A: WiseStream III dynamically adjusts encoding complexity to scene motion; combined with H.265 it cuts bandwidth demand on quiet scenes. WiseNR II handles sensor noise in low light so IR-lit scenes don't inflate bitrate. On a multi-camera NVR site this is the difference between predictable storage and constant purging.
Q.07

Q: Can this integrate with a third-party NVR or VMS?
A: Yes — the QNV-C8011R supports ONVIF for standard third-party integration. AI-specific events may need vendor-specific integration to surface into third-party VMS alarm workflows; test event forwarding to your recorder before large rollouts.
Q.08

Q: Should I patch the firmware before deployment?
A: Yes. Hanwha has disclosed CVEs affecting Q-family firmware in the past (2023-5037/2023-5038); confirm the camera is running the latest firmware from Hanwha's advisory page as part of commissioning.
