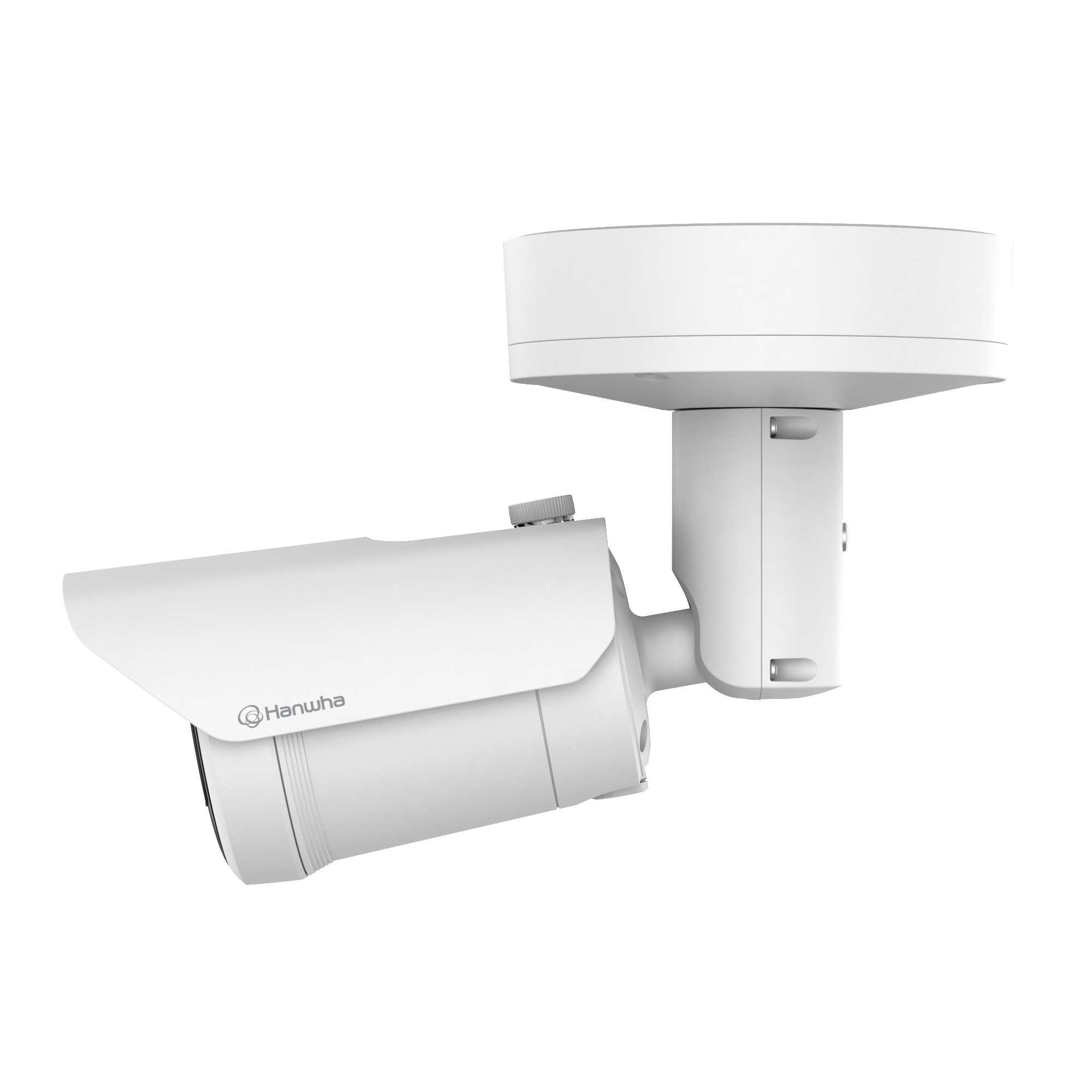

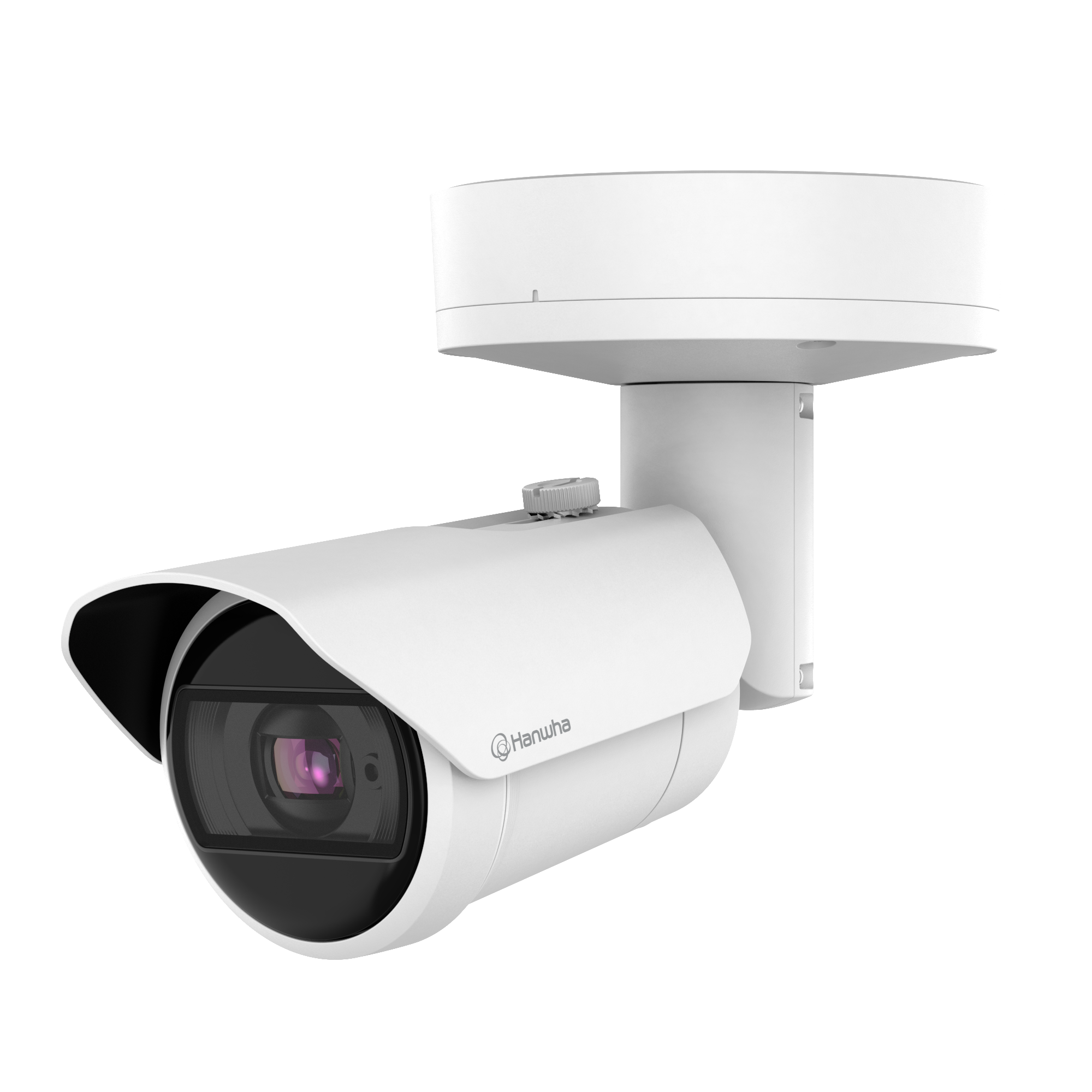

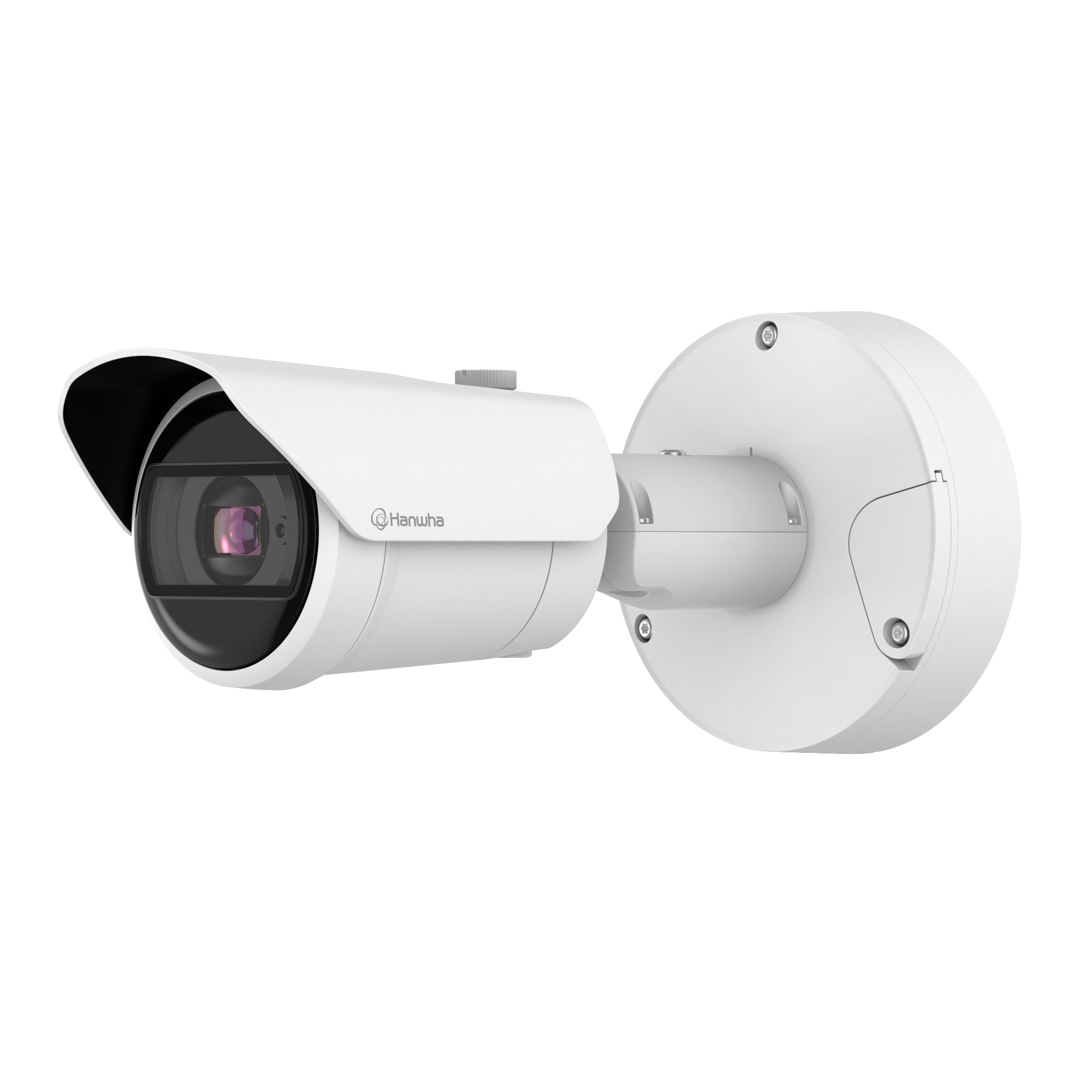

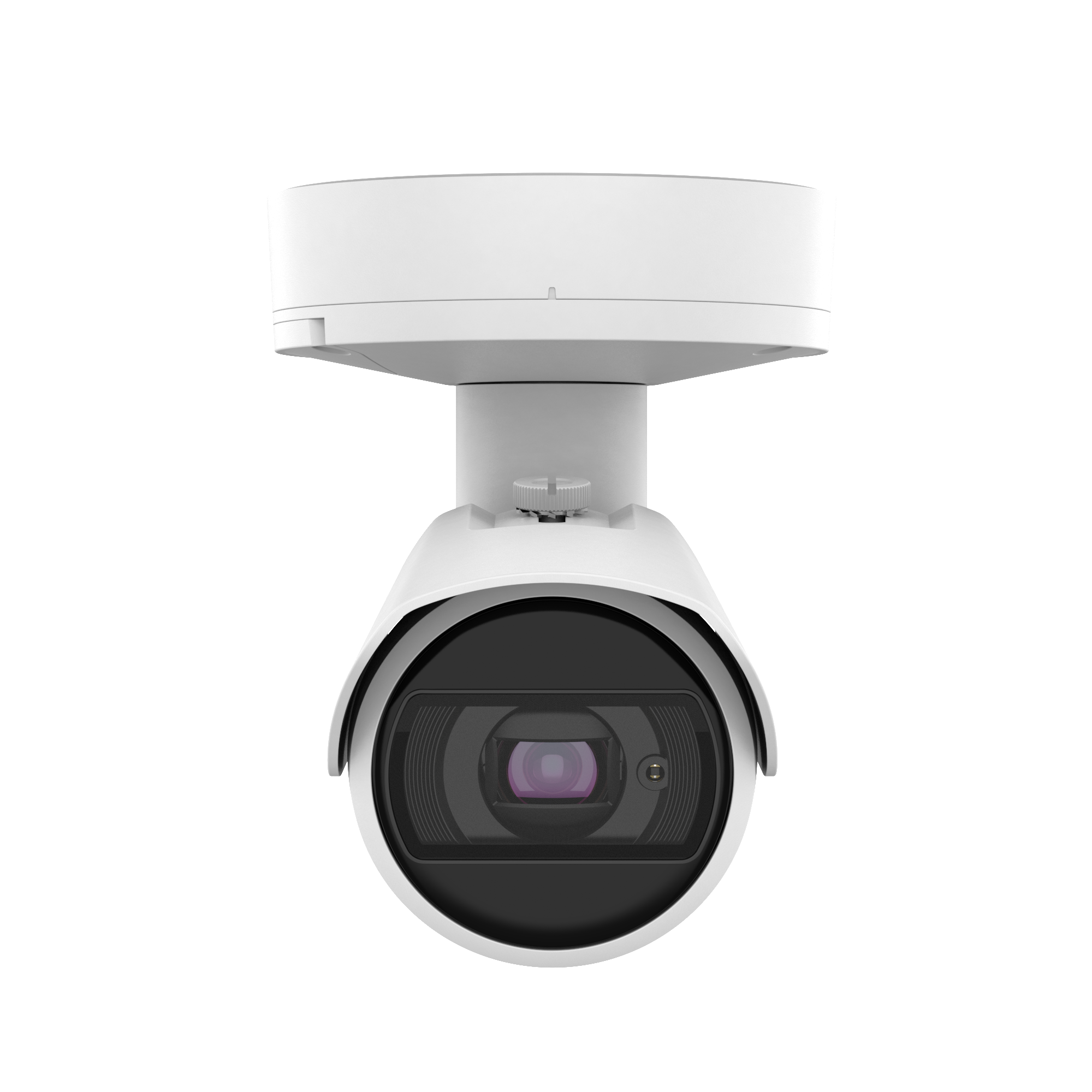

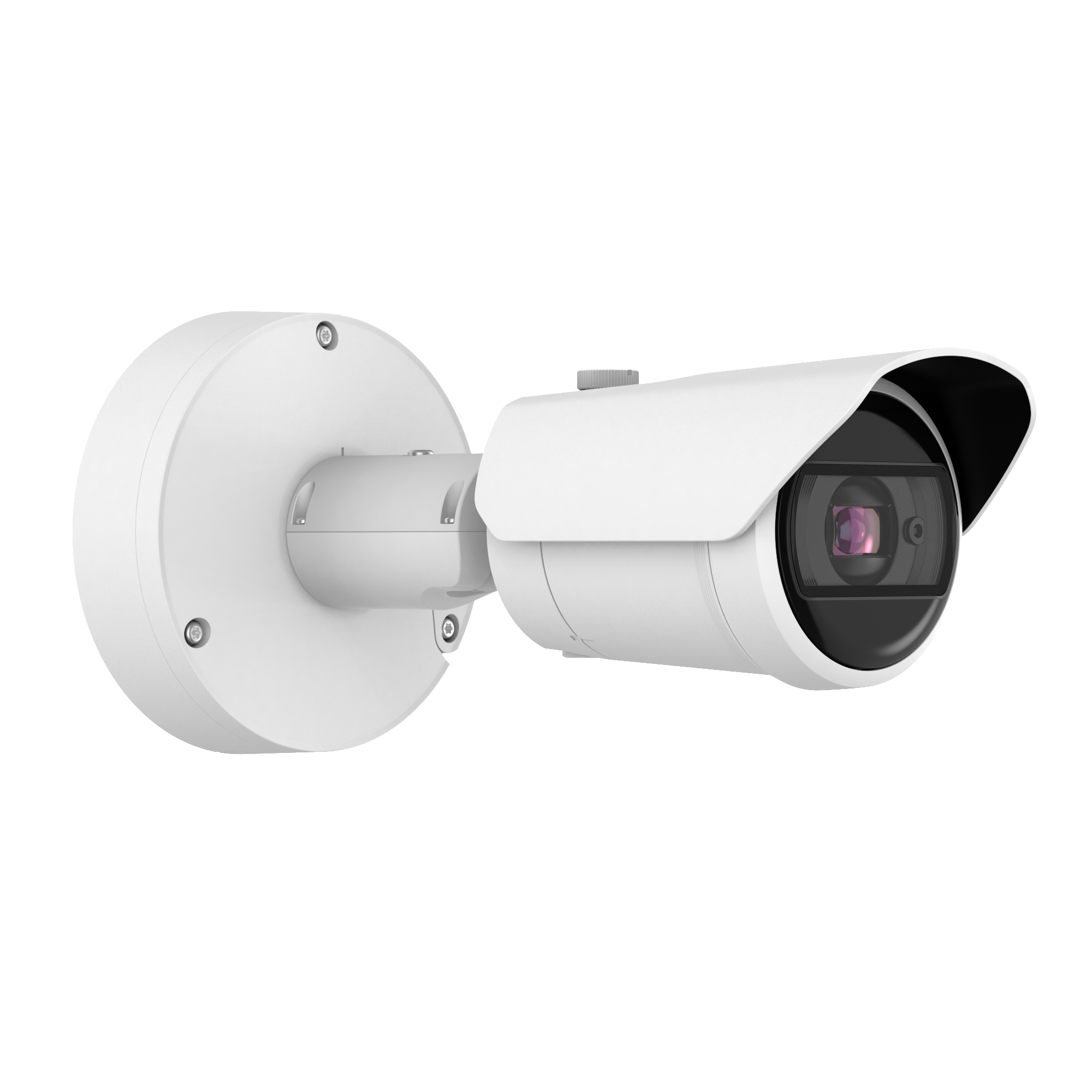

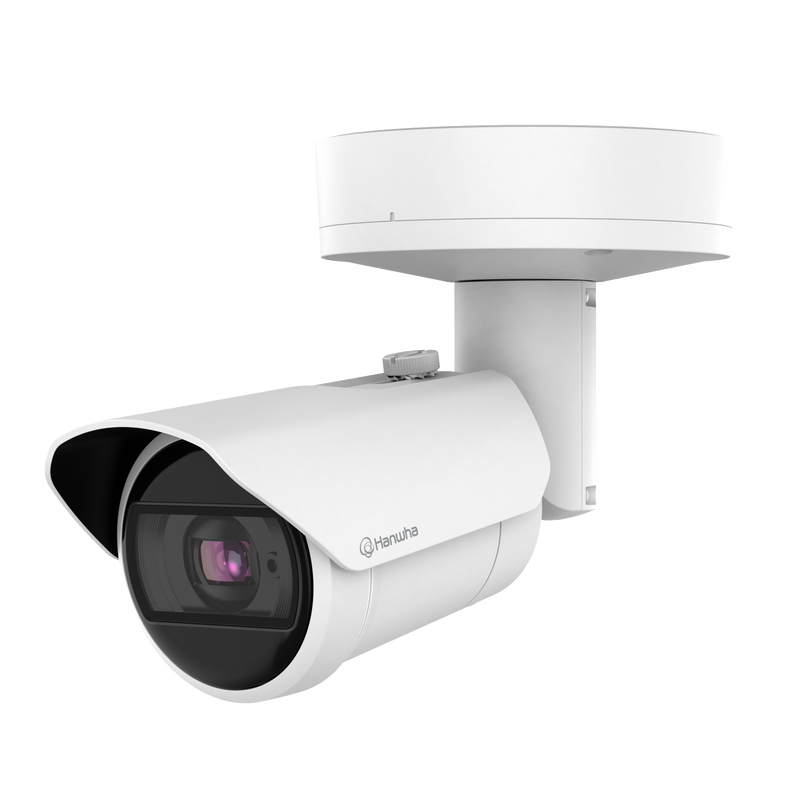

Hanwha XNO-C7083R X-Core 4MP AI IR Outdoor Bullet 2.8-10mm — 40m WiseIR, extremeWDR 120dB, IP66/IP67/IK10/NEMA4X
Hanwha XNO-C7083R X-Core 4MP AI IR Outdoor Bullet 2.8-10mm — 40m WiseIR, extremeWDR 120dB, IP66/IP67/IK10/NEMA4X
Hanwha XNO-C7083R X-Core 4MP AI IR Outdoor Bullet 2.8-10mm — 40m WiseIR, extremeWDR 120dB, IP66/IP67/IK10/NEMA4X
Hanwha XNO-C7083R X-Core 4MP AI IR Outdoor Bullet 2.8-10mm — 40m WiseIR, extremeWDR 120dB, IP66/IP67/IK10/NEMA4X
Hanwha XNO-C7083R X-Core 4MP AI IR Outdoor Bullet 2.8-10mm — 40m WiseIR, extremeWDR 120dB, IP66/IP67/IK10/NEMA4X
Hanwha XNO-C7083R X-Core 4MP AI IR Outdoor Bullet 2.8-10mm — 40m WiseIR, extremeWDR 120dB, IP66/IP67/IK10/NEMA4X
1 5
Hanwha

Hanwha XNO-C7083R X-Core 4MP AI IR Outdoor Bullet 2.8-10mm — 40m WiseIR, extremeWDR 120dB, IP66/IP67/IK10/NEMA4X

SKU: XNO-C7083R
Description

- 4MP AI Bullet With Face + Plate: X-Core AI classification of people, vehicles, faces, and licence plates — meaningful perimeter alerts.
- 4MP Sweet Spot: More detail than 2MP without the 4K storage cost — practical resolution for post-event zoom on perimeter runs.
- 2.8-10mm Motorised Varifocal: Remote framing adjustment from wide gate view to focused approach shot.
- Full Outdoor Environmental Spec: IP66 + IP67 + IK10 + NEMA4X — built for industrial, commercial, and government perimeter deployments.
$1,333.95 AUD $1,333.95 AUD $1,375.22 AUD
Sale 3.0% $41.27 AUD (3.0%)
Member Sign in to save $26.68 on this item — free to join.
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $1,603.40

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
Bundle total: $1,333.95
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the XNO-C7083R is

The Hanwha XNO-C7083R is the 4MP tier of the X-Core AI outdoor bullet family — built on the Wisenet7 platform, combining a 2.8-10mm motorised varifocal lens with on-device AI analytics for perimeter security installations where flexible framing and intelligent object detection are both required.

AI classifies people, vehicles, faces, and licence plates with behavioural analytics covering intrusion, loitering, and line crossing.

Sensor output is 2592x1520 at up to 60fps under H.265, H.264, and MJPEG, with WiseStream III keeping bandwidth manageable at 4MP scale on shared NVR storage across multi-camera perimeter deployments.

WiseIR extends infrared night vision to 40m with balanced illumination, and extremeWDR at 120dB handles high-contrast lighting at entrances and outdoor approaches.

The IP66 + IP67 + IK10 + NEMA4X housing supports exposed wall and pole mounting in industrial, commercial, and government applications where the camera must perform consistently regardless of weather conditions.

4MP resolution is the sweet spot where 2MP loses detail for post-event zoom and 8MP inflates storage — appropriate for perimeter runs, loading bays, and gate coverage where identification-grade detail is needed without the 4K storage premium.

§ 02Engineering

XNO-C7083R specifications

- 4MP resolution (2592x1520) at up to 60fps H.265/H.264
- 1/2" CMOS sensor
- 2.8-10mm motorised varifocal lens
- Wisenet7 platform with X-Core AI
- AI person, vehicle, face, licence plate classification
- Intrusion, loitering, line crossing analytics
- extremeWDR 120dB
- WiseStream III bandwidth optimisation
- WiseIR IR illumination up to 40m
- H.265, H.264, MJPEG codecs
- Outdoor bullet housing
- IP66 + IP67 + IK10 + NEMA4X
- PoE (IEEE 802.3af) powered

§ 04Why choose this

Built for the way you actually use the XNO-C7083R

4MP Sweet Spot for Perimeter Runs

More detail than 2MP for post-event zoom to identify subjects at gate distances, without the 4K storage cost across multi-camera perimeter deployments. Fits industrial and commercial sites where identification matters at scale.

Face + Plate AI On Outdoor Bullet

Full X-Core AI feature set including face and licence plate classification — richer than Q-Core siblings. Supports identification workflows at gated commercial and industrial sites.

Remote Framing Adjustment

The 2.8-10mm varifocal lens dials from wide gate view to focused approach shot without site revisits. Useful when perimeter layout changes or a gate is repositioned.

WiseStream III Storage Efficiency

Keeps 4MP streams manageable on shared NVR storage — practical impact on multi-camera perimeter deployments where 4MP × many channels would otherwise strain storage budgets.

§ 05Where it fits

Right at home in these scenarios

Building Perimeter and Fence Lines

4MP detail supports post-event zoom to identify subjects at fence-line distances; AI classification filters wildlife and wind-blown vegetation false triggers.

Gate and Entry Point Monitoring

Face and plate classification supports vehicle/pedestrian identification at gated commercial sites; the 2.8-10mm varifocal lens dials into specific approach paths.

Loading Docks and Industrial Approaches

IK10 impact resistance handles publicly accessible mounts near loading bays where forklift traffic and casual knocks are risks; 40m IR sustains after-hours coverage.

Government and Institutional Perimeters

Full environmental spec (IP66+IP67+IK10+NEMA4X) suits government and institutional deployments where the camera must perform consistently across all weather conditions.

§ 06Setup

Installation & setup

01

What is in the Box

1. Hanwha XNO-C7083R Camera x 1 2. Mounting Screws & Anchors x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE (IEEE 802.3af). 2. Mounting: wall, pole, or eave — outdoor bullet housing. 3. Sealing: preserve IP66/IP67 rating by sealing all conduit and cable entries.

03

App/Software Setup

1. Access via web viewer, or add to Hanwha Wisenet WAVE or SSM software. 2. Dial in zoom across the 2.8-10mm range. 3. Configure AI analytics: face/plate/person/vehicle classification, intrusion, virtual lines, loitering. 4. Enable WiseStream III + H.265 to keep 4MP storage load manageable.

§ 07Questions

Frequently asked about the XNO-C7083R

Q.01

Q: How is this different from the XNO-C6083R sibling?
A: The C7083R is 4MP; the C6083R is 2MP. Both same X-Core AI feature set. Trade-off: the 2MP C6083R has extremeWDR 150dB (top of Hanwha range); the 4MP C7083R runs 120dB WDR. Pick C7083R when 4MP identification detail matters; pick C6083R when extreme backlight scenes matter more than resolution.
Q.02

Q: Why 4MP instead of 2MP or 8MP?
A: 4MP is the sweet spot — more usable detail for post-event zoom than 2MP, without inflating storage the way 8MP does across multi-camera perimeter deployments.
Q.03

Q: What AI events can this detect?
A: Person, vehicle, face, and licence plate classification, plus intrusion, loitering, and line crossing. Configure through web viewer or Wisenet WAVE.
Q.04

Q: What field of view can I dial in?
A: The 2.8-10mm motorised varifocal lens covers wide gate view at 2.8mm to focused approach shot at 10mm. Adjust remotely from web viewer.
Q.05

Q: How far does WiseIR reach?
A: Approximately 40m — appropriate for medium-length perimeter runs, gate approaches, and loading bay coverage.
Q.06

Q: Is the housing suitable for coastal or industrial sites?
A: Yes — NEMA4X corrosion resistance materially extends housing life on coastal properties and industrial-chemical sites where standard IP66 housings show corrosion damage within 2-3 years.
Q.07

Q: Can this integrate with third-party VMS?
A: Yes — supports ONVIF. For AI-specific event forwarding, test event delivery to your recorder before large rollouts.
