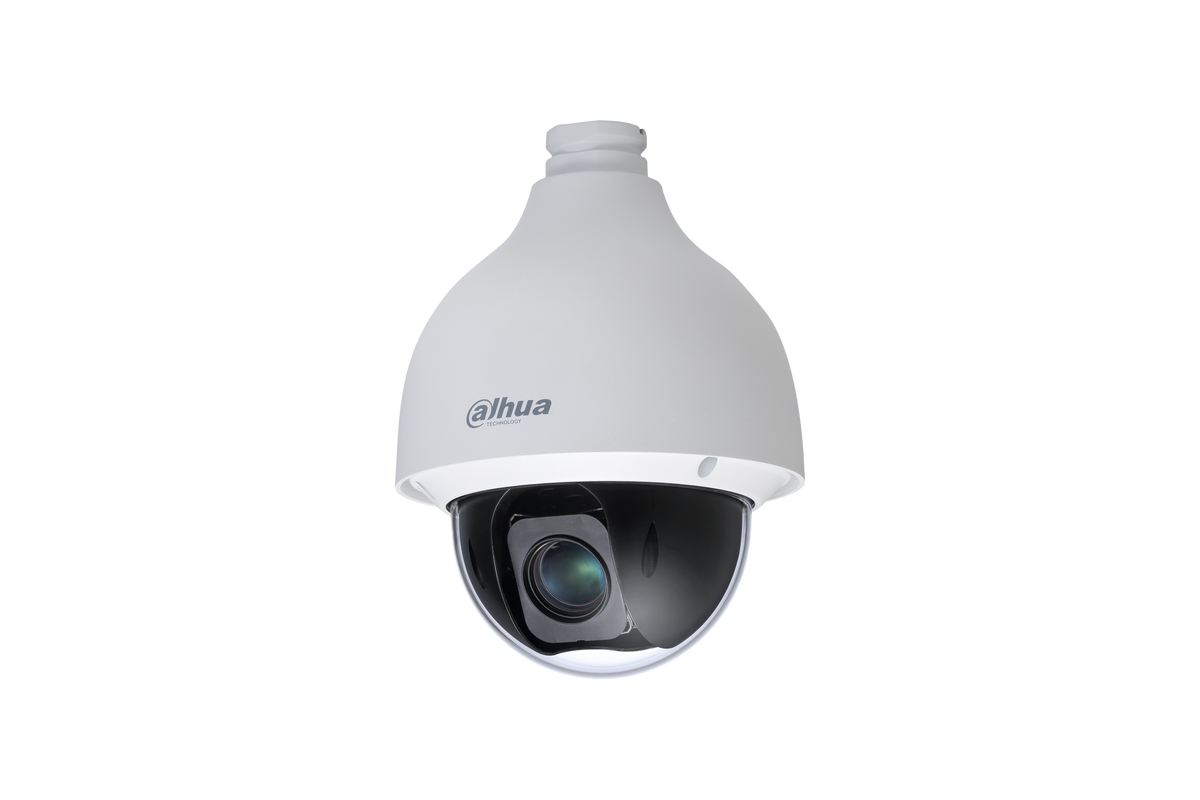

Dahua DH-SD50225DB-HC 2MP 25× HDCVI PTZ
SKU: DH-SD50225DB-HC
Description
Dahua DH-SD50225DB-HC gives a compatible coaxial system a movable 1080p view with 25× optical zoom. The 4.8–120mm lens helps an operator frame a particular area without changing the mounting position.
Regular price
$560.00 AUD
Sale price
$560.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Dahua DH-SD50225DB-HC 2MP 25× HDCVI PTZ
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DH-SD50225DB-HC is
Dahua DH-SD50225DB-HC gives a compatible coaxial system a movable 1080p view with 25× optical zoom. The 4.8–120mm lens helps an operator frame a particular area without changing the mounting position.
The dome supports 120dB WDR, 300 presets and eight tours. Its IP67 and IK10 ratings support installations that need both weather protection and impact resistance.
Supply 24V DC and verify the recorder video and control settings. External audio and alarm connections allow integration with suitable site hardware; plan lighting around the scene rather than assuming a built-in IR range.
02Engineering
DH-SD50225DB-HC specifications
Dahua DH-SD50225DB-HC — Resolution: 2 MP
Video: 2 MP; 1920 × 1080 at 25/30 fps
Optical zoom: 25×; 4.8–120 mm lens
Wide dynamic range: 120 dB
Preset functions: 300 presets; eight tours
Control: Coaxial control and RS-485
Audio: One external line input
Alarm connections: Two inputs and one output
Video: 2 MP; 1920 × 1080 at 25/30 fps
Optical zoom: 25×; 4.8–120 mm lens
Wide dynamic range: 120 dB
Preset functions: 300 presets; eight tours
Control: Coaxial control and RS-485
Audio: One external line input
Alarm connections: Two inputs and one output
03Full datasheet
Detailed specifications
Specification
| Feature | Detail |
|---|---|
| Resolution | 2 MP |
| Video | 2 MP; 1920 × 1080 at 25/30 fps |
| Optical zoom | 25×; 4.8–120 mm lens |
| Wide dynamic range | 120 dB |
| Preset functions | 300 presets; eight tours |
| Control | Coaxial control and RS-485 |
| Audio | One external line input |
| Alarm connections | Two inputs and one output |
| Power | 24 VDC, 2.5 A; maximum 14 W |
| Protection | IP67 and IK10 |
| Net weight | 2.5 kg |
| Specification — Resolution | 2 MP |
|---|---|
| Specification — Video | 2 MP; 1920 × 1080 at 25/30 fps |
| Specification — Optical zoom | 25×; 4.8–120 mm lens |
| Specification — Wide dynamic range | 120 dB |
| Specification — Preset functions | 300 presets; eight tours |
| Specification — Control | Coaxial control and RS-485 |
| Specification — Audio | One external line input |
| Specification — Alarm connections | Two inputs and one output |
| Specification — Power | 24 VDC, 2.5 A; maximum 14 W |
| Specification — Protection | IP67 and IK10 |
| Specification — Net weight | 2.5 kg |
04Why choose this
Built for the way you actually use the DH-SD50225DB-HC
Work with changing light
Set exposure and available illumination for the scene, then check footage under the brightest and darkest expected conditions.
Plan a complete system
Check the recorder video format and camera power before upgrading a coaxial installation.
05Where it fits
Right at home in these scenarios
Entrance monitoring
Dahua DH-SD50225DB-HC can monitor an approach to a building. Test the image at the distance where people pause or pass through.
Wide site oversight
Use stored viewing positions to move between areas of interest. A moving camera records its current direction, so plan fixed views for continuous coverage.
Day and night recording
Review sample footage at the intended mounting height. Reflections, surrounding lighting and target movement all affect the usable image.
06Setup
Installation & setup
-
01
Plan connections
Dahua DH-SD50225DB-HC requires a compatible coaxial video recorder and the specified external power supply.
-
02
Position and secure
Choose a fixing surface suited to the camera weight. Protect cable entries and follow the mounting and sealing instructions for the housing.
-
03
Commission the recording
Set the supported resolution and frame rate, confirm the camera view and test playback. Configure only the event and audio functions required by the site.
