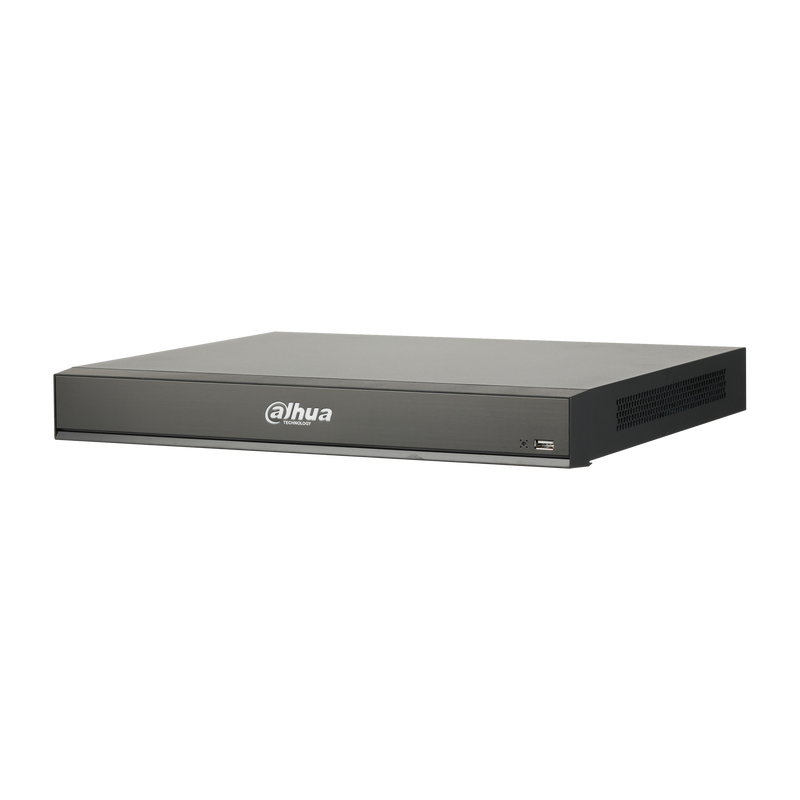

Dahua DHI-NVR5216-16P-I-4TB 16Channel 1U 16PoE AI Network Video Recorder with 4TB Installed
- 16 channel access: supports 16 IP video inputs
- H.265+ compression: ensures efficient video storage
- AI capabilities: includes face recognition and ANPR
- Perimeter protection: secures up to 16 channels
- Face processing: handles 24 faces per second
- 4TB preinstalled: includes installed surveillance HDD
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $2,787.45
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Dahua 16 channel H 265+ AI Series network video recorder powers Australia's CCTV systems
This PoE NVR handles recording up to 16MP resolution with 320Mbps input using 16 integrated PoE ports
The Dahua NVR Australia model includes a 4TB surveillance HDD preinstalled and supports advanced AI like facial recognition
It enables perimeter protection face capture people counting ANPR and processes up to 24 face pictures per second
§ 02Engineering
Technical specifications
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG, reducing bandwidth and storage needs
- Up to 16 Channel perimeter protection, automates intruder alerts around your property
- Up to 4 Channel video stream face recognition, identifies people in up to 4 live streams
- Up to 24 face pictures /sec processing, delivers rapid real-time facial analysis
- Up to 20 face databases with 100,000 face images in total, supports large-scale identification systems
- 1-8 PoE Ports support ePoE & EoC, enables flexible long-distance camera connections over cable
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|
Lens & Distance
| Feature | Detail |
|---|
Night Vision
| Feature | Detail |
|---|
Video
| Feature | Detail |
|---|---|
| IP Camera Input | 16 Channel |
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA |
| Display Interface | 1 HDMI, 1 VGA |
| Display Resolution | HDMI/VGA: 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768 |
| Decoding Capability | 4-ch@8MP(30fps), 16-ch@1080P(30fps) |
| Multi-screen Display | 1/4/8/9/16 |
| Bandwidth | 320Mbps (160Mbps when AI function enabled) |
| Compression | Smart H.265+/H.265/Smart H.264+/H.264/MJPEG |
| Resolution | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P, D1 etc. |
| Record Mode | Manual, Schedule (Continuous, MD(Motion Detection) , Alarm, IVS) |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
Audio
| Feature | Detail |
|---|
AI & Deep Learning
| Feature | Detail |
|---|---|
| Perimeter Protection Performance | 16 channel, 10 IVS rules for each channel |
| Object classification | Human/Vehicle secondary recognition for tripwire and intrusion |
| Perimeter Protection AI Search | Search by target classification (Human, Vehicle) |
| Face Recognition Performance | Max 24 face pictures /sec processing (modeling and comparing) | 4 channel video stream face recognition / 16 channel picture stream face recognition ( with FD camera) |
| Stranger Mode | Detect strangers' faces(not in device's face database). Similarity threshold can be set manually. |
| Face Recognition AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image. |
| Database Management | Up to 20 face databases with 100,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture. |
| Database Application | Each database can be applied to video channels independently. |
| Trigger Events | Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc. |
| Metadata Face | Gender, age, glasses, beard, mask. |
| Metadata Vehicle | Vehicle color, vehicle model, vehicle logo, plate color, vehicle decorations, call, seatbelt. |
| Metadata Human Body | Tops style,tops color,bottom style,bottom color, hat, bag. |
| Metadata Non-motor Vehicle | Type, color, people number. |
| Metadata AI Search | Support search target video by metadata. |
Network & Storage
| Feature | Detail |
|---|---|
| Main Processor | Multi-core embedded processor |
| Operating System | Embedded LINUX |
| Third-party Support | Arecont Vision, Airlive, AXIS, Canon, Dynacolor, JVC, LG, Panasonic, Pelco, PSIA, Samsung, Sanyo, Sony, Watchnet and more |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.), P2P |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Internal HDD | 2 SATA III Ports, Up to 8 TB capacity for each HDD (Pre-installed 4TB) |
| eSATA | N/A |
| Sync Playback | 1/4/9/16 |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Backup Mode | USB Device/Network |
Event & Alarm
| Feature | Detail |
|---|---|
| Trigger Events | Alarm Out, Video Push, Email, Recording, PTZ, Tour, Snapshot, Voice Prompt, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Scene Change |
Interface
| Feature | Detail |
|---|---|
| Alarm input | 4 Channel |
| Relay Output | 2 Channel |
| Network Interface | 1 RJ-45 Ports (10/100/1000Mbps) |
| PoE | 16 ports (IEEE802.3af/at); 1-8 ports support ePoE & EoC |
| USB | 2 USB Ports (1 Rear USB 3.0 , 1 Front USB 2.0 ) |
| RS232 | 1 Port, for PC Communication and Keyboard |
| RS485 | 1 Port, for PTZ Control |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | Single, AC100V ~ 240V, 50 ~ 60 Hz |
| Power Consumption | NVR: <16.5W (Without HDD) | PoE: Max 25.5W for single port; 130W total rated power, 80% control for protection |
| Fan | Smart fan, automatically adjust running speed |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Dimensions | 1U, 375mm x 327.3mm x 53mm ; (14.8" x 12.9" x 2.1") |
| Net Weight | 2.70kg (6.0 lb) (without HDD) |
| Gross Weight | 4.00kg (8.8 lb) (without HDD) |
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL 60950-1 |
