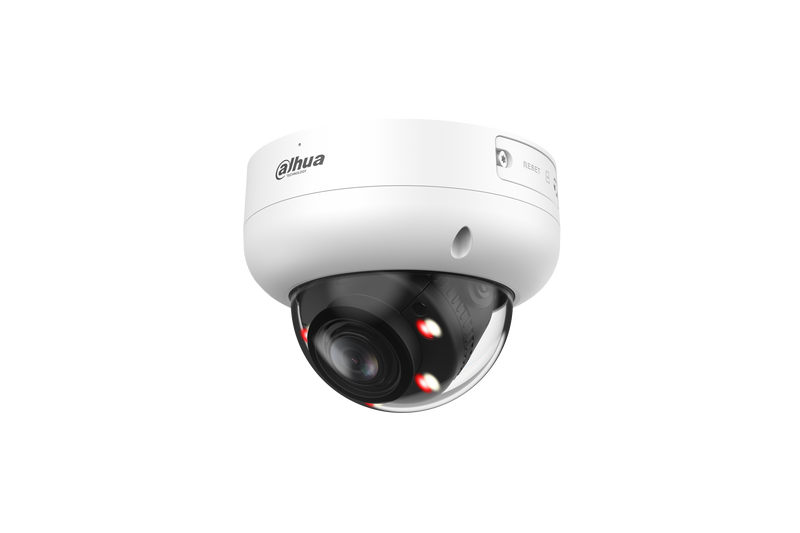

Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ 8MP Smart Dual-Light Vari-focal Dome WizSense Network Camera
Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ 8MP Dual-Light Dome WizSense
1 1
Dahua

Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ 8MP Smart Dual-Light Vari-focal Dome WizSense Network Camera

SKU: DH-IPC-HDBW3867R-ZAS-IL-ANZ
Description

The Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ is an 8 MP (4K) Smart Dual-Light dome with a motorised 2.7-13.5 mm varifocal lens. Its dual illumination switches between warm light for full-colour night footage and infrared for discreet coverage, both reaching up to 50 m. It adds SMD 4.0 human and vehicle classification, a built-in microphone and a tough IP67, IK10 housing.

Key points
- 8 MP (3840 x 2160) 1/2.7" CMOS at up to 25/30 fps
- Motorised 2.7-13.5 mm varifocal lens, remote zoom and focus
- Smart Dual Light: full-colour warm light or infrared, up to 50 m
- SMD 4.0 human and vehicle classification to cut false alarms
- Built-in microphone; audio and alarm I/O on this -ZAS model
- 120 dB WDR; IP67 weatherproof and IK10 vandal resistant
- Powered by PoE (802.3af) or 12 VDC; microSD up to 256 GB
8MP Ultra HD 50m IR Night Vision Full Color Night Vision IP67 Weatherproof Human/Vehicle Detection Built-in Microphone
$369.00 AUD $369.00 AUD $430.00 AUD
Sale 14.19% $61.00 AUD (14.19%)
Member Sign in to save $7.38 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $868.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
Bundle total: $369.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-IPC-HDBW3867R-ZAS-IL-ANZ is

The Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ is an 8 MP 4K dome that brings together a motorised lens and Smart Dual Light night vision.

The 2.7-13.5 mm varifocal lens lets you set the field of view remotely, from a wide overview to a tight long-range shot, and the 3840 x 2160 sensor captures the detail to read faces and plates across a large area.

Smart Dual Light is the standout feature at night.

When the camera detects a target it turns on a warm-light illuminator to record full-colour footage of the event, then switches back to infrared when the scene is clear to stay discreet and reduce light pollution.

Both illuminators reach up to 50 m.

SMD 4.0 classifies human and vehicle targets to cut false alarms, 120 dB WDR handles bright backlight, and a built-in microphone records audio.

This -ZAS model also has audio and alarm input and output terminals.

Two honest notes: it has a built-in microphone but no built-in speaker, so it records audio rather than offering two-way talk on its own; you can wire an external speaker to the audio output if needed.

And while it records full colour at night when the warm light is on, that light activates on detection rather than staying on permanently.

The housing is IP67 and IK10.

Power it from PoE or 12 VDC and record it to a Dahua WizSense NVR.

See it in action

What the DH-IPC-HDBW3867R-ZAS-IL-ANZ features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (1/2)
50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (2/2)

50m IR Night Vision

Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDBW3867R-ZAS-IL-ANZ specifications

- 8 MP 4K (3840 x 2160) 1/2.7" CMOS at up to 25/30 fps
- Motorised 2.7-13.5 mm varifocal lens with remote zoom and focus
- Smart Dual Light: full-colour warm light or infrared, up to 50 m
- SMD 4.0 deep-learning human and vehicle classification
- Built-in microphone; audio and alarm input/output on the -ZAS model
- 120 dB WDR and 3D NR for high-contrast and low-light scenes
- IP67 weatherproof and IK10 vandal resistant
- Powered by PoE or 12 VDC; microSD up to 256 GB; H.265

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua DH-IPC-HDBW3867R-ZAS-IL-ANZ 8MP Smart Dual-Light Vari-focal Dome WizSense Network Camera
FeatureDetail
Image Sensor 1/2.7" CMOS
Max. Resolution 3840 (H) × 2160 (V)
ROM 256 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.007 lux@F1.4 (Color, 30 IRE); 0.0007 lux@F1.4 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio >56 dB
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Image Stabilization Electronic Image Stabilization (EIS)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
AFSA Yes
Image Rotation 0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resoluton and lower)
Mirror Yes
Privacy Masking 8 areas

§ 04Why choose this

Built for the way you actually use the DH-IPC-HDBW3867R-ZAS-IL-ANZ

Full colour when it counts

Smart Dual Light records full-colour footage the moment a target is detected, then returns to infrared to stay discreet.

Set the view remotely

A motorised 2.7-13.5 mm lens adjusts zoom and focus from the software for the exact framing you need.

4K detail with smart alerts

8 MP resolution plus SMD 4.0 human and vehicle classification reads detail and keeps alarms on real threats.

Built to take a hit

An IP67, IK10 dome stands up to weather and tampering in public areas.

§ 05Where it fits

Right at home in these scenarios

Car parks and forecourts

Capture full-colour evidence of vehicles and people on detection, with 4K detail across the area.

Building entrances

Frame a doorway precisely with the motorised lens and record colour footage of arrivals at night.

Retail and hospitality exteriors

Cover entrances and outdoor areas with discreet infrared that turns to colour on activity.

Larger residential properties

Watch a long driveway or boundary with 50 m dual illumination and remote zoom.

§ 06Setup

Installation & setup

01

What's in the box

One DH-IPC-HDBW3867R-ZAS-IL-ANZ 8MP Smart Dual-Light dome camera with mounting template and fixings. The microSD card, power supply or PoE source and any NVR are supplied separately.

02

Installation requirements

Mount it on a wall, eave or ceiling over the area to cover and power it from a PoE switch or NVR or a 12 VDC supply. Connect the network, set the motorised zoom and focus, the Smart Dual Light night behaviour and the SMD perimeter rules in the software, and add it to a Dahua NVR for recording and event search.

§ 07Questions

Frequently asked about the DH-IPC-HDBW3867R-ZAS-IL-ANZ

Q.01

How does Smart Dual Light work at night?
When the camera detects a target it switches on a warm-light illuminator and records full-colour footage of the event. When the scene is clear it returns to infrared to stay discreet and reduce light pollution. Both illuminators reach up to 50 m.
Q.02

Does it record full colour all night?
It records full colour when the warm light is on, but that light activates on detection rather than staying on permanently, which keeps light pollution down. For always-on white light at night a permanent full-colour model would suit better.
Q.03

What does the motorised varifocal lens give me?
The 2.7-13.5 mm motorised lens lets you adjust zoom and focus remotely, so you can set a wide overview or a tight long-range view and fine-tune it without touching the camera.
Q.04

Does it have two-way audio?
It has a built-in microphone that records audio, but no built-in speaker, so it is not a two-way talk camera on its own. The -ZAS model has audio output terminals, so you can wire an external speaker if you need talk-back.
Q.05

How does SMD 4.0 reduce false alarms?
SMD 4.0 classifies human and vehicle targets with deep learning, so motion alarms and perimeter rules trigger on people and cars and ignore animals, rain and moving foliage.
Q.06

Is it tough enough for a public or exposed site?
Yes. It is rated IP67 against dust and heavy rain and IK10 against impact, so it suits car parks, entrances and other exposed or public positions.
Q.07

How is it powered?
It runs on PoE (802.3af) or a 12 VDC supply, so you can power and network it over one cable from a PoE NVR or switch, or use a local 12 VDC source.
Q.08

Which recorder should I pair it with?
Use a Dahua WizSense NVR with enough bandwidth for 8 MP streams so the SMD events are kept for fast search. An 8-channel PoE NVR suits a small 4K install; choose 16 channels for larger sites.

§ 09Bundles

Recommended packages

02

Surface-mount the cabling

Use a DH-PFA137 junction box or a DH-PFB203W wall bracket to route and protect the cable.
