Dahua IPC‑EB5541‑AS | 5 MP WizMind 360° Fisheye PoE Camera – IP67
SKU: DH-IPC-EB5541-AS
Description
- 5 MP Resolution: Delivers 2592x1944 video at 25/30fps with superior low-light performance.
- AI-Powered Analytics: Includes intrusion detection, tripwire, people counting, and heat mapping for real-time insights.
- Robust IP67 & IK10 Design: Features weatherproof metal casing for harsh environments.
- H.265 Compression: Reduces bandwidth and storage demands efficiently.
- Built-in Audio & PoE: Supports audio in/out with microphone and simplifies installation via Power-over-Ethernet.
Regular price
$408.50 AUD
Sale price
$408.50 AUD
Regular price
$450.00 AUD
Sale
9.22%
$41.50 AUD
(9.22%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Dahua IPC‑EB5541‑AS | 5 MP WizMind 360° Fisheye PoE Camera – IP67
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $872.95
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Lens: 2.8mm.
Color options: White or Black.
Note: Please indicate your choice in your order message.

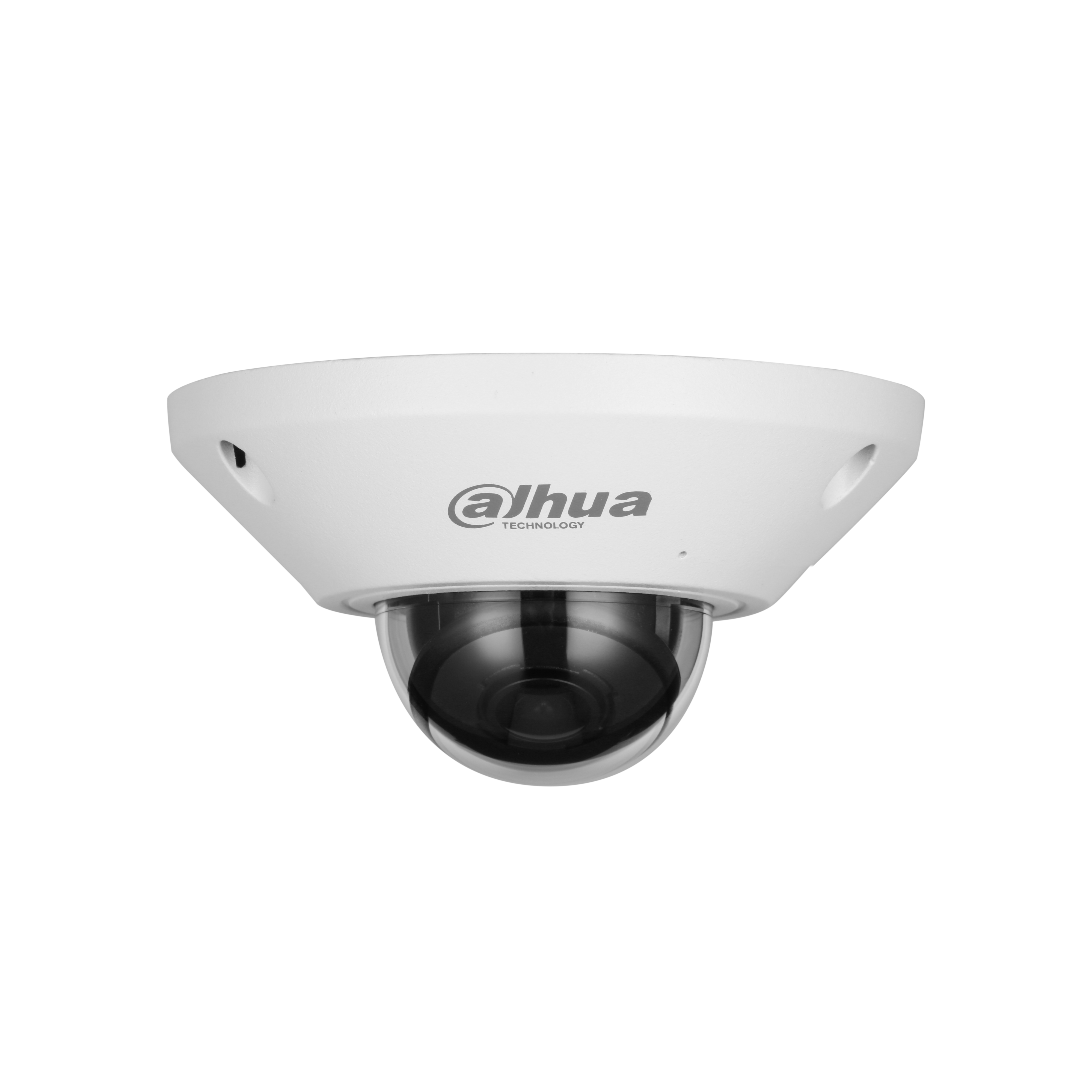

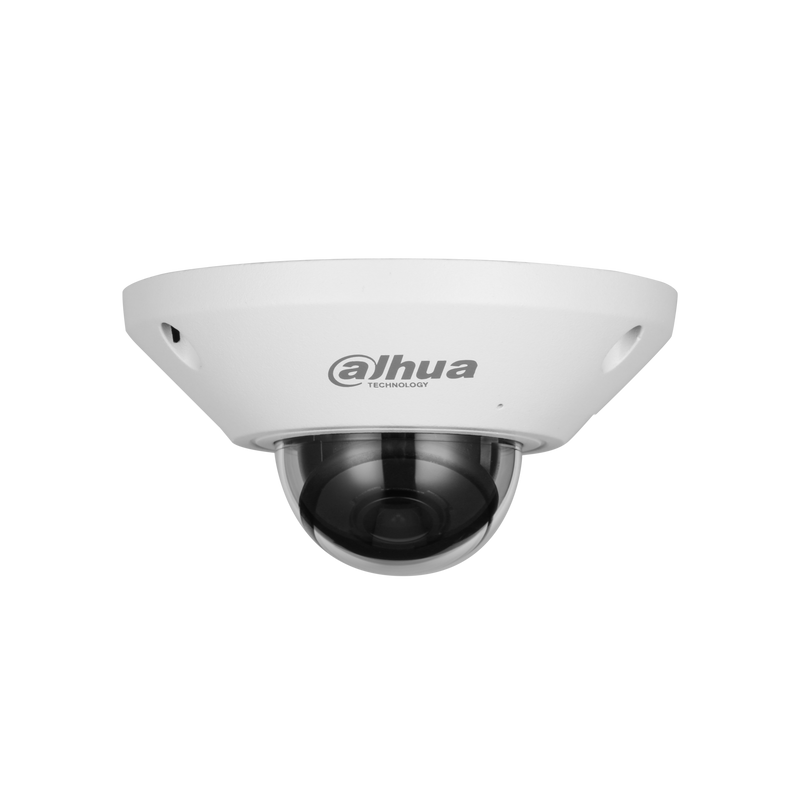

The Dahua IPC-EB5541-AS is a rugged 5 MP fisheye network camera for comprehensive 360° surveillance coverage without blind spots.
Equipped with WizMind AI analytics including line crossing, intrusion detection, people counting, and heat mapping; crystal-clear 2592×1944 video in low light; IP67 and IK10 ratings; H.265 compression; and PoE support.
§ 02Engineering
Technical specifications
- 5 MP Resolution: 2592×1944 @ 25/30 fps for clear imaging
- WizMind AI Analytics: Enables intrusion/tripwire detection, people counting, and heat mapping
- H.265/Smart H.264+: Optimizes bandwidth and storage efficiency
- Exceptional Low-Light: 0.006 lux minimum illumination capability
- True WDR & Image Enhancement: 120 dB WDR, 3D DNR, HLC/BLC for challenging light
- IP67 & IK10 Rating: Weatherproof and vandal-resistant metal casing
- Built-in Mic & Audio I/O: Supports audio monitoring and alarm input/output
- Micro-SD Support: Local storage up to 256 GB
- PoE (Power-over-Ethernet): Simplifies installation and power supply
- WizMind AI Analytics: Enables intrusion/tripwire detection, people counting, and heat mapping
- H.265/Smart H.264+: Optimizes bandwidth and storage efficiency
- Exceptional Low-Light: 0.006 lux minimum illumination capability
- True WDR & Image Enhancement: 120 dB WDR, 3D DNR, HLC/BLC for challenging light
- IP67 & IK10 Rating: Weatherproof and vandal-resistant metal casing
- Built-in Mic & Audio I/O: Supports audio monitoring and alarm input/output
- Micro-SD Support: Local storage up to 256 GB
- PoE (Power-over-Ethernet): Simplifies installation and power supply
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" 5Megapixel progressive CMOS |
| Max. Resolution | 2592 (H) × 1944 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006 Lux@F2.0 (Color, 30IRE); 0.0006 Lux@F2.0 (B/W, 30IRE); 0 Lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 1.4 mm |
| Max. Aperture | F2.0 |
| Field of View | Horizontal: 180°; Vertical: 180°; Diagonal: 180° |
| Iris Type | Fixed |
| Close Focus Distance | 0.2 m (0.7 ft) |
| DORI Distance | Detect 28 m (91.9 ft); Observe 11.2 m (36.7 ft); Recognize 5.6 m (18.4 ft); Identify 2.8 m (9.2 ft) |
| Pan Range | 0°–355° |
| Tilt Range | 0°–55° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream (2592 × 1944 @1–25/30 fps); sub stream (704 × 576 @1–25 fps/704 × 480 @1–30 fps); third stream (1280 × 720 @1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 5M (2592 × 1944); 3M (2048 × 1536); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G726 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Heat Map | Yes |
| IVS (Perimeter Protection) | Tripwire; intrusion |
| People Counting | Support people counting in area, and displaying and outputting yearly/monthly/daily reports (matching devices are needed); support people counting in 4 areas |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE8, IE9 and IE11; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; service life warning (supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; people counting in area; stay alarm; people counting; people No. exception detection; safety exception |
Interface
| Feature | Detail |
|---|---|
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12V DC/PoE |
| Power Consumption | Basic power consumption: 3.7W (12V DC); 4.7W (PoE) | Max. power consumption (H.265 + intelligent function + WDR): 5.1W (12V DC); 6W (PoE) |
| Operating Conditions | –30°C to +55°C (–22°F to +131°F)/Less than 95% RH |
| Storage Conditions | –40°C to +60°C (–40°F to +140°F) |
| Protection Grade | IP67; IK10 |
| Casing | Metal |
| Dimensions | 62.0 mm × Φ110.0 mm (2.44" × Φ4.3") |
| Net Weight | 387 g (0.9 lb) |
| Gross Weight | 502 g (1.1 lb) |
| Certification | CE-LVD: EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
§ 04Why choose this
Built for the way you actually use it
WizMind AI Analytics
People counting, heatmap generation, and smart detection. More advanced than WizSense cameras.
Multiple Dewarping Modes
Fisheye, panorama, multi-PTZ split, and more. View conventional rectangular images from the fisheye feed.
Built-in Mic + Alarm I/O
Audio recording via integrated mic. Alarm input and output for connecting external sensors.
IP67 Weatherproof
Sealed for outdoor use. Also works well indoors on ceilings.
§ 05Where it fits
Right at home in these scenarios
Small Retail Store
Ceiling-mount in the centre. One camera covers the entire shopfloor. People counting tracks daily foot traffic.
Office or Meeting Room
Full 360° view of the room. Heatmaps can show desk utilisation.
Warehouse or Workshop
Covers the floor from a high point. 5 MP gives enough detail after dewarping.
Car Park or Courtyard
Wall or ceiling mount outdoors. IP67 handles weather. Compact dome shape is discreet.
§ 06Setup
Installation & setup
What's in the Box
1. Dahua DH-IPC-EB5541-AS Camera × 1 2. Mounting Screws & Anchors × 1 set 3. Quick Start Guide × 1
Installation Requirements
1. Power: PoE (IEEE 802.3af) or 12V DC. 2. Cable: Cat5e or Cat6, max 100 m. 3. Mounting: Ceiling (best for 360° view), wall, or desk. Position at the centre of the area. Camera weighs about 600 g. 4. Height: 2.5–4 m for best analytics accuracy.
App Setup
1. Download DMSS app (iOS or Android). Create an account. 2. Power the camera via PoE. Wait about 60 seconds. 3. Add by QR code or serial number. 4. Select dewarping mode. Enable people counting or heatmap in the web interface.
§ 07Questions
Frequently asked
Q.01
How does this compare to the 12 MP fisheye (EBW81242)?
The 12 MP model has higher resolution for larger spaces and more dewarping detail. The 5 MP model is more affordable and uses less bandwidth — fine for small to medium rooms.
Q.02
Does it have IR night vision?
Yes. Built-in IR LEDs provide about 10 m range. Designed for indoor or near-range outdoor use.
Q.03
What is the difference between WizMind and WizSense?
WizMind (5-series and above) has more advanced AI: people counting, heatmaps, face detection. WizSense (3-series) covers basic human/vehicle classification.
Q.04
Does it support microSD?
Yes, up to 256 GB.
Q.05
Can I view dewarped video remotely?
Yes. The DMSS app and NVR handle dewarping. You can switch between views on your phone.
