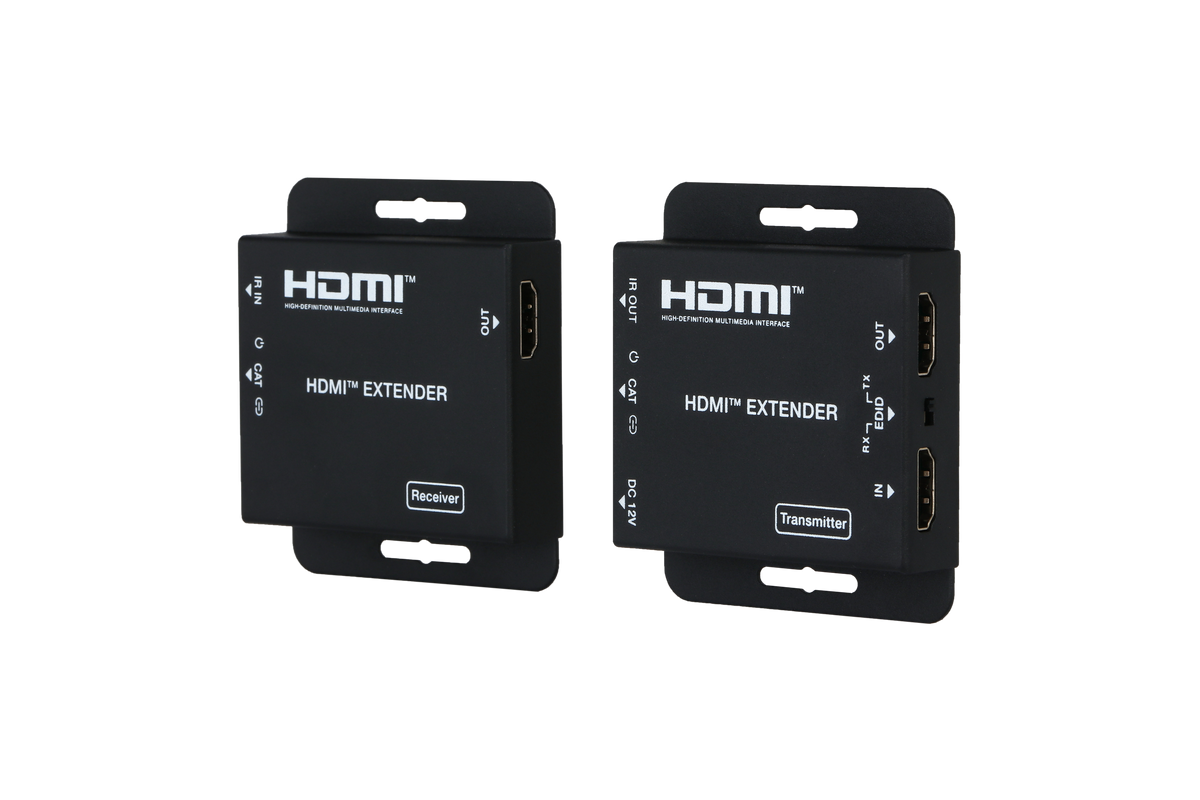

Dahua DH-PFM702 HDMI Extender
1 1
Dahua

Dahua DH-PFM702 HDMI Extender

SKU: DH-PFM702
Description

Dahua DH-PFM702 extends an HDMI source to a remote display over shielded CAT6 cable. The transmitter and receiver support a monitoring display, presentation room or another installation where a direct HDMI cable run is impractical.

$98.00 AUD $98.00 AUD
Black Friday 6% off orders over $1500 $92.12 AUD BEST PRICE
When your order totals $1,500+ — applied automatically at checkout.

Log in to save 3%

Apply for TradePrice Match & BF Price Lock
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns (extended to 15 Jan 2027 for holiday orders) on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Dahua buying guide

01Overview

What the DH-PFM702 is

Dahua DH-PFM702 extends an HDMI source to a remote display over shielded CAT6 cable. The transmitter and receiver support a monitoring display, presentation room or another installation where a direct HDMI cable run is impractical.

Supported distance depends on the video format: up to 40m at 4K/30Hz or 50m at 1080p/60Hz. The transmitter also has an HDMI loop output, with EDID copying from the remote or loop-connected display.

The 12V transmitter supply powers the receiver through the cable using one-way PoC. Plan the display resolution and cable path together; one-way infrared transmission supports control from the remote display position.

02Engineering

DH-PFM702 specifications

Dahua DH-PFM702 — Signal: HDMI 1.4; HDCP 1.4 and DVI 1.0 compatible
4K distance: Up to 40 m at 4K/30 Hz
Full HD distance: Up to 50 m at 1080p/60 Hz
Cable: Shielded CAT6
Local display: HDMI loop output on transmitter
Remote power: One-way PoC from transmitter to receiver
Power: 12 VDC, 1 A
IR: One-way infrared transmission

03Full datasheet

Detailed specifications

Specification

Specification — Dahua DH-PFM702 HDMI Extender
FeatureDetail
Signal HDMI 1.4; HDCP 1.4 and DVI 1.0 compatible
4K distance Up to 40 m at 4K/30 Hz
Full HD distance Up to 50 m at 1080p/60 Hz
Cable Shielded CAT6
Local display HDMI loop output on transmitter
Remote power One-way PoC from transmitter to receiver
Power 12 VDC, 1 A
IR One-way infrared transmission
