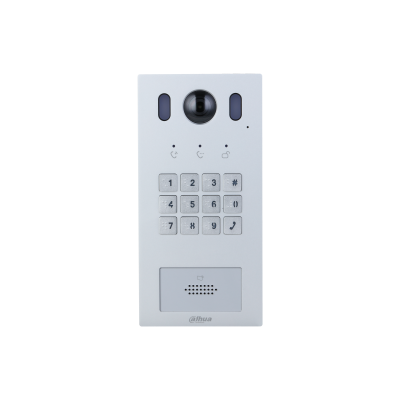

Dahua DHI-VTO3222E-P 2MP Two-Wire IP Villa Door Station
The Dahua DHI-VTO3222E-P is a two-wire IP villa door station with a two-megapixel camera and a mechanical keypad. It supports card, password and remote door release within a compatible intercom system.
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DHI-VTO3222E-P is
Dahua DHI-VTO3222E-P combines a keypad and card reader at the entrance, allowing the access method to be selected for the connected two-wire IP system.
Select the VTO3222E-P configuration for the specified two-wire intercom architecture. Compare the Dahua range for compatible indoor stations and system components, checking the exact interface and firmware combination before ordering.
Choose the required surface or flush-mount box separately. Follow the manufacturer sealing instructions for IP65 installation. If using the 12 V power output to supply a load, the manufacturer requires a suitable IEEE 802.3at PSE switch; check lock load and wiring against the installation guide.
§ 02Engineering
DHI-VTO3222E-P specifications
Communication — Digital two-wire system and 10/100 Mbps RJ45 network port
Access methods — IC card, password and remote release
Capacity — Up to 5000 users and 10000 cards
Power — 48 VDC, 0.4 A or IEEE 802.3af/at PoE
Protection — IK08; IP65 requires silicone sealing as instructed
Panel — Aluminium with mechanical keypad
§ 03Full datasheet
Detailed specifications
Specification
| Feature | Detail |
|---|---|
| Camera | 2 MP CMOS; 140-degree horizontal field of view |
| Communication | Digital two-wire system and 10/100 Mbps RJ45 network port |
| Access methods | IC card, password and remote release |
| Capacity | Up to 5000 users and 10000 cards |
| Power | 48 VDC, 0.4 A or IEEE 802.3af/at PoE |
| Protection | IK08; IP65 requires silicone sealing as instructed |
| Panel | Aluminium with mechanical keypad |
| Dimensions | 200 x 98 x 35.4 mm |
| Mounting | Surface or flush mounting; mounting boxes optional |
| Power output | 12 VDC, 600 mA; IEEE 802.3at PSE required when powering a load |
| Specification — Camera | 2 MP CMOS; 140-degree horizontal field of view |
|---|---|
| Specification — Communication | Digital two-wire system and 10/100 Mbps RJ45 network port |
| Specification — Access methods | IC card, password and remote release |
| Specification — Capacity | Up to 5000 users and 10000 cards |
| Specification — Power | 48 VDC, 0.4 A or IEEE 802.3af/at PoE |
| Specification — Protection | IK08; IP65 requires silicone sealing as instructed |
| Specification — Panel | Aluminium with mechanical keypad |
| Specification — Dimensions | 200 x 98 x 35.4 mm |
| Specification — Mounting | Surface or flush mounting; mounting boxes optional |
| Specification — Power output | 12 VDC, 600 mA; IEEE 802.3at PSE required when powering a load |
§ 08Questions
Frequently asked about the DHI-VTO3222E-P
Q.01
What is the DHI-VTO3222E-P?
Q.02
What is specified for camera?
Q.03
What is specified for communication?
Q.04
What is specified for access methods?
Q.05
What is specified for capacity?
Q.06
What is specified for power?
Q.07
What should I check before ordering?
