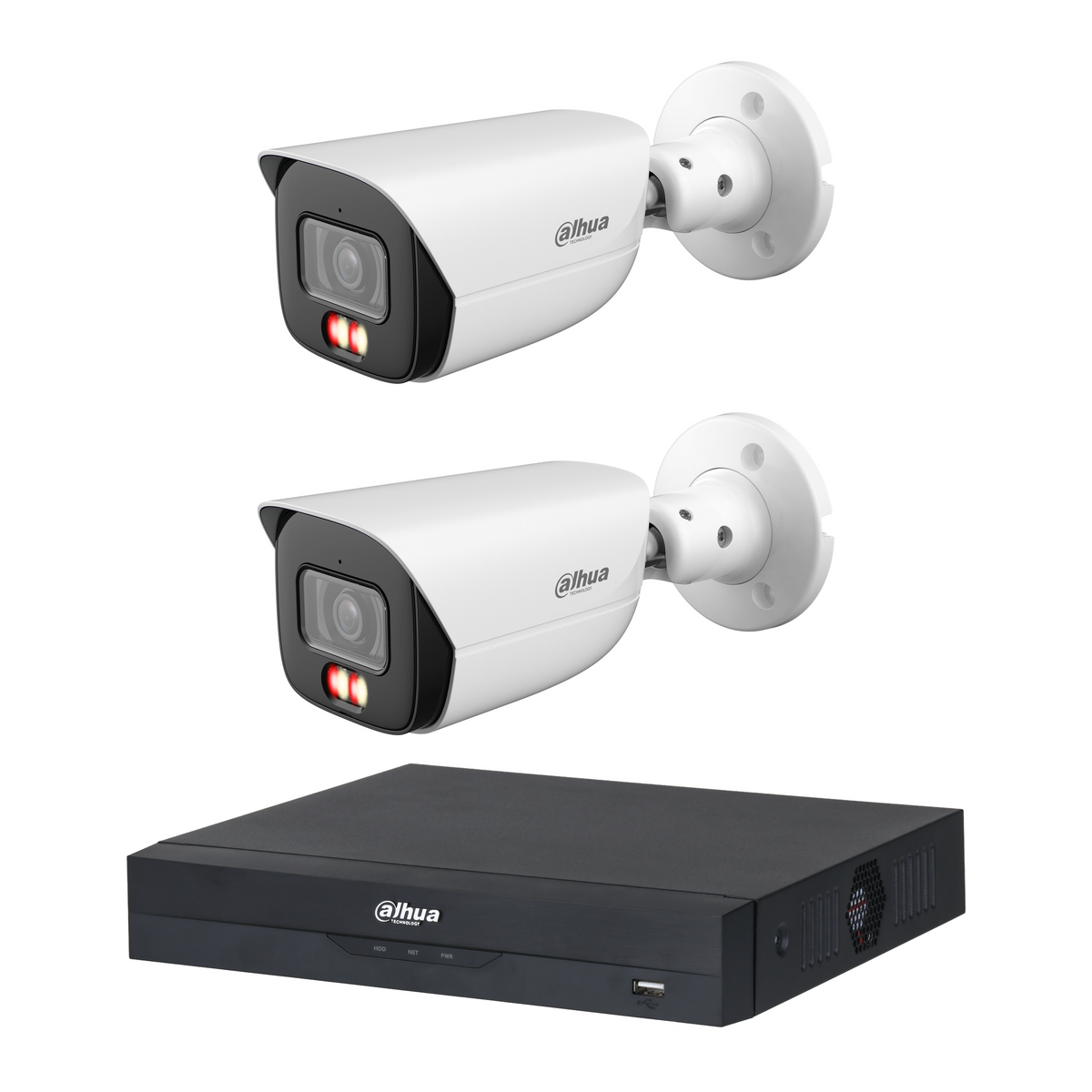

Dahua HFW3867E 2-Camera 8MP CCTV Kit + 4CH PoE NVR, No HDD
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua HFW3867E 2-Camera 8MP CCTV Kit + 4CH PoE NVR, No HDD
SKU: KIT-HFW3867E-2CAM-NVR4104-NOHDD
Description
2 × HFW3867E 8MP Smart Dual Light, supplied in white with 2.8 mm fixed lenses, plus one DHI-NVR4104HS-P-AI/ANZ 4-channel PoE recorder.
Smart Dual Light cameras provide coordinated views across 2 positions. HFW3867E: IR and warm light, each rated up to 30 m.
No HDD included. Surveillance storage, network cabling, microSD cards and optional mounting accessories are separate.
Regular price
$685.02 AUD
Sale price
$685.02 AUD
Regular price
$889.00 AUD
Sale
22.94%
$203.98 AUD
(22.94%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Dahua HFW3867E 2-Camera 8MP CCTV Kit + 4CH PoE NVR, No HDD
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Customize this kit
—
$685.02
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
- 2 × Dahua DH-IPC-HFW3867E-AS-IL-ANZ 8 MP WizSense Smart Dual Light Fixed Bullet 2.8mm / 3.6mm Options, IP67
- 1 × Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder (4ch)
- No HDD included (add one below)
Add extra cameras
DH-IPC-HFW3867E-AS-IL-ANZ
+$0.00
NVR · channels ≥ your total camera count
Base: 4ch · Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder
Add Hard Drive
Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
No hard drive selected
Without a hard drive the system cannot record footage.
01Overview
What the KIT-HFW3867E-2CAM-NVR4104-NOHDD is
Give each access route or activity area its own camera view. This 2-camera kit combines 2 white DH-IPC-HFW3867E-AS-IL-ANZ 8MP bullet cameras and one DHI-NVR4104HS-P-AI/ANZ 4-channel PoE recorder. All supplied camera lenses are 2.8 mm.
HFW3867E (2 included): 8MP 3840 × 2160 at up to 25/30 fps, subject to stream settings; Fixed 2.8 mm lens with 110° horizontal field of view; Smart Dual Light with IR and warm light, each rated up to 30 m; SMD 4.0 and human/vehicle tripwire and intrusion classification; Built-in microphone, 120 dB WDR and IP67 metal bullet housing. Smart Dual Light uses infrared for black-and-white viewing and can enable warm light for a detected target to record that event in colour. Continuous colour depends on lighting mode and available visible light. A built-in microphone captures audio.
The recorder provides 4 camera inputs, 4 built-in PoE ports, HDMI and VGA outputs, and one SATA drive bay. 2 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings. Its live display decoding capacity and AI processing limits are separate from the number of cameras it can record; choose suitable substreams for a multi-camera grid.
Connect one suitable Ethernet cable from each camera to a recorder PoE port. The specified maximum camera PoE loads total 20 W before cable losses. Allow for remaining power and bandwidth when adding cameras. No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 2 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Network cabling and optional mounting accessories are separate.
02Engineering
KIT-HFW3867E-2CAM-NVR4104-NOHDD specifications
- 2 × DH-IPC-HFW3867E-AS-IL-ANZ — 8MP Smart Dual Light bullet, white, 2.8 mm lens; IR and warm light, each rated up to 30 m.
- HFW3867E — 3840 × 2160 up to 25/30 fps; SMD 4.0; built-in microphone; IP67.
- 4CH PoE recorder — DHI-NVR4104HS-P-AI/ANZ, 4 integrated PoE ports, HDMI and VGA.
- 2 spare camera inputs — 2 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
- Camera-set maximum PoE: 20 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.
- HFW3867E — 3840 × 2160 up to 25/30 fps; SMD 4.0; built-in microphone; IP67.
- 4CH PoE recorder — DHI-NVR4104HS-P-AI/ANZ, 4 integrated PoE ports, HDMI and VGA.
- 2 spare camera inputs — 2 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
- Camera-set maximum PoE: 20 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.
03Full datasheet
Detailed specifications
Kit Configuration
| Feature | Detail |
|---|---|
| Camera composition | 2 × HFW3867E 8MP Smart Dual Light |
| Recorder | 1 × DHI-NVR4104HS-P-AI/ANZ |
| Hard drive included | No |
| Network cabling included | No |
| Supplied colour / lens | White / 2.8 mm fixed |
| Unused NVR channels / PoE ports | 2 / 2 |
HFW3867E Camera
| Feature | Detail |
|---|---|
| Included quantity | 2 |
| Model | DH-IPC-HFW3867E-AS-IL-ANZ |
| Resolution | 8MP |
| Image sensor | 1/2.7-inch CMOS |
| Video frame rates | 3840 × 2160 up to 25/30 fps |
| Supplied lens | 2.8 mm, F1.4 |
| Horizontal field of view | 110° |
| Illumination | IR and warm light, each rated up to 30 m |
| Smart motion detection | SMD 4.0 |
| Audio | Built-in microphone |
| Protection | IP67 |
| Maximum PoE per camera | 10 W |
Recorder & Installation
| Feature | Detail |
|---|---|
| Channels | 4 |
| Integrated PoE ports | 4 |
| Video outputs | HDMI; VGA |
| Drive bays | 1 SATA; drives not included |
| Camera-set maximum PoE | 20 W before cable losses |
| Installation | NVR indoors; weatherproof exposed camera connections |
| Kit Configuration — Camera composition | 2 × HFW3867E 8MP Smart Dual Light |
|---|---|
| Kit Configuration — Recorder | 1 × DHI-NVR4104HS-P-AI/ANZ |
| Kit Configuration — Hard drive included | No |
| Kit Configuration — Network cabling included | No |
| Kit Configuration — Supplied colour / lens | White / 2.8 mm fixed |
| Kit Configuration — Unused NVR channels / PoE ports | 2 / 2 |
| HFW3867E Camera — Included quantity | 2 |
| HFW3867E Camera — Model | DH-IPC-HFW3867E-AS-IL-ANZ |
| HFW3867E Camera — Resolution | 8MP |
| HFW3867E Camera — Image sensor | 1/2.7-inch CMOS |
| HFW3867E Camera — Video frame rates | 3840 × 2160 up to 25/30 fps |
| HFW3867E Camera — Supplied lens | 2.8 mm, F1.4 |
| HFW3867E Camera — Horizontal field of view | 110° |
| HFW3867E Camera — Illumination | IR and warm light, each rated up to 30 m |
| HFW3867E Camera — Smart motion detection | SMD 4.0 |
| HFW3867E Camera — Audio | Built-in microphone |
| HFW3867E Camera — Protection | IP67 |
| HFW3867E Camera — Maximum PoE per camera | 10 W |
| Recorder & Installation — Channels | 4 |
| Recorder & Installation — Integrated PoE ports | 4 |
| Recorder & Installation — Video outputs | HDMI; VGA |
| Recorder & Installation — Drive bays | 1 SATA; drives not included |
| Recorder & Installation — Camera-set maximum PoE | 20 W before cable losses |
| Recorder & Installation — Installation | NVR indoors; weatherproof exposed camera connections |
04Why choose this
Built for the way you actually use the KIT-HFW3867E-2CAM-NVR4104-NOHDD
One recorder for the supplied views
Connect the 2 cameras to the recorder's built-in PoE ports. 2 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
Choose lighting deliberately
HFW3867E: Smart Dual Light uses infrared for black-and-white viewing and can enable warm light for a detected target to record that event in colour. Continuous colour depends on lighting mode and available visible light. A built-in microphone captures audio.
Plan recording and playback
No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 2 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Set event zones and recording schedules, then play back sample recordings before relying on the installation.
05Where it fits
Right at home in these scenarios
Entrances and points of activity
Use the 2 cameras to give each entrance, driveway or activity area a separate view. Test detail at the target distance and check the image after dark.
Shops, offices and warehouses
Map the camera positions around entries, counters, loading access, stock areas or corridors. Keep views clear of shelving and ensure the lighting arrangement suits each camera.
Outdoor approaches
The camera housings are IP67-rated. Weatherproof exposed connections, avoid direct strong light in the lens and keep lenses clean. Install the NVR in a dry, ventilated indoor position.
06Setup
Installation & setup
-
01
Included in the base configuration
- 2 × DH-IPC-HFW3867E-AS-IL-ANZ, white, 2.8 mm bullet camera
- 1 × DHI-NVR4104HS-P-AI/ANZ 4CH PoE recorder
- No HDD, microSD cards or network cabling. Optional mounting accessories are separate.
-
02
Prepare the site and cabling
- Allocate all 2 camera positions and label their intended views.
- Route one suitable Ethernet cable to a recorder PoE port for each supplied camera; label both ends.
- Use the exact camera installation guide for mounts and sealing; weatherproof exposed connectors and leave access for maintenance.
-
03
Commission and test recording
- Fit compatible surveillance SATA storage and initialise the devices with strong passwords.
- Set the correct time, recording schedule, main/substreams and event zones within recorder limits.
- Verify every daylight and night-time view, test relevant audio functions and play back sample recordings.
08Questions
Frequently asked about the KIT-HFW3867E-2CAM-NVR4104-NOHDD
Q.01
Does this kit include a hard drive?
No. The base configuration contains 2 × HFW3867E 8MP Smart Dual Light and one DHI-NVR4104HS-P-AI/ANZ recorder, without storage. The recorder has one SATA bay. Select compatible surveillance storage separately for bitrate, recording schedule and retention.
Q.02
Where should I place the cameras?
Plan a separate view for each activity area or access route. Smart Dual Light uses infrared for black-and-white viewing and can enable warm light for a detected target to record that event in colour. Continuous colour depends on lighting mode and available visible light. A built-in microphone captures audio.
Q.03
Can I add more cameras?
2 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
Q.04
Will all cameras provide colour images in darkness?
HFW3867E: Smart Dual Light uses infrared for black-and-white viewing and can enable warm light for a detected target to record that event in colour. Continuous colour depends on lighting mode and available visible light. A built-in microphone captures audio.
Q.05
How are the cameras powered?
The supplied set connects to 2 of the recorder's 4 built-in PoE ports, using one suitable Ethernet cable per camera for power and video. Cabling is not included. The calculated maximum camera-set PoE demand is 20 W before cable losses.
Q.06
What should I check when setting recording quality?
HFW3867E: 3840 × 2160 up to 25/30 fps. Frame-rate limits depend on stream settings and video standard. NVR recording bandwidth, AI processing limits and simultaneous live-view decoding are separate considerations; use suitable substreams for multi-camera grids.
Q.07
Does this kit include AcuPick smart search?
The selected recorder is the standard NVR4104 AI model. Quick Pick can help search for people and vehicles in suitable SMD event videos when used with compatible cameras and firmware. AcuPick is a separate end-to-end search capability that requires a compatible recorder and camera configuration; the NVR5208 AcuPick upgrade shown on the comparison listing is not included in this base kit. Select by camera coverage, recording needs and event search requirements rather than treating AcuPick as necessary for ordinary recording.
