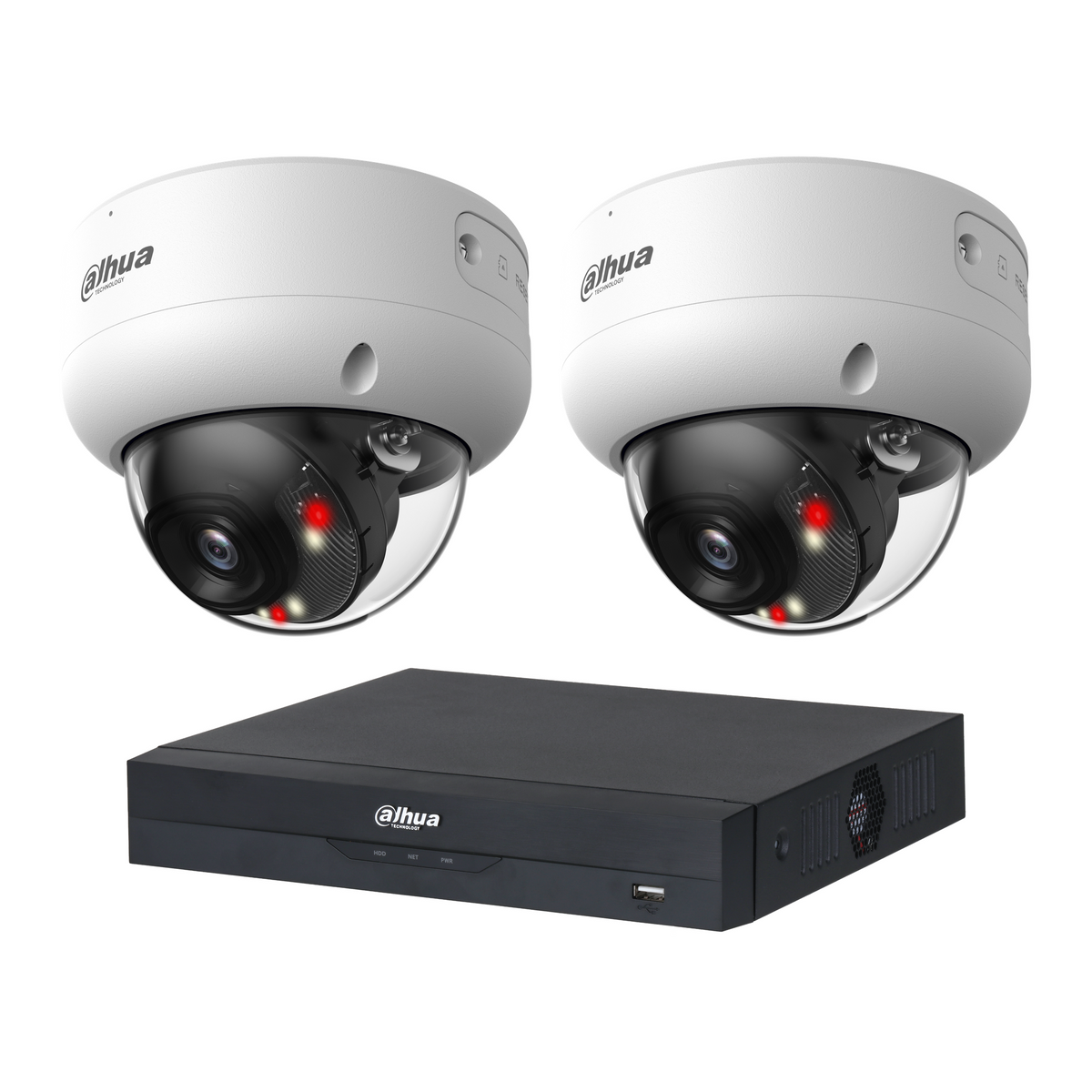

Dahua HDBW3867E 2-Camera 8MP Dome CCTV Kit + 4CH PoE NVR, No HDD
Email us
1 1
Dahua

Dahua HDBW3867E 2-Camera 8MP Dome CCTV Kit + 4CH PoE NVR, No HDD

SKU: KIT-HDBW3867E-2CAM-NVR4104-NOHDD
Description

2 white Dahua HDBW3867E 8MP dome cameras with 2.8 mm lenses pair with one DHI-NVR4104HS-P-AI/ANZ 4-channel PoE NVR for two wide views with two recorder channels available for later expansion.

Smart Dual Light, SMD 4.0, a built-in microphone and IP67/IK10 metal dome housings support flexible day and night coverage.

No hard drive is included. Add compatible surveillance SATA storage for NVR recording. Network cabling, microSD cards and optional mounting accessories are separate.

2 cameras 8MP Ultra HD Built-in Microphone 4 x POE PORTS
$665.42 AUD $665.42 AUD $859.00 AUD
Sale 22.54% $193.58 AUD (22.54%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Customize this kit $665.42
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 2 × Dahua DH-IPC-HDBW3867E-AS-IL-ANZ 8MP Smart Dual Light Fixed-Focal Dome WizSense Network Camera
  • 1 × Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder (4ch)
  • No HDD included (add one below)
Add extra cameras DH-IPC-HDBW3867E-AS-IL-ANZ
+$0.00
NVR · channels ≥ your total camera count Base: 4ch · Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • Dahua HDBW3867E 2-Camera 8MP Dome CCTV Kit + 4CH PoE NVR, No HDD $665.42
Total: $665.42

01Overview

What the KIT-HDBW3867E-2CAM-NVR4104-NOHDD is

Two separate viewpoints without starting with a large camera system. This kit combines 2 white IPC-HDBW3867E-AS-IL-ANZ 8MP dome cameras with one DHI-NVR4104HS-P-AI/ANZ 4-channel PoE recorder. It suits an entrance and a side approach, a warehouse doorway and a stock area, or two indoor access points. The supplied cameras use 2.8 mm fixed lenses; a hard drive and network cabling are not included.

Each camera supports 8MP video at 3840 × 2160, a built-in microphone, SMD 4.0 and human/vehicle classification for tripwire and intrusion rules. Its 2.8 mm F1.4 lens provides a 110° horizontal view. The metal dome housing is rated IP67 and IK10, making it useful for reachable camera positions as well as indoor warehouse coverage.

Smart Dual Light normally uses infrared for black-and-white viewing at night and can switch on warm light for a detected target, recording that event in colour. Both illuminators are rated up to 30 m. This is an illumination specification rather than a guaranteed recognition distance; lighting, mounting angle and target size still determine usable detail.

One Ethernet run from each camera to a recorder PoE port carries power and video. The camera maximum PoE rating is 8.2 W each, so the supplied set totals 16.4 W before cable losses. 2 recorder channels and 2 physical PoE ports remain unused in the base configuration. Additional cameras must fit the recorder bandwidth, power budget and supported camera settings. No HDD is included. A compatible 2TB surveillance SATA drive is available as an optional add-on in the hard-drive selector. It remains unselected by default; choose capacity for your bitrate, schedule and required retention.

See it in action

What the KIT-HDBW3867E-2CAM-NVR4104-NOHDD features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

02Engineering

KIT-HDBW3867E-2CAM-NVR4104-NOHDD specifications

- 2 × 8MP dome cameras — DH-IPC-HDBW3867E-AS-IL-ANZ, white, with 2.8 mm fixed lenses.
- 8MP image detail — 3840 × 2160 at up to 25/30 fps, subject to video standard and encoding settings.
- Smart Dual Light — IR and warm-light illumination, each rated up to 30 m; configure the lighting mode and detection area.
- SMD 4.0 and IVS — human/vehicle classification for motion events, intrusion and tripwire.
- Built-in microphone and 120 dB WDR — capture audio and manage scenes with a wide brightness range.
- IP67 and IK10 camera protection — metal dome housings; exposed cable joints still require weatherproofing.
- 4-channel PoE NVR — DHI-NVR4104HS-P-AI/ANZ, 4 integrated PoE ports, HDMI and VGA outputs.
- 2 unused camera channels / PoE ports — space for compatible future cameras within system limits.
- Storage chosen separately — one SATA drive bay; no hard drive, microSD card or network cable is included.

03Full datasheet

Detailed specifications

Kit Configuration

Kit Configuration — Dahua HDBW3867E 2-Camera 8MP Dome CCTV Kit + 4CH PoE NVR, No HDD
FeatureDetail
Cameras 2 × DH-IPC-HDBW3867E-AS-IL-ANZ, white, 2.8 mm
Recorder 1 × DHI-NVR4104HS-P-AI/ANZ
Hard drive included No
Network cabling included No
Camera body Dome
Unused NVR channels / PoE ports 2 / 2

04Why choose this

Built for the way you actually use the KIT-HDBW3867E-2CAM-NVR4104-NOHDD

2 defined viewpoints

Use a separate camera for each access path or activity zone. Give each camera a clearly defined view rather than expecting one wide image to identify every face or number plate across an entire site.

Impact-rated dome housings

The documented IK10 dome body suits camera positions where impact resistance matters. Confirm the correct bracket and leave enough access to clean the dome cover.

PoE cabling back to one recorder

Connect the supplied cameras directly to the 4 recorder PoE ports. Plan cable length, routing, weatherproof joints and access to the recorder before installation.

Capacity beyond the initial layout

2 recorder channels and 2 physical PoE ports remain unused in the base configuration. Additional cameras must fit the recorder bandwidth, power budget and supported camera settings.

Choose storage for your recording plan

No HDD is included. A compatible 2TB surveillance SATA drive is available as an optional add-on in the hard-drive selector. It remains unselected by default; choose capacity for your bitrate, schedule and required retention.

05Where it fits

Right at home in these scenarios

Indoor warehouse access and stock areas

Use one dome at an entrance and one over a stock-handling area. Plan around racks, lighting and required identification detail; keep the covers accessible for regular cleaning.

Outdoor entrances and side access

IP67-rated cameras can be installed outdoors. Avoid aiming into direct sunlight or strong lamps, keep nearby reflective surfaces out of the IR path and weatherproof exposed connections.

Reachable camera positions

The IK10 metal dome housing offers documented impact resistance. Dust, fingerprints and water marks on the cover can scatter illumination and cause glare; test the image after dark.

06Setup

Installation & setup

  1. Included in this base kit

    • DH-IPC-HDBW3867E-AS-IL-ANZ, white, 2.8 mm dome camera × 2
    • DHI-NVR4104HS-P-AI/ANZ 4-channel PoE NVR × 1
    • No HDD, microSD cards or network cabling. Optional mounting accessories are separate.

  2. Plan and cable the camera positions

    • Give each camera a clearly defined view rather than expecting one wide image to identify every face or number plate across an entire site.
    • Run one suitable Ethernet cable to each recorder PoE port; label camera locations and both cable ends.
    • Follow the camera installation guide, weatherproof exposed joints and keep the recorder dry and ventilated.

  3. Commission and test recording

    • Fit a compatible surveillance SATA hard drive, initialise devices and set strong passwords.
    • Set the correct date/time, storage and recording schedule; configure main streams, substreams and event zones within recorder limits.
    • Check every daytime and night-time view, test audio where appropriate, and play back sample recordings before relying on the system.
