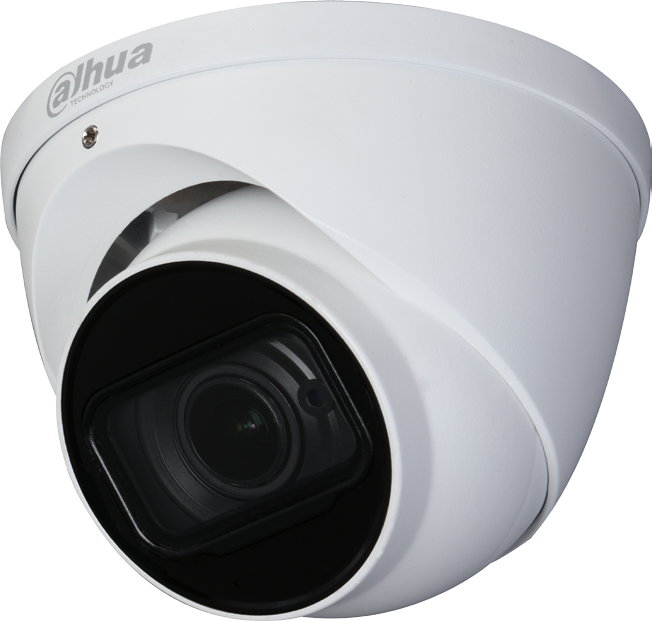

Dahua DH-HAC-HDW2802TP-Z-A-DP 8MP HDCVI Zoom Turret
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DH-HAC-HDW2802TP-Z-A-DP 8MP HDCVI Zoom Turret
SKU: DH-HAC-HDW2802TP-Z-A-DP
Description
Dahua DH-HAC-HDW2802TP-Z-A-DP combines 4K HDCVI imaging with a motorised 3.7–11mm lens. It lets an installer adjust a turret view to the scene while retaining a coaxial video connection.
Regular price
$278.00 AUD
Sale price
$278.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Dahua DH-HAC-HDW2802TP-Z-A-DP 8MP HDCVI Zoom Turret
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DH-HAC-HDW2802TP-Z-A-DP is
Dahua DH-HAC-HDW2802TP-Z-A-DP combines 4K HDCVI imaging with a motorised 3.7–11mm lens. It lets an installer adjust a turret view to the scene while retaining a coaxial video connection.
The PAL model supports 8MP recording at 15 fps, with lower-resolution modes for higher frame rates. Infrared illumination reaches up to 60m and 120dB WDR helps retain detail across bright and shaded parts of the image.
A built-in microphone and separate audio input provide sound options with compatible recording equipment. Supply 12V DC or 24V AC and confirm the recorder supports the intended video and audio configuration.
02Engineering
DH-HAC-HDW2802TP-Z-A-DP specifications
Dahua DH-HAC-HDW2802TP-Z-A-DP — Resolution: 8 MP (4K)
Maximum video: 3840 × 2160 at 15 fps; PAL model
Other PAL modes: 6 MP at 20 fps; 4 MP at 25 fps
Lens: Motorised 3.7–11 mm
Sensor: 1/2-inch CMOS
Illumination: IR up to 60 m
Wide dynamic range: 120 dB
Audio: Built-in microphone and one audio input
Maximum video: 3840 × 2160 at 15 fps; PAL model
Other PAL modes: 6 MP at 20 fps; 4 MP at 25 fps
Lens: Motorised 3.7–11 mm
Sensor: 1/2-inch CMOS
Illumination: IR up to 60 m
Wide dynamic range: 120 dB
Audio: Built-in microphone and one audio input
03Full datasheet
Detailed specifications
Specification
| Feature | Detail |
|---|---|
| Resolution | 8 MP (4K) |
| Maximum video | 3840 × 2160 at 15 fps; PAL model |
| Other PAL modes | 6 MP at 20 fps; 4 MP at 25 fps |
| Lens | Motorised 3.7–11 mm |
| Sensor | 1/2-inch CMOS |
| Illumination | IR up to 60 m |
| Wide dynamic range | 120 dB |
| Audio | Built-in microphone and one audio input |
| Power | 12 VDC or 24 VAC ±30%; maximum 12 W |
| Protection | IP67 |
| Dimensions and weight | 122 mm diameter × 107 mm; 630 g |
| Specification — Resolution | 8 MP (4K) |
|---|---|
| Specification — Maximum video | 3840 × 2160 at 15 fps; PAL model |
| Specification — Other PAL modes | 6 MP at 20 fps; 4 MP at 25 fps |
| Specification — Lens | Motorised 3.7–11 mm |
| Specification — Sensor | 1/2-inch CMOS |
| Specification — Illumination | IR up to 60 m |
| Specification — Wide dynamic range | 120 dB |
| Specification — Audio | Built-in microphone and one audio input |
| Specification — Power | 12 VDC or 24 VAC ±30%; maximum 12 W |
| Specification — Protection | IP67 |
| Specification — Dimensions and weight | 122 mm diameter × 107 mm; 630 g |
04Why choose this
Built for the way you actually use the DH-HAC-HDW2802TP-Z-A-DP
Work with changing light
Set exposure and available illumination for the scene, then check footage under the brightest and darkest expected conditions.
Plan a complete system
Check the recorder video format and camera power before upgrading a coaxial installation.
05Where it fits
Right at home in these scenarios
Entrance monitoring
Dahua DH-HAC-HDW2802TP-Z-A-DP can monitor an approach to a building. Test the image at the distance where people pause or pass through.
Activity areas
Frame the relevant walkway, work area or access route. Check the smallest detail the recording needs to preserve.
Day and night recording
Review sample footage at the intended mounting height. Reflections, surrounding lighting and target movement all affect the usable image.
06Setup
Installation & setup
-
01
Plan connections
Dahua DH-HAC-HDW2802TP-Z-A-DP requires a compatible coaxial video recorder and the specified external power supply.
-
02
Position and secure
Choose a fixing surface suited to the camera weight. Protect cable entries and follow the mounting and sealing instructions for the housing.
-
03
Commission the recording
Set the supported resolution and frame rate, confirm the camera view and test playback. Configure only the event and audio functions required by the site.
08Questions
Frequently asked
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Recording equipment
Dahua DH-HAC-HDW2802TP-Z-A-DP pairs with a recorder that accepts the selected analogue signal format and resolution. Select storage for the intended schedule.
Mounting hardware
Choose the matching camera mount or connection box for the surface and cable route. Verify the accessory fit before ordering.
Power and cabling
Allow for the camera power demand and cable distance. Calculate the supply capacity across all connected equipment.
