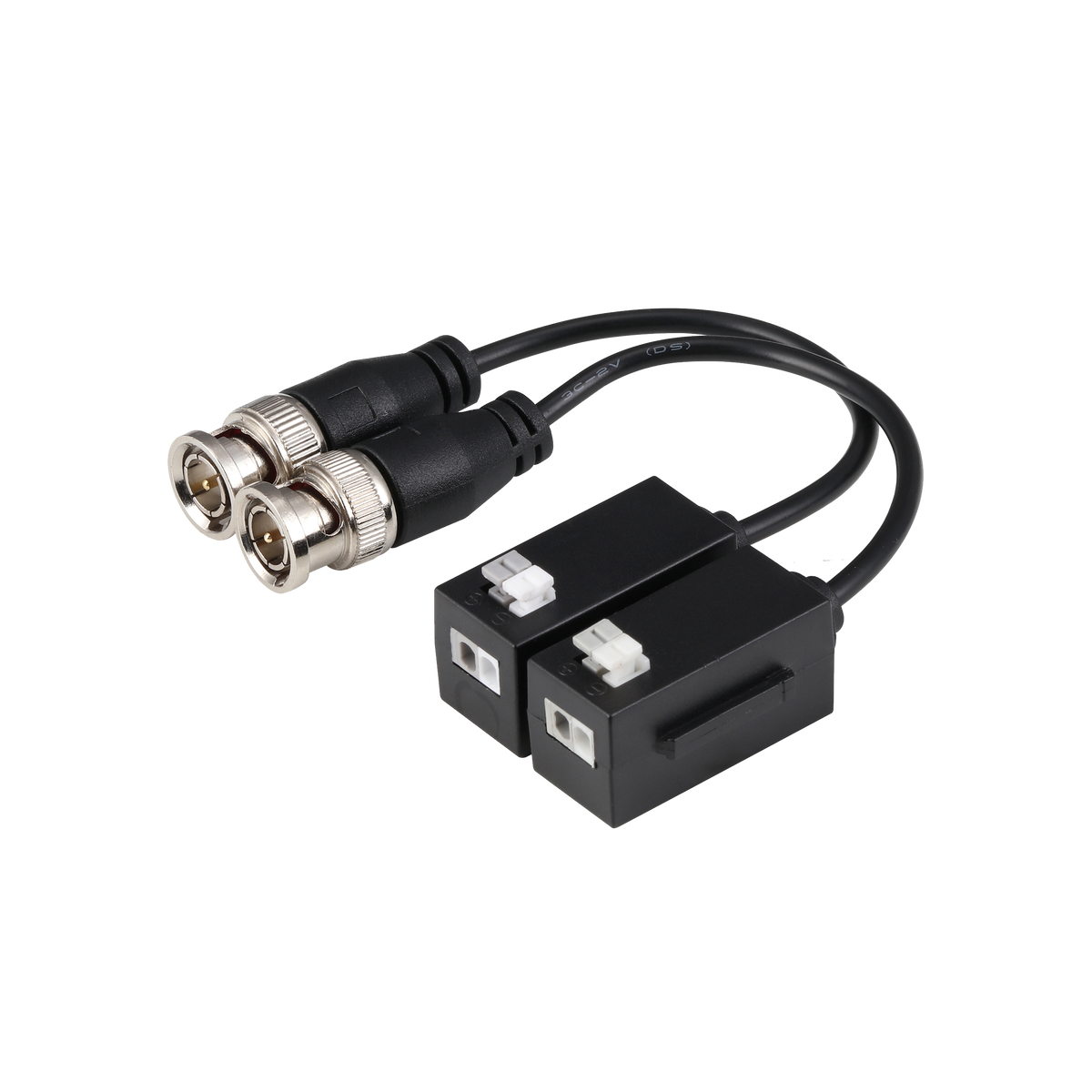

Dahua DH-PFM800-4K Passive Video Balun
1 1
Dahua

Dahua DH-PFM800-4K Passive Video Balun

SKU: DH-PFM800-4K
Description

Dahua DH-PFM800-4K carries one analogue video channel over copper CAT5e or CAT6 UTP cable. It supports HDCVI, TVI, AHD and CVBS signalling without requiring power for the balun.
$10.50 AUD $10.50 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

01Overview

What the DH-PFM800-4K is

Dahua DH-PFM800-4K carries one analogue video channel over copper CAT5e or CAT6 UTP cable. It supports HDCVI, TVI, AHD and CVBS signalling without requiring power for the balun.

Cable reach depends on format and resolution: HDCVI 4K is specified up to 200m, while 1080p is specified up to 250m. Built-in camera or XVR PoC is not supported, so provide camera power separately and check the complete signal path.

02Engineering

DH-PFM800-4K specifications

Dahua DH-PFM800-4K — Channel: One analogue video channel
Cable: Copper CAT5e or CAT6 UTP
Formats: HDCVI, TVI, AHD and CVBS
HDCVI 4K distance: Up to 200 m
1080p distance: Up to 250 m
720p distance: Up to 400 m
Power: Passive balun; camera/XVR PoC not supported
Operating temperature: -30°C to 70°C

03Full datasheet

Detailed specifications

Specification

Specification — Dahua DH-PFM800-4K Passive Video Balun
FeatureDetail
Channel One analogue video channel
Cable Copper CAT5e or CAT6 UTP
Formats HDCVI, TVI, AHD and CVBS
HDCVI 4K distance Up to 200 m
1080p distance Up to 250 m
720p distance Up to 400 m
Power Passive balun; camera/XVR PoC not supported
Operating temperature -30°C to 70°C
