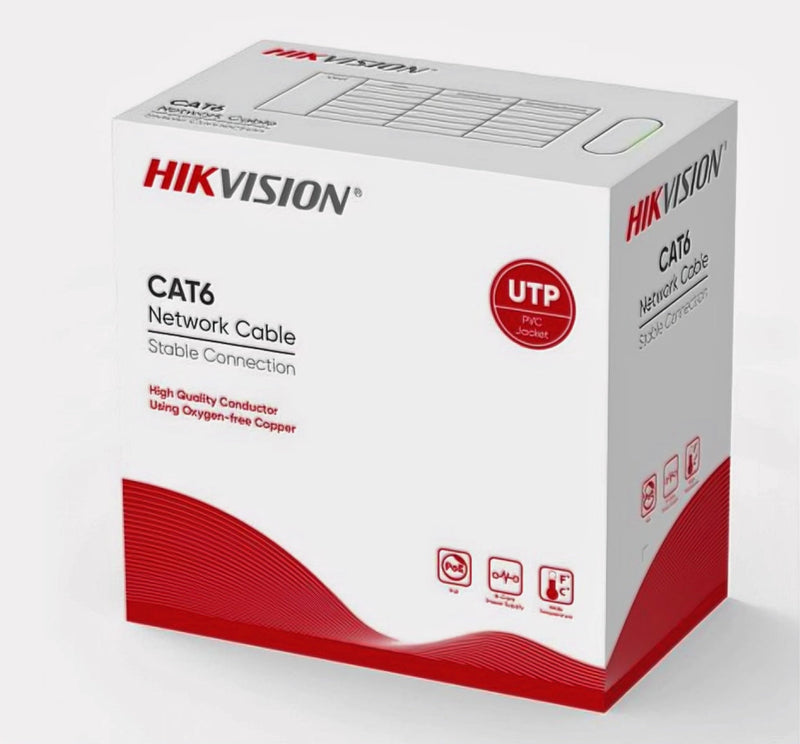

HIKVISION CAT6 Cable 305m DS-1LN6UZC0
1 1
Hikvision

HIKVISION CAT6 Cable 305m DS-1LN6UZC0

SKU: DS-1LN6UZC0
Description

-CAT6 U/UTP Network Cable (Solid Copper, 0.5mm)
-Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
-Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
-Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
-Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
-Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
-Compliant with RoHS 2.0.
$165.30 AUD $165.30 AUD $174.00 AUD
Sale 5.0% $8.70 AUD (5.0%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
3-Year WarrantyOn all cameras
Free ShippingOn orders over $300
30-Day ReturnsUnopened items
Fast Delivery1–5 days Australia-wide

§ 02Engineering

DS-1LN6UZC0 specifications

-General: Category Cat 6, StructureU/UTP, Fire ResistanceCPR Fca,Usage ScenarioIndoor
-Conduct: Conductor Material Solid-Bare Copper, Conductor Diameter0.50 ± 0.01 mm 24AWG
-Insulation: Insulation Diameter0.88 ± 0.05 mm
-Sheath: Sheath MaterialPVC, Sheath ColorGrey
-Structure: Length 305 ± 1.5 m, Rip CordYes,SeparatorYes

§ 03Full datasheet

Detailed specifications

General & Environment

General & Environment — HIKVISION CAT6 Cable 305m DS-1LN6UZC0
FeatureDetail
Description U/UTP Cat6 PVC 24AWG Cable
Category Cat.6
Reference Standard ISO/IEC11801, ANSI/TIA-568.2-D, RoHS 2.0
Fire Resistance No
Conductor Material Solid-Bare Copper (99.95%)
Conductor Diameter 0.50 ± 0.01 mm 24AWG
Insulation Material HDPE
Insulation Diameter 0.88 ± 0.05 mm
Sheath Thickness 0.50 ± 0.05 mm
Sheath Diameter 5.30 ± 0.50 mm
Sheath Material PVC
Sheath Color Grey, Orange
Rip-cord Yes
Separator Yes
Tensile Strength (Before Aging) ≥ 13.5 Mpa
Elongation (Before Aging) ≥ 150%
Aging Period 100°C × 24h × 10d
Tensile Strength (After Aging) ≥ 12.5 Mpa
Elongation (After Aging) ≥ 125%
Cold Bend -20 ± 2°C × 4h, 8 × cable O.D, no visible cracks
Impedance (1.0-250.0 MHz) 100 ± 15 Ω
Delay Skew (1.0-250.0 MHz) ≤ 45 ns/100 m
DC Resistance ≤ 9.38 Ω/100 m
DC Conductor Resistance Unbalance ≤ 4.0%
Package Dimension 390 mm X 390 mm X 210mm
Weight 9.9 ± 0.5 kg
Cable Length (305 ± 1.5) m
Ambient Temperature -20°C to 70°C
Operating Voltage 57 V
