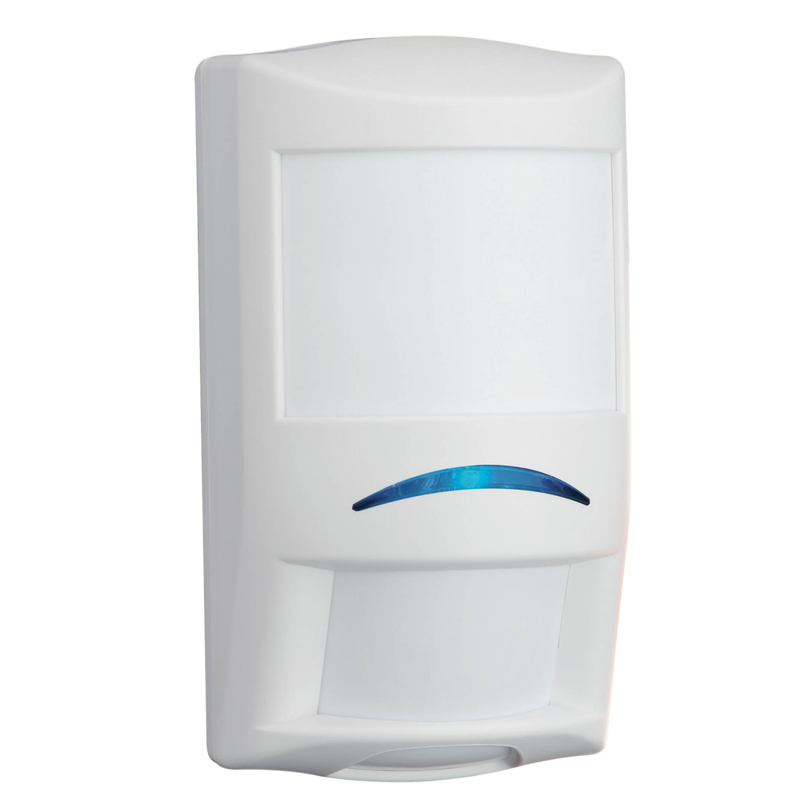

Bosch ISC-PPR1-W16 Professional Series PIR Detector, 18 m x 25 m
SKU: ISC-PPR1-W16
Description
The Bosch ISC-PPR1-W16 is the Professional Series passive infrared detector for a large indoor commercial space: 18 m x 25 m of coverage, switchable to 8 m x 10 m, with tri-focus optics and sensor data fusion doing the work that keeps false alarms down.
What you get
- 1 × ISC-PPR1-W16 detector in a white high-impact ABS enclosure
- 1 × hardware pack with two flat-head screws, two screw anchors, a nylon cable tie and a pattern mask, plus a literature pack
You'll also need
- An alarm panel with a spare zone and a 24-hour tamper circuit, supplying 9 VDC to 15 VDC. The ICP-SOL3-P and CC610P are the panels sold here; check their zone inputs against the figures below
- Cable from the panel for the 9 VDC to 15 VDC supply, the alarm relay and the tamper, sized 0.2 mm2 to 1 mm2, plus the end-of-line resistors the panel requires
- A bracket if it is not going flat on a wall or into a corner, such as the B338 ceiling mount
Regular price
$106.15 AUD
Sale price
$106.15 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Bosch ISC-PPR1-W16 Professional Series PIR Detector, 18 m x 25 m
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
Add accessories
Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
§ 01Overview
What the ISC-PPR1-W16 is
The Bosch ISC-PPR1-W16 is the single-technology detector in Bosch's Professional Series: passive infrared only, but with the optics and the processing that the dual-technology models use. It covers 18 m x 25 m and switches on a DIP switch to 8 m x 10 m, so a warehouse and the office beside it can be fitted from the same part number.
The optics are what set it apart from an ordinary PIR. Tri-focus optics use three focal lengths, long, middle and short range, applied across 86 detection zones that combine into 11 solid curtains, so the near field is covered as carefully as the far one. Two pyroelectric sensors read those zones.
The decision to alarm is not made on infrared alone. Sensor data fusion combines the two pyroelectric sensors with a room temperature sensor and a white light level sensor. Active white light suppression measures light directed at the face of the detector, which is what stops a headlight sweeping across a showroom from raising an alarm, and dynamic temperature compensation lifts PIR sensitivity when the room approaches body heat and a plain PIR would start missing people. Small animal immunity discounts animals under 4.5 kg, such as rodents.
Commissioning and fault finding are built in. A blue alarm LED can be enabled or disabled remotely from a keypad, a control centre or programming software, and alarm memory flashes the LED to show stored alarms, which is how the firing detector is identified in a room with several. A low input power trouble activates the trouble relay and flashes the LED whenever the supply falls below 8 V.
Wiring is a power-supervised normally-closed solid-state relay rated 3 W, 125 mA, 25 VDC, with a normally-closed tamper for the 24-hour circuit. It runs from 9 VDC to 15 VDC, drawing under 10 mA on standby at 12 VDC and under 15 mA at most. Mount it at 2 m to 3 m with no adjustment needed. The enclosure is 127 mm x 69 mm x 58 mm, IP41 and IK04, rated -29°C to +55°C, and it complies with EN 50131-2-2:2008 Grade 2.
§ 02Engineering
ISC-PPR1-W16 specifications
Bosch ISC-PPR1-W16 coverage — 18 m x 25 m, field selectable to 8 m x 10 m on a DIP switch — one part number for a warehouse floor and a back office
Optics — tri-focus optics across 86 zones forming 11 solid curtains — the near field is covered as carefully as the far one
Sensor fusion — two pyroelectric sensors with a room temperature sensor and a white light level sensor — the alarm decision uses more than infrared
White light suppression — an internal light sensor measures light aimed at the detector face — headlights sweeping a showroom do not raise an alarm
Temperature compensation — PIR sensitivity adjusts automatically at critical temperatures — catch performance holds on a hot afternoon
Animal immunity — reduces false alarms caused by animals under 4.5 kg, such as rodents — fewer nuisance activations in a commercial building
Diagnostics — blue alarm LED enabled or disabled remotely, alarm memory for multi-detector installations — the detector that fired can be identified afterwards
Outputs — power-supervised NC solid-state relay at 3 W, 125 mA, 25 VDC, NC tamper for the 24-hour circuit — a professional zone connection
Power — 9 VDC to 15 VDC, under 10 mA standby at 12 VDC, under 15 mA maximum, trouble below 8 V — a very light load with supervision
Build — 127 mm x 69 mm x 58 mm high-impact ABS, IP41 and IK04, -29°C to +55°C, EN 50131-2-2:2008 Grade 2 — graded equipment for indoor commercial use
Optics — tri-focus optics across 86 zones forming 11 solid curtains — the near field is covered as carefully as the far one
Sensor fusion — two pyroelectric sensors with a room temperature sensor and a white light level sensor — the alarm decision uses more than infrared
White light suppression — an internal light sensor measures light aimed at the detector face — headlights sweeping a showroom do not raise an alarm
Temperature compensation — PIR sensitivity adjusts automatically at critical temperatures — catch performance holds on a hot afternoon
Animal immunity — reduces false alarms caused by animals under 4.5 kg, such as rodents — fewer nuisance activations in a commercial building
Diagnostics — blue alarm LED enabled or disabled remotely, alarm memory for multi-detector installations — the detector that fired can be identified afterwards
Outputs — power-supervised NC solid-state relay at 3 W, 125 mA, 25 VDC, NC tamper for the 24-hour circuit — a professional zone connection
Power — 9 VDC to 15 VDC, under 10 mA standby at 12 VDC, under 15 mA maximum, trouble below 8 V — a very light load with supervision
Build — 127 mm x 69 mm x 58 mm high-impact ABS, IP41 and IK04, -29°C to +55°C, EN 50131-2-2:2008 Grade 2 — graded equipment for indoor commercial use
§ 03Full datasheet
Detailed specifications
Overview & Compatibility
| Feature | Detail |
|---|---|
| Product | ISC-PPR1-W16 Motion detector, 60ft (18m) — Professional Series PIR |
| Application | The ISC-PPR1-W16 Professional Series PIR Detector is exceptionally suited for commercial indoor applications. |
| Accessories | B328 Mounting bracket, gimbal; B335-3 Mounting bracket, swivel, low profile; B338 Mounting bracket, ceiling, universal |
| Parts included | 1 Detector; 1 Hardware pack (2 Flat-head screws, 2 Screw anchors, 1 Nylon cable tie, 1 Pattern mask); 1 Literature pack |
Detection & Coverage
| Feature | Detail |
|---|---|
| Coverage | 18 m x 25 m (60 ft x 80 ft) standard coverage; 8 m x 10 m (25 ft x 33 ft) selectable short range coverage |
| Field Selectable Coverage | Installers can use a DIP switch to select 18 m x 25 m or 8 m x 10 m (60 ft x 80 ft or 25 ft x 33 ft) coverage. |
| Zones | 86 |
| Sensor Data Fusion Technology | uses a sophisticated software algorithm to gather signals from multiple sensors: two pyroelectric sensors, a room temperature sensor, and a white light level sensor. |
| Tri-focus Optics Technology | uses optics with three specific focal lengths: long-range coverage, middle-range coverage, and short-range coverage. The detector applies the three focal lengths to 86 detection zones, which combine to make 11 solid curtains of detection. |
| Active White Light Suppression | An internal light sensor measures the level of light intensity directed at the face of the detector. Sensor data fusion technology uses this information to eliminate false alarms from bright light sources. |
| Dynamic Temperature Compensation | The detector automatically adjusts PIR sensitivity to identify human intruders at critical temperatures. |
| Small Animal Immunity | Small animal immunity reduces false alarms caused by animals less than 4.5 kg (10 lb), such as rodents. |
| Remote Walk Test LED | Users can enter a command through a keypad, a control center, or programming software to remotely enable or disable the walk test LED. |
| Alarm Memory | Alarm memory flashes the alarm LED to indicate stored alarms for use in multiple unit applications. |
| Mounting height | The recommended mounting height is 2 m to 3 m (7 ft to 10 ft) with no adjustments required. |
| Mounting options | On a flat wall (surface, semi-flush), with the optional B335-3 Swiveling low-profile mount, or with the optional B328 Gimbal-mount Bracket; In a corner (the junction of two perpendicular walls); On the ceiling with the optional B338 Universal Ceiling-mount Bracket |
| Wiring | Recommended wire size is 0.2 mm2 to 1 mm2 (26 AWG to 16 AWG). |
Zones, Outputs & Capacity
| Feature | Detail |
|---|---|
| Relay | Solid state relay, normally-closed (NC) contacts, power supervised. 3 W, 125 mA, 25 VDC, resistance < 10 Ω |
| Tamper | Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum. Connect tamper circuit to 24-hour protection circuit. |
| Cover and Wall Tamper Switch | When an intruder removes the cover or attempts to separate the detector from the wall, a normally-closed contact opens to alert the control panel. |
| Input Power Supervision | When the power is lower than 8 V, a low input power trouble condition activates the trouble relay and causes the LED to flash. |
Power & Electrical
| Feature | Detail |
|---|---|
| Voltage (Operating) | 9 VDC to 15 VDC |
| Current (Maximum) | < 15 mA |
| Current (Standby) | < 10 mA at 12 VDC |
Physical & Environment
| Feature | Detail |
|---|---|
| Color | White |
| Dimensions | 127 mm x 69 mm x 58 mm (5 in. x 2.75 in. x 2.25 in.) |
| Material | High-impact ABS plastic |
| Alarm Indicator | Blue alarm LED |
| Temperature (Operating and Storage) | -29°C to +55°C (-20°F to +130°F); For UL Certificated installations, 0°C to +49°C (+32°F to +120°F) |
| Relative Humidity | 0 to 95%, non-condensing |
| Protection Rating | IP41, IK04 (EN 60529, EN 50102) |
Compliance & Warranty
| Feature | Detail |
|---|---|
| EN50131 | EN 50131-1, EN 50131-2-2:2008, Grade 2 |
| Germany VdS | G107504 [ISC-PPR1-W16] |
| USA | UL20190115; UL639 – Standard for Intrusion-Detection Units |
| Overview & Compatibility — Product | ISC-PPR1-W16 Motion detector, 60ft (18m) — Professional Series PIR |
|---|---|
| Overview & Compatibility — Application | The ISC-PPR1-W16 Professional Series PIR Detector is exceptionally suited for commercial indoor applications. |
| Overview & Compatibility — Accessories | B328 Mounting bracket, gimbal; B335-3 Mounting bracket, swivel, low profile; B338 Mounting bracket, ceiling, universal |
| Overview & Compatibility — Parts included | 1 Detector; 1 Hardware pack (2 Flat-head screws, 2 Screw anchors, 1 Nylon cable tie, 1 Pattern mask); 1 Literature pack |
| Detection & Coverage — Coverage | 18 m x 25 m (60 ft x 80 ft) standard coverage; 8 m x 10 m (25 ft x 33 ft) selectable short range coverage |
| Detection & Coverage — Field Selectable Coverage | Installers can use a DIP switch to select 18 m x 25 m or 8 m x 10 m (60 ft x 80 ft or 25 ft x 33 ft) coverage. |
| Detection & Coverage — Zones | 86 |
| Detection & Coverage — Sensor Data Fusion Technology | uses a sophisticated software algorithm to gather signals from multiple sensors: two pyroelectric sensors, a room temperature sensor, and a white light level sensor. |
| Detection & Coverage — Tri-focus Optics Technology | uses optics with three specific focal lengths: long-range coverage, middle-range coverage, and short-range coverage. The detector applies the three focal lengths to 86 detection zones, which combine to make 11 solid curtains of detection. |
| Detection & Coverage — Active White Light Suppression | An internal light sensor measures the level of light intensity directed at the face of the detector. Sensor data fusion technology uses this information to eliminate false alarms from bright light sources. |
| Detection & Coverage — Dynamic Temperature Compensation | The detector automatically adjusts PIR sensitivity to identify human intruders at critical temperatures. |
| Detection & Coverage — Small Animal Immunity | Small animal immunity reduces false alarms caused by animals less than 4.5 kg (10 lb), such as rodents. |
| Detection & Coverage — Remote Walk Test LED | Users can enter a command through a keypad, a control center, or programming software to remotely enable or disable the walk test LED. |
| Detection & Coverage — Alarm Memory | Alarm memory flashes the alarm LED to indicate stored alarms for use in multiple unit applications. |
| Detection & Coverage — Mounting height | The recommended mounting height is 2 m to 3 m (7 ft to 10 ft) with no adjustments required. |
| Detection & Coverage — Mounting options | On a flat wall (surface, semi-flush), with the optional B335-3 Swiveling low-profile mount, or with the optional B328 Gimbal-mount Bracket; In a corner (the junction of two perpendicular walls); On the ceiling with the optional B338 Universal Ceiling-mount Bracket |
| Detection & Coverage — Wiring | Recommended wire size is 0.2 mm2 to 1 mm2 (26 AWG to 16 AWG). |
| Zones, Outputs & Capacity — Relay | Solid state relay, normally-closed (NC) contacts, power supervised. 3 W, 125 mA, 25 VDC, resistance < 10 Ω |
| Zones, Outputs & Capacity — Tamper | Normally-closed (NC) contacts (with cover on) rated at 25 VDC, 125 mA maximum. Connect tamper circuit to 24-hour protection circuit. |
| Zones, Outputs & Capacity — Cover and Wall Tamper Switch | When an intruder removes the cover or attempts to separate the detector from the wall, a normally-closed contact opens to alert the control panel. |
| Zones, Outputs & Capacity — Input Power Supervision | When the power is lower than 8 V, a low input power trouble condition activates the trouble relay and causes the LED to flash. |
| Power & Electrical — Voltage (Operating) | 9 VDC to 15 VDC |
| Power & Electrical — Current (Maximum) | < 15 mA |
| Power & Electrical — Current (Standby) | < 10 mA at 12 VDC |
| Physical & Environment — Color | White |
| Physical & Environment — Dimensions | 127 mm x 69 mm x 58 mm (5 in. x 2.75 in. x 2.25 in.) |
| Physical & Environment — Material | High-impact ABS plastic |
| Physical & Environment — Alarm Indicator | Blue alarm LED |
| Physical & Environment — Temperature (Operating and Storage) | -29°C to +55°C (-20°F to +130°F); For UL Certificated installations, 0°C to +49°C (+32°F to +120°F) |
| Physical & Environment — Relative Humidity | 0 to 95%, non-condensing |
| Physical & Environment — Protection Rating | IP41, IK04 (EN 60529, EN 50102) |
| Compliance & Warranty — EN50131 | EN 50131-1, EN 50131-2-2:2008, Grade 2 |
| Compliance & Warranty — Germany VdS | G107504 [ISC-PPR1-W16] |
| Compliance & Warranty — USA | UL20190115; UL639 – Standard for Intrusion-Detection Units |
§ 04Why choose this
Built for the way you actually use the ISC-PPR1-W16
One detector for two room sizes
Coverage is 18 m x 25 m and switches on a DIP switch to 8 m x 10 m. A warehouse floor and the office beside it can be fitted from the same part number, at the same mounting height.
Bright light is measured, not guessed at
An internal light sensor measures light directed at the detector face, and sensor data fusion uses that to eliminate false alarms from bright sources. Showrooms, glazed frontages and carparks are where that earns its keep.
It stays sensitive when the room is warm
Dynamic temperature compensation lifts PIR sensitivity at critical temperatures, which is precisely when a plain PIR is most likely to miss a person. In an Australian summer that is most afternoons.
Fewer false alarms from small animals
Small animal immunity reduces false alarms caused by animals under 4.5 kg, such as rodents. In a commercial building that is one of the more common reasons a zone gets isolated.
Designed to be commissioned and diagnosed
The blue alarm LED can be turned on or off remotely from a keypad or programming software, and alarm memory flashes stored alarms so the detector that fired is identified. A low supply is reported through the trouble relay.
§ 05Where it fits
Right at home in these scenarios
Warehouse or workshop in an Australian business
The Bosch ISC-PPR1-W16 covers 18 m x 25 m from a wall at 2 m to 3 m, and temperature compensation keeps it catching people through a hot afternoon under a steel roof. Small animal immunity reduces false alarms from animals under 4.5 kg, such as rodents.
Showroom or glazed shopfront
Active white light suppression measures light thrown at the detector face, so headlights sweeping past a glass frontage do not trigger it. Tri-focus optics cover both the deep floor and the area right below the detector.
Office or storeroom on the same system
Switch the DIP to 8 m x 10 m and the same detector suits a smaller room, where a full-range unit would look through a doorway it should not. Using one family across the site keeps walk tests and fault finding consistent.
§ 06Setup
Installation & setup
What is in the box
The Bosch ISC-PPR1-W16 comes with a hardware pack holding two flat-head screws, two screw anchors, a nylon cable tie and a pattern mask, plus a literature pack. Brackets and cable are ordered separately; Solution 2000 and 3000 panels ship with end-of-line resistors in their own hardware pack.
Where to mount it
The recommended height is 2 m to 3 m, with no adjustment required at that height. It fits flat on a wall surface or semi-flush, in a corner, or on the optional B328 gimbal, B335-3 low-profile swivel or B338 universal ceiling bracket.
Choosing the coverage
Set the DIP switch for 18 m x 25 m or 8 m x 10 m to match the room rather than the largest number available. A pattern mask is included in the hardware pack for use where part of the field should not be watched.
Cabling
Run cable from the panel for the supply, the alarm relay and the tamper, using 0.2 mm2 to 1 mm2 wire, and take the tamper to a 24-hour protection circuit. The detector sets no maximum run of its own, so the limit is whatever the panel allows for a detector zone. On a Solution 6000 remember a shorted zone loop reads as a tamper under every end-of-line configuration.
Power
It runs from 9 VDC to 15 VDC, drawing under 10 mA on standby at 12 VDC and under 15 mA at most, so several detectors are a light load. Below 8 V a low input power trouble activates the trouble relay and flashes the LED.
Commissioning
Walk test using the blue alarm LED, then disable that LED remotely from the keypad, the control centre or the programming software so it does not show an intruder where the pattern lies. Alarm memory can be used afterwards to see which detector stored an alarm.
When to call an electrician
The detector runs on low voltage from the alarm panel and needs no mains work. Use a licensed electrician for any new or altered fixed wiring, and a licensed security installer for the panel programming.
§ 08Questions
Frequently asked about the ISC-PPR1-W16
Q.01
How much area does the Bosch ISC-PPR1-W16 cover?
Its standard pattern is 18 m x 25 m, and a DIP switch selects a short-range 8 m x 10 m pattern instead. The recommended mounting height is 2 m to 3 m.
Q.02
Is it a dual-technology detector?
No. It is a Professional Series passive infrared detector, using tri-focus optics and sensor data fusion rather than a microwave section.
Q.03
Is it pet friendly?
It has small animal immunity for animals under 4.5 kg, such as rodents. A larger dog is outside what this detector is designed to discount.
Q.04
What stops bright light from triggering it?
An internal light sensor measures the intensity of light directed at the face of the detector, and sensor data fusion uses that to eliminate false alarms from bright sources.
Q.05
Can I limit part of the pattern?
A pattern mask is supplied in the hardware pack for that purpose. Fit it as the installation guide directs for the part of the field to be excluded.
Q.06
How does it connect to the panel?
Through a power-supervised normally-closed solid-state relay rated 3 W, 125 mA, 25 VDC, with a normally-closed tamper that goes to a 24-hour protection circuit.
Q.07
How much power does it need?
A 9 VDC to 15 VDC supply, drawing under 10 mA on standby at 12 VDC and under 15 mA at most. Below 8 V it reports a low input power trouble.
Q.08
Can the walk test LED be turned off?
Yes, remotely, through a keypad, a control centre or programming software. Alarm memory can still flash the LED afterwards to show stored alarms.
Q.09
Can it be used outdoors?
No. It is rated IP41 and IK04 for indoor commercial use, from -29°C to +55°C, or 0°C to +49°C for UL certificated installations.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
§ 10Bundles
Recommended packages
Give it a panel zone with a tamper circuit
The Bosch ISC-PPR1-W16 needs a spare zone plus a 24-hour tamper circuit on a hardwired panel. The ICP-SOL3-P is a panel sold here; check its zone input and detector supply against the 9 VDC to 15 VDC and relay figures on this page.
Add the ceiling bracket for an open floor
A warehouse or showroom often has no wall in the right place. The B338 universal ceiling bracket aims the pattern down into the space from above.
Match the smaller rooms to the same family
Keeping one detector family across a site makes walk tests and fault finding consistent. The ISC-BPR2-W12 is the Bosch detector sold here for rooms that do not need an 18 m pattern; its own page carries its coverage.
