Hikvision DS-2CE78H8T-IT3F TVI4.0 5MP Outdoor Turret Camera 60m IR, 4 in 1, IP67, 12VDC, 2.8mm

SKU: DS-2CE78H8T-IT3F
Description

Provides high-definition 5MP video over existing coaxial cables with ultra-long-range 80m night vision for large-scale property monitoring.
5MP Ultra HD 60m IR Night Vision IP67 Weatherproof
$111.55 AUD $111.55 AUD $122.00 AUD
Sale 8.57% $10.45 AUD (8.57%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $1,155.70

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
Not sure? Read the guide →
0
0
0
0
0
Bundle total: $111.55

§ 01Overview

What the DS-2CE78H8T-IT3F is

The Hikvision DS-2CE78H8T-IT3F is a 5 MP Turbo HD outdoor turret camera that upgrades an analogue CCTV system to high definition over existing coax, with no network cabling required. It records 2560 x 1944 video and switches between four signal types (TVI/AHD/CVI/CVBS), so it drops onto almost any HD or legacy analogue recorder.

Lens: fixed 2.8 mm (approx. 98 degrees wide view).
Night vision: EXIR 2.0 infrared to 60 m (black and white at night).

Built for Australian outdoor use with an IP67 metal housing rated -40C to 60C, 130 dB true WDR for harsh backlight, and a 0.003 lux ultra-low-light sensor. Powered by 12 V DC (no Power-over-Coax). 3-year Australian warranty.

See it in action

What the DS-2CE78H8T-IT3F features actually look like

Representative illustrations of how each key feature performs in a real scene.

60m IR Night Vision — Built-in infrared sees in total darkness up to around 60m, covering long driveways an... (1/2)
60m IR Night Vision — Built-in infrared sees in total darkness up to around 60m, covering long driveways an... (2/2)

60m IR Night Vision

Built-in infrared sees in total darkness up to around 60m, covering long driveways and large properties. Even well away from the house, people and vehicles remain clear in black-and-white.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2CE78H8T-IT3F specifications

- True 5 MP resolution: records 2560 x 1944 for clearer faces and plates than 2 MP / 960H analogue, over your existing coax.
- 4-in-1 switchable output: select TVI, AHD, CVI or CVBS to match new or older recorders.
- EXIR 2.0 smart IR to 60 m: even night-time illumination with less over-exposure of close objects (footage is black and white at night).
- 130 dB true WDR: balances bright and dark zones in one frame for backlit doorways and bright skies.
- Ultra-low-light sensor: usable images down to 0.003 lux before the IR switches on.
- IP67 outdoor housing: dust- and rain-resistant metal turret rated -40C to 60C.
- 12 V DC powered: runs from a plug-pack or central CCTV supply (this model is not powered over coax).

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision DS-2CE78H8T-IT3F TVI4.0 5MP Outdoor Turret Camera 60m IR, 4 in 1, IP67, 12VDC, 2.8mm
FeatureDetail
Image Sensor 5 MP CMOS
Max. Resolution 2560 (H) × 1944 (V)
Min. Illumination Color: 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Day ＆ Night IR Cut Filter
Signal System PAL/NTSC
Image Settings Brightness,Mirror,Sharpness,AGC
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) ≥130 dB
Image Enhancement BLC
Privacy Mask 4 programmable privacy masks
Noise Reduction 3D DNR
White Balance Auto/Manual

§ 04Why choose this

Built for the way you actually use the DS-2CE78H8T-IT3F

True 5MP over coax

Records 2560×1944 — a real detail jump from old 2 MP / 960H analogue, with no re-cabling.

Cost-effective 5MP

Full resolution at 20 fps, using less bandwidth and storage than the 8 MP DS-2CE78U7T-IT3F — pick it when you don't need 4K.

130 dB WDR + 0.003 lux

Usable images in harsh backlight and near-darkness.

EXIR 2.0 IR to 60 m

Concentrates light on the scene and limits blown-out close objects at night.

One 4-in-1 camera

TVI/AHD/CVI/CVBS fits almost any existing recorder — a low-risk upgrade.

IP67 metal turret

Rated −40 to 60 °C, built for exposed Australian outdoor mounts.

3-year AU warranty

Back-to-base cover through authorised distribution.

§ 05Where it fits

Right at home in these scenarios

Analogue upgrades

Lift an existing analogue / CVBS system to 5 MP over the current coax at homes and small businesses.

Wide outdoor coverage

Driveways, front gates, carports and patios with the fixed 2.8 mm lens.

Retail & shopfronts

Clear detail against bright window backlight thanks to 130 dB WDR.

Rural properties

Sheds and sites where running new network cable for IP cameras is impractical.

Night monitoring

Yards and entrances to 60 m where black-and-white IR footage is acceptable.

§ 06Setup

Installation & setup

01

What's in the Box

1. Hikvision DS-2CE78H8T-IT3F Camera × 1 2. Drill Template and Screw Kit × 1 3. Quick Start Guide × 1

02

Installation Requirements

1. Power: a 12 V DC supply (max 5.8 W) — a local plug-pack or a central CCTV power box. This model is not powered over coax. 2. Cabling: one coax run (BNC) back to your DVR; you can reuse existing RG59 from older analogue cameras. 3. Recorder: an HD-TVI / AHD / CVI DVR, or set the camera to CVBS for a legacy analogue recorder. 4. Mounting: solid wall or eave; the turret tilts on its base to aim. No IK vandal rating, so mount it out of easy reach in exposed spots.

§ 08Questions

Frequently asked about the DS-2CE78H8T-IT3F

Q.01

Will this camera work with my existing analogue DVR?
It outputs a switchable 4-in-1 signal (HD-TVI, AHD, HD-CVI or CVBS), so it connects to almost any HD analogue or older CVBS recorder over your current coax. Set its output to the signal type your recorder uses.
Q.02

Does it need a separate power supply, or can it run over the coax?
This model is 12 V DC only (max 5.8 W) and does not support Power-over-Coax. Run a separate 12 V DC supply to the camera, either a local plug-pack or a central CCTV power box.
Q.03

Can it see in full colour at night?
No. Night vision is infrared EXIR 2.0 reaching up to 60 m, so footage after dark is black and white. For 24/7 colour you would need a ColorVu (-L) model with white-light LEDs instead.
Q.04

Is it OK to mount outside, under an eave or on an exposed wall?
It carries an IP67 rating against dust and rain and an operating range of -40C to 60C, so it suits Aussie eaves, carports and exposed walls. It has no IK vandal rating, so mount it out of easy reach in higher-risk spots.
Q.05

Does it record sound?
No. There is no built-in microphone or audio input on this model, so it captures video only. Choose a model with audio-over-coax if you need sound recorded down the cable.
Q.06

What does the 2.8 mm lens actually cover?
The fixed 2.8 mm lens gives a wide field of view around 98 degrees horizontally, which suits driveways, front gates, patios and shopfronts where one camera should cover a broad area rather than zoom in on distance.
Q.07

Will I get a clear image against a bright sky or a backlit doorway?
Its 130 dB true WDR balances bright and dark areas in the same frame, and the ultra-low-light sensor works down to 0.003 lux, so backlit entrances and west-facing walls stay usable through the day.
Q.08

Can I reuse the cabling from an old analogue camera?
Yes for the video. It runs over standard coax with a BNC connector, so you can reuse existing RG59 runs when upgrading from older CVBS cameras. You will still need to provide 12 V DC power, as this model is not powered over the coax.
Q.09

Should I get this 5 MP camera or the 8 MP DS-2CE78U7T-IT3F?
Pick this 5 MP version for a lower cost, smoother full-resolution video (5 MP at 20 fps) and lighter storage. Step up to the 8 MP DS-2CE78U7T-IT3F if you need maximum 4K detail for plates and faces and can accept 12.5-15 fps at full resolution and an 8 MP-capable DVR. The two are otherwise the same turret with 60 m EXIR, 130 dB WDR and IP67.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

§ 09In motion

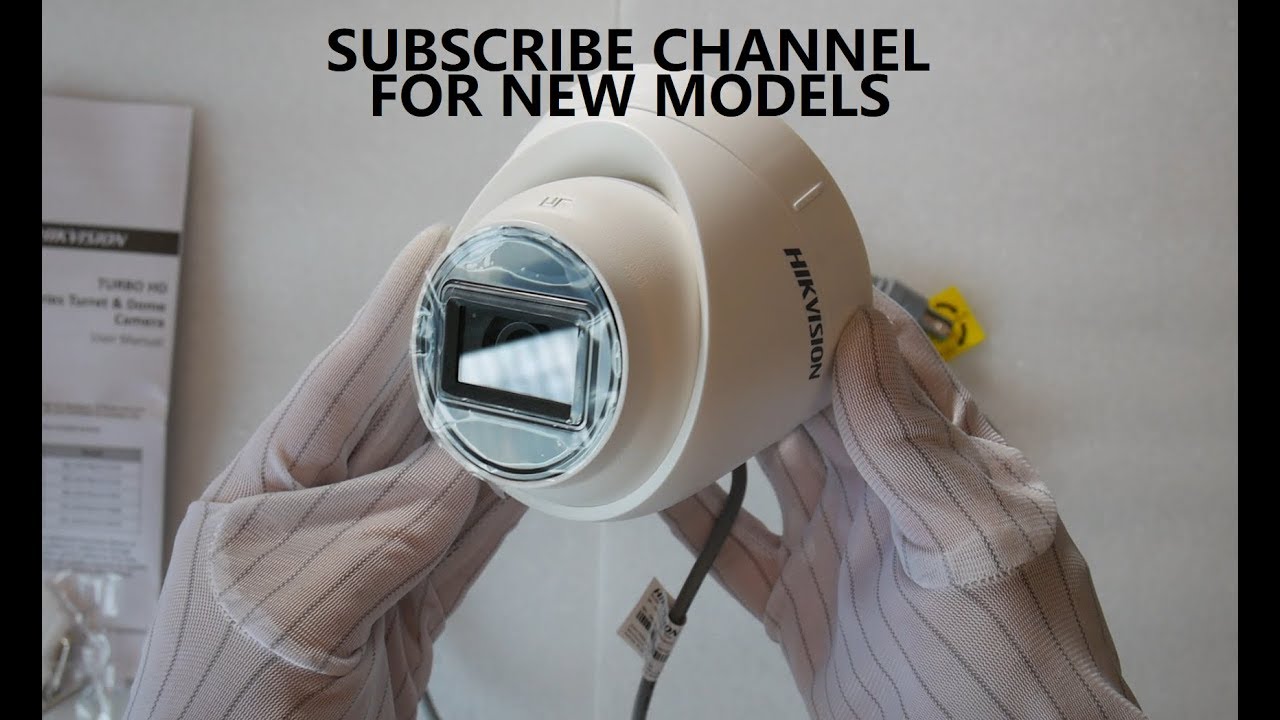

Hikvision 2CE78-series Turbo HD Turret Camera (same series)

Hikvision 2CE78-series Turbo HD Turret Camera (same series)

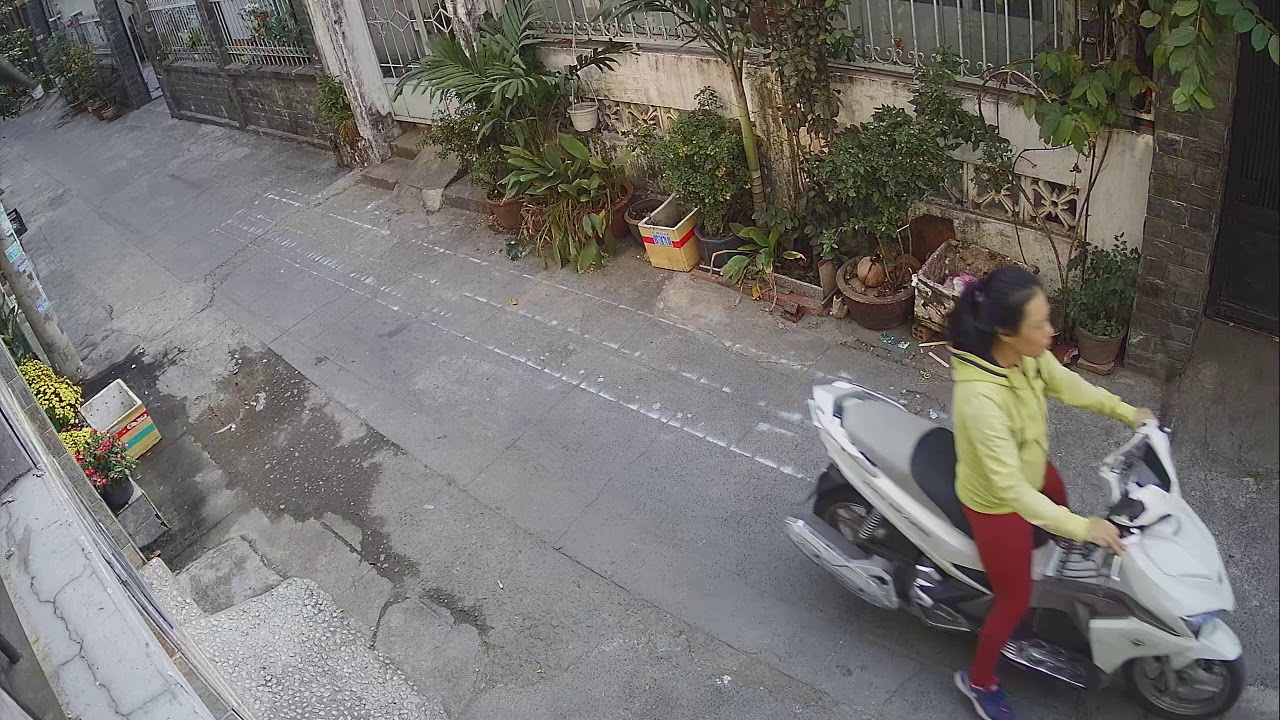

Hikvision HD-TVI 5MP Turret Camera Test Footage (same range)
