Hikvision DS-2CE78U7T-IT3F HIK-2CE78U7IT3F2 TVI4.0 8MP Outdoor Turret Camera 60m IR, 4 in 1, IP67, 12VDC, 2.8mm
Hikvision DS-2CE78U7T-IT3F 8MP Outdoor Turret Camera
1 1
Hikvision

Hikvision DS-2CE78U7T-IT3F HIK-2CE78U7IT3F2 TVI4.0 8MP Outdoor Turret Camera 60m IR, 4 in 1, IP67, 12VDC, 2.8mm

SKU: DS-2CE78U7T-IT3F
Description

Delivers ultra-high-definition 4K video surveillance over existing cables with long-range night vision for large outdoor areas.
8MP Ultra HD 60m IR Night Vision IP67 Weatherproof
$133.85 AUD $133.85 AUD $164.00 AUD
Sale 18.38% $30.15 AUD (18.38%)
Member Sign in to save $2.68 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $1,077.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
Bundle total: $133.85
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DS-2CE78U7T-IT3F is

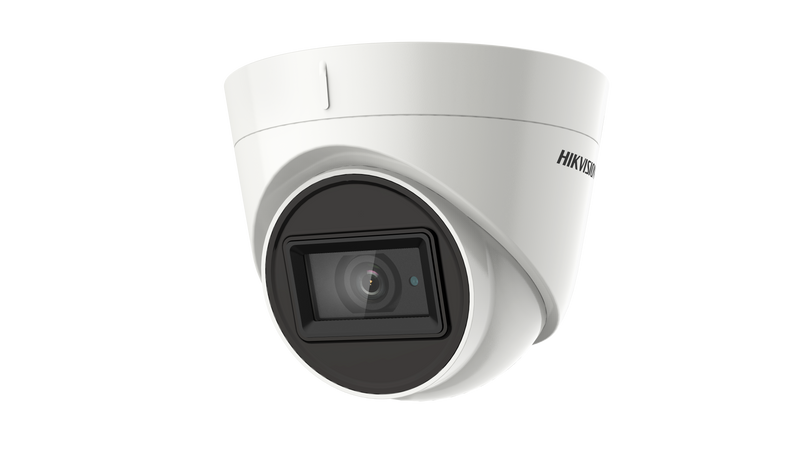

The Hikvision DS-2CE78U7T-IT3F is an 8 MP (4K) Turbo HD outdoor turret camera that upgrades an analogue CCTV system to 4K over existing coax - no network cabling needed.

It records 3840 x 2160 and switches between four signal types (TVI/AHD/CVI/CVBS), so it works with almost any HD or legacy analogue recorder that supports 8 MP TVI.

Lens: fixed 2.8 mm (approx.

102 degrees wide view).

Night vision: EXIR 2.0 infrared to 60 m (black and white at night).

Frame rate: full 8 MP runs at 12.5/15 fps over coax; drop to 4-5 MP for 25-30 fps.

Built for Australian outdoor use with an IP67 metal housing rated -40C to 60C, 130 dB true WDR and a 0.003 lux ultra-low-light sensor.

Powered by 12 V DC (no Power-over-Coax).

3-year Australian warranty.

See it in action

What the DS-2CE78U7T-IT3F features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2)
8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2)

8MP Ultra HD

8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
60m IR Night Vision — Built-in infrared sees in total darkness up to around 60m, covering long driveways an... (1/2)
60m IR Night Vision — Built-in infrared sees in total darkness up to around 60m, covering long driveways an... (2/2)

60m IR Night Vision

Built-in infrared sees in total darkness up to around 60m, covering long driveways and large properties. Even well away from the house, people and vehicles remain clear in black-and-white.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2CE78U7T-IT3F specifications

- True 8 MP / 4K resolution (3840 x 2160) over coax: far more detail than 2 MP or 5 MP analogue, on your existing cabling.
- 4-in-1 switchable output: TVI, AHD, CVI or CVBS to suit an 8 MP-capable HD recorder or a legacy analogue DVR.
- EXIR 2.0 smart IR to 60 m: even night illumination with less over-exposure of close objects (footage is black and white at night).
- 130 dB true WDR and a 0.003 lux sensor: usable images in harsh backlight and very low light.
- Frame rate note: full 8 MP records at 12.5-15 fps over coax; set 4-5 MP for 25-30 fps if you want smoother motion.
- Fixed 2.8 mm lens (about 102 degrees) for wide driveway, yard or shopfront coverage.
- IP67 metal-bodied turret rated -40C to 60C; 12 V DC powered (not powered over coax).

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision DS-2CE78U7T-IT3F HIK-2CE78U7IT3F2 TVI4.0 8MP Outdoor Turret Camera 60m IR, 4 in 1, IP67, 12VDC, 2.8mm
FeatureDetail
Image Sensor 8.29 MP CMOS
Max. Resolution 3840 (H) × 2160 (V)
Min. Illumination 0.003 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Day ＆ Night ICR
Signal System PAL/NTSC
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, Mirror
Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) ≥130 dB
Image Enhancement BLC, HLC
White Balance Auto/Manual
AGC Support

§ 04Why choose this

Built for the way you actually use the DS-2CE78U7T-IT3F

True 8 MP over coax

A big jump from 2 MP or 5 MP analogue, with no re-cabling.

130 dB WDR + 0.003 lux

For harsh backlight and very low light.

EXIR 2.0 IR to 60 m

Long-range night coverage (black and white at night).

One 4-in-1 camera

TVI/AHD/CVI/CVBS fits 8 MP HD or legacy analogue recorders.

IP67 metal turret

Rated −40 to 60 °C for exposed Australian outdoor mounts.

3-year AU warranty

Back-to-base cover through authorised distribution.

§ 05Where it fits

Right at home in these scenarios

Analogue to 4K

Lift an existing analogue system to 4K over the current coax at homes and small businesses.

Wide outdoor coverage

Driveways, front yards, carports and shopfronts with the fixed 2.8 mm lens.

8 MP HD-TVI DVRs

Sites that want maximum analogue detail from an 8 MP-capable recorder.

Rural properties

Where running new network cable for IP cameras is impractical.

Night monitoring

Yards and entrances to 60 m where black-and-white IR footage is acceptable.

§ 06Setup

Installation & setup

01

What's in the Box

1. Hikvision DS-2CE78U7T-IT3F Camera × 1 2. Drill Template and Screw Kit × 1 3. Quick Start Guide × 1

02

Installation Requirements

1. Power: a 12 V DC supply - this model is not powered over coax. 2. Cabling: one coax run (BNC) to your DVR; you can reuse existing RG59 from older analogue cameras. 3. Recorder: for full 8 MP use an 8 MP-capable HD-TVI / AHD / CVI DVR; set the camera to CVBS for a legacy analogue recorder. 4. Mounting: solid wall or eave; the turret tilts on its base to aim. No IK vandal rating, so mount it out of easy reach in exposed spots.

§ 07Questions

Frequently asked about the DS-2CE78U7T-IT3F

Q.01

Will my existing DVR record its full 8 MP?
It outputs a switchable 4-in-1 signal, but to record the full 8 MP you need an 8 MP-capable HD-TVI / AHD / CVI DVR. On an older recorder it still works at a lower resolution or in CVBS, so check your DVR lists 8 MP / 4K TVI support.
Q.02

Does it need a power supply, or can it run over the coax?
This is a 12 V DC camera with no Power-over-Coax. Run a separate 12 V DC supply (a local plug-pack or a central CCTV power box); the coax carries video only.
Q.03

Why is 8 MP listed at only 12.5-15 fps?
Full 8 MP over coax runs at 12.5/15 fps on this model, which suits general surveillance. For smoother motion you can set it to 4 or 5 MP and get 25-30 fps.
Q.04

Can it see in colour at night?
No. Night vision is EXIR infrared to 60 m, so after dark footage is black and white. For 24/7 colour you would need a ColorVu white-light model.
Q.05

Does it record sound?
No. There is no built-in microphone or audio input on this model, so it captures video only.
Q.06

Can I reuse my old analogue camera cabling?
Yes for the video. It runs over standard coax with a BNC connector, so you can reuse existing RG59 when upgrading. You will still need to provide 12 V DC power.
Q.07

Is it OK to mount outside, under an eave?
It is IP67 dust- and water-resistant and rated -40C to 60C, so it suits exposed Aussie eaves and walls. It has no IK vandal rating, so mount it out of easy reach in higher-risk spots.
Q.08

What area does the 2.8 mm lens cover?
The fixed 2.8 mm lens gives about a 102 degree wide view, suited to driveways, front yards, patios and shopfronts where one camera should cover a broad area.
Q.09

Should I get this 8 MP camera or the 5 MP DS-2CE78H8T-IT3F?
Choose this 8 MP version for the most 4K detail and a slightly wider view, accepting 12.5-15 fps at full resolution and the need for an 8 MP-capable DVR. The 5 MP DS-2CE78H8T-IT3F costs less, records 20 fps at full resolution and uses less storage if 4K is not essential. Both are the same turret with 60 m EXIR, 130 dB WDR and IP67.

§ 08In motion

Hikvision 2CE78-series 8MP Turbo HD Turret (same series)

Hikvision 2CE78-series 8MP Turbo HD Turret (same series)

Hikvision Ultra HD-TVI 4K (8MP) over Coax - Demo

Hikvision Ultra HD-TVI 4K (8MP) over Coax - Demo

§ 09Bundles

Recommended packages

01

Add a recorder

To record full 8 MP you need an 8 MP-capable Turbo HD DVR such as the iDS-7208HTHI-M2/S.

02

Want a lower-cost option?

The 5 MP DS-2CE78H8T-IT3F is the same Turbo HD turret at 5 MP - lower cost and 20 fps at full resolution.

03

How will you power it?

It runs on 12 V DC and is not powered over coax, so add a plug-pack or a multi-camera CCTV power supply to your order.
