§ 01Overview

What the DS-2CD2347G2-LSU/SL is

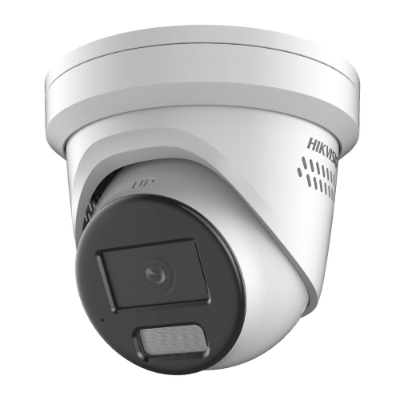

The Hikvision DS-2CD2347G2-LSU/SL is a 4 MP ColorVu turret that records vivid colour day and night and adds an active deterrent on top.

The 1/1.8" sensor and F1.0 aperture pull in enough light to keep faces, clothing and vehicle colours visible in the dark, and 130 dB WDR holds detail when a bright sky sits behind a shaded doorway or carport.

Where it differs from an ordinary camera is what happens when someone should not be there.

AcuSense deep-learning analytics classify human and vehicle targets, so motion and line-crossing rules ignore cats, rain and moving branches.

When a real person or vehicle crosses a zone you have set, the camera can flash its white strobe light and play a recorded or live audible warning, which is often enough to send an intruder off before anything happens.

A built-in microphone and speaker also let you talk to visitors or delivery drivers through the Hik-Connect app.

This is a compact metal turret rated IP67 for Australian sun, dust and driving rain, with a fixed 2.8 mm wide lens or a 4 mm lens for a tighter view down a path or driveway.

Power and network it over one PoE cable, or use 12 VDC, and record it to a Hikvision AcuSense NVR so the human and vehicle events stay quick to search.

Note the supplement light is white light for full colour, not infrared, so at night the scene is lit in colour rather than black and white.

See it in action

What the DS-2CD2347G2-LSU/SL features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p. — 4MP Ultra HD
4MP captures roughly twice the detail of standard 1080p.

Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d... — Full Color Night Vision
Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.

Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying... — Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.

IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h... — IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s... — Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2CD2347G2-LSU/SL specifications

- 4 MP (2688 x 1520) 1/1.8" CMOS with F1.0 ColorVu aperture
- 24/7 full-colour imaging; white supplement light up to 30 m
- White strobe light plus audible warning on detection (active deterrence)
- Built-in microphone and speaker for two-way audio
- AcuSense deep-learning human and vehicle classification
- 130 dB WDR for high-contrast entrances and driveways
- 2.8 mm or 4 mm fixed lens; H.265+ compression; microSD up to 512 GB
- IP67 weatherproof metal turret; PoE (802.3af) or 12 VDC

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision DS-2CD2347G2-LSU/SL 4MP Gen2 ColorVu Turret Camera Acusense Speaker Strobe Mic 30m White LED 2.8mm
Feature	Detail
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	2688 × 1520
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time	1/3 s to 1/100,000 s
Wide Dynamic Range (WDR)	130 dB
SNR	≥ 52 dB
Day/Night Switch	Auto, Schedule
Image Enhancement	BLC, HLC, 3D DNR
Image Parameters Switch	Yes
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Lens & Distance

Lens & Distance — Hikvision DS-2CD2347G2-LSU/SL 4MP Gen2 ColorVu Turret Camera Acusense Speaker Strobe Mic 30m White LED 2.8mm
Feature	Detail
Focal Length & FOV	2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6° \| 4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7°
Lens Mount	M16
Iris Type	Fixed
Aperture	F1.0
Depth of Field	2.8 mm: 3.1 m to ∞ \| 4 mm: 5.4 m to ∞
DORI	2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m \| 4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
Pan Range	0° to 360°
Tilt Range	0° to 75°
Rotate Range	0° to 360°

Night Vision

Night Vision — Hikvision DS-2CD2347G2-LSU/SL 4MP Gen2 ColorVu Turret Camera Acusense Speaker Strobe Mic 30m White LED 2.8mm
Feature	Detail
Supplement Light Type	White light
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes

Video

Video — Hikvision DS-2CD2347G2-LSU/SL 4MP Gen2 ColorVu Turret Camera Acusense Speaker Strobe Mic 30m White LED 2.8mm
Feature	Detail
Main Stream	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) \| 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) \| 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) \| 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); Third stream is supported under certain settings.
Video Compression	Main stream: H.265/H.264/H.265+/H.264+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; Third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 8 Mbps
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR/VBR
Scalable Video Coding (SVC)	H.265 and H.264 encoding
Region of Interest (ROI)	1 fixed region for main stream and sub-stream

Audio

Audio — Hikvision DS-2CD2347G2-LSU/SL 4MP Gen2 ColorVu Turret Camera Acusense Speaker Strobe Mic 30m White LED 2.8mm
Feature	Detail
Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering	Yes
Built-in Microphone	Yes
Built-in Speaker	1.2 W, 10 cm: 95 dB

AI & Deep Learning

AI & Deep Learning — Hikvision DS-2CD2347G2-LSU/SL 4MP Gen2 ColorVu Turret Camera Acusense Speaker Strobe Mic 30m White LED 2.8mm
Feature	Detail
Face Capture	Yes

Network & Storage

Network & Storage — Hikvision DS-2CD2347G2-LSU/SL 4MP Gen2 ColorVu Turret Camera Acusense Speaker Strobe Mic 30m White LED 2.8mm
Feature	Detail
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Security	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage	NAS (NFS, SMB/CIFS), auto network replenishment (ANR), MicroSD/SDHC/SDXC card (512 GB) local storage; Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Event & Alarm

Event & Alarm — Hikvision DS-2CD2347G2-LSU/SL 4MP Gen2 ColorVu Turret Camera Acusense Speaker Strobe Mic 30m White LED 2.8mm
Feature	Detail
Basic Event	Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart Event	Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)); Scene change detection
Linkage	Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning, trigger alarm output

Interface

Interface — Hikvision DS-2CD2347G2-LSU/SL 4MP Gen2 ColorVu Turret Camera Acusense Speaker Strobe Mic 30m White LED 2.8mm
Feature	Detail
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio Input	1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
Audio Output	1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm	NA
Reset Key	Yes

General & Environment

General & Environment — Hikvision DS-2CD2347G2-LSU/SL 4MP Gen2 ColorVu Turret Camera Acusense Speaker Strobe Mic 30m White LED 2.8mm
Feature	Detail
Power	12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø 5.5 mm coaxial power plug; PoE: 802.3af, Class 3, 36 V to 57 V, 0.22 A to 0.14 A, max. 8 W
Dimension	Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5")
Package Dimension	170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight	Approx. 760 g (1.7 lb.)
With Package Weight	Approx. 1040 g (2.3 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function	Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
EMC	FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 6, 2016; KC: KN 32: 2015, KN 35: 2015
Safety	UL: UL 60950-1; CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; LOA: IEC/EN 60950-1
Environment	CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Protection	IP67: IEC 60529-2013

§ 04Why choose this

Built for the way you actually use the DS-2CD2347G2-LSU/SL

Stops trouble, not just films it

A white strobe light and audible warning fire on a real detection to move intruders on before anything happens.

Full colour around the clock

ColorVu with an F1.0 aperture and 30 m white light keeps faces and vehicle colours visible at night.

Alerts that matter

AcuSense human and vehicle classification keeps motion and perimeter alarms focused on people and cars.

Two-way talk built in

A microphone and speaker let you greet visitors or warn off loiterers from your phone.

§ 05Where it fits

Right at home in these scenarios

Home entrances and driveways

Light the area in colour, talk to visitors, and let the strobe and audible warning deter anyone loitering after dark.

Shopfronts after hours

Warn off people at the door once you have closed while keeping clear colour evidence of who was there.

Side gates and boundaries

Use the 4 mm lens down a fence line and let AcuSense flag people rather than passing animals.

Small business yards

Keep colour footage and human or vehicle events that are quick to review the next morning.

§ 06Setup

Installation & setup

01

What's in the box

One DS-2CD2347G2-LSU/SL turret camera with a mounting template, fixings and a quick guide. The PoE switch or NVR, network cable, microSD card and any junction box are supplied separately.

02

Installation requirements

Mount it on a wall or eave overlooking the area you want to cover and run one network cable back to a PoE switch or NVR, or use a 12 VDC supply. Set the lighting, audio warning and AcuSense rules in the software, and add it to a Hikvision AcuSense NVR for recording and event search.

§ 07Questions

Frequently asked about the DS-2CD2347G2-LSU/SL

Q.01

Does the DS-2CD2347G2-LSU/SL record in colour at night?

Yes. It is a ColorVu camera, so it uses a large F1.0 aperture and a white supplement light up to 30 m to keep footage in full colour around the clock. The night image is lit in colour rather than the black and white you get from an infrared camera.

Q.02

How does the strobe and audible warning work?

When AcuSense detects a person or vehicle in a zone you have set, the camera can flash its white strobe light and play an audible warning. You choose whether the alarm triggers, what it plays and during which hours, so it deters intruders after closing time without disturbing legitimate visitors during the day.

Q.03

Can I talk through the camera?

Yes. It has a built-in microphone and a built-in speaker, so it supports two-way audio. You can listen to the scene and speak to a visitor or delivery driver live through the Hik-Connect app or a compatible NVR.

Q.04

Is the white light on all the time?

By default the camera keeps a low level of white light so it can hold colour at night, and the brighter strobe only fires on a detection. You can switch the supplement light between always-on, smart and schedule modes in the settings to suit how bright you want the area.

Q.05

How does it cut down false alarms?

AcuSense deep-learning analytics classify human and vehicle targets, so motion, line-crossing and intrusion events trigger on people and cars and skip animals, rain and swaying plants. That keeps notifications meaningful and makes recorded footage far faster to search.

Q.06

Can I power it with PoE?

Yes. It runs on standard PoE (802.3af, Class 3) over a single network cable from a PoE switch or PoE NVR, which carries both power and data, or on 12 VDC if you prefer a separate plug pack. PoE keeps the cabling to one run per camera.

Q.07

What is the difference between the 2.8 mm and 4 mm lens?

The 2.8 mm gives a wider view that suits a front entrance, carport or small yard, while the 4 mm narrows the field of view to reach a little further down a driveway or boundary. Choose 2.8 mm for coverage and 4 mm for distance.

Q.08

Does it need a Hikvision NVR?

It works with ONVIF recorders, but the AcuSense search, smart events, two-way audio and easiest setup are at their best with a Hikvision AcuSense NVR. For the full feature set, pair it with a matching Hikvision recorder.

§ 09Bundles

Recommended packages

01

Record and search it

Connect it to a Hikvision DS-7608NI-M2/8P NVR, or a larger DS-7616NI-M2/16P, that supports AcuSense human and vehicle search so the events stay easy to find. For a one or two camera setup, the 4-channel DS-7604NI-M1/4P is a tidy match.

02

Match other cameras

Pair it with the mic-only DS-2CD2347G2-LU turret for views that do not need the strobe, so the colour and analytics stay consistent across the site.
