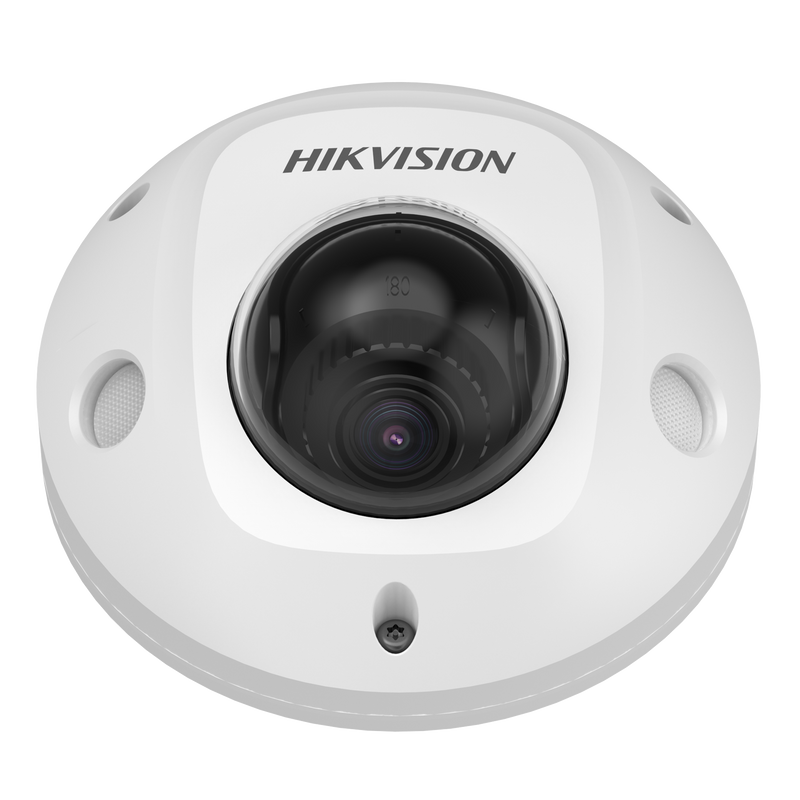

Hikvision DS-2XM6726G1-ID 2 MP Mobile Network Dome Camera
SKU: DS-2XM6726G1
Description
The Hikvision DS-2XM6726G1-ID is a 2 MP mobile network dome camera made for inside buses, trains, coaches and emergency vehicles. The compact, low-profile metal dome is rated IP67 and IK10 to handle constant vibration, dust and tampering, and 120 dB true WDR keeps passengers and doorways clear against bright windows and changing light.
Key points
- 2 MP (1920 x 1080) on a 1/2.8" sensor; 120 dB WDR
- Compact, low-profile dome for vehicle cabins
- 2, 2.8, 4 or 6 mm fixed lens (up to 132° ultra-wide)
- Infrared night vision to 30 metres; black and white under IR
- IP67 weatherproof and IK10 vandal-resistant metal body
- H.265+ compression; microSD to 256 GB
- Carriage analytics: passenger density and left-item detection
Regular price
$343.40 AUD
Sale price
$343.40 AUD
Regular price
$440.00 AUD
Sale
21.95%
$96.60 AUD
(21.95%)
Member
Sign in to save $6.87 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision DS-2XM6726G1-ID 2 MP Mobile Network Dome Camera
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $1,287.00
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2XM6726G1 is
The Hikvision DS-2XM6726G1-ID is a 2 MP mobile network dome camera built for the inside of moving vehicles, such as buses, trains, coaches and emergency vehicles.
The low-profile metal dome is discreet and tough, rated IP67 against dust and water and IK10 against impact and tampering, so it keeps working through constant vibration and the rough handling of public transport.
A 1/2.8" sensor records 1080p video, and 120 dB true Wide Dynamic Range balances a bright window or door against a darker cabin so faces stay clear.
Lens choice is the key decision.
The dome is available with a 2 mm ultra-wide lens that takes in about 132 degrees for a whole cabin from one mount, or 2.8, 4 and 6 mm options for a more focused view of a doorway, aisle or cab.Infrared night vision reaches up to 30 metres for darkened cabins and night routes, and the image is black and white under infrared, as with any IR camera.
H.265+ compression keeps recording efficient on a mobile NVR, and a built-in micro SD slot up to 256 GB adds local backup.
A built-in microphone also captures audio alongside the video.
Beyond plain recording, it adds analytics aimed at transport.
It can detect passenger density, to flag a crowded carriage, and items or people left behind, which helps operators manage safety and lost property.
Note these are carriage-management analytics rather than the human and vehicle perimeter detection used on building cameras.
It powers from a mobile NVR and suits any cabin where you want a single, vandal-resistant camera with a wide view and clear low-light performance.
See it in action
What the DS-2XM6726G1 features actually look like
Representative illustrations of how each key feature performs in a real scene.
30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2XM6726G1 specifications
- 2 MP (1920 x 1080) on a 1/2.8" progressive-scan CMOS sensor
- Compact, low-profile dome for discreet in-cabin mounting
- 120 dB true WDR for bright windows and changing light
- 2 mm ultra-wide (132 degrees) plus 2.8, 4 and 6 mm lens options
- Infrared night vision to 30 m; the night image is black and white
- IP67 weatherproof and IK10 vandal-resistant metal body
- H.265+ compression; built-in microSD slot up to 256 GB
- Carriage analytics: passenger density and left-item detection
- Built-in microphone for in-cabin audio
- Compact, low-profile dome for discreet in-cabin mounting
- 120 dB true WDR for bright windows and changing light
- 2 mm ultra-wide (132 degrees) plus 2.8, 4 and 6 mm lens options
- Infrared night vision to 30 m; the night image is black and white
- IP67 weatherproof and IK10 vandal-resistant metal body
- H.265+ compression; built-in microSD slot up to 256 GB
- Carriage analytics: passenger density and left-item detection
- Built-in microphone for in-cabin audio
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.8" CMOS Progressive Scan |
| Min. Illumination | 0.002Lux @ (F1.6, AGC ON), 0lux with IR |
| Resolution | 2MP |
| Shutter Speed | 1/3 s to 1/100,000 s |
| P/N | PAL: 25fps; NTSC: 30fps |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: -30°~+30°, Tilt: 0°~75°, Rotate: 0°~ 360° |
| White Balance | Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light; Support manual/automatic white balance adjustment. |
| Wide Dynamic Range (WDR) | 120 dB |
| Image Settings | Support rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software. |
| Day/Night Switch | Day/Night/Auto/Schedule |
| SNR | > 50 dB |
| Image Enhancement | BLC, HLC, 2DNR, 3DNR |
| Privacy Mask | Enables configuration, and supports drawing of up to 4 areas |
| Picture Overlay | Support image overlay, uploading images, enabling, coordinates, etc. |
| Target Cropping | Support (only the third stream) |
| Backlight Compensation (BLC) | Support up, down, left, right, center and custom backlight compensation adjustment |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | 2mm/2.8mm/4mm/6mm |
| Focal Length & FOV | 2 mm, horizontal FOV 132°, vertical FOV 77°, diagonal FOV 152° | 2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126° | 4 mm, horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104° | 6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62° |
| Lens Mount | M12 |
| Focus | Manual focus |
| Max. Aperture | 2mm: F2.25; 2.8mm/4mm/6mm: F1.6 |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | Infrared fill light lamp |
| Smart Supplement Light | Support |
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
Video
| Feature | Detail |
|---|---|
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240); 60Hz: 30fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Video Compression | Main stream: H.264, H.265, H.264+, H.265+; Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+; Third stream: H.264, H.265, H.264+, H.265+ |
| Video Bit Rate | Main Stream: 256 Kbps to 12288Kbps; Sub-Stream: 256 Kbps to 4096Kbps; Third Stream: 256 Kbps to 12288Kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | Constant Bit Rate, Variable Bit Rate |
| Stream Type | Main stream, sub stream, third stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region Of Interest (ROI) | Support 2 fixed region for (main/sub) stream |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G711U, G711A, G726, AAC, G722, PCM, AAC |
| Audio Bit Rate | Raw data PCM: 256kbps; G711U, G711A, G726_A, AAC, G722.1: ≤64kbps |
| Audio Sampling Rate | 16 kHz |
| Environment Noise Filtering | Support |
AI & Deep Learning
| Feature | Detail |
|---|---|
| People Density | Support the detection of passenger congestion in carriages. |
| Detection | Support the detection of articles and personnel left behind in the carriage. |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS, RTSP, SNMP, QOS, FTP, RTCP, NTP, UPNP, SMTP, IGMP, ICMP, IPV6, UDP, SSL/TLS |
| Simultaneous Live View | Up to 8 channels |
| API | ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User Management | Up to 16 users, 3 levels: Administrator, Operator and User |
| Web Browser | IE8+, Chrome45+, Edge41+, Firefox45+ |
| TF Card Storage | Built-in Micro TF Slot, up to 256 GB (not for baseline. Note the Micro-TF card capacity when ordering) |
Event & Alarm
| Feature | Detail |
|---|---|
| Linkage Method | Upload to FTP, notify monitoring center, send email, trigger recording |
| Basic Event | Motion detection, video tampering alarm |
| Smart Event | Line crossing detection, Intrusion detection, Region entrance detection, Region exiting detection, Unattended baggage detection, Object removal detection, Object detection: detects faces and upload images, Scene change detection, defocus detection, Loitering Detection, People Gathering Detection, Fast Moving Detection, Parking Detection |
Interface
| Feature | Detail |
|---|---|
| Video Output | Not supported |
| Ethernet Interface | -ID: 1 RJ45 10M/100M self-adaptive Ethernet port; -IM/ND, IDM: 1 four-core M12 aviation plug |
| Audio | 1 built-in mic, mono sound |
| Reset Key | Support |
| Interface Type | Interpolate |
General & Environment
| Feature | Detail |
|---|---|
| Product Dimension | 110 mm × 57.4 mm (4.3" × 2.26") |
| Power | PoE: 0.30 A to 0.20 A, max: 7.5 W; DC: 0.83 A to 0.21 A, max: 7.5 W |
| Package Dimension | 252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7") |
| Product Weight | Approx. 452 g (1 lb.) |
| With Package Weight | 252 mm × 160 mm × 95 mm (9.9" × 6.3" × 3.7") |
| Protection | IP67, IK10 |
| Camera Material | Metal |
| Startup and Operating Conditions | -30 °C to 75°C (-22 °F to 167°F), humidity 95% or less (non-condensing) |
| Language | English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech |
| General Function | Anti-flicker, heartbeat, mirror |
| Software Reset | Support |
| Power Supply | -ID: 9-36V & PoE (802.3af, 36 V to 57 V); -IDM: 9-36V & PoE (802.3af, 36 V to 57 V); -IM/ND: PoE (802.3af, 36 V to 57 V) |
| Power Interface | -ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply; -IM/ND: four-core M12 aviation plug, PoE power supply |
| Cable Length | 50 cm |
| Wi-Fi Support | Not supported |
| POE Support | PoE (802.3af) |
| Class | Class B |
| EMC | FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B); CE: CE-EMC (EN 55024:2010 +A1:2015, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013); RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015; IC: ICES-003 Issue 7:2020; KC: KN32:2015, KN35:2015 |
| Safety | UL: UL 60950-1:2014, CAN/CSA C22.2 No. 60950-1-07:2014; CB: IEC 60950-1; CE: CE-LVD (EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013); LOA: SANS IEC60950-1; BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015 |
| Environment | CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863); WEEE: 2012/19/EU; Reach SVHC: Regulation (EC) No 1907/2006 |
| Electrical Safety Protection | IK10 (IEC 62262:2002) |
| Automotive and Railway | EN50155-2017 (EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10) |
§ 04Why choose this
Built for the way you actually use the DS-2XM6726G1
Cover a whole cabin
An ultra-wide 2 mm option sees about 132 degrees from one mount, with 2.8, 4 and 6 mm lenses for tighter views of doors and aisles.
Clear against bright windows
120 dB true WDR and a 1/2.8" sensor keep passengers readable where strong window light would wash out a basic camera.
Transport-ready analytics
Passenger-density and left-item detection help operators manage crowding and lost property, beyond plain recording.
§ 05Where it fits
Right at home in these scenarios
Buses and coaches
A single ultra-wide dome covers the cabin, doors and aisle for passenger safety and incident review.
Trains and trams
Discreet, vandal-resistant monitoring of carriages with crowding and left-item alerts.
Emergency vehicles
Rugged in-cabin recording for ambulances, patrol and service vehicles that take constant movement.
School and charter transport
Clear in-cabin coverage to support driver and passenger safety on daily routes.
§ 06Setup
Installation & setup
Choose the lens
Pick 2 mm for a whole small cabin, or 2.8 to 6 mm for a focused view of a door or aisle, before you order so the field of view fits the vehicle.
Mounting
Fix the low-profile dome to the cabin ceiling or wall with the supplied hardware, using the three-axis adjustment to aim the view, and keep cable entries sealed.
Power and cabling
Connect it to the vehicle's Hikvision mobile NVR; the camera draws power and carries video over its network connection.
Setup
Enable WDR, the night-vision mode and the carriage analytics you need in the recorder, and fit a micro SD card up to 256 GB for local backup.
§ 07Questions
Frequently asked about the DS-2XM6726G1
Q.01
What is the difference between the 2 mm and 2.8 mm lens?
The 2 mm lens is ultra-wide at about 132 degrees and takes in a whole cabin from one mount, with less detail at distance. The 2.8 mm is a touch narrower at about 105 degrees with better detail further away. Pick 2 mm to cover a small cabin and 2.8 mm or longer for a doorway or aisle.
Q.02
Is this camera for inside or outside a vehicle?
It is a dome designed for inside the cabin of a bus, train or coach, where its low profile and IK10 body resist tampering. For the exterior of a vehicle, a sealed wedge-style mobile camera is the better choice.
Q.03
How tough is it for transport use?
It uses a metal dome rated IP67 against dust and water and IK10 against impact, built to take constant vibration and the knocks of a public-transport cabin. It is made specifically for mobile and transport installs.
Q.04
How far does it see in the dark?
Infrared night vision reaches up to 30 metres, which covers a typical cabin or carriage. The infrared image is black and white in darkness rather than colour, as is normal for an IR camera.
Q.05
Does it detect people and vehicles like a building camera?
Not in the same way. Its analytics are built for transport: passenger-density detection to flag a crowded carriage, and detection of items or people left behind. These are carriage-management tools rather than human and vehicle perimeter classification.
Q.06
What recorder does it work with?
It is a mobile camera that pairs with a Hikvision mobile NVR fitted in the vehicle. A built-in micro SD slot up to 256 GB gives local backup, and H.265+ compression keeps recording efficient on limited mobile storage.
Q.07
Can I record audio with it?
This dome is supplied for video monitoring; Yes. It has a built-in microphone and records mono audio alongside the video, useful for incident review on transport. Check that recording audio is permitted before you enable it and the exact model code if sound is essential.
