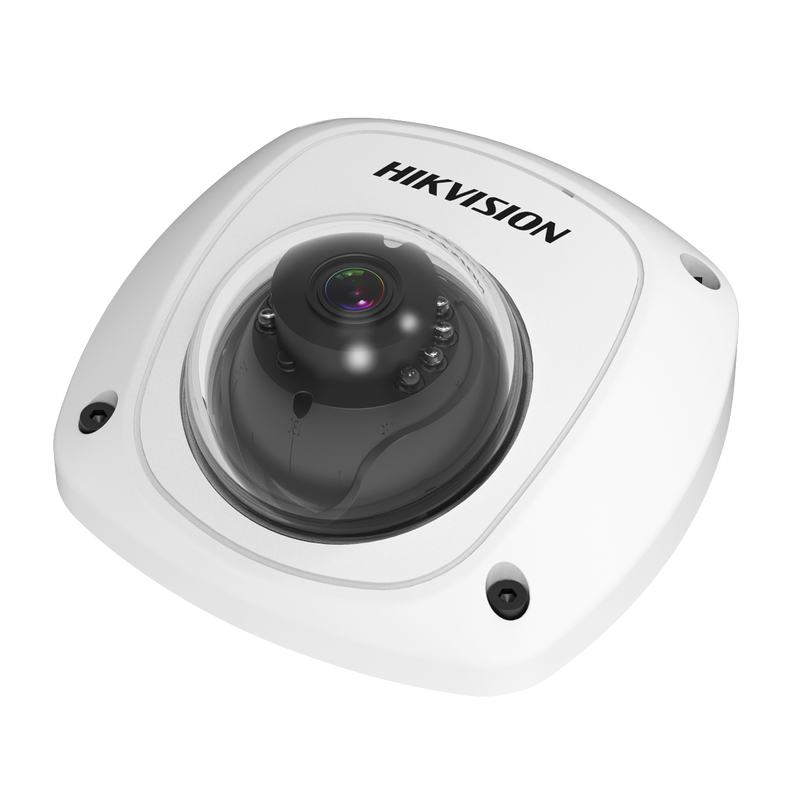

Hikvision AE-VC211T-IRS Mobile 1080P Vehicle Camera 1M IR / 2.8mm Lens
SKU: TVI-AE-VC211T-IRS
Description
The Hikvision AE-VC211T-IRS is a 2 MP (1080p) mobile camera built for the inside of vehicles. It is an analogue HD-TVI camera with a rugged aviation connector and built-in microphone, designed to feed a vehicle mobile DVR over coax for buses, trucks, vans and fleet vehicles, not a network IP camera.
Key points
- 2 MP 1080p at up to 30 fps over analogue HD-TVI
- Aviation connector and up-the-coax control for mobile use
- Built-in microphone for in-cabin audio
- 2.8 mm (101-degree) or 3.6 mm lens options
- Infrared to 10 to 20 metres for dark cabins
- Wide-range DC power for vehicle electrics; -40 to 60 degrees C
- Compact interior dome for buses, trucks and vans
Regular price
$241.55 AUD
Sale price
$241.55 AUD
Regular price
$249.00 AUD
Sale
2.99%
$7.45 AUD
(2.99%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision AE-VC211T-IRS Mobile 1080P Vehicle Camera 1M IR / 2.8mm Lens
1
/
of
1
3-Year WarrantyOn all cameras
Free ShippingOn orders over $300
30-Day ReturnsUnopened items
Fast Delivery1–5 days Australia-wide
Build your setup Build a complete CCTV system Complete setup from $1,285.70
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the TVI-AE-VC211T-IRS is
The Hikvision AE-VC211T-IRS is a 2 MP mobile vehicle camera made for one job: clear 1080p video and audio inside a moving vehicle. It is important to understand what it is before you buy. This is an analogue HD-TVI camera, not a network IP camera. It uses a rugged aviation-style connector and up-the-coax control, and it is designed to connect to a vehicle mobile DVR (MDVR) over coaxial cable. It does not plug into a standard NVR and does not use PoE, so it suits a purpose-built in-vehicle recording system rather than a building CCTV network.
For the in-cabin role it is well suited. It captures 1080p at up to 30 fps, has a built-in microphone for audio alongside the video, and offers a 2.8 mm lens for a wide 101-degree cabin view or a 3.6 mm lens for tighter coverage. Infrared reaching about 10 to 20 metres lets it record in a dark cabin at night. Being a one-way microphone camera, it records sound but is not a two-way intercom.
It is engineered for the vehicle environment. A compact interior dome shape keeps it discreet and out of the way, it runs on the vehicle's wide-range DC supply rather than mains or PoE, and it is rated for cabin temperature extremes from -40 to 60 degrees C. Because it is built for the inside of a vehicle rather than fixed outdoor mounting, it does not carry a weatherproof ingress rating. Pair it with a compatible mobile DVR and the other cameras in your fleet fit-out for a complete in-vehicle system; check that recording audio is permitted for your application.
§ 02Engineering
TVI-AE-VC211T-IRS specifications
- 2 MP 1080p at up to 30 fps over analogue HD-TVI (not an IP camera)
- Aviation-style connector and up-the-coax control for mobile installs
- Built-in microphone for in-cabin audio (records sound; not two-way)
- 2.8 mm lens (101-degree wide view) or 3.6 mm lens option
- Infrared to 10 to 20 m for recording in a dark cabin
- Wide-range DC power suited to vehicle electrical systems
- Operating range -40 to 60 degrees C for cabin extremes
- Compact interior dome for buses, trucks, vans and fleet vehicles
- Aviation-style connector and up-the-coax control for mobile installs
- Built-in microphone for in-cabin audio (records sound; not two-way)
- 2.8 mm lens (101-degree wide view) or 3.6 mm lens option
- Infrared to 10 to 20 m for recording in a dark cabin
- Wide-range DC power suited to vehicle electrical systems
- Operating range -40 to 60 degrees C for cabin extremes
- Compact interior dome for buses, trucks, vans and fleet vehicles
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 2 Megapixel Progressive CMOS Sensor |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/25 s (1/30 s) to 1/50,000 s |
| Day & Night | Auto Day & Night |
| Image SNR | 42 dB |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | 2.8mm, 3.6 mm |
| Focal Length | Fixed focal lens, 2.8, 3.6 optional |
| Focal Length & FOV | 2.8mm: horizontal FOV 101°, vertical FOV 54°, diagonal FOV 120° | 3.6mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104° |
| Lens Mount | M12 |
| Pan Range | -30° to 30° |
| Tilt Range | 0° to 75° |
| Rotation Range | -180° to 180° |
Night Vision
| Feature | Detail |
|---|---|
| IR Range | 10 m to 20 m |
Video
| Feature | Detail |
|---|---|
| Frame Rate | 1080P@25fps, 1080P@30fps |
Audio
| Feature | Detail |
|---|---|
| Built-in Microphone | Yes |
Interface
| Feature | Detail |
|---|---|
| Video Output | 1-ch, Aviation Port |
| Audio Input | built-in Microphone |
| Audio Output | 1-ch, Aviation Port (Linear Level, 1KΩ) |
General & Environment
| Feature | Detail |
|---|---|
| Product Dimension | 97 mm × 99.5 mm × 46.6 mm (3.8" × 3.9" × 1.8") |
| Power Supply | DC 9V~16V |
| Power Consumption | MAX. 4W |
| Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing) |
| Weight | Approx. 300 g (0.66 lb.) |
| Camera & Image — Image Sensor | 2 Megapixel Progressive CMOS Sensor |
|---|---|
| Camera & Image — Min. Illumination | 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Camera & Image — Shutter Speed | 1/25 s (1/30 s) to 1/50,000 s |
| Camera & Image — Day & Night | Auto Day & Night |
| Camera & Image — Image SNR | 42 dB |
| Lens & Distance — Lens Type | 2.8mm, 3.6 mm |
| Lens & Distance — Focal Length | Fixed focal lens, 2.8, 3.6 optional |
| Lens & Distance — Focal Length & FOV | 2.8mm: horizontal FOV 101°, vertical FOV 54°, diagonal FOV 120° | 3.6mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104° |
| Lens & Distance — Lens Mount | M12 |
| Lens & Distance — Pan Range | -30° to 30° |
| Lens & Distance — Tilt Range | 0° to 75° |
| Lens & Distance — Rotation Range | -180° to 180° |
| Night Vision — IR Range | 10 m to 20 m |
| Video — Frame Rate | 1080P@25fps, 1080P@30fps |
| Audio — Built-in Microphone | Yes |
| Interface — Video Output | 1-ch, Aviation Port |
| Interface — Audio Input | built-in Microphone |
| Interface — Audio Output | 1-ch, Aviation Port (Linear Level, 1KΩ) |
| General & Environment — Product Dimension | 97 mm × 99.5 mm × 46.6 mm (3.8" × 3.9" × 1.8") |
| General & Environment — Power Supply | DC 9V~16V |
| General & Environment — Power Consumption | MAX. 4W |
| General & Environment — Startup and Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing) |
| General & Environment — Weight | Approx. 300 g (0.66 lb.) |
§ 04Why choose this
Built for the way you actually use the TVI-AE-VC211T-IRS
Built for mobile wiring
An aviation connector, up-the-coax control and wide-range DC power suit a vehicle mobile DVR system, not a building network.
Tough in vehicle conditions
A -40 to 60 degrees C operating range copes with the heat and cold a cabin sees through the day.
Flexible coverage
A choice of 2.8 mm wide or 3.6 mm lens lets you frame a whole cabin or a single zone such as a door or till.
§ 05Where it fits
Right at home in these scenarios
Buses and coaches
Record the passenger cabin and driver area for safety, disputes and incident review.
Trucks and logistics
Monitor the cab and load area as part of a fleet mobile DVR system.
Vans and service vehicles
Capture in-vehicle activity and audio for security and accountability.
Taxis and rideshare
A discreet interior camera for driver and passenger safety records.
§ 06Setup
Installation & setup
Plan the system
This camera feeds a vehicle mobile DVR (MDVR) over coax with an aviation connector. Confirm your MDVR channel count, storage and power before fitting, as the camera is part of an in-vehicle system rather than a standalone unit.
Power
Wire it into the vehicle's DC supply within its rated voltage range. It does not use PoE or mains power, so route it from the vehicle's electrical system to the MDVR.
Mounting
Fit the interior dome to the cabin ceiling or a firm panel facing the area you want covered, choosing the lens for the field of view, and route the aviation-connector cable neatly to the MDVR.
Setup
Connect the camera to the mobile DVR, set the recording resolution and frame rate, enable audio where permitted, and adjust the infrared and image settings for the cabin.
§ 07Questions
Frequently asked about the TVI-AE-VC211T-IRS
Q.01
Can I connect this camera to a normal NVR?
No. It is an analogue HD-TVI camera with an aviation connector and up-the-coax control, designed to feed a vehicle mobile DVR (MDVR) over coaxial cable. It does not connect to a standard IP NVR and does not use PoE, so plan it as part of an in-vehicle recording system.
Q.02
How is it powered in a vehicle?
It runs on the vehicle's DC electrical supply across a wide voltage range, so it is wired into the vehicle's power rather than mains or PoE. That makes it suited to buses, trucks, vans and other fleet vehicles where a mobile DVR and DC power are already present.
Q.03
Does it record audio, and can I talk back through it?
It has a built-in microphone, so it records audio together with the video for a full record of what happens in the cabin. It is a one-way microphone, not a two-way intercom, so you cannot speak back through it. Confirm that recording audio is allowed for your use.
Q.04
Which lens should I choose?
The 2.8 mm lens gives a wide 101-degree view that suits most cabins and passenger areas, while the 3.6 mm lens gives a narrower, more focused field for a specific zone such as a doorway or till. Choose based on how much of the interior you need in one frame.
Q.05
Will it work in a dark cabin at night?
Yes. It has built-in infrared reaching about 10 to 20 metres, which is ample for a vehicle interior, so it keeps recording in a dark cabin or at night. As an infrared camera the night image is black and white.
Q.06
Is it weatherproof for outside the vehicle?
It is built for the inside of a vehicle, with a compact interior dome shape and a wide cabin temperature range of -40 to 60 degrees C, and it does not carry an outdoor weatherproof ingress rating. For exterior vehicle positions you would use a camera rated for outdoor mobile use.
Q.07
What else do I need to build a system with it?
You need a compatible vehicle mobile DVR (MDVR) to record the coax feed, the aviation-connector cabling, and any additional cameras for the vehicle. We do not currently stock the MDVR itself, so source a mobile DVR that matches your channel count and storage needs alongside this camera.
§ 09Bundles
Recommended packages
Add a mobile DVR (sourced separately)
This camera needs a vehicle mobile DVR (MDVR) to record its coax feed; we do not currently stock the MDVR, so pair it with a mobile DVR that matches your channel count, storage and vehicle power. It does not work with a standard IP NVR.
Build out the fleet cameras
Add the DS-2XM6522G1 mobile vehicle camera or the DS-2XM6726G1ID mobile dome camera to cover more of the cabin, doorways or external views in the same vehicle fit-out.
Choose the lens for the view
Select the 2.8 mm wide lens for a whole-cabin view or the 3.6 mm option for a tighter zone, matching the camera to where it is mounted in the vehicle.
