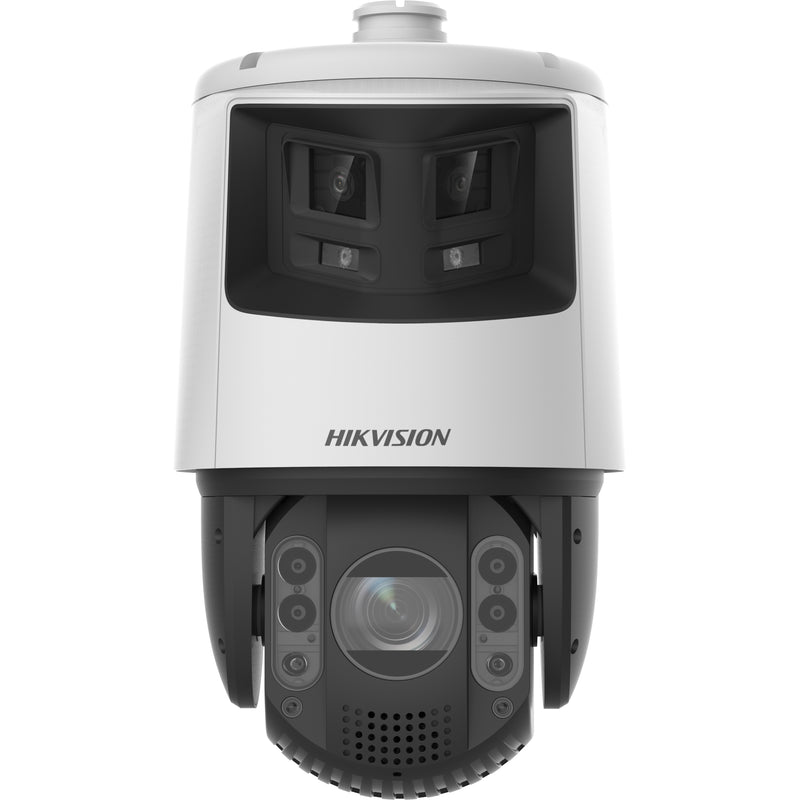

Hikvision DS-2SE7C432MWG-EB-26 6MP+4MP TandemVu Outdoor PTZ Camera, Acusense 32x Zoom
Skip to product information
1
/
of
1
Vendor:
Hikvision
Hikvision DS-2SE7C432MWG-EB-26 6MP+4MP TandemVu Outdoor PTZ Camera, Acusense 32x Zoom
SKU: DS-2SE7C432MWG-EB/26(F0)
Description
The Hikvision DS-2SE7C432MWG-EB/26(F0) is a TandemVu panoramic PTZ that pairs a 6 MP 180-degree ColorVu overview with a separate 4 MP PTZ camera and a 32x optical zoom. AcuSense classifies people and vehicles, an active strobe and audio warning deter intruders, and the PTZ reaches up to 200 metres with infrared, which suits large open sites that need both wide awareness and long zoom.
Key points
- 6 MP 180-degree panoramic channel (ColorVu, full colour) + 4 MP PTZ
- 32x optical zoom (5.9 to 188.8 mm) plus 16x digital on the PTZ
- Panoramic white light to 30 m (full colour); PTZ IR to 200 m (black and white)
- AcuSense human and vehicle classification; face capture
- Active strobe light and built-in audio warning for deterrence
- IP66 body; 24 VAC / PoE class power
- Panoramic-to-PTZ linkage for fast handover
Regular price
$2,273.70 AUD
Sale price
$2,273.70 AUD
Regular price
$2,690.00 AUD
Sale
15.48%
$416.30 AUD
(15.48%)
Member
Sign in to save $45.47 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision DS-2SE7C432MWG-EB-26 6MP+4MP TandemVu Outdoor PTZ Camera, Acusense 32x Zoom
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $3,217.30
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2SE7C432MWG-EB/26(F0) is
The Hikvision DS-2SE7C432MWG-EB/26(F0) is a TandemVu panoramic PTZ for large open sites that need both the big picture and long-range detail.
One channel is a stitched 6 MP, 180-degree panoramic view that uses ColorVu to stay in full colour at night, and the other is an independent 4 MP PTZ camera with a 32x optical zoom (5.9 to 188.8 mm) that closes in on a person or vehicle far across the scene.
The two work together: a target seen on the panorama can be handed to the PTZ, which zooms in and follows it, so an operator keeps situational awareness and detail at the same time.
Smart detection and active deterrence are built in.
AcuSense classifies people and vehicles, which keeps perimeter alarms to real targets and supports face capture for identity-aware monitoring.
When a rule is broken, an active strobe light and a built-in audio warning can fire to deter an intruder on the spot, not just record the event.
The panoramic channel adds white light to 30 metres for full-colour night coverage of the wide scene, while the PTZ uses infrared to reach up to 200 metres for long-range detail.
Be clear about the night image and the power.
The 200 metre figure is the PTZ infrared reach, and under IR that long-range image is black and white; the full colour at night comes from the panoramic ColorVu channel within its 30 metre white-light range.
The housing is rated IP66 for outdoor use.
It is a high-power, professional camera that uses a 24 VAC or PoE-class supply rather than a basic NVR PoE port, and it records to a high-bandwidth Hikvision NVR.
It suits car parks, precincts, logistics yards and campuses where one camera should watch everything and still identify a target at distance.
See it in action
What the DS-2SE7C432MWG-EB/26(F0) features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
Full Color Night Vision
Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2SE7C432MWG-EB/26(F0) specifications
- 6 MP 180-degree panoramic ColorVu channel for full-colour wide coverage
- Independent 4 MP PTZ channel; 32x optical (5.9 to 188.8 mm) plus 16x digital
- Panoramic white light to 30 m (full colour); PTZ IR to 200 m (black and white)
- AcuSense human and vehicle classification; face capture
- Active strobe light and built-in audio warning for deterrence
- Panoramic-to-PTZ linkage to hand off and follow a target
- 120 dB WDR on the PTZ channel; 3D DNR; IP66 body
- High-power professional camera; 24 VAC or PoE-class supply
- Independent 4 MP PTZ channel; 32x optical (5.9 to 188.8 mm) plus 16x digital
- Panoramic white light to 30 m (full colour); PTZ IR to 200 m (black and white)
- AcuSense human and vehicle classification; face capture
- Active strobe light and built-in audio warning for deterrence
- Panoramic-to-PTZ linkage to hand off and follow a target
- 120 dB WDR on the PTZ channel; 3D DNR; IP66 body
- High-power professional camera; 24 VAC or PoE-class supply
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | [Panoramic channel] 1/2.5" Progressive Scan CMOS, [PTZ channel] 1/2.8" Progressive Scan CMOS |
| Max. Resolution | [Panoramic channel] 3632 × 1632, [PTZ channel] 2560 × 1440 |
| Min. Illumination | [PTZ channel] Color: 0.005 Lux @ (F1.5, AGC ON), B/W: 0.001 Lux @ (F1.5, AGC ON), 0 lux with IR, [Panoramic channel] Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light |
| Shutter Speed | 1 s to 1/30,000 s |
| Day & Night | IR cut filter |
| Slow Shutter | Yes |
| HLC | Yes |
| 3D DNR | Yes |
| Wide Dynamic Range (WDR) | [Panoramic channel] Digital WDR, [PTZ channel] 120 dB |
| SNR | > 52dB |
| Defog | Yes |
| Image Stabilization | Yes |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Day/Night Switch | Day, night, auto, schedule |
| Image Settings | saturation, brightness, contrast, sharpness |
| Image Parameters Switch | Yes |
| Regional Focus | Yes |
| Regional Exposure | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | [Panoramic channel] 2.8 mm, [PTZ channel] 5.9 to 188.8 mm |
| FOV | [Panoramic channel] horizontal field of view: 180°±10°, vertical field of view: 80°±5° | [PTZ channel] horizontal field of view: 60.2° to 2.3°, vertical field of view: 35.2° to 1.3° |
| Focus | Auto, semi-auto, manual |
| Aperture | [Panoramic channel] F1.0, [PTZ channel] Max. F1.5 |
| Zoom | 32 × optical, 16 × digital |
| Zoom Speed | [Panoramic channel] No, [PTZ channel] approx. 5.6 s |
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 160°/s, preset speed: 240°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, aux output, dome adjust |
| Power-off Memory | Yes |
| DORI Distance | Detect 3060.0 m (10039.4 ft.); Observe 1214.3 m (3983.9 ft.); Recognize 612 m (2007.9 ft.); Identify 306.0 m (1004.0 ft.) (Tele) |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Range | IR distance: up to 200 m |
| White Light Distance | Panoramic channel: 30 m |
Video
| Feature | Detail |
|---|---|
| Main Stream | [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), [Panoramic channel] 50 Hz: 25 fps (3632 × 1632, 3680 × 1656), 60 Hz: 30 fps (3632 × 1632, 3680 × 1656) |
| Sub-Stream | [PTZ channel] 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240), [Panoramic channel] 50 Hz: 25 fps (1200 × 536, 960 × 432), 60 Hz: 30 fps (1200 × 536, 960 × 432) |
| Third Stream | [PTZ channel] 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288), 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240), [Panoramic channel] No |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | Yes |
| Region of Interest (ROI) | fixed region |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3 |
| Audio Bit Rate | 32 to 192 Kbps (MP2L2), 16 to 64Kbps (AAC-LC), 8 to 320 Kbps (MP3) |
| Audio Sampling Rate | 8 kHz, 16 kHz, 32 kHz, 48 kHz |
| Environment Noise Filtering | Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Support detecting up to 5 faces at the same time. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face |
| Regional People Counting | Yes |
| Smart Tracking | Manual tracking, auto-tracking |
| Smart Linkage | panorama linkage, tracking takeover, track in turn |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, WebSocket, WebSockets, SRTP |
| Simultaneous Live View | 20 |
| API | ISUP, SDK, ISAPI, Open Network Video Interface (Profile S, Profile G, Profile T) |
| User/Host | 32 |
| Security | Password protection, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), host authentication (MAC address), IP address filter |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | IE 11+, Chrome 57+, Firefox 52+, Safari 12+, Edge79.0.309.65+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error, abnormal restart) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan), audible warning, white light flashing |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB |
| Audio Input | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10% |
| Audio Output | 1 output (line out), line level, output impedance: 600 Ω |
| Alarm Input | 2 input(s) |
| Alarm Output | 1 output(s) |
| Reset | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 24 VAC, Max. 60 W, Hi-PoE |
| Dimension | Ø 222.3 mm × 387.2 mm (Ø 8.75" × 15.2") |
| Weight | Approx. 6 kg (13.23 lb.) |
| Material | ADC12, Plastic, PC+10%GF |
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| General Function | mirror, watermark, password protection, IP address filter |
| Demist | Yes |
| Protection | IP66 (IEC 60529-2013) |
§ 04Why choose this
Built for the way you actually use the DS-2SE7C432MWG-EB/26(F0)
Colour panorama at night
The ColorVu panoramic channel keeps the wide view in full colour under white light to 30 m, while the PTZ reaches 200 m with infrared.
Detects and deters
AcuSense human and vehicle classification cuts false alarms, and an active strobe plus audio warning can deter an intruder rather than just record them.
Built for large open sites
Panoramic-to-PTZ linkage, 120 dB WDR and an IP66 body suit car parks, precincts and logistics yards where coverage and reach both matter.
§ 05Where it fits
Right at home in these scenarios
Car parks and precincts
Hold a full 180-degree colour view of the area and zoom the PTZ onto a person or vehicle of interest, with strobe and audio to warn them off.
Logistics and storage yards
Watch the whole yard on the panorama and follow a truck, container or person across hundreds of metres with the PTZ.
Campuses and public spaces
Give a control room one camera that sees an entire square or campus and zooms onto an incident as it happens.
Perimeters needing deterrence
Use AcuSense rules to trigger the strobe and audio warning when someone crosses a boundary at night, not just to log it.
§ 06Setup
Installation & setup
In the box
Panoramic PTZ camera, mounting hardware and the printed guide. A wall or pole bracket and the power supply are selected to suit the site and bought separately.
Power and cabling
Plan for a 24 VAC or PoE-class supply; a basic NVR PoE port is not enough for a professional panoramic PTZ. Run the network back to the recorder, using fibre or a media converter for long pole runs.
Mounting
Fit it high on a solid wall or pole so the 180-degree panorama covers the whole area and the PTZ has a clear line of sight for long-range zoom.
Setup
Set the panoramic-to-PTZ linkage, AcuSense human and vehicle rules, and the strobe and audio warning actions, then aim the IR and white light for the zones you most need at night.
§ 07Questions
Frequently asked about the DS-2SE7C432MWG-EB/26(F0)
Q.01
How is this different from a normal PTZ?
It adds a fixed 6 MP, 180-degree panoramic camera alongside the 4 MP PTZ, so you always keep a full wide view while the zoom is busy. A target seen on the panorama can be handed to the PTZ to follow, which a single-lens PTZ cannot do.
Q.02
Is the night video in colour?
The panoramic channel is ColorVu with white light to 30 metres, so the wide view stays in full colour at night within that range. The PTZ channel uses infrared to reach up to 200 metres, and that long-range image is black and white.
Q.03
What is the active deterrence feature?
When a person or vehicle breaks a rule, the camera can fire an active strobe light and a built-in audio warning to deter the intruder on the spot. It is a built-in speaker for warnings rather than a two-way intercom.
Q.04
Does AcuSense reduce false alarms?
Yes. AcuSense classifies human and vehicle targets, so line-crossing and intrusion alarms ignore wind, rain, leaves and animals, which cuts the nuisance alerts that flood a basic motion system on a large site.
Q.05
How far can the PTZ identify a target?
The 32x optical zoom on the 4 MP PTZ channel can pick out a person or vehicle several hundred metres away in good light, and infrared lights the scene to 200 metres at night. Real identification distance depends on light, angle and how steady the mount is.
Q.06
How is it powered?
It is a high-power professional camera that uses a 24 VAC or PoE-class supply, not a basic NVR PoE port. Plan the power separately and run the network back to the recorder.
Q.07
What should I record it to?
Use a high-bandwidth Hikvision NVR and surveillance-grade hard drives, because it streams a 6 MP panorama and a 4 MP PTZ channel at the same time. Size the recorder and storage for both streams.
§ 09Bundles
Recommended packages
Pair with a high-bandwidth NVR
Two streams at once need throughput. Use the DS-7732NI-M4/24P 32-channel NVR, or the DS-9632NI-M8 8-bay NVR where you need more storage and bandwidth.
Add continuous-duty storage
Fit an 8TB surveillance hard drive or a 10TB surveillance hard drive rated for 24/7 recording of the panoramic and PTZ streams.
Compare PTZ options
For a simpler, lower-power TandemVu, the DS-2SE3C404MWG-E/14 4x TandemVu PTZ suits smaller sites, while the DS-2DF9C848LXG-LW 48x laser PTZ reaches much further with laser night vision.
