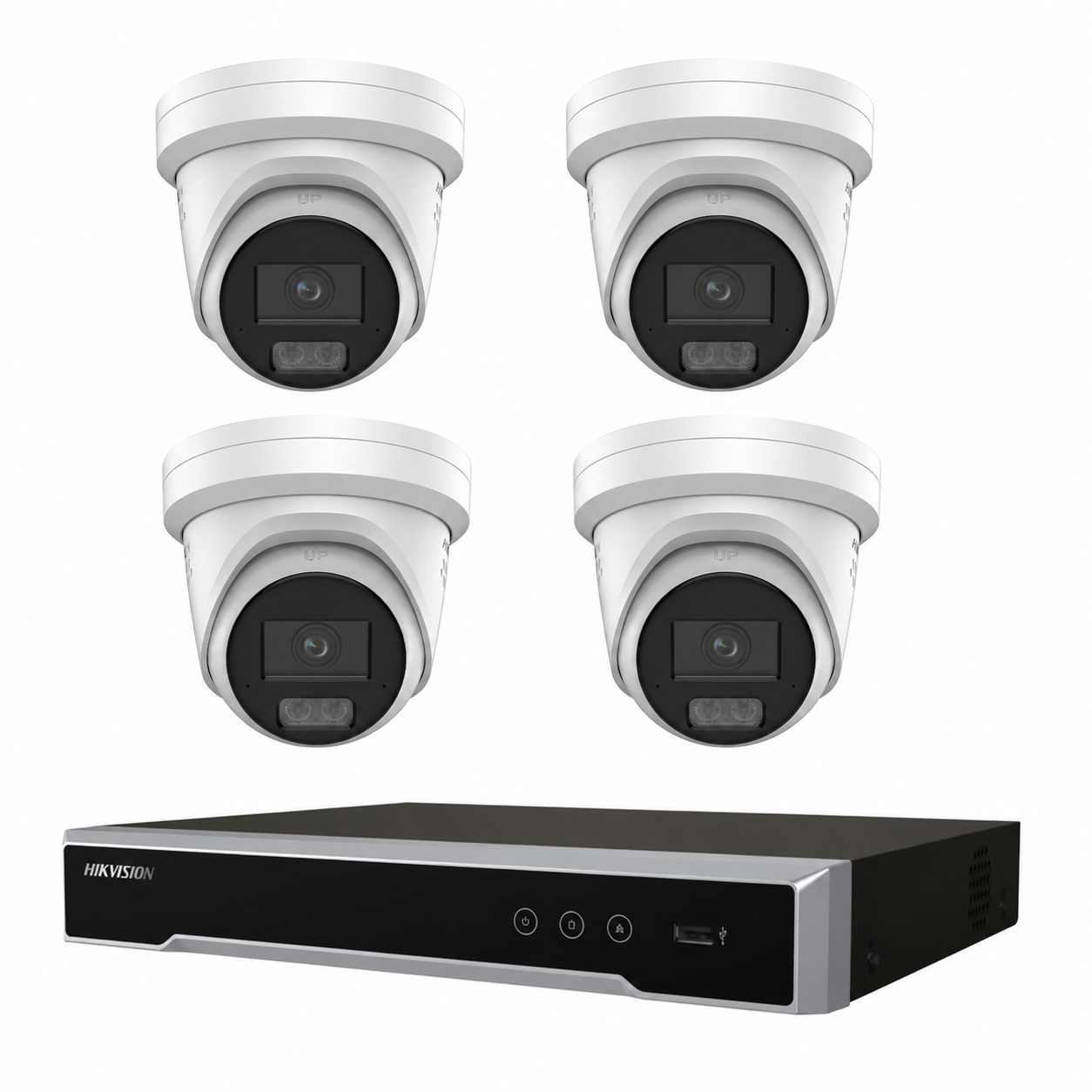

Hikvision 8MP ColorVu 3.0 Hybrid Kit | 4x Turret Cameras + 4CH PoE NVR

Name: Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 4 x Liveguard Gen3 Cameras + 4CH M Series NVR
Brand: Hikvision
Price: 2046.2 AUD
Availability: InStock

Customize this kit Kit price $2,046.20

This kit includes: Cabling not included — add cables in the accessories below (one per camera).

4 × Hikvision DS-2CD2387G3-LIS2UY/SL 8MP 4K ColorVu 3.0 Turret Camera, Smart Hybrid Light, Strobe & Audio Warning, Two-Way Talk
1 × Hikvision DS-7604NI-M1/4P 4ch M-Series PoE NVR, 40Mbps, H.265, 4 PnP Ports, 1 HDD Bay, 4TB (4ch)
1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)

Add extra cameras Hikvision DS-2CD2387G3-LIS2UY/SL 8MP 4K ColorVu 3.0 Turret Camera, Smart Hybrid Light, Strobe & Audio Warning, Two-Way Talk · Max 16 · Each extra camera uses one NVR channel

+$0.00

NVR · channels ≥ your total camera count Base: 4ch · Hikvision DS-7604NI-M1/4P 4ch M-Series PoE NVR, 40Mbps, H.265, 4 PnP Ports, 1 HDD Bay, 4TB

4ch Hikvision DS-7604NI-M1/4P 4ch M-Series PoE NVR,... Base (included)

Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 4K, 2 Bay, 1RU, 4TB

8ch Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR,... +$291.95

Hikvision DS-7616NI-M2/16P 16ch M-Series PoE NVR, 256Mbps, H.265, 16 PnP Ports, 2 HDD Bay, 4TB

16ch Hikvision DS-7616NI-M2/16P 16ch M-Series PoE NV... +$489.85

Hard Drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7 Base: 4TB · 4TB HDD – WD Purple / Seagate Surveil...

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB 4TB HDD – WD Purple / Seagate Surveillance HDD ... Base (included)

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB 6TB HDD – WD Purple / Seagate Surveillance HDD ... +$135.55

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB 8TB HDD – Purple / Skyhawk Surveillance Hard Dr... +$275.70

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB 10TB HDD – Purple Surveillance Hard Drive for D... +$429.55

Add cabling

Cable · 10m $13.00

1

Cable · 20m $28.00

1

Cable · 30m $40.00

1

Cable · 50m $65.00

1

Notes for warehouse (optional)

§ 01Overview

What the DS-2CD2387G3-LIS2UY/SL is

This Hikvision ColorVu 3.0 kit bundles four DS-2CD2387G3-LIS2UY/SL 8MP turret cameras with the DS-7604NI-M1-4P 4-channel PoE NVR, giving a ready-to-install 4-camera system for residential and small commercial sites.

Each camera uses a 1/1.8" CMOS sensor with an F1.0 lens, delivering full-colour footage down to 0.0005 lux.

Smart Hybrid Light switches between IR and warm white light (up to 30m) depending on conditions, while deep-learning human and vehicle classification drives the built-in strobe and audible warning for real-time deterrence.

See it in action

What the DS-2CD2387G3-LIS2UY/SL features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2) — 8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2) — 8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (1/2) — 30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.

30m IR Night Vision — Built-in infrared lets the camera see in complete darkness up to around 30m — enough ... (2/2) — 30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.

Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d... — Full Color Night Vision
Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.

Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying... — Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.

Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s... — Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.

Strobe Light — On detecting activity, the camera can trigger a bright flashing strobe to make an intruder a... — Strobe Light
On detecting activity, the camera can trigger a bright flashing strobe to make an intruder aware they've been spotted — a visible warning rather than silent recording.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2CD2387G3-LIS2UY/SL specifications

-8MP resolution: 3840×2160, 1/1.8" CMOS sensor
-F1.0 super-aperture lens: 0.0005 lux colour imaging in near-darkness
-Smart Hybrid Light: IR + warm white LED, up to 30m, auto or manual switching
-Human/vehicle classification: deep-learning perimeter protection (line crossing, intrusion, region entrance/exiting)
-Active deterrence: built-in strobe light and audible warning on confirmed triggers
-Two-way audio: arrayed dual microphone + built-in speaker (max 110dB @ 10cm)
-IP67 + NEMA 4X : weatherproof and moderate anti-corrosion rated, suited to coastal areas ~2km from the shoreline

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 4 x Liveguard Gen3 Cameras + 4CH M Series NVR
Feature	Detail
Image Sensor	1/1.8" Progressive Scan CMOS
Max. Resolution	3840 × 2160
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Day/Night Switch	Day, Night, Auto, Schedule
Image Enhancement	BLC, HLC, 3D DNR, Distortion Correction, Defog
SNR	≥ 52 dB
Wide Dynamic Range (WDR)	130 dB
Image Stabilization	EIS
Privacy Mask	4 programmable polygon privacy masks
Image Parameters Switch	Yes
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Lens & Distance

Lens & Distance — Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 4 x Liveguard Gen3 Cameras + 4CH M Series NVR
Feature	Detail
Lens Type	Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 108.8°, vertical FOV 56.4°, diagonal FOV 134.3° \| 4 mm, horizontal FOV 93.3°, vertical FOV 47.2°, diagonal FOV 114.2°
Lens Mount	M16
Iris Type	Fixed
Aperture	F1.0
Depth of Field	2.8 mm: 3.3 m to ∞ \| 4 mm: 3.8 m to ∞
DORI	2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m \| 4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m
Pan Range	0° to 360°
Tilt Range	0° to 75°
Rotation Range	0° to 360°

Night Vision

Night Vision — Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 4 x Liveguard Gen3 Cameras + 4CH M Series NVR
Feature	Detail
Supplement Light Type	White Light, IR
Supplement Light Range	Up to 30 m
Smart Supplement Light	Yes
IR Wavelength	850 nm

Video

Video — Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 4 x Liveguard Gen3 Cameras + 4CH M Series NVR
Feature	Detail
Main Stream	50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) \| 60 Hz: 30 fps (3840 × 2160，3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) \| 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) \| 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings.
Video Compression	Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Bit Rate Control	CBR, VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream

Audio

Audio — Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 4 x Liveguard Gen3 Cameras + 4CH M Series NVR
Feature	Detail
Audio Type	Mono sound
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering	Yes
Built-in Microphone	-2U: Arrayed dual-microphone
Built-in Speaker	Max. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.

AI & Deep Learning

AI & Deep Learning — Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 4 x Liveguard Gen3 Cameras + 4CH M Series NVR
Feature	Detail
Face Capture	Yes
Perimeter Protection	Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle)

Network & Storage

Network & Storage — Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 4 x Liveguard Gen3 Cameras + 4CH M Series NVR
Feature	Detail
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View	Up to 6 channels
API	ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host	Up to 32 users. 3 user levels: administrator, operator, and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage	NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+

Event & Alarm

Event & Alarm — Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 4 x Liveguard Gen3 Cameras + 4CH M Series NVR
Feature	Detail
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event	Scene change detection
Linkage	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, strobe light flashing

Interface

Interface — Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 4 x Liveguard Gen3 Cameras + 4CH M Series NVR
Feature	Detail
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio Input	1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
Audio Output	1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm Input	1 input
Alarm Output	1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key	Yes

General & Environment

General & Environment — Hikvision 8MP Colorvu 3.0 Hybrid CCTV Kit: 4 x Liveguard Gen3 Cameras + 4CH M Series NVR
Feature	Detail
Power	12 VDC ± 25%, 1.29 A, max. 15.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 17 W
Material	Cover: metal, main body: metal
Dimension	Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5")
Package Dimension	170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
Weight	Approx. 820 g (1.8 lb.)
With Package Weight	Approx. 1200 g (2.6 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety	UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-RoHS: 2011/65/EU
Protection	IP67: IEC 60529-2013
Anti-Corrosion Protection	NEMA 4X (NEMA 250-2018)

§ 07Questions

Frequently asked about the DS-2CD2387G3-LIS2UY/SL

Q.01

What's the actual night vision range?

Up to 30m for both the IR and warm white light modes, per the official Hikvision specification. Identification distance (reading detail, not just seeing a shape) is around 8m at 2.8mm or 10m at 4mm.

Q.02

Does the strobe trigger on animals or passing traffic?

The strobe and audio warning are designed to fire on deep-learning-confirmed human or vehicle detection within your set zones, reducing false triggers from other movement.

Q.03

Is this camera suitable for coastal installation?

Yes. It carries IP67 weatherproofing plus a NEMA 4X moderate anti-corrosion rating, suited to sites roughly 2km or more from the coastline.

Q.04

How far can I run the cable from the NVR to each camera?

Standard PoE over Cat6 supports up to 100m per camera run from the NVR. Longer runs need a PoE extender.

Q.05

Can I access the cameras remotely on my phone?

Yes, via the Hik-Connect app, which also supports two-way audio through each camera's built-in microphone and speaker.
