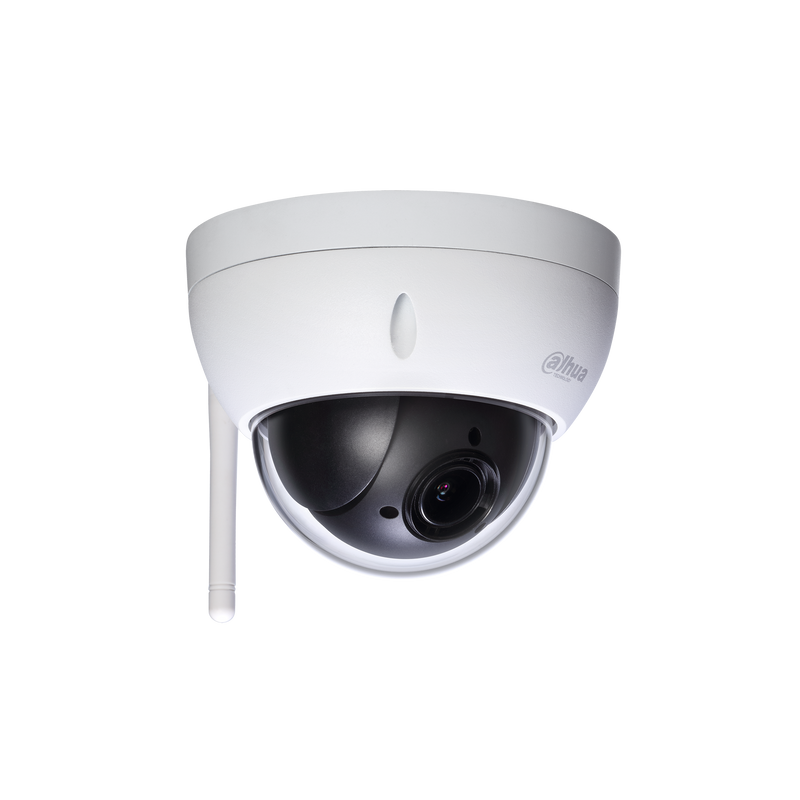

Dahua DH-SD22404T-GN 4MP 4x PTZ Network Camera

SKU: DH-SD22404T-GN
Description

4MP compact mini PTZ with 4x optical zoom and full pan, tilt and zoom control for flexible coverage of well-lit outdoor areas.

  • 1/3" 4MP CMOS, 2592 x 1520 at 25/30 fps
  • 2.7-11mm motorised lens, 4x optical zoom, 16x digital
  • 0-355 degree pan and 0-90 degree tilt with 300 presets
  • 120dB WDR and Day/Night ICR
  • IVS tripwire and intrusion detection
  • No infrared: relies on ambient or external lighting at night
  • IP66 and IK10 metal housing; PoE; microSD up to 256GB
4MP Ultra HD IP66 Rated
$453.00 AUD $453.00 AUD $453.00 AUD
Member Sign in to save $9.06 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $952.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
Bundle total: $453.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-SD22404T-GN is

The Dahua DH-SD22404T-GN is a compact mini PTZ that combines 4MP resolution with 4x optical zoom in a small weatherproof dome.

A 2.7-11mm motorised lens lets operators move from a wide scene overview to closer detail, and smooth pan, tilt and zoom across a 0-355 degree pan and 0-90 degree tilt range covers a large area from a single mounting point.

With 120dB WDR and Day/Night ICR switching, it handles mixed lighting such as shaded undercover areas beside sunlit forecourts.

This model has no built-in infrared, so adequate ambient or dedicated external lighting is needed for night use, and its low-light Day/Night mode then keeps the scene usable.

A built-in IVS engine supports rule-based tripwire and intrusion detection without a separate analytics device.

The IP66 and IK10 metal housing suits exposed positions, it powers over PoE for single-cable installation, and a microSD card up to 256GB allows edge recording.

A 6 to 8 week lead time applies to this model.

See it in action

What the DH-SD22404T-GN features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p.

4MP Ultra HD

4MP captures roughly twice the detail of standard 1080p.

Illustrative — simulated for demonstration

§ 02Engineering

DH-SD22404T-GN specifications

- Sensor and resolution: 1/3" 4MP CMOS, 2592 x 1520 at up to 25/30 fps

- Optical zoom: 2.7-11mm motorised lens with 4x optical and 16x digital zoom for wide overview to closer detail

- PTZ control: 0-355 degree pan, 0-90 degree tilt, 300 presets and tour and pattern modes

- Imaging: 120dB WDR and Day/Night ICR for high-contrast and mixed lighting

- Night use: no built-in infrared, so it relies on ambient or external lighting after dark

- Analytics: built-in IVS tripwire and intrusion detection, plus face detection

- Storage: microSD card up to 256GB for edge recording, plus NAS

- Durability: IP66 and IK10 metal housing, -30C to +60C, for exposed outdoor positions

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua DH-SD22404T-GN 4MP 4x PTZ Network Camera
FeatureDetail
Image Sensor 1/3” CMOS
Effective Pixels 2592(H) x 1520(V), 4 Megapixels
RAM/ROM 256M/128M
Electronic Shutter Speed 1/1s~1/30,000s
Scanning System Progressive
Minimum Illumination Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Motion Detection Support
Region of Interest Support
Defog Support
Digital Zoom 16x
Flip 180°
Privacy Masking Up to 24 areas

§ 04Why choose this

Built for the way you actually use the DH-SD22404T-GN

Flexible coverage from one point

4x optical zoom with full pan, tilt and zoom covers a wide area and zooms in on detail from a single compact dome.

Clear in mixed lighting

120dB WDR and Day/Night ICR balance shaded and sunlit zones within the same frame at forecourts and entries.

Honest about night use

This model has no built-in infrared, so it pairs best with sites that have adequate ambient or external lighting after dark.

Tough, compact housing

An IP66 and IK10 metal dome suits exposed positions and locations within reach where impact resistance matters.

§ 05Where it fits

Right at home in these scenarios

Well-lit courtyards and forecourts

Pan, tilt and zoom cover open areas with adequate lighting, moving between a wide overview and closer detail as needed.

Building entries and car parks

WDR handles the contrast between covered and open zones, and presets let operators jump quickly to key points.

Reception and undercover areas

A compact dome suits lower ceilings and sheltered positions where a full-size PTZ would be intrusive.

Sites with existing lighting

Locations with street, security or floodlighting suit this no-IR PTZ, which uses available light for night coverage.

§ 06Setup

Installation & setup

01

Plan for lighting at night

Because there is no built-in infrared, confirm the scene has adequate ambient or dedicated external lighting for night use before specifying this camera.

02

Power over PoE

Connect to a PoE switch or NVR over a single cable carrying power and data. Confirm the port and budget suit the camera.

03

Mount on ceiling, soffit or wall bracket

Fix the dome to a ceiling or soffit, or use a suitable wall mount bracket so the pan and tilt range covers the intended area.

04

Set presets and tours

Configure presets, tours and IVS tripwire and intrusion rules so the camera covers key points and raises alerts on movement across defined zones.

§ 07Questions

Frequently asked about the DH-SD22404T-GN

Q.01

Does this PTZ have night vision built in?
No. This model has no built-in infrared illumination. For night use it depends on ambient lighting or a dedicated external light, and its Day/Night ICR mode with low-light sensitivity then keeps the scene usable. If you need a camera with its own night illumination, choose an IR or full-colour model instead.
Q.02

What does the 4x optical zoom cover?
The 2.7-11mm motorised lens gives 4x optical zoom, letting operators sweep a wide area then zoom in on a point of interest without losing image sharpness. A further 16x digital zoom is available, though digital zoom reduces detail compared with optical. It suits well-lit courtyards, forecourts and entries.
Q.03

Can it move and follow automatically?
It supports pan, tilt and zoom with 300 presets, plus tour and pattern modes that run a set sequence of positions. It can be driven manually from the NVR or app, or set to cycle through presets and tours on a schedule, covering a large area from one mounting point.
Q.04

How is it powered?
It supports PoE for a single-cable installation carrying power and data, which simplifies cabling at the mounting point. Confirm your switch or NVR port and budget suit the camera before installation.
Q.05

Does it do human and vehicle detection?
It includes a built-in IVS engine with tripwire and intrusion rules and face detection, useful for automated alerting on movement across defined zones. It does not perform the human and vehicle SMD classification found on Dahua WizSense cameras, so alerts are rule-based rather than target-classified.
Q.06

Is it weatherproof and vandal resistant?
Yes. It carries an IP66 rating against dust and water and IK10 impact resistance, the highest mechanical impact grade, suiting exposed outdoor positions and locations where the camera may be within reach.
Q.07

Does it record on the camera?
Yes. It takes a microSD card up to 256GB for edge recording, useful as a backup during network outages or for a standalone position. For continuous multi-camera recording, pair it with a Dahua NVR and a surveillance hard drive.
Q.08

What is the lead time on this model?
A 6 to 8 week lead time applies to this camera. If your project has a fixed deadline, confirm current availability when ordering so the timeframe can be planned into the installation schedule.

§ 09Bundles

Recommended packages

03

Lighting to suit

As this PTZ has no built-in infrared, plan site lighting for the coverage area; pair with full-colour or IR fixed cameras such as the HFW3466EP-AS where dedicated night illumination is needed.
