Dahua IPC-HDW3449TM-AS-LED 4MP Full-color Warm LED Fixed-focal Eyeball WizSense Network Camera, Wizsense
Dahua IPC-HDW3449TM-AS-LED 4MP Full-color Warm LED Fixed-focal Eyeball WizSense Network Camera
1 1
Dahua

Dahua IPC-HDW3449TM-AS-LED 4MP Full-color Warm LED Fixed-focal Eyeball WizSense Network Camera, Wizsense

SKU: IPC-HDW3449TM-AS-LED
Description

4MP full-colour eyeball with a warm-light LED that keeps images in colour after dark, plus human and vehicle detection and a built-in microphone.

  • 4MP 1/2.7" CMOS, 2688 x 1520, 120dB WDR
  • Full-colour night vision with warm light to 30m (no infrared)
  • Fixed 2.8mm lens for a wide view
  • SMD Plus and perimeter protection with human and vehicle detection
  • Built-in microphone for on-site audio
  • Compact eyeball form for walls and ceilings
  • IP67; 12V DC or PoE
4MP Ultra HD Full Color Night Vision IP67 Weatherproof Human/Vehicle Detection Built-in Microphone
$193.00 AUD $193.00 AUD $193.00 AUD
Member Sign in to save $3.86 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $692.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
Bundle total: $193.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the IPC-HDW3449TM-AS-LED is

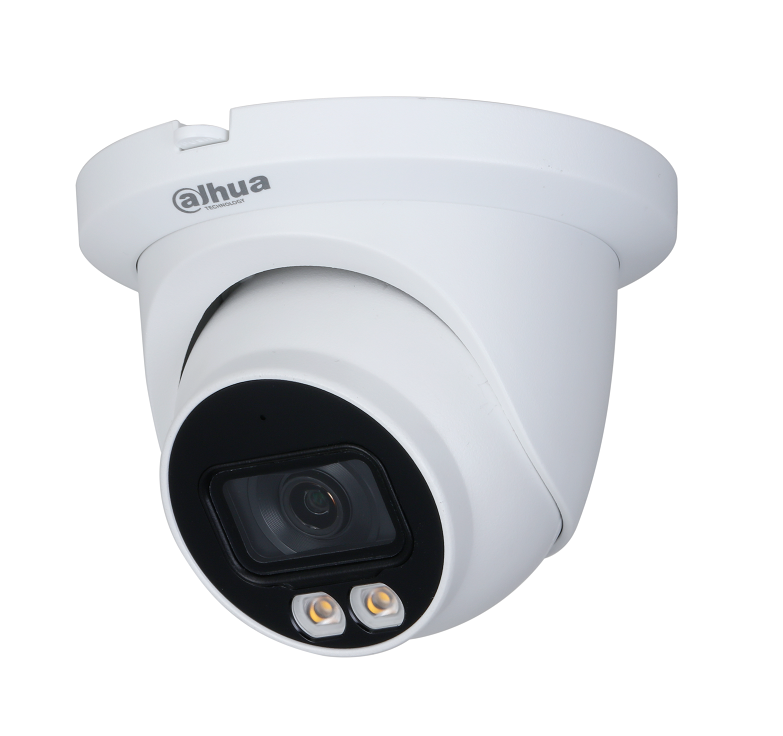

The Dahua DH-IPC-HDW3449TM-AS-LED is a 4MP full-colour WizSense eyeball that keeps images in colour through the night.

Instead of infrared, it uses a warm-light LED (rated to 30m) so people, vehicles and clothing keep their true colours after dark, which makes footage easier to interpret than monochrome IR.

A 4MP sensor with a large aperture and 120dB WDR holds detail in low light and against backlight.

WizSense SMD Plus and perimeter protection classify movement as human or vehicle, so tripwire and intrusion alerts stay focused on real targets rather than animals or foliage.

A built-in microphone records on-site audio alongside the video, and the compact eyeball housing mounts neatly on a wall or ceiling.

The fixed 2.8mm lens gives a wide view for general coverage, so set the mounting position for the scene you want before installing.

Because it relies on warm light rather than infrared, the LED is on to keep colour at night, so consider light spill in bedroom-facing or neighbour-sensitive positions, or choose a dual-light model there.

It has a microphone but no speaker, so it does not support two-way talk, and it powers from 12V DC or PoE.

Pair it with a Dahua WizSense NVR for classification and intelligent search.

See it in action

What the IPC-HDW3449TM-AS-LED features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p.

4MP Ultra HD

4MP captures roughly twice the detail of standard 1080p.
Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d...

Full Color Night Vision

Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

IPC-HDW3449TM-AS-LED specifications

- Sensor and resolution: 4MP 1/2.7" CMOS, 2688 x 1520, with 120dB WDR for low light and backlight

- Full-colour night vision: warm-light LED up to 30m keeps images in colour after dark, with no infrared

- Lens: fixed 2.8mm for a wide general view; set the mounting position before installing

- Classification: SMD Plus and perimeter protection with human and vehicle detection

- Audio: built-in microphone records on-site audio with the video

- Form factor: compact eyeball housing for tidy wall or ceiling mounting

- Durability and power: IP67 housing; 12V DC or PoE, under 8.5W

- Pair with a Dahua WizSense NVR for classification and intelligent search

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua IPC-HDW3449TM-AS-LED 4MP Full-color Warm LED Fixed-focal Eyeball WizSense Network Camera, Wizsense
FeatureDetail
Image Sensor 1/2.7”4Megapixel progressive CMOS
Max. Resolution 2688 (H) ×1520 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100, 000 s
Min. Illumination 0.003 Lux @ F1.0
S/N Ratio > 56 dB
Day/Night Color/B/W
BLC Yes
WDR 120 dB
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)
Mirror Yes
Privacy Masking 4 areas
Scene self-adaptation Yes

§ 04Why choose this

Built for the way you actually use the IPC-HDW3449TM-AS-LED

Colour footage all night

A warm-light LED keeps people, vehicles and clothing in true colour after dark, which is easier to interpret than monochrome infrared.

Alerts on real targets

SMD Plus with human and vehicle detection focuses tripwire and intrusion alerts on people and vehicles, cutting nuisance alarms.

Records on-site audio

A built-in microphone captures sound alongside the video for added context on events.

Compact and weatherproof

A tidy IP67 eyeball housing mounts neatly on walls and ceilings and suits exposed outdoor positions under an eave.

§ 05Where it fits

Right at home in these scenarios

Home entries and porches

Keeps faces and clothing in colour at a front door or porch at night, with classification to focus alerts on people.

Shop interiors and entries

Records colour detail of customers and staff at entries and counters, with audio for added context.

Driveways and carports

Captures vehicle colour and detail after dark across a driveway or carport within the warm-light range.

Walkways and side access

A wide fixed view covers paths and side gates, with human and vehicle filtering for after-hours alerts.

§ 06Setup

Installation & setup

01

Plan the fixed framing

With a fixed 2.8mm lens, set the mounting height and direction for the area you want before installing, as the wide view cannot be zoomed afterwards.

02

Mind the warm light at night

Aim the camera so the warm light does not spill into bedrooms or onto neighbours; adjust the LED brightness, or choose a dual-light model for sensitive positions.

03

Power over PoE or 12V DC

Run a single PoE network cable from a switch or NVR, or provide a 12V DC supply where PoE is not available.

04

Pair a WizSense NVR

For human and vehicle classification, perimeter rules and intelligent search, connect it to a Dahua WizSense NVR.

§ 07Questions

Frequently asked about the IPC-HDW3449TM-AS-LED

Q.01

Does it use infrared or warm light at night?
It uses a warm-light LED rated to 30m, not infrared. This keeps images in full colour after dark so you can make out clothing, vehicle and skin colours, which is harder with monochrome infrared. There are no IR LEDs on this model.
Q.02

Will the warm light disturb neighbours or bedrooms?
Because it relies on warm light rather than infrared, the LED is on to keep colour at night, so it does cast a soft light. The brightness is adjustable, but for bedroom-facing windows or neighbour-sensitive positions, aim it carefully or choose a smart dual-light model that only brings up warm light when a target is detected.
Q.03

Does it tell people and vehicles apart?
Yes. WizSense SMD Plus and perimeter protection classify movement as human or vehicle, so tripwire and intrusion alerts filter out animals, foliage and weather and focus on real targets, reducing nuisance notifications.
Q.04

Can I zoom or change the angle of view?
No. It has a fixed 2.8mm lens that gives a wide view, so the angle is set and cannot be zoomed. Plan the mounting height and position for the area you want to cover before installing, as the framing is fixed once mounted.
Q.05

Does it record audio or support two-way talk?
It has a built-in microphone that records on-site audio alongside the video. There is no built-in speaker, so it captures sound one way and does not support two-way talk.
Q.06

How is it powered?
It runs on PoE over a single network cable from a switch or NVR, or on 12V DC where PoE is not available. Power draw is low, under 8.5W, so it fits comfortably within a standard PoE budget on a multi-camera system.
Q.07

Is it suitable for outdoor use?
Yes. The eyeball housing is IP67-rated against dust and water, suiting eaves, walls and ceilings outdoors. Mount it under an eave where practical to limit direct weather on the lens and keep the view clear.
Q.08

Do I need a special NVR?
For human and vehicle classification, perimeter rules and intelligent search across recorded footage, pair it with a Dahua WizSense NVR. It also runs as a standard ONVIF camera on third-party recorders, though some smart events may not be available there.

§ 09Bundles

Recommended packages

03

Mounting

For surface cabling or extra clearance, add a Dahua junction box such as the PFA137; confirm it suits this eyeball before ordering.
