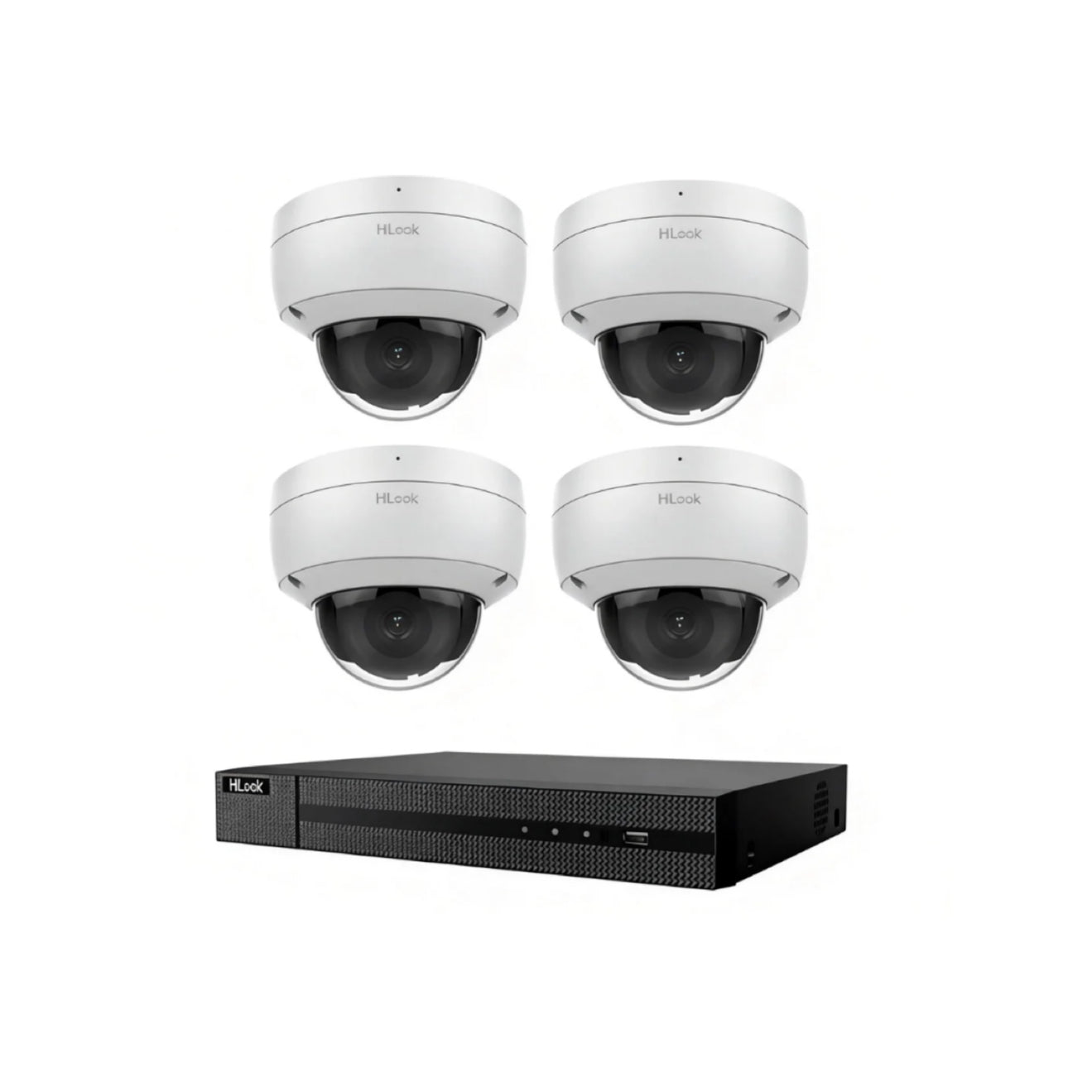

HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU

Hilook

HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU

Name: HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU
Brand: Hilook
Price: 907.9 AUD
Availability: InStock

SKU: IPC-D261H-MU

Description

- 6MP Resolution: Capture sharp footage for detailed identification.
- H.265+ Compression: Reduces bandwidth and storage requirements.
- Built-in Microphone: Enables audio recording with video.
- IP67 Rating: Weatherproof design for outdoor durability.
- Smart Motion Detection: Filters human/vehicle alerts, minimizing false alarms.

$907.90 AUD ~~$955.70 AUD~~

Sale 5.0% $47.80 AUD (5.0%)

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock

Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $1,177.35

Select hard drive

None

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB $269.45 6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB $445.45 8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB ~~$616.00~~$545.15 10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB ~~$792.00~~$724.30

Make it yours Customize this kit Add cameras, upgrade NVR or HDD 4 × HiLook IPC-D261H-MU 6MP IR Fixed Dome IP Camera 2.8mm IP67, IK10 Built-in Mic with Acusense · 4ch NVR · no HDD Kit price $907.90

This kit includes:

4 × HiLook IPC-D261H-MU 6MP IR Fixed Dome IP Camera 2.8mm IP67, IK10 Built-in Mic with Acusense
1 × HiLook NVR-104MH-C-4P 4xPoE 4 Channel 4K HDMI, 1x SATA Network Video Recorder (4ch)
No HDD included (add one below)

Add extra cameras HiLook IPC-D261H-MU 6MP IR Fixed Dome IP Camera 2.8mm IP67, IK10 Built-in Mic with Acusense · max 16

+$0.00

NVR Base: 4ch · HiLook NVR-104MH-C-4P 4xPoE 4 Channel 4K HDMI, 1x SATA Network Video Recorder

4ch HiLook NVR-104MH-C-4P 4xPoE 4 Channel 4K HDMI, ... Base (included)

HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder

8ch HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI,... +$13.30

HiLook NVR-216MH-C-16P 16CH NVR, 16x PoE NVR Network Video Recorder

16ch HiLook NVR-216MH-C-16P 16CH NVR, 16x PoE NVR Ne... +$127.30

Add Hard Drive (optional)

No HDD

4TB 4TB HDD – WD Purple / Seagate Surveillance HDD ... $269.45

6TB 6TB HDD – WD Purple / Seagate Surveillance HDD ... $445.45

8TB 8TB HDD – Purple / Skyhawk Surveillance Hard Dr... $545.15

10TB 10TB HDD – Purple Surveillance Hard Drive for D... $724.30

Notes for warehouse (optional)

3-Year Warranty

Warranty on all cameras

Free Shipping

On orders over $300

30-Day Returns

Easy returns for unopened items

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What this product is

The HiLook IPC-D261H-MU / NVR-104MH-C-4P is a 4-camera kit for home or small office security. Equipped with 6MP AcuSense cameras with smart motion detection (human/vehicle), H.265+, 30m night vision, IP67 weatherproof, and plug-and-play PoE NVR.

§ 02Engineering

Technical specifications

- 6MP Resolution: Captures sharp video at 3072 × 2048 for clear identification of details.
- H.265+ Compression: Reduces bandwidth and storage requirements efficiently.
- Built-in Microphone: Provides audio recording for enhanced context and evidence.
- IP67 Rating: Ensures weatherproof durability for outdoor use.
- Smart Motion Detection (SMD): Classifies humans and vehicles while reducing false alerts from irrelevant motion.
- 30m Infrared Night Vision: Enables clear monitoring in low-light conditions.
- 120dB True WDR: Balances extreme lighting differences for clear footage in challenging environments.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU
Feature	Detail
Image Sensor	1/2.8" Progressive Scan CMOS
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
P/N	P/N
Wide Dynamic Range	120 dB
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Image Parameters Switch	Yes
Image Settings	Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Image Enhancement	BLC, HLC, 3D DNR
SNR	≥ 52 dB

Lens & Distance

Lens & Distance — HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU
Feature	Detail
Lens Type	Fixed focal length, 2.8 mm
Focal Length & FOV	2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
Lens Mount	M12
Iris Type	Fixed
Aperture	F1.6
DORI	2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m

Night Vision

Night Vision — HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU
Feature	Detail
Supplement Light Type	IR
Smart Supplement Light	Yes
IR Wavelength	850 nm
IR Range	Up to 30 m

Video

Video — HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU
Feature	Detail
Max. Resolution	3200 × 1800
Main Stream	50 Hz: 20 fps (3200 × 1800); 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream	50 Hz: 25 fps (1280 × 720, 960×540, 640 × 480, 640 × 360)
Third Stream	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); Third stream is supported under certain settings.
Video Compression	Main stream: H.265/H.264/H.264+/H.265+ \| Sub-stream: H.265/H.264/MJPEG \| Third stream: H.265/H.264; Third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
H.264+	Main stream supports
H.265+	Main stream supports
Bit Rate Control	CBR/VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream and sub-stream

Audio

Audio — HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU
Feature	Detail
Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering	Yes

AI & Deep Learning

AI & Deep Learning — HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU
Feature	Detail
Face Detection	Yes
Perimeter Protection	Line crossing detection, intrusion detection \| Supports human and vehicle targets classification

Network & Storage

Network & Storage — HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU
Feature	Detail
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Security	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage	NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE 10, IE 11 \| Plug-in free live view: Chrome 57.0+, Firefox 52.0+ \| Local service: Chrome 57.0+, Firefox 52.0+

Event & Alarm

Event & Alarm — HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU
Feature	Detail
Basic Event	Motion detection (human and vehicle targets classification), video tampering alarm, exception
Linkage Method	Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email

Interface

Interface — HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU
Feature	Detail
Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board Storage	Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in Microphone	Yes
Hardware Reset	Yes

General & Environment

General & Environment — HiLook Hikvision 6MP Acusense 4 Camera 4CH Dome Kit – 4 x IPC-D261H-MU
Feature	Detail
Camera Material	Aluminum alloy body \| Bubble: plastic
Camera Dimension	Ø 121.4 mm × 92.2 mm (Ø 4.8" × 3.7")
Package Dimension	150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
Camera Weight	Approx. 550 g (1.2 lb.)
With Package Weight	Approx. 800 g (1.8 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Web Client Language	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function	Anti-flicker, heartbeat, password reset via email, pixel counter
Firmware Version	V5.5.113
Software Reset	Yes
Power Consumption and Current	12 VDC, 0.5 A, max. 6 W \| PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W
Power Supply	12 VDC ± 25%, reverse polarity protection \| PoE: 802.3af, Class 3
Power Interface	Ø5.5 mm coaxial power plug
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
