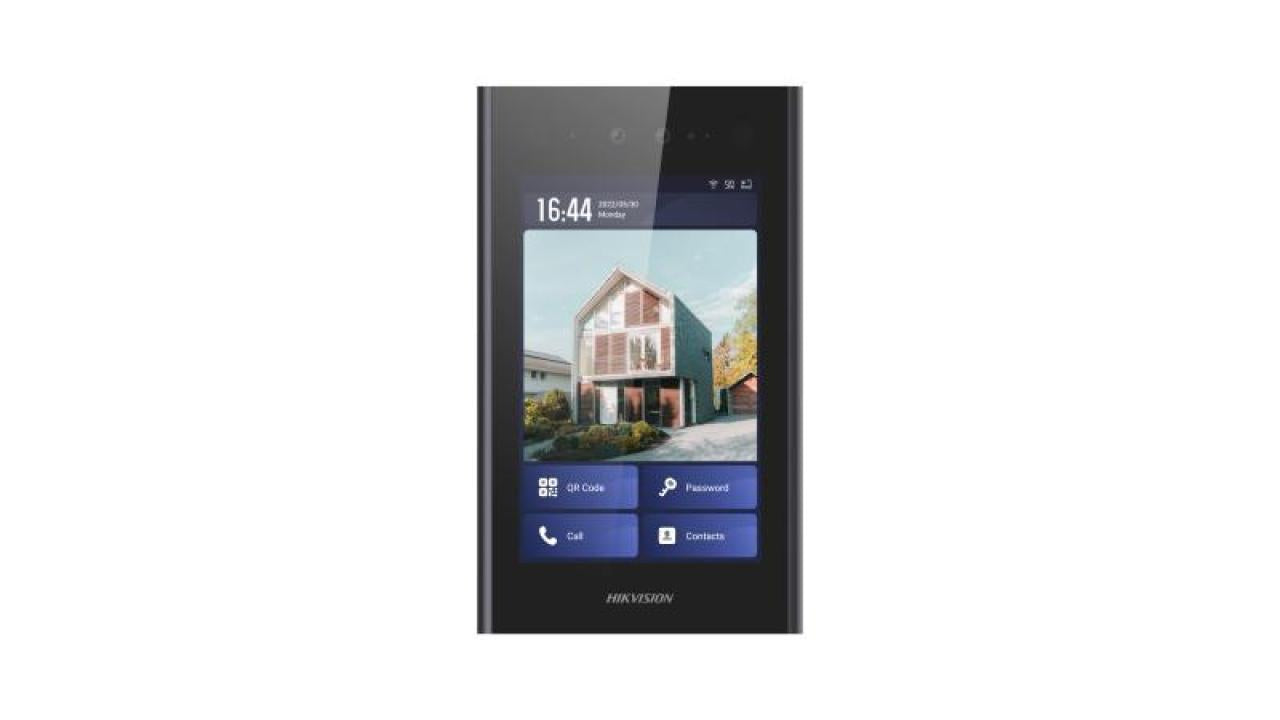

Hikvision DS-KD9403-E6 8-inch Face Door Station

SKU: DS-KD9403-E6
Description

The Hikvision DS-KD9403-E6 is an Android-based IP apartment door station with an 8-inch IPS touchscreen and 2 MP camera. It supports face, card, PIN and QR-code access alongside visitor communication through two microphones and two loudspeakers. The display has 1280 × 800 resolution, with infrared supplementary lighting specified up to 3 m. A 12 VDC, 2 A supply powers the station. It supports surface or flush mounting with IP65 protection. Select the power source, mounting arrangement and compatible intercom components separately. A second lock requires a secure module, and the reserved TF-card interface is not an available recording-card feature. Download the official Hikvision datasheet (PDF).
$1,613.00 AUD $1,613.00 AUD $1,693.65 AUD
Sale 4.76% $80.65 AUD (4.76%)
Bulk Price$1,516.22 AUD
Save $96.78 AUD — 6% off orders over $1,500, applied automatically at checkout.
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-KD9403-E6 is

The Hikvision DS-KD9403-E6 gives visitors a touch-based calling interface at a shared entrance. Residents can use the configured access methods while the camera and audio support entrance communication.

Plan the second lock-control path before specifying the rest of the hardware. It requires a secure module, so two-lock capability should not be interpreted as two identical direct connections.

This station uses wired networking and DC power, without Wi-Fi. The reserved TF-card interface should not be used as the basis for a local recording requirement.

§ 02Engineering

DS-KD9403-E6 specifications

Hikvision DS-KD9403-E6 display — 8-inch IPS, 1280 × 800 — provide a touch-based entrance interface.
Camera — 2 MP — support visitor viewing.
Access methods — face, card, PIN and QR code — configure resident entry.
IR supplement — up to 3 m — assist nearby night viewing.
Audio — two microphones and two loudspeakers — support entrance conversation.
Lock control — second lock requires a secure module — plan the full control path.
Power and protection — 12 VDC, 2 A; IP65 — select an appropriate installation.

§ 03Full datasheet

Detailed specifications

Display

Display — Hikvision DS-KD9403-E6 8-inch Face Door Station
FeatureDetail
Screen 8-inch IPS capacitive touchscreen
Resolution 1280 × 800

§ 08Questions

Frequently asked about the DS-KD9403-E6

Q.01

What is the DS-KD9403-E6?
It is an IP apartment door station combining an 8-inch touchscreen, 2 MP camera, visitor audio and resident access methods.
Q.02

What display resolution does it offer?
The 8-inch IPS capacitive touchscreen has 1280 × 800 resolution.
Q.03

Which resident access methods are described?
Face, card, PIN and QR-code access are supported within the configured system.
Q.04

Does the second lock need extra control hardware?
Yes. The second lock requires a secure module. Confirm the complete control arrangement for the selected locks.
Q.05

Does it have Wi-Fi or PoE power?
It specifies wired networking and 12 VDC, 2 A power. It does not have Wi-Fi.
Q.06

Can I use a TF card for local recording?
The TF-card interface is reserved and should not be treated as an available recording-card feature.
Q.07

How is it mounted?
Surface and flush mounting are supported. Select the appropriate mounting and power arrangements for the IP65 outdoor station.
