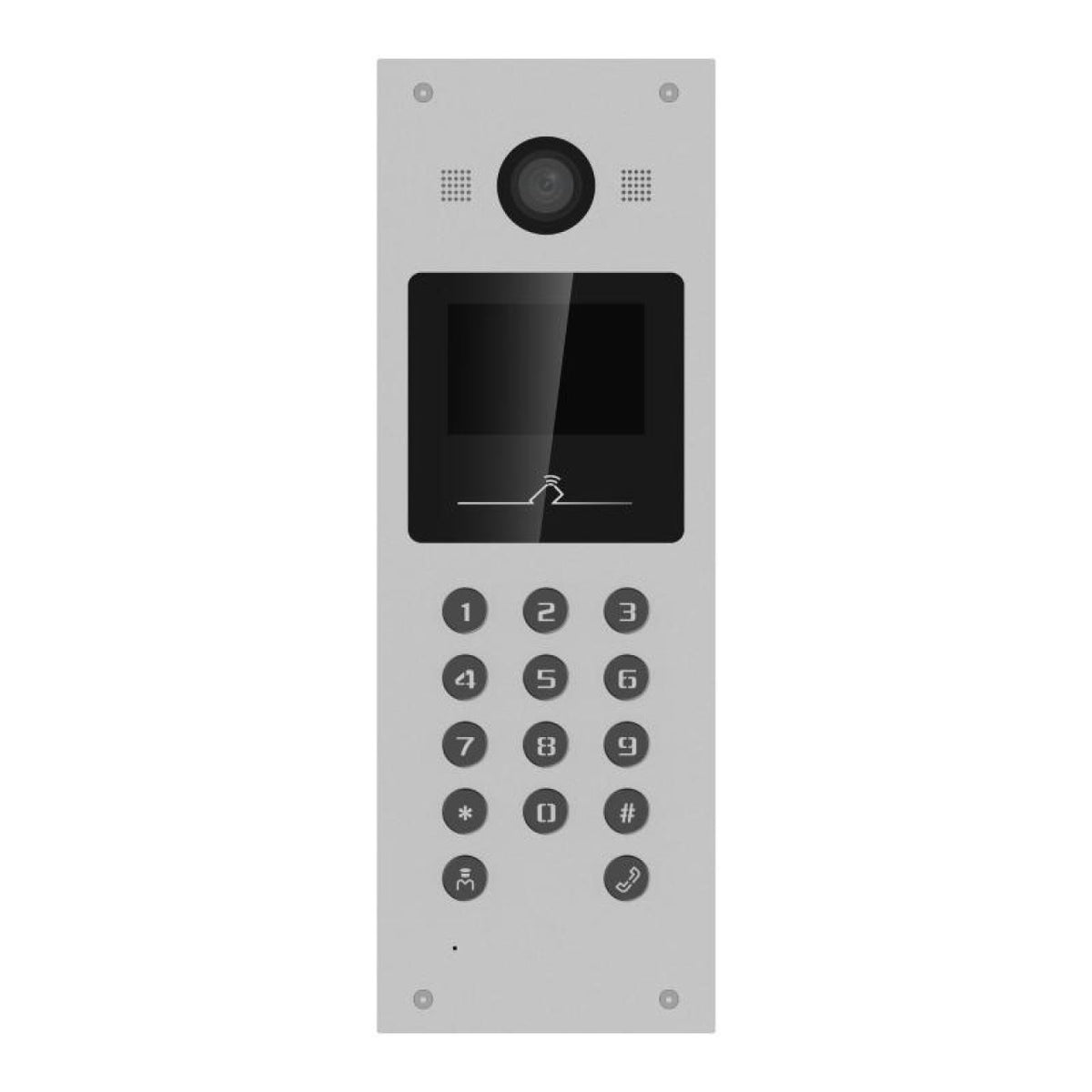

Hikvision DS-KD3003-E6 3.5-inch IP Door Station
The Hikvision DS-KD3003-E6 is an IP door station with a 3.5-inch colour LCD, 2 MP camera and physical keypad for a shared entrance. M1 card and PIN access give residents configured entry methods, while the microphone and loudspeaker support visitor conversation. Infrared supplementary lighting is specified up to 3 m. The station uses wired Ethernet and 12 VDC power, with two relays for lock control. Select a suitable flush-mount arrangement, power supply and the remaining intercom and lock components separately. This model is not a facial-recognition door station or a complete intercom kit. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KD3003-E6 is
The Hikvision DS-KD3003-E6 suits an entrance where a physical keypad and card reader are the main resident interaction points. Visitors can use the door-station interface to reach the configured answering system.
Plan the viewing position and the calling workflow together. The integrated camera and audio provide entrance communication, while the display helps users interact with the panel.
This is a wired, DC-powered station without Wi-Fi or face recognition. Allow for the flush-mount installation and confirm the selected lock circuits before connecting the complete system.
§ 02Engineering
DS-KD3003-E6 specifications
Camera — 2 MP — support visitor viewing.
Resident access — M1 card and PIN — configure entry permissions.
Keypad — 14 physical buttons — provide tactile interaction.
IR supplement — up to 3 m — assist nearby night viewing.
Lock control — two relays, maximum 30 VDC, 2 A — check the lock circuits.
Power and protection — 12 VDC, 1 A; IP65 — plan a suitable outdoor installation.
§ 03Full datasheet
Detailed specifications
Display
| Feature | Detail |
|---|---|
| Screen | 3.5-inch colour LCD |
| Resolution | 480 × 320 |
Video
| Feature | Detail |
|---|---|
| Camera | 2 MP |
| IR supplement | Up to 3 m |
| Compression | H.264 |
Access
| Feature | Detail |
|---|---|
| Methods | M1 card; PIN |
| Buttons | 14 physical buttons |
| Card capacity | 10000 |
| Face recognition | No |
Connections
| Feature | Detail |
|---|---|
| Ethernet | 1 RJ45; 10/100/1000 Mbps |
| Wi-Fi | No |
| Audio | Built-in microphone and loudspeaker |
| Audio processing | Noise suppression; echo cancellation |
| Lock relays | 2; maximum 30 VDC, 2 A |
| RS-485 | 1 |
| Wiegand | 1 |
General
| Feature | Detail |
|---|---|
| Power input | 12 VDC, 1 A |
| Power consumption | Up to 10 W |
| Protection | IP65 |
| Mounting | Flush |
| Environment | Outdoor |
| Net weight | 1.05 kg |
| Display — Screen | 3.5-inch colour LCD |
|---|---|
| Display — Resolution | 480 × 320 |
| Video — Camera | 2 MP |
| Video — IR supplement | Up to 3 m |
| Video — Compression | H.264 |
| Access — Methods | M1 card; PIN |
| Access — Buttons | 14 physical buttons |
| Access — Card capacity | 10000 |
| Access — Face recognition | No |
| Connections — Ethernet | 1 RJ45; 10/100/1000 Mbps |
| Connections — Wi-Fi | No |
| Connections — Audio | Built-in microphone and loudspeaker |
| Connections — Audio processing | Noise suppression; echo cancellation |
| Connections — Lock relays | 2; maximum 30 VDC, 2 A |
| Connections — RS-485 | 1 |
| Connections — Wiegand | 1 |
| General — Power input | 12 VDC, 1 A |
| General — Power consumption | Up to 10 W |
| General — Protection | IP65 |
| General — Mounting | Flush |
| General — Environment | Outdoor |
| General — Net weight | 1.05 kg |
§ 08Questions
Frequently asked about the DS-KD3003-E6
Q.01
What is the DS-KD3003-E6 used for?
Q.02
What display and camera does it have?
Q.03
Does it recognise faces?
Q.04
How is the station powered?
Q.05
Does it have Wi-Fi?
Q.06
Can it operate two lock circuits?
Q.07
What mounting arrangement does it use?
