Hikvision DS-2DF8C835MHS-DELW 8MP (4K) PTZ Camera, 35x Zoom, up to 300m IR, IP66, IK10, Hi-PoE/24VAC
Skip to product information
1
/
of
1
Vendor:
Hikvision
Hikvision DS-2DF8C835MHS-DELW 8MP (4K) PTZ Camera, 35x Zoom, up to 300m IR, IP66, IK10, Hi-PoE/24VAC
SKU: DS-2DF8C835MHS-DELW
Description

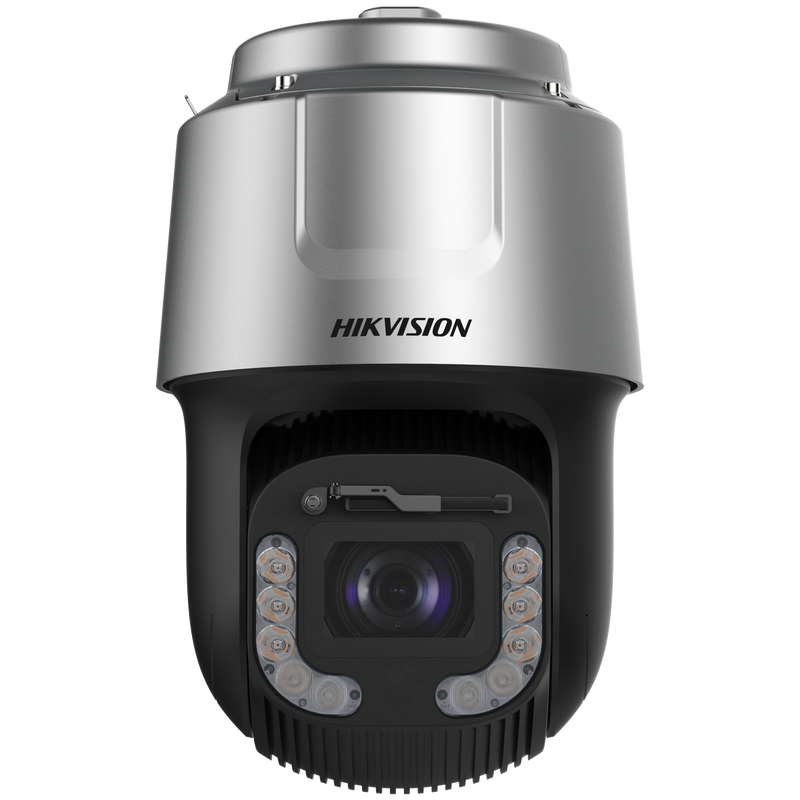

The Hikvision DS-2DF8C835MHS-DELW is an 8 MP (4K) DarkFighterX TandemVu PTZ speed dome. Two sensors give a fixed panoramic overview and a 35x optical zoom at once, so you keep the whole scene in view while the zoom closes in, with infrared up to 300 m.
Key points
- 8 MP (3840 x 2160) 4K; two 1/1.2" sensors (TandemVu)
- 35x optical zoom (7.4 to 259 mm) plus 16x digital
- Panoramic overview and zoomed detail at the same time
- DarkFighterX low light; hybrid IR up to 300 m + white light
- 140 dB WDR; face capture and vehicle detection
- IP67 and IK10 body, wiper; Hi-PoE or 36 VDC
Regular price
$4,462.00 AUD
Sale price
$4,462.00 AUD
Regular price
$4,800.00 AUD
Sale
7.04%
$338.00 AUD
(7.04%)
Member
Sign in to save $89.24 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision DS-2DF8C835MHS-DELW 8MP (4K) PTZ Camera, 35x Zoom, up to 300m IR, IP66, IK10, Hi-PoE/24VAC
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $5,405.60
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2DF8C835MHS-DELW is
The Hikvision DS-2DF8C835MHS-DELW is an 8 MP, 4K DarkFighterX TandemVu PTZ speed dome, and the TandemVu design is what sets it apart.
It carries two sensors: a fixed panoramic camera that always shows the whole scene, and a 35x optical zoom (7.4 to 259 mm) that closes in on detail.
With an ordinary PTZ, zooming in means losing sight of everything else; here the panoramic channel keeps the full picture while the zoom channel reads a face or a plate, so an operator never loses situational awareness during an incident.
Both channels use large 1/1.2" sensors with DarkFighterX low-light technology and 140 dB Wide Dynamic Range, so the camera holds detail in very low light and against harsh backlight.
Night supplement is hybrid: the panoramic channel can use white light to keep a colour overview, while the zoom channel reaches up to 300 m with infrared, where the image is black and white.
On-camera smart features include face capture, face comparison, vehicle detection with number-plate, model and colour recognition, and smart auto-tracking that follows a moving target.
300 presets with patrol and pattern scans automate a tour of fixed views, and the 360-degree pan covers every direction.
It is built for demanding, exposed sites.
A built-in wiper, heater and demist keep the long zoom usable in rain and cold, and the metal housing is rated IP67 against dust and water and IK10 against impact, with an operating range down to -40 degrees C.
(Some listings quote IP66 for this model; the official datasheet rates it IP67 / IK10.) This is a high-power camera that runs on Hi-PoE or a 36 VDC supply, not a standard NVR PoE port, and records both channels to a high-bandwidth Hikvision NVR.
Because TandemVu records two streams, size your recorder bandwidth and storage accordingly.
See it in action
What the DS-2DF8C835MHS-DELW features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2DF8C835MHS-DELW specifications
- 8 MP (3840 x 2160) 4K with two 1/1.2" sensors (TandemVu)
- 35x optical zoom (7.4 to 259 mm) plus 16x digital zoom
- Panoramic overview and zoomed detail captured at the same time
- DarkFighterX low-light imaging; 140 dB WDR
- Hybrid supplement: white light overview plus IR up to 300 m on the zoom
- Face capture, face comparison and vehicle detection
- Smart auto-tracking, 360-degree pan, 300 presets
- IP67 / IK10 body, wiper, heater; Hi-PoE or 36 VDC
- 35x optical zoom (7.4 to 259 mm) plus 16x digital zoom
- Panoramic overview and zoomed detail captured at the same time
- DarkFighterX low-light imaging; 140 dB WDR
- Hybrid supplement: white light overview plus IR up to 300 m on the zoom
- Face capture, face comparison and vehicle detection
- Smart auto-tracking, 360-degree pan, 300 presets
- IP67 / IK10 body, wiper, heater; Hi-PoE or 36 VDC
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | Two sensors, 1/1.2" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0004 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1/1 s to 1/30000 s |
| Zoom | 35 × optical, 16 × digital |
| Slow Shutter | Yes |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, schedule |
| Wide Dynamic Range (WDR) | 140 dB |
| SNR | ≥ 52 dB |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regional Focus | Yes |
| Regional Exposure | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | 7.4 to 259 mm |
| FOV | Horizontal field of view: 61.26° to 1.77°, vertical field of view: 35.5° to 1°, diagonal field of view: 69.35° to 2.03° |
| Focus | Auto, semi-auto, manual, rapid focus |
| Aperture | F1.6 |
| Zoom Speed | Approx. 8 s |
| Movement Range (Pan) | 0° to 360° |
| Movement Range (Tilt) | -20° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 210°/s, preset speed: 280°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Preset Freezing | Yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Power-off Memory | Yes |
| DORI Distance | Detect 5180 m (16994.8 ft.); Observe 2055.6 m (6744.1 ft.); Recognize 1036 m (3399 ft.); Identify 518 m (1699.5 ft.) |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | Hybrid |
| Supplement Light Range | IR distance: up to 300 m |
| Smart Supplement Light | Yes |
| Defog | Optical defog |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 24 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline profile, Main profile, High profile |
| H.265 Type | Main profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | AAC-LC, G.711, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 192 Kbps (MP2L2), 16 to 64 Kbps (AAC-LC) |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
| Face Comparison | Recognizes face identity via face modeling, grading and comparing to those in face library |
| Road Traffic | Support vehicle detection (license plate number, vehicle model, and vehicle color recognition) |
| Smart Tracking | Manual tracking, auto-tracking |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, TCP/IP, ICMP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, UPnP, SMTP, SNMP, IGMP, UDP, Bonjour, NTP |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, IP address filter, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), host authentication (MAC address), watermark |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | IE 10+, Chrome 57+, Firefox 52+, Safari 12+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection, video tampering alarm, exception, alarm input and output |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, unattended baggage detection, object removal detection |
| Alarm Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
Interface
| Feature | Detail |
|---|---|
| Video Output | CVBS: 1.0 V[p-p]/75 Ω, PAL/NTSC, BNC connector |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%, 1 output (line out), line level, output impedance: 600 Ω |
| Alarm | 7 input(s), 2 output(s) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 36 VDC ± 25%, max. 62 W, Hi-PoE |
| Dimension | Ø267 mm × 430 mm (Ø10.5" × 16.9") |
| Weight | Approx. 10 kg (22.05 lb.) |
| Material | ADC12 |
| Operating Condition | -40 °C to 70 °C (-40 °F to 158 °F). Humidity 95% or less (non-condensing) |
| Vandal-proof Alarm | Yes |
| Heater | Yes |
| Wiper | Yes |
| Demist | Yes |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| EMC | FCC (47 CFR Part 15, Subpart B), CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014), RCM (AS/NZS CISPR 32: 2015), IC (ICES-003: Issue 7), KC (KN 32: 2015, KN 35: 2015) |
| Safety | CE-LVD (EN 62368-1: 2014/A11: 2017), CB (IEC 62368-1: 2014 + A11), UL (UL 62368-1), BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005), LOA (IEC/EN 60950-1) |
| Environment | CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002), TVS 6K V lightning protection, surge protection and voltage transient protection |
§ 04Why choose this
Built for the way you actually use the DS-2DF8C835MHS-DELW
4K detail at long range
8 MP and a 35x zoom let you identify a face or a plate far across a large site, with infrared to 300 m at night.
Colour overview, long-range night reach
The panoramic channel can hold a colour overview with white light while the zoom uses infrared for distance in the dark.
Built for tough sites
An IP67 / IK10 body with a wiper, heater and demist stands up to rain, cold and impact on exposed perimeters.
§ 05Where it fits
Right at home in these scenarios
Control rooms and city surveillance
Keep a panoramic overview of a precinct or square on screen while the zoom follows an incident, so nothing happens off-camera.
Airports, ports and stadiums
Watch a wide apron, quayside or concourse and zoom into detail without losing the surrounding context.
Large perimeters
Hold the whole boundary in the panoramic view and reach up to 300 m with the zoom and infrared on anyone who approaches.
Traffic and transport hubs
Read vehicles and plates with the zoom while the panoramic channel keeps the wider intersection or interchange in frame.
§ 06Setup
Installation & setup
In the box
Camera and mounting hardware with the quick start guide. A wall or pole bracket, Hi-PoE injector or 36VDC supply, microSD card and NVR are bought separately.
Mounting
Fit it high on a solid pole, wall bracket or corner with a clear line across the site, so both the panoramic and zoom channels have an open view. A rigid mount keeps the long zoom steady.
Power and network
This is a high-power PTZ. A standard NVR PoE port (802.3af/at) does not supply enough power, so use a Hi-PoE injector or a 36 VDC supply at the camera, bought separately, and run the video back to the recorder over the network.
Setup tips
Set preset positions and patrols for the zoom channel, enable face and vehicle detection and auto-tracking, and size your NVR for two 4K streams from one camera.
§ 07Questions
Frequently asked about the DS-2DF8C835MHS-DELW
Q.01
What does TandemVu mean on the DS-2DF8C835MHS-DELW?
TandemVu means the camera has two sensors working together: a fixed panoramic camera that always shows the whole scene, and a 35x zoom that closes in on detail. With a normal PTZ, zooming in loses the wider view; with TandemVu you keep the full picture and the zoomed detail at the same time.
Q.02
Does it record in colour at night?
It depends on the channel. The panoramic overview can use white light to keep a colour picture, while the zoom channel uses infrared up to 300 metres, where the image is black and white. So you get a colour overview and a long-range infrared zoom together.
Q.03
How far does the zoom reach?
The zoom channel has a 35x optical zoom and Hikvision rates it to identify a person at about 518 metres at full zoom under good conditions, with infrared lighting the scene up to 300 metres at night. The panoramic channel covers the wider area around it.
Q.04
Is this camera IP66 or IP67?
The official Hikvision datasheet rates it IP67 against dust and water and IK10 against impact. Some retailer listings quote IP66, but we follow the datasheet, which is IP67 / IK10, plus a heater and demist for cold and damp.
Q.05
Does it detect people and vehicles?
It captures and compares faces and detects vehicles, including number-plate, model and colour, and it can auto-track a moving target. This is the earlier smart generation, so we describe it as face and vehicle detection with auto-tracking rather than the human-and-vehicle perimeter classification of the newest G1 models.
Q.06
How is it powered, and what NVR does it need?
It runs on Hi-PoE or a 36 VDC supply, not a standard NVR PoE port, so use a Hi-PoE injector or a dedicated supply at the camera. Because it records two streams, choose a high-bandwidth Hikvision NVR and size the storage for two channels.
Q.07
Is it suitable for an exposed site?
Yes. A built-in wiper keeps the window clear, and the IP67 / IK10 metal body with a heater and demist handles rain, cold and impact, with an operating range down to -40 degrees C, so it suits poles, rooftops and open perimeters.
§ 09Bundles
Recommended packages
Record both streams on a high-bandwidth NVR
Send it to a high-capacity Hikvision NVR such as the 32-channel DS-7732NI-M4/24P or the 8-bay DS-9632NI-M8, and add a large surveillance drive like the 10 TB drive, since TandemVu records two channels.
Power it correctly
This is a high-power PTZ. A standard NVR PoE port (802.3af/at) does not supply enough power, so use a Hi-PoE injector or a 36 VDC supply at the camera, bought separately, and run the video back to the recorder over the network.
Pair it with a long-IR zoom dome
Add the 42x DS-2DF8442IXG1-ELWY where you need infrared out to 400 m at a second position.
