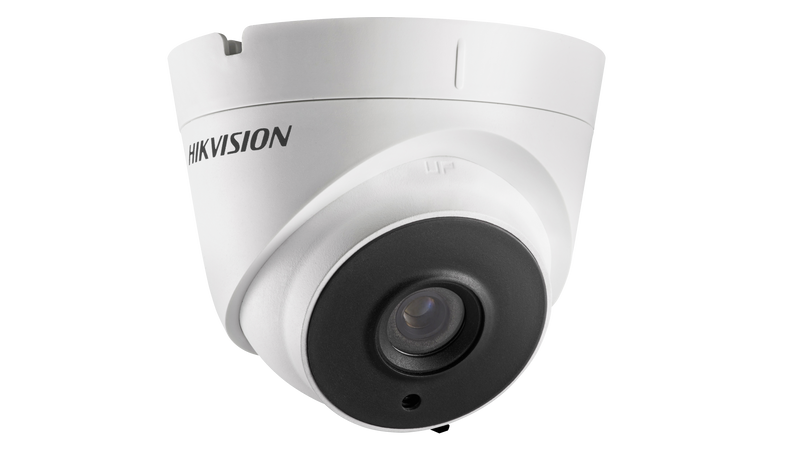

Hikvision DS-2CC52D9T-IT3E TVI 2MP Outdoor IR Turret Camera, WDR, PoC, Ultra Low-light, IP67, CVBS, 2.8mm
Hikvision DS-2CC52D9T-IT3E 2MP Outdoor IR Turret Camera Ultra Low-light IP67 2.8mm
1 1
Hikvision

Hikvision DS-2CC52D9T-IT3E TVI 2MP Outdoor IR Turret Camera, WDR, PoC, Ultra Low-light, IP67, CVBS, 2.8mm

SKU: DS-2CC52D9T-IT3E
Description

The Hikvision DS-2CC52D9T-IT3E is a 2 MP ultra-low-light Turbo HD turret built for analog sites that need clean images in very poor light. It captures usable colour down to 0.003 Lux, adds EXIR infrared up to 40 m for total darkness, and supports Power over Coax (PoC) so a single coaxial cable carries both the HD video and the camera's power back to the DVR.

Key points
- 2 MP (1920 x 1080) Turbo HD turret over coaxial cable
- Ultra-low-light imaging down to 0.003 Lux
- 120 dB true WDR and 3D DNR
- EXIR 2.0 infrared up to 40 m
- Power over Coax (PoC): video and power on one cable
- Fixed 2.8 mm lens (3.6 and 6 mm options); IP67 weatherproof
- 12 VDC or PoC analog camera - connects to a DVR, not an NVR
2MP Ultra HD 40m IR Night Vision IP67 Weatherproof
$198.85 AUD $198.85 AUD $205.00 AUD
Sale 3.0% $6.15 AUD (3.0%)
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $1,142.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
Ethernet Cable Pre-terminatedCable
1
    Bundle total: $198.85
    3-Year Warranty

    3-Year Warranty

    Warranty on all cameras

    Free Shipping

    Free Shipping

    On orders over $300

    30-Day Returns

    30-Day Returns

    Easy returns for unopened items

    Fast Delivery

    Fast Delivery

    5-10 Day Delivery Australia-wide

    § 01Overview

    What the DS-2CC52D9T-IT3E is

    The Hikvision DS-2CC52D9T-IT3E is an ultra-low-light Turbo HD turret for analog CCTV systems where night performance matters.

    Its sensor and processing capture clear, usable colour images down to 0.003 Lux, far better than a standard analog camera, so it keeps detail under faint street or security lighting before the infrared even comes on.

    When it does get dark, EXIR 2.0 infrared lights the scene up to 40 m, and 120 dB true WDR with 3D DNR keeps the picture balanced and clean against glare and noise.

    Its standout convenience is Power over Coax.

    With a PoC-capable DVR, a single coaxial cable carries both the HD video and the camera's power, so there is no separate power run to each camera - a real time-saver on a multi-camera upgrade or a long cable route.

    It also runs on a conventional 12 VDC supply if you prefer.

    A fixed 2.8 mm lens gives a wide view, with 3.6 mm and 6 mm options for longer reach.

    Two notes for a clean install.

    This is an analog Turbo HD camera, so it connects over coax to a DVR, not over the network to an NVR; to use PoC, the DVR must support it.

    The turret has no microphone or speaker, and the housing is IP67 against dust and heavy rain, so it suits eaves, entrances and walls outdoors.

    See it in action

    What the DS-2CC52D9T-IT3E features actually look like

    Representative illustrations of how each key feature performs in a real scene.

    40m IR Night Vision — Built-in infrared sees in total darkness up to around 40m, reaching further across a ... (1/2)
    40m IR Night Vision — Built-in infrared sees in total darkness up to around 40m, reaching further across a ... (2/2)

    40m IR Night Vision

    Built-in infrared sees in total darkness up to around 40m, reaching further across a larger yard or laneway. Subjects appear in clear black-and-white, sharper and brighter as they get closer.
    IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

    IP67 Weatherproof

    Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

    Illustrative — simulated for demonstration

    § 02Engineering

    DS-2CC52D9T-IT3E specifications

    - 2 MP (1920 x 1080) Turbo HD turret over coaxial cable
    - Ultra-low-light imaging down to 0.003 Lux for faint light
    - 120 dB true WDR and 3D DNR for glare and noise
    - EXIR 2.0 infrared up to 40 m for total darkness
    - Power over Coax (PoC): HD video and power on one cable
    - Also runs on a conventional 12 VDC supply
    - Fixed 2.8 mm lens, with 3.6 mm and 6 mm options
    - IP67 weatherproof metal housing - connects to a DVR, not an NVR

    § 03Full datasheet

    Detailed specifications

    Camera & Image

    Camera & Image — Hikvision DS-2CC52D9T-IT3E TVI 2MP Outdoor IR Turret Camera, WDR, PoC, Ultra Low-light, IP67, CVBS, 2.8mm
    FeatureDetail
    Image Sensor 2 MP CMOS
    Max. Resolution 1920 × 1080
    Min. Illumination Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
    Wide Dynamic Range (WDR) 120 dB true WDR
    Day & Night IR cut filter
    Signal System PAL/NTSC
    Noise Reduction 3D DNR

    § 04Why choose this

    Built for the way you actually use the DS-2CC52D9T-IT3E

    See in very low light

    Ultra-low-light imaging down to 0.003 Lux holds colour detail where ordinary analog cameras fail.

    One cable per camera

    Power over Coax carries video and power together, cutting the cabling on a multi-camera upgrade.

    Strong night reach

    EXIR 2.0 infrared up to 40 m lights driveways and yards evenly in total darkness.

    Keep your cabling

    It upgrades an analog site to clean HD over the existing coax and DVR.

    § 05Where it fits

    Right at home in these scenarios

    Low-light analog sites

    Add reliable night performance to a yard, driveway or laneway on an existing analog system.

    Multi-camera upgrades

    Use Power over Coax to cut the power cabling across a larger analog install.

    Homes and small business

    Cover an entrance or perimeter with a tough, easy-to-aim HD turret.

    Eaves and entrances

    Mount under cover where the EXIR infrared and low-light sensor handle the dark.

    § 06Setup

    Installation & setup

    01

    What's in the box

    One DS-2CC52D9T-IT3E 2MP Turbo HD turret camera with mounting hardware and documentation. The DVR, coaxial cabling, any 12 VDC power supply and junction box are supplied separately.

    02

    Installation requirements

    Mount it on a wall, eave or ceiling over the area to cover and run coaxial cable to a Turbo HD DVR. For single-cable power, use a PoC-capable DVR; otherwise provide a 12 VDC supply. Aim and focus the fixed lens for the view you want, and set the camera output to match your DVR.

    § 07Questions

    Frequently asked about the DS-2CC52D9T-IT3E

    Q.01

    What is Power over Coax on the DS-2CC52D9T-IT3E?
    Power over Coax, or PoC, sends both the HD video and the camera's power down the same coaxial cable. With a PoC-capable DVR you do not need a separate power supply run to each camera, which saves cabling and time on a multi-camera analog system. It also runs on a normal 12 VDC supply if you prefer.
    Q.02

    How good is it in low light?
    It is an ultra-low-light camera that captures usable colour down to 0.003 Lux, so it holds detail under faint street or security lighting where a standard analog camera would struggle. When it is fully dark, EXIR infrared up to 40 m lights the scene and the image switches to black-and-white.
    Q.03

    Does it connect to an NVR?
    No. It is an analog Turbo HD camera, so it connects over coaxial cable to a DVR, not over the network to an NVR. To use the Power over Coax feature, your DVR must support PoC as well.
    Q.04

    How far does the infrared reach?
    EXIR 2.0 infrared reaches up to 40 m, with an even spread that avoids the hot-spot you get from older infrared. That suits driveways, yards and medium-sized open areas. The ultra-low-light sensor also extends what you can see before the infrared is needed.
    Q.05

    Is it suitable for outdoor use?
    Yes. The metal housing is rated IP67 against dust and heavy rain, so it works on eaves, entrances and exposed walls. As a turret it is easy to aim and sits neatly under cover.
    Q.06

    Which lens should I choose?
    The 2.8 mm lens gives a wide view for a general area, while the 3.6 mm and 6 mm options give a tighter, longer reach for a gate or driveway. Pick the lens to match the distance and field of view you need.
    Q.07

    Does it record sound?
    No. The turret has no built-in microphone or speaker, so it captures video only. If you need audio on an analog system, use a separate microphone wired to a DVR audio input where it is permitted.

    § 09Bundles

    Recommended packages

    03

    Protect the cabling

    Use a DS-1280ZJ-S junction box to conceal and weatherproof the connections behind the turret.
