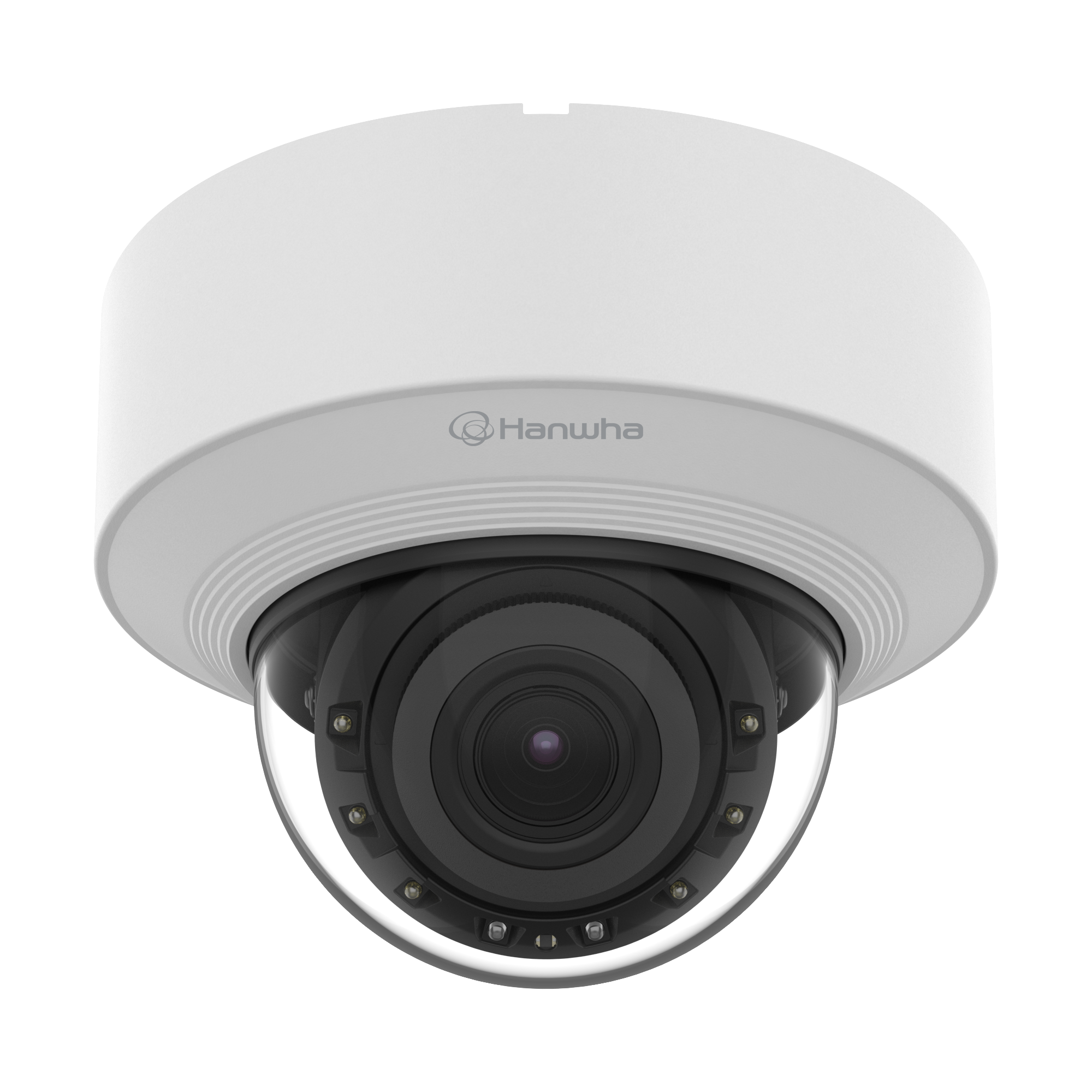

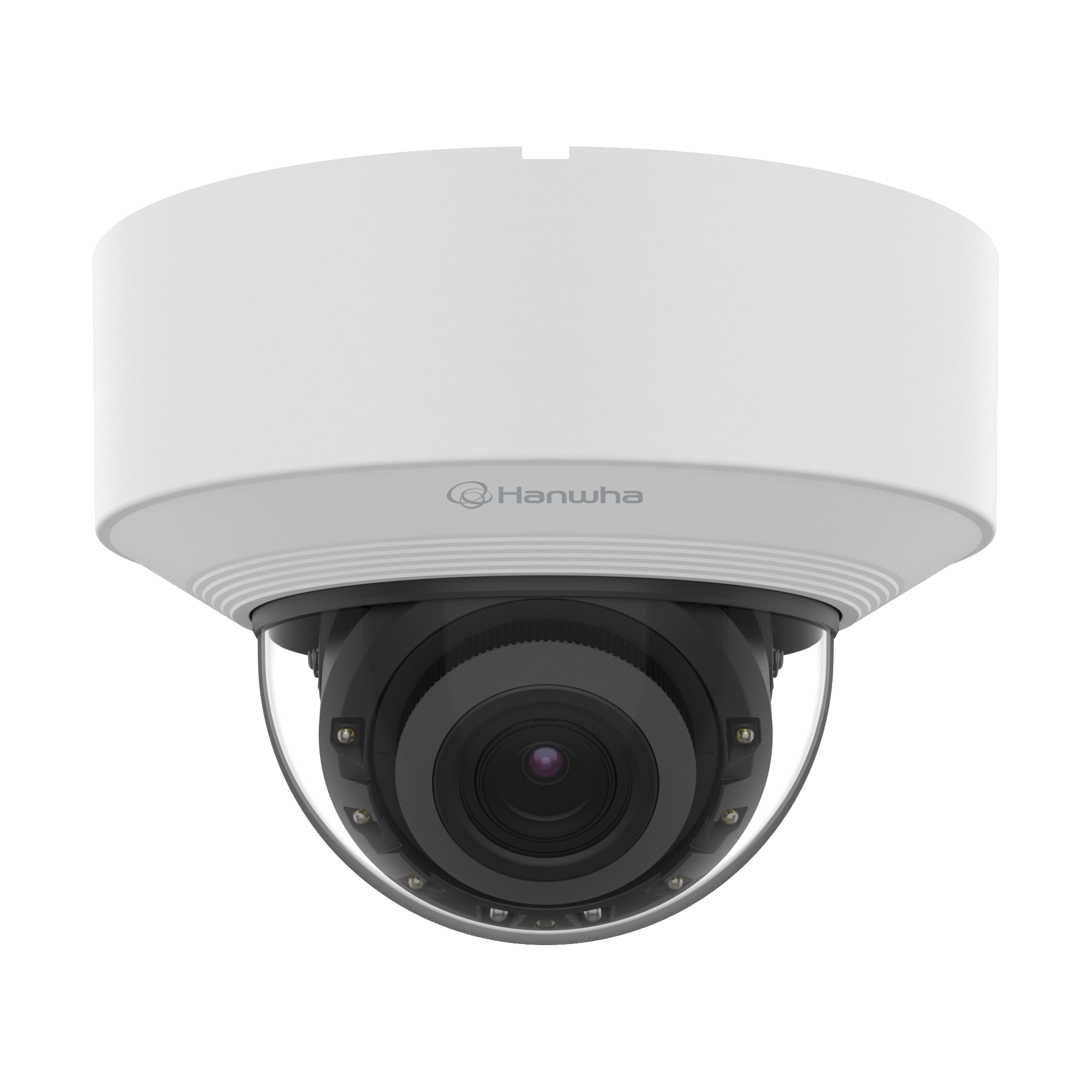

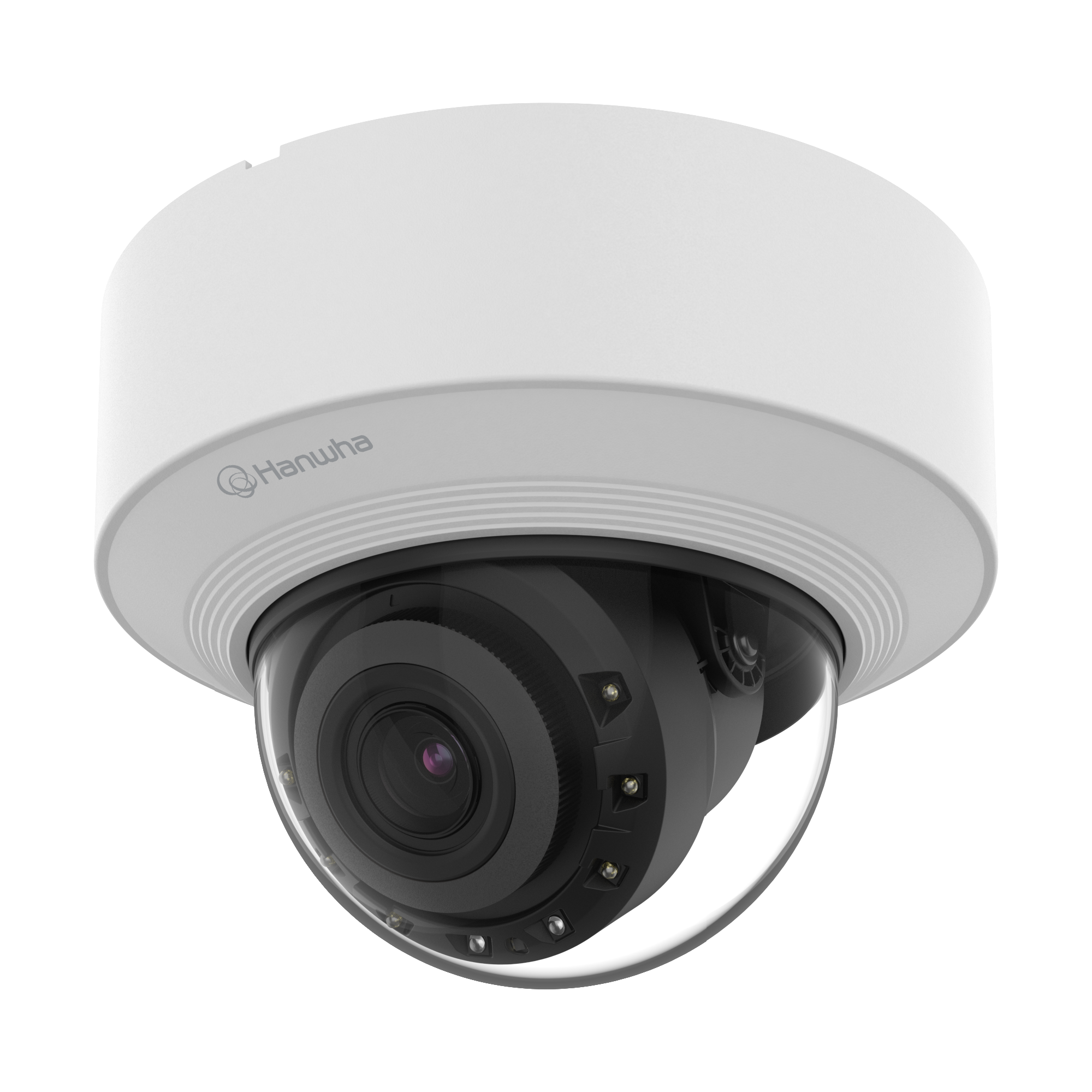

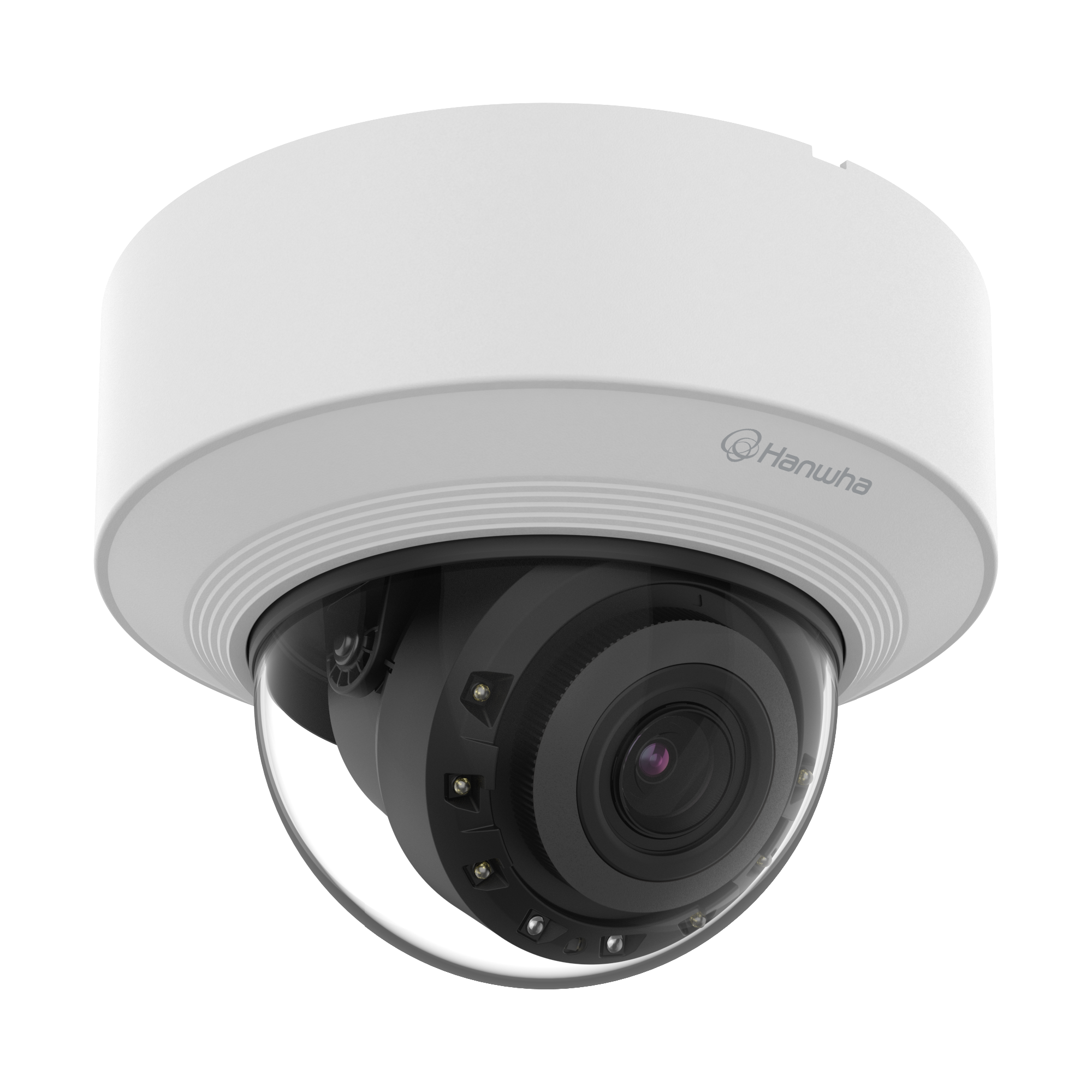

Hanwha XND-C9083RV X-Core 4K AI IR Indoor Dome 4.4-9.3mm — 40m WiseIR, extremeWDR 120dB, People Counting + Heat Mapping
1 4
Hanwha

Hanwha XND-C9083RV X-Core 4K AI IR Indoor Dome 4.4-9.3mm — 40m WiseIR, extremeWDR 120dB, People Counting + Heat Mapping

SKU: XND-C9083RV
Description

- 4K / 8MP Identification-Grade: The top tier of the X-Core indoor AI dome family — full 3840x2160 detail for post-event zoom to identify subjects from wide-frame footage.
- Business Intelligence Analytics: People counting and heat mapping extend value beyond pure security — retail customer flow, office space utilisation.
- Face + Plate + Person + Vehicle Classification: The full X-Core AI feature set alongside intrusion, loitering, and line crossing analytics.
- 113° Wide to 47° Telephoto: Remote-adjustable framing from full-floor coverage to focused entrance shot on one mount.
$1,597.15 AUD $1,597.15 AUD $1,646.56 AUD
Sale 3.0% $49.41 AUD (3.0%)
Bulk Price$1,501.32 AUD
Save $95.83 AUD — 6% off orders over $1,500, applied automatically at checkout.
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $1,967.15

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $1,597.15
Bulk Price$1,501.32 6% off orders over $1,500 — applied automatically at checkout.

§ 01Overview

What the XND-C9083RV is

The Hanwha XND-C9083RV is the top tier of the X-Core indoor AI dome family — 4K resolution (8MP, 3840x2160) from a compact indoor dome housing rated IK08, built for commercial and corporate environments that demand discreet ceiling coverage AND high-precision identification.

A 1/1.8-inch CMOS sensor pairs with a 4.4-9.3mm motorised varifocal lens capturing ultra-high-definition video at up to 30fps, with remote adjustment of zoom and field of view spanning approximately 113° wide to 47° telephoto — full-floor coverage down to a focused entrance shot on one mount, without physical repositioning.

The advanced AI engine supports detection and classification of people, vehicles, faces, and licence plates alongside behavioural analytics covering intrusion, loitering, and line crossing.

Business intelligence functions extend value beyond pure security — people counting tracks foot traffic through defined entry/exit points, and heat mapping visualises customer or occupant movement patterns across the frame over time.

Useful adjunct data for retail floor optimisation and office space utilisation analysis on cameras already installed for security purposes.

WiseIR extends infrared illumination to approximately 40m, while extremeWDR at 120dB and WiseNR II AI-based noise reduction manage challenging contrast and low-light noise conditions.

The IP52 and IK08-rated dome housing suits indoor lobbies, retail floors, corridors, and sheltered public spaces where 4K detail and analytics justify the top-tier position in the X-Core family.

§ 02Engineering

XND-C9083RV specifications

- 4K / 8MP resolution (3840x2160) at up to 30fps H.265/H.264
- 1/1.8" CMOS sensor
- 4.4-9.3mm motorised varifocal lens
- Horizontal FoV approximately 113° (wide) to 47° (telephoto)
- On-device AI person, vehicle, face, licence plate classification
- Intrusion, loitering, line crossing analytics
- Business intelligence: people counting, heat mapping
- extremeWDR 120dB
- WiseNR II AI-based noise reduction
- WiseIR IR illumination up to 40m
- H.265, H.264, MJPEG codecs
- Indoor dome housing
- IP52 (indoor) / IK08 impact resistant
- microSD edge storage
- PoE powered
- Hanwha Vision X-Core platform

§ 04Why choose this

Built for the way you actually use the XND-C9083RV

4K = Post-Event Zoom Without Quality Loss

8MP resolution supports zooming into wide-frame footage after the fact to identify individuals or read details — the practical impact when incident review requires identification detail from a corner of the frame.

Business Intelligence Adjacent to Security

People counting and heat mapping generate customer-flow and space-utilisation data on cameras already installed for security. Useful adjunct to dedicated retail analytics platforms without doubling camera count.

Face + Plate + Person + Vehicle Classification

The full X-Core AI feature set — richer than Q-Core siblings. Fits corporate reception, high-value retail loss-prevention, and any indoor scene where subject identification matters for security or workflow integration.

Full 113° Wide Framing on One Mount

The 4.4-9.3mm varifocal lens frames a full retail floor plate at 113° or a focused entrance-area shot at 47° — remote adjust from web viewer means one mount handles most indoor room-scale coverage needs.

§ 05Where it fits

Right at home in these scenarios

Retail and Supermarket Floors

4K resolution + AI people detection support operator monitoring of customer behaviour, incident identification at POS, and heat mapping for aisle-traffic analytics — combining security and business-intelligence on the same infrastructure.

Corporate Building Lobbies and Reception

Face classification supports visitor identification workflows; 4K detail from ceiling-mounted position provides zoom-and-identify capability from wide-frame lobby coverage.

Corridors and Sheltered Public Spaces

WiseIR 40m sustains coverage across long corridors after site lighting shuts down; the compact indoor dome sits unobtrusively against modern ceiling finishes in shopping centres, transport hubs, and public building corridors.

Meeting Room and Office Common Area Utilisation

Heat mapping and people counting data support corporate real-estate decisions on space usage patterns, meeting room occupancy trends, and common area circulation — adjunct value on cameras primarily installed for security.

§ 06Setup

Installation & setup

01

What is in the Box

1. Hanwha XND-C9083RV Camera x 1 2. Mounting Screws & Anchors x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE — verify switch/injector budget when adding 4K X-Core cameras. 2. Mounting: ceiling, indoor only — IP52 rating not for outdoor exposure. 3. Storage: microSD card for edge failover recording (4K consumes materially more storage than 6MP). 4. Environment: controlled indoor spaces; not for exterior walls or covered outdoor entries.

03

App/Software Setup

1. Access via web viewer, or add to Hanwha Wisenet WAVE or SSM software. 2. Enable H.265 compression from the outset to keep 4K streams NVR-friendly. 3. Dial in framing across the 4.4-9.3mm range at commissioning. 4. Configure AI analytics + business intelligence: face/plate, intrusion, virtual lines, plus people counting zones and heat mapping regions.

§ 08Questions

Frequently asked about the XND-C9083RV

Q.01

Q: How is this different from the XND-C8083RV sibling?
A: The C9083RV is the 4K/8MP top tier of the X-Core indoor AI dome family; the C8083RV is the 6MP tier. Same 1/1.8-inch sensor, same 4.4-9.3mm varifocal lens, same WiseIR 40m and IP52/IK08 housing. Additions on the C9083RV: people counting and heat mapping business-intelligence analytics on top of the standard X-Core AI feature set. Pick the C9083RV when 4K detail plus business-intelligence analytics justify the premium.
Q.02

Q: What's the practical difference between 4K and 6MP?
A: 4K (3840x2160) is 8.29M total pixels; 6MP is ~6.2M total pixels — about 30% more detail on the 4K sensor. Practical impact for post-event zoom: 4K supports zooming into a corner of the frame while still preserving enough detail to identify individuals; 6MP has less headroom for extreme post-event crops.
Q.03

Q: What business intelligence functions does this support?
A: People counting (tracks foot traffic through defined entry/exit lines) and heat mapping (visualises customer or occupant movement patterns over time). Useful adjunct to dedicated retail analytics platforms; not a substitute for full commercial customer-flow platforms but valuable data on cameras already installed for security.
Q.04

Q: What AI events can this camera detect?
A: Person, vehicle, face, and licence plate classification, plus intrusion detection, loitering, and line crossing. Configure through the web viewer or Wisenet WAVE.
Q.05

Q: Is this suitable for outdoor use?
A: No — IP52 is an indoor rating (dust-protected, drip-protected only). Fine for indoor commercial ceilings, lobbies, retail floors, corridors, and sheltered public spaces.
Q.06

Q: What field of view can I get?
A: The 4.4-9.3mm motorised varifocal lens spans approximately 113° horizontal (wide) to 47° (telephoto). Adjust remotely from web viewer — one mount handles most indoor room-scale coverage needs.
Q.07

Q: How much storage will 4K streams consume on the NVR?
A: Substantially more than 6MP siblings — a 4K stream at 30fps typically doubles the storage of a comparable 6MP stream. Plan NVR storage accordingly, and enable H.265 (rather than H.264) from the outset to keep the increase manageable. WiseNR II noise reduction helps keep bitrate down on low-light footage.
Q.08

Q: Can this integrate with third-party VMS?
A: Yes — the XND-C9083RV supports ONVIF for standard third-party integration. For AI-specific event forwarding and business intelligence data (people counting, heat mapping), test event/data delivery to your recorder or analytics platform before large rollouts.
