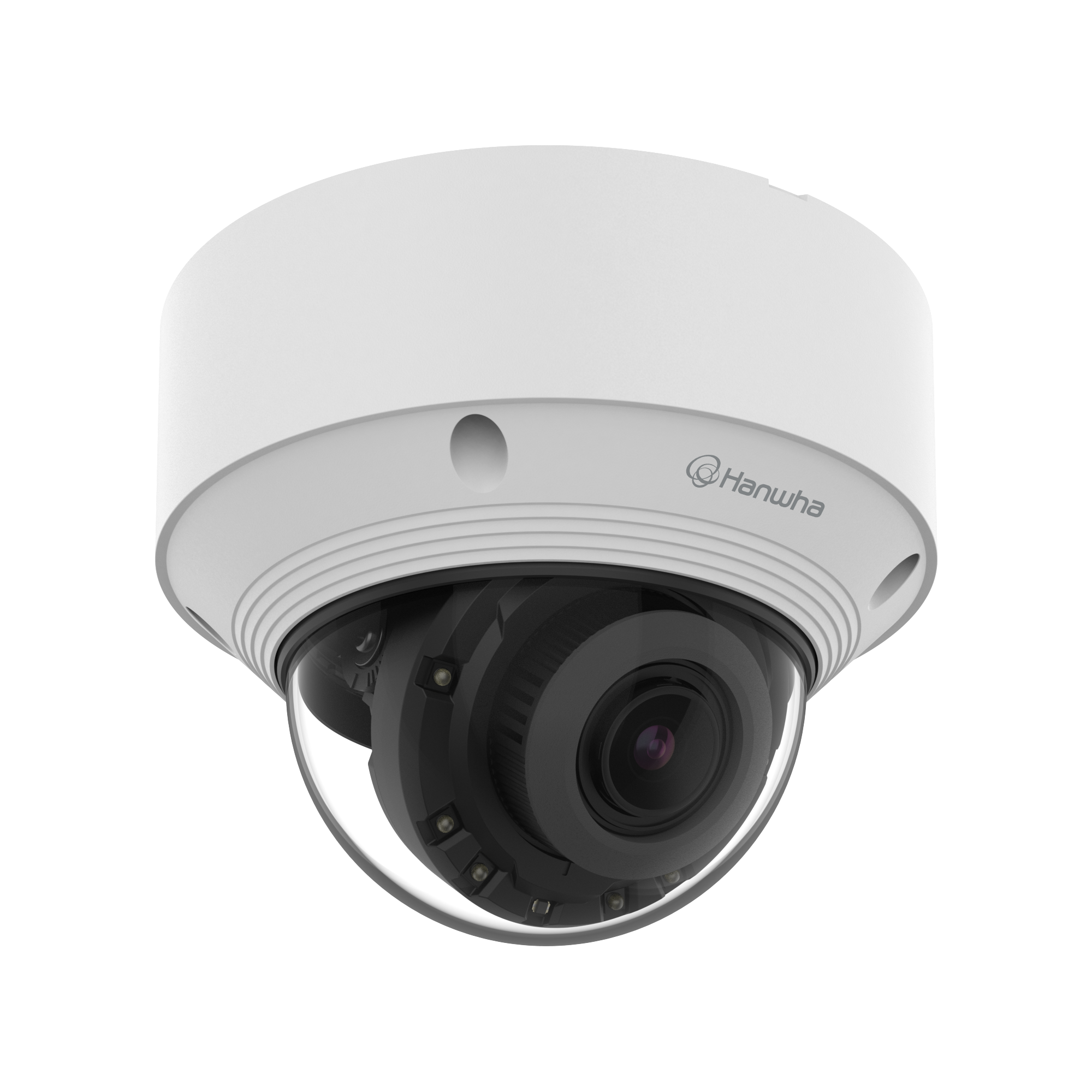

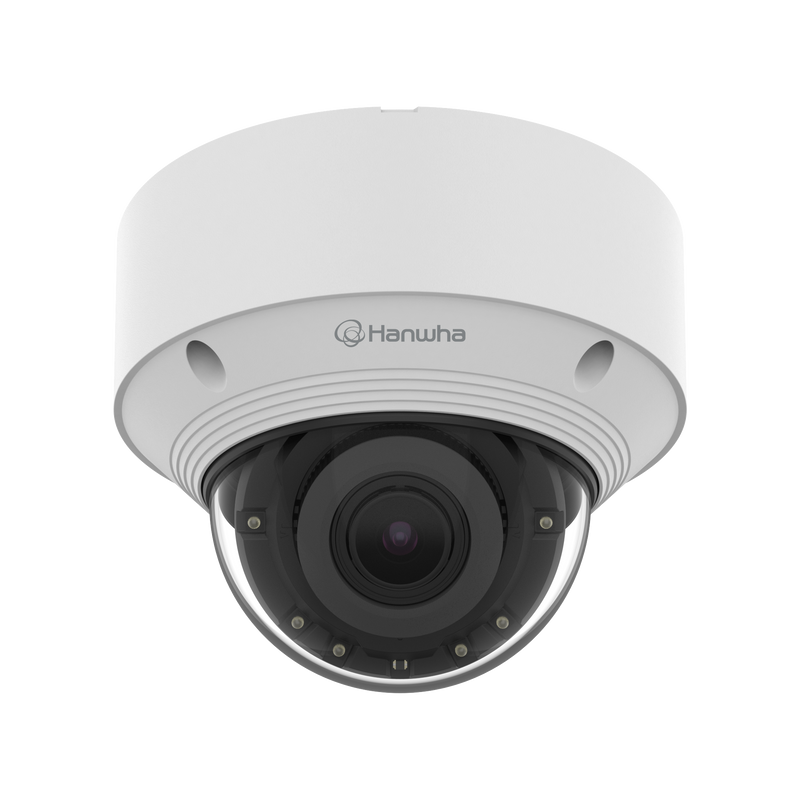

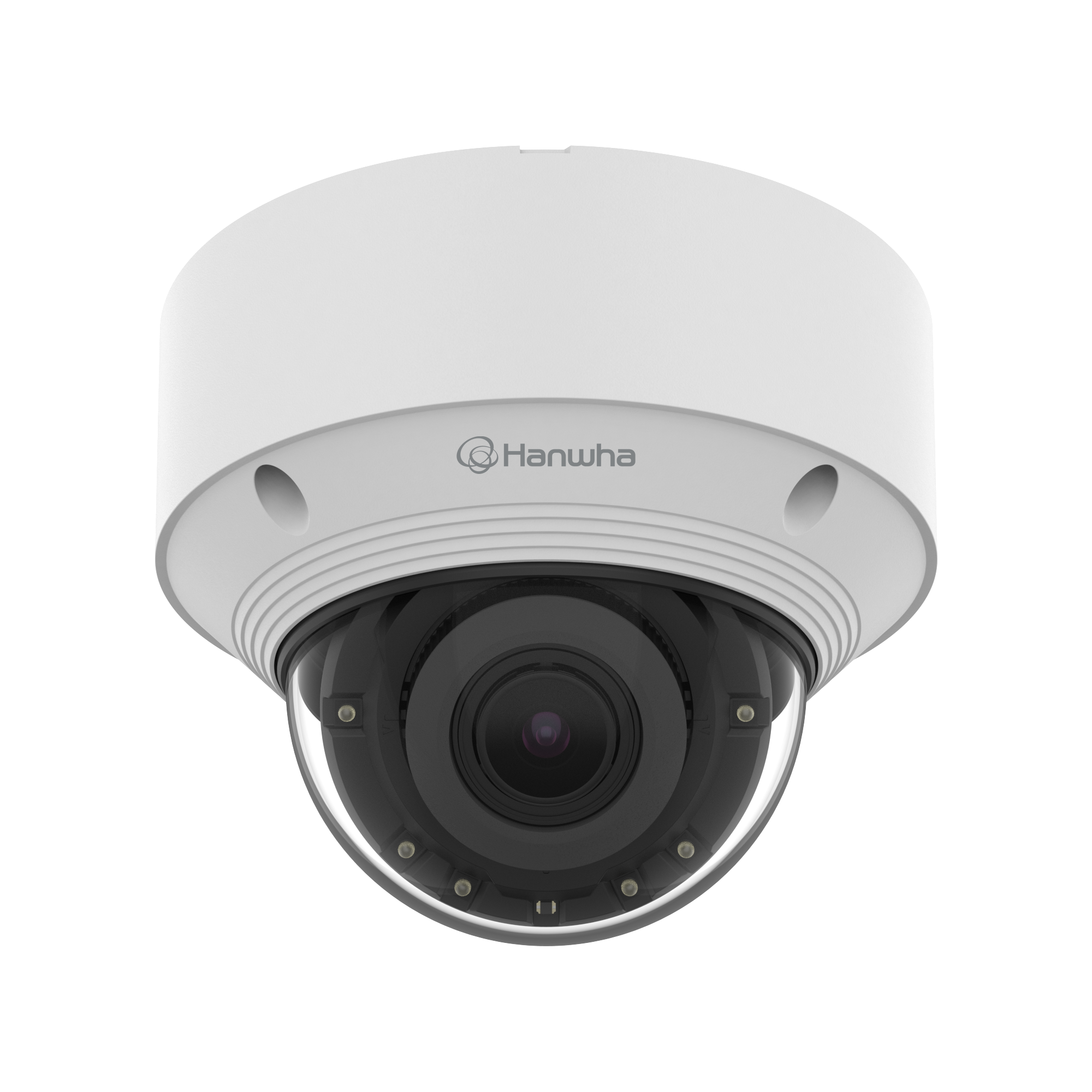

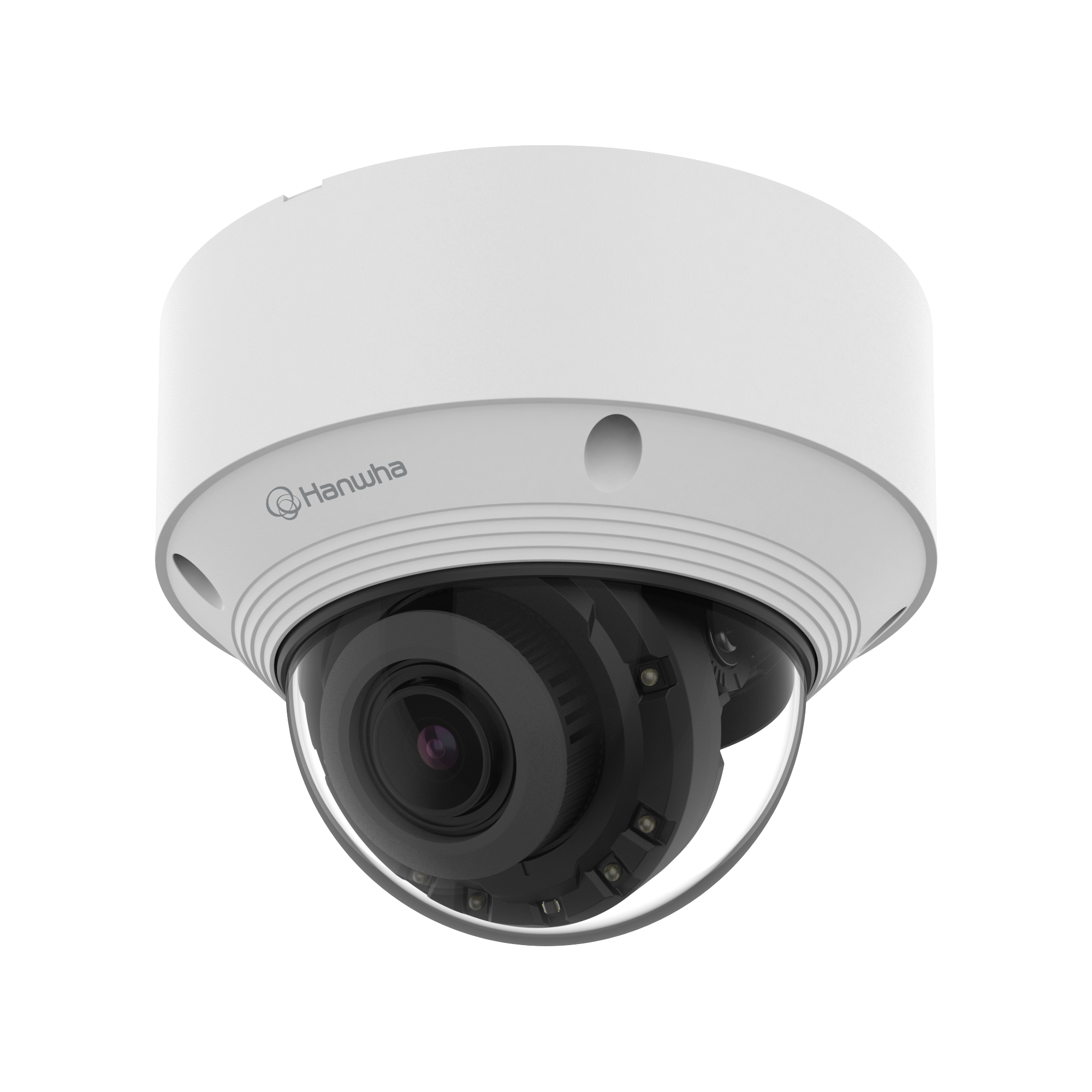

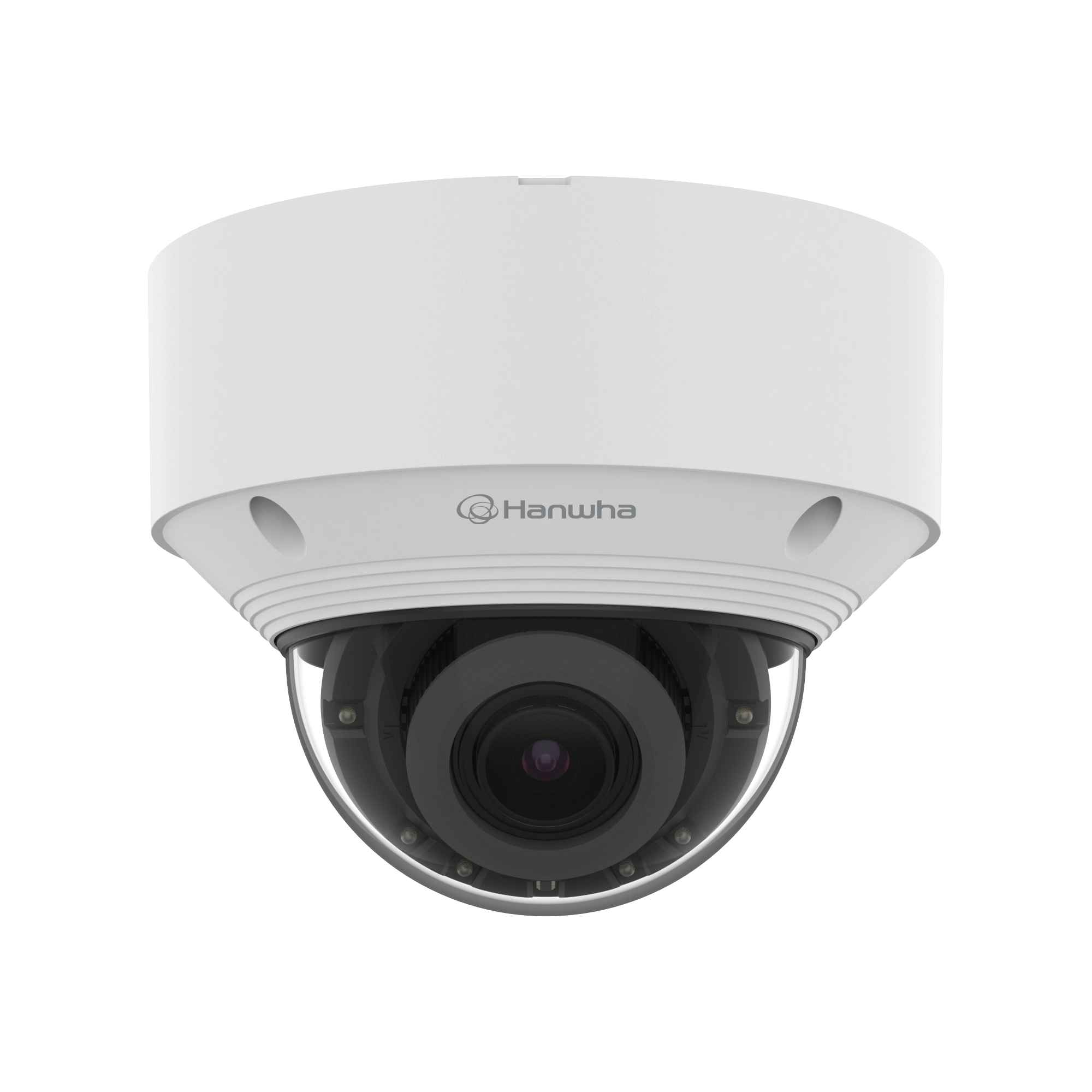

Hanwha QNV-C9083R 8MP 4K AI IR Varifocal Vandal Dome 3.2-10.2mm — 30m IR, 120dB WDR, IP66/IK10
Hanwha QNV-C9083R 8MP 4K AI IR Varifocal Vandal Dome 3.2-10.2mm — 30m IR, 120dB WDR, IP66/IK10
Hanwha QNV-C9083R 8MP 4K AI IR Varifocal Vandal Dome 3.2-10.2mm — 30m IR, 120dB WDR, IP66/IK10
Hanwha QNV-C9083R 8MP 4K AI IR Varifocal Vandal Dome 3.2-10.2mm — 30m IR, 120dB WDR, IP66/IK10
Hanwha QNV-C9083R 8MP 4K AI IR Varifocal Vandal Dome 3.2-10.2mm — 30m IR, 120dB WDR, IP66/IK10
1 4
Hanwha

Hanwha QNV-C9083R 8MP 4K AI IR Varifocal Vandal Dome 3.2-10.2mm — 30m IR, 120dB WDR, IP66/IK10

SKU: QNV-C9083R
Description

- 8MP 4K + Motorised Varifocal: 3840x2160 at up to 30fps with 3.2x optical zoom (3.2-10.2mm) adjustable remotely — identification-grade coverage with framing flexibility.
- On-Device AI Classification: Person/vehicle plus line crossing, intrusion, loitering — meaningful perimeter alerts, not motion noise.
- 30m IR + 120dB WDR: Reliable coverage across day/night cycles on carpark structures, loading areas, and exposed perimeter walls.
- Hanwha P Series Premium 4K AI: Higher-end platform than Q-Core siblings — richer AI, 256GB edge storage, hard-coated dome cover.
$886.10 AUD $886.10 AUD $913.49 AUD
Sale 3.0% $27.39 AUD (3.0%)
Member Sign in to save $17.72 on this item — free to join.
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $1,155.55

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
Bundle total: $886.10
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the QNV-C9083R is

The Hanwha QNV-C9083R sits on the Premium 4K AI (P-series) platform — an 8MP vandal dome that gives commercial installers 4K identification-grade detail plus framing flexibility on a single unit.

The 3.2-10.2mm motorised varifocal lens carries 3.2x optical zoom, adjustable via web viewer without touching the housing after install; that matters when the site layout evolves or the initial mount position turns out slightly off.

Sensor output runs 3840x2160 at up to 30fps under H.265, H.264, and MJPEG.

On-board AI splits people and vehicles from raw motion and adds line-crossing, intrusion, and loitering rules — the operational answer to alert fatigue on always-monitored outdoor deployments.

Built-in 30m IR keeps coverage usable through the night; 120dB WDR keeps highlight and shadow both readable through mixed-light thresholds.

The IP66 + IK10 vandal housing carries a hard-coated dome cover, and the microSD slot supports cards up to 256GB — meaningful headroom at 8MP, where the same recording duration doubles storage consumption versus a 5MP stream.

Practical fit: covered parking structures, loading dock cameras, exposed perimeter walls, and any commercial building entrance where 4K post-event zoom is worth the P-series premium over a fixed-lens Q-Core alternative.

§ 02Engineering

QNV-C9083R specifications

- 8MP / 4K resolution (3840x2160) at up to 30fps H.265/H.264
- 3.2-10.2mm motorised varifocal lens, 3.2x optical zoom
- On-device AI person and vehicle classification
- Line-crossing, intrusion, loitering detection
- 120dB Wide Dynamic Range
- 30m IR viewable length
- H.265, H.264, MJPEG codecs
- microSD / SDHC / SDXC edge recording up to 256GB
- Vandal dome with hard-coated dome cover
- Hanwha P Series (Premium 4K AI) platform
- PoE powered (single cable for power and data)
- IP66 / IK10 rated

§ 04Why choose this

Built for the way you actually use the QNV-C9083R

4K Identification + Varifocal Framing

8MP resolution combined with 3.2-10.2mm remote-adjustable framing means one camera covers wide-area monitoring AND post-event zoom to identify subjects — no compromise between wide coverage and identification detail.

Remote Framing Saves Site Visits

The motorised varifocal lens is adjusted from the web viewer — critical on multi-camera P-series rollouts across carpark structures or industrial sites where site visits are expensive.

AI Cuts Perimeter False Positives

On-device person/vehicle classification plus line crossing and loitering detection generates alerts on real perimeter events, not wind-triggered noise — cutting operator review time on 24/7-monitored deployments.

256GB Edge Storage for 4K Streams

256GB microSD ceiling gives edge-recording headroom that matches the higher storage demand of 8MP streams — the same recording duration at 8MP consumes substantially more space than 5MP.

§ 05Where it fits

Right at home in these scenarios

Covered Carparks and Entry Lanes

120dB WDR manages the contrast between shaded undercover parking and bright entry-lane apertures; 8MP + varifocal supports post-event zoom to identify vehicles or subjects from wide-frame footage.

Loading Bays and Dock Areas

30m IR sustains after-hours coverage across loading yards, and AI classification generates alerts on real people or vehicles entering restricted areas rather than shadow flicker from forklifts or gate lights.

Exposed Perimeter Walls

IK10 impact resistance handles publicly accessible perimeter mounts where deliberate interference is a considered risk; line crossing rules can track direction of travel on fence-lines.

Commercial Building Entrances Requiring 4K Detail

Where identification-grade footage matters for tenancy dispute resolution or workplace incident review, the 8MP + varifocal combination supports both wide-area monitoring and post-event zoom on the same camera.

§ 06Setup

Installation & setup

01

What is in the Box

1. Hanwha QNV-C9083R Camera x 1 2. Mounting Screws & Anchors x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE (single cable for power and data) — verify switch/injector budget when adding 8MP+varifocal+AI cameras. 2. Storage: microSD / SDHC / SDXC card, up to 256GB, for edge recording (particularly recommended at 8MP). 3. Mounting: ceiling, soffit, or wall — vandal dome with hard-coated dome cover. 4. Sealing: preserve the IP66 rating by sealing all conduit and cable entries.

03

App/Software Setup

1. Access via web viewer, or add to Hanwha Wisenet WAVE or SSM software. 2. Enable H.265 compression from the outset to keep 4K streams NVR-friendly. 3. Dial in zoom and focus remotely on the varifocal lens; test framing across the full 3.2-10.2mm range. 4. Configure AI analytics: virtual lines, intrusion zones, loitering dwell times.

§ 07Questions

Frequently asked about the QNV-C9083R

Q.01

Q: How is this different from the QNV-C8083R sibling?
A: Both are AI IR varifocal vandal domes with a 3.2-10.2mm lens. The C9083R is 8MP 4K on Hanwha's P Series (Premium 4K AI) platform; the C8083R is 5MP on the Q-Core AI platform. Pick the C9083R when 4K identification-grade detail matters (post-event zoom, tenancy dispute evidence, workplace incident review); pick the C8083R when 5MP suffices at a lower price.
Q.02

Q: Why 4K instead of just 8MP?
A: 4K (3840x2160) IS 8MP — they're the same resolution, differently named. 4K emphasises the horizontal pixel count (3840), 8MP emphasises the total (8.29M). Both describe the same sensor output.
Q.03

Q: Can I adjust framing after the camera is mounted?
A: Yes — the 3.2-10.2mm motorised varifocal lens is controlled from the web viewer or Wisenet WAVE, with 3.2x optical zoom range. Getting mounting slightly wrong or having the site layout change doesn't mean returning to reposition the housing.
Q.04

Q: How far does the IR reach?
A: Built-in IR sustains scene coverage to 30m — enough for carpark structures, loading areas, and mid-length perimeter runs after ambient light drops.
Q.05

Q: What AI events can this camera detect?
A: Person and vehicle classification, virtual line crossing (with direction), intrusion into a defined zone, and loitering (subjects remaining beyond a configurable dwell time). Configure through the web viewer or Wisenet WAVE.
Q.06

Q: How much microSD storage is supported?
A: A single microSD / SDHC / SDXC slot supports cards up to 256GB — meaningful headroom for 8MP streams where the same recording duration consumes substantially more storage than 5MP.
Q.07

Q: Is the housing rated for direct outdoor exposure?
A: Yes — IEC 60529 IP66 (dust-tight, protected against water jets) and IEC 62262 IK10 (impact resistance), with a hard-coated dome cover. Seal all cable and conduit entries to preserve the IP66 rating.
Q.08

Q: Can this integrate with a third-party NVR or VMS?
A: Yes — the QNV-C9083R supports ONVIF for standard third-party integration. For AI-specific event forwarding into third-party VMS alarm workflows, test event delivery to your recorder before large rollouts.
