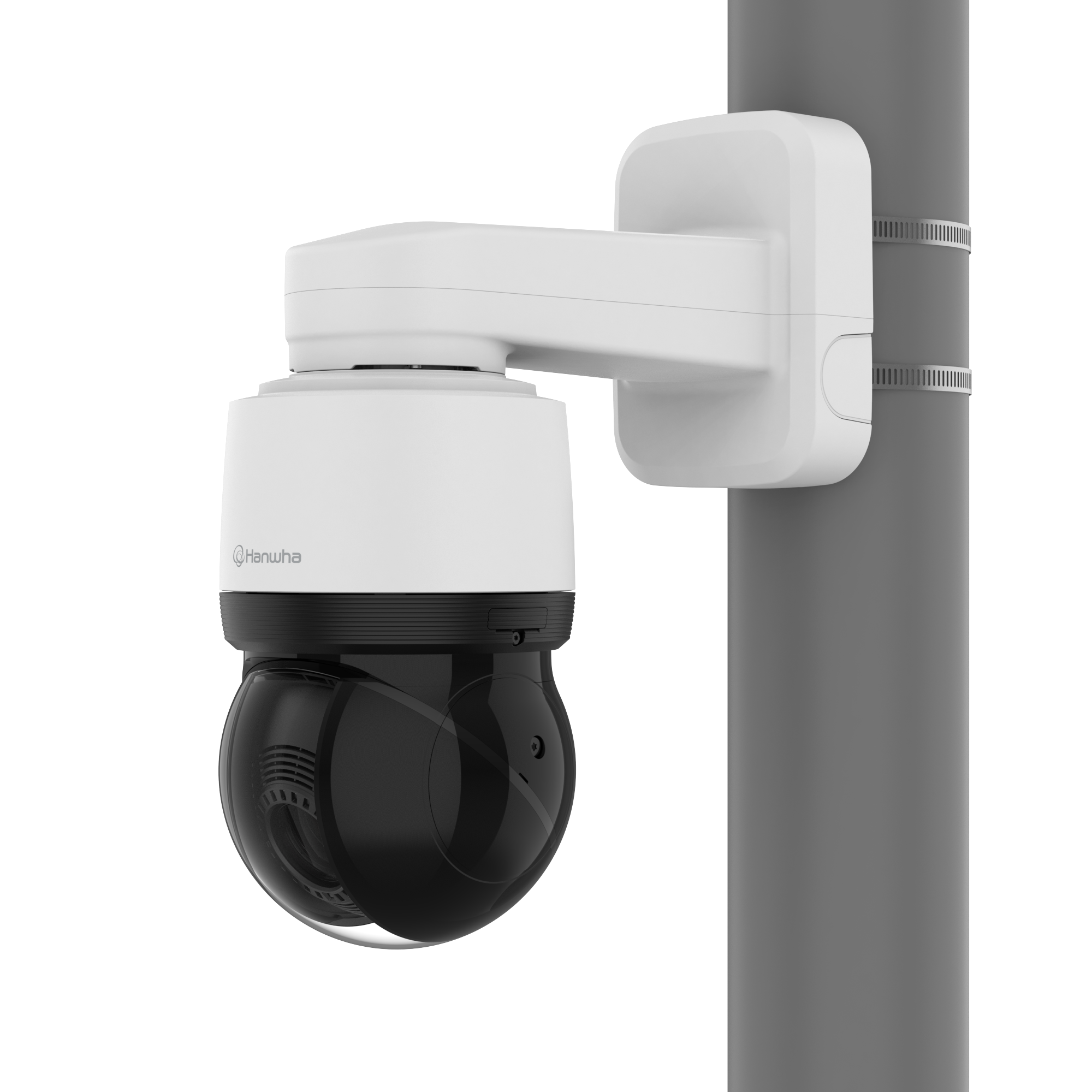

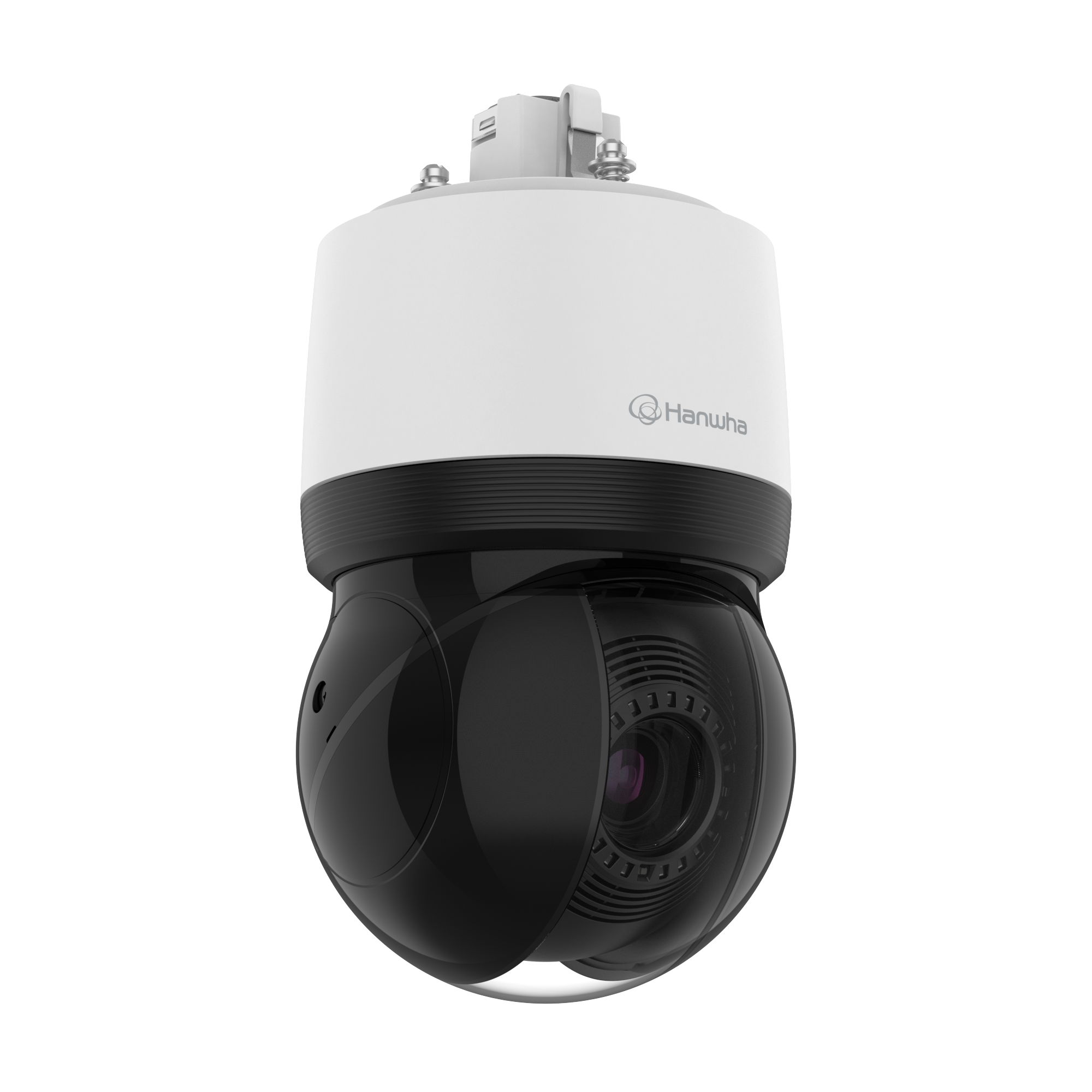

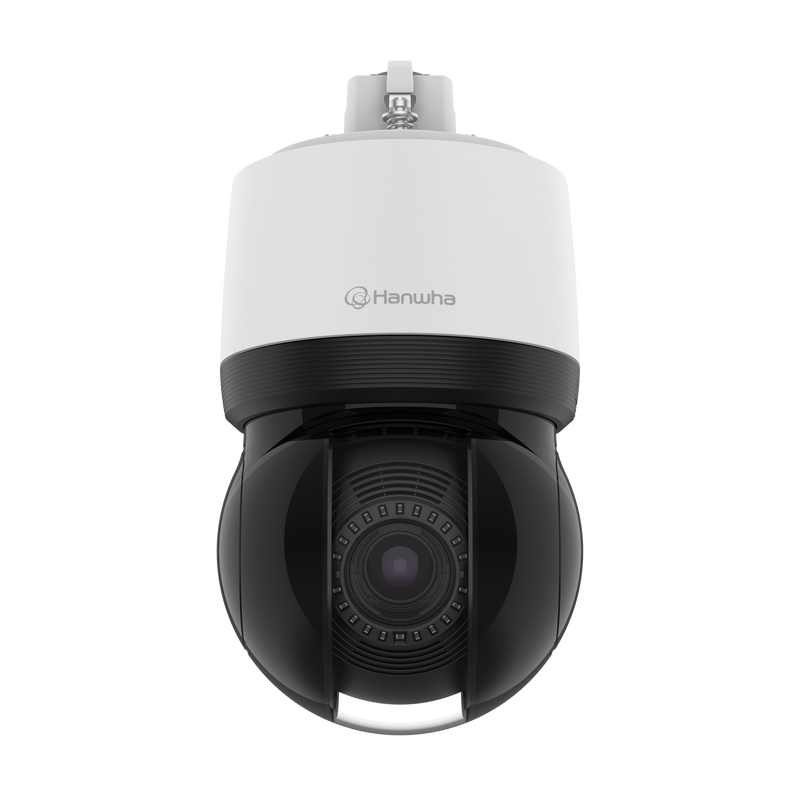

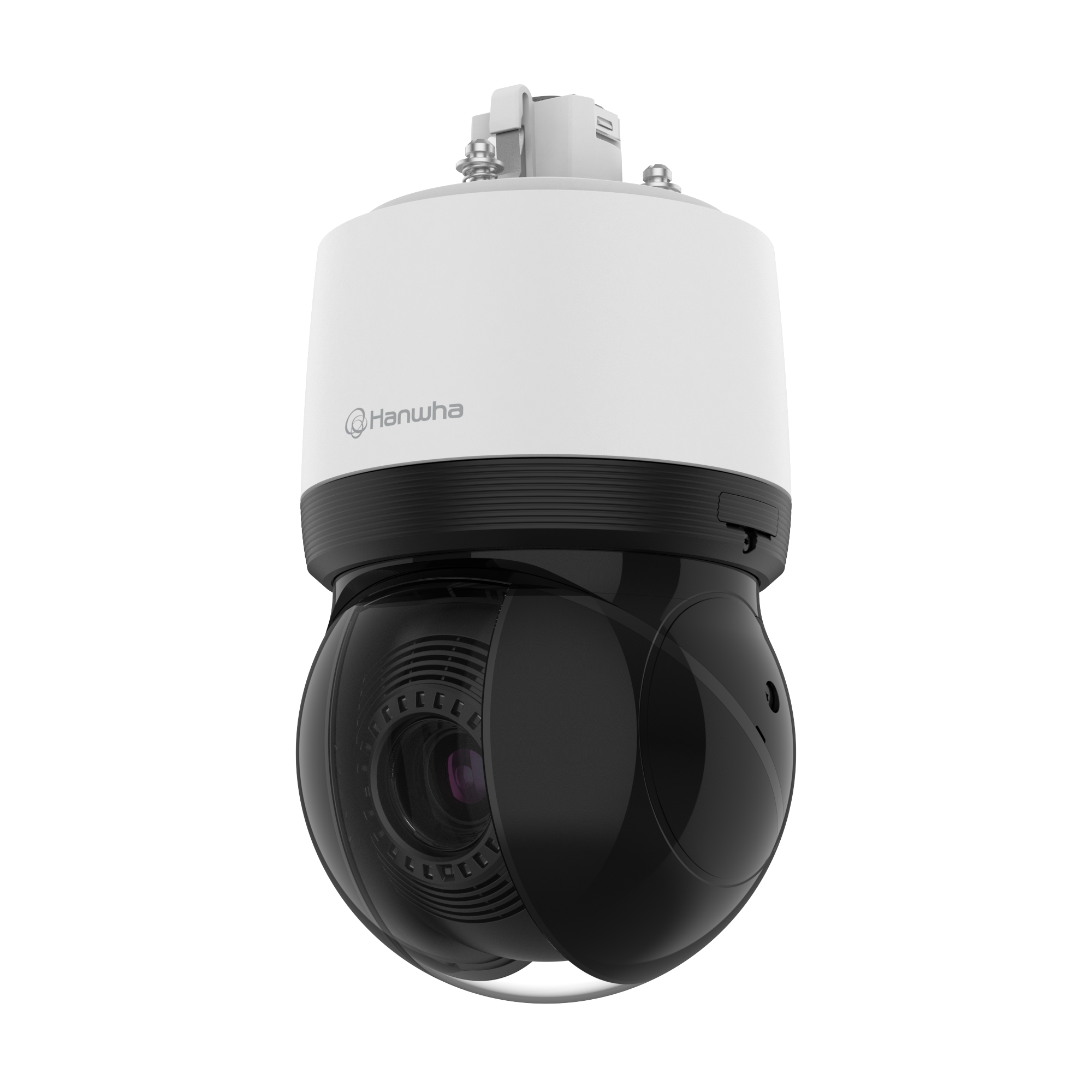

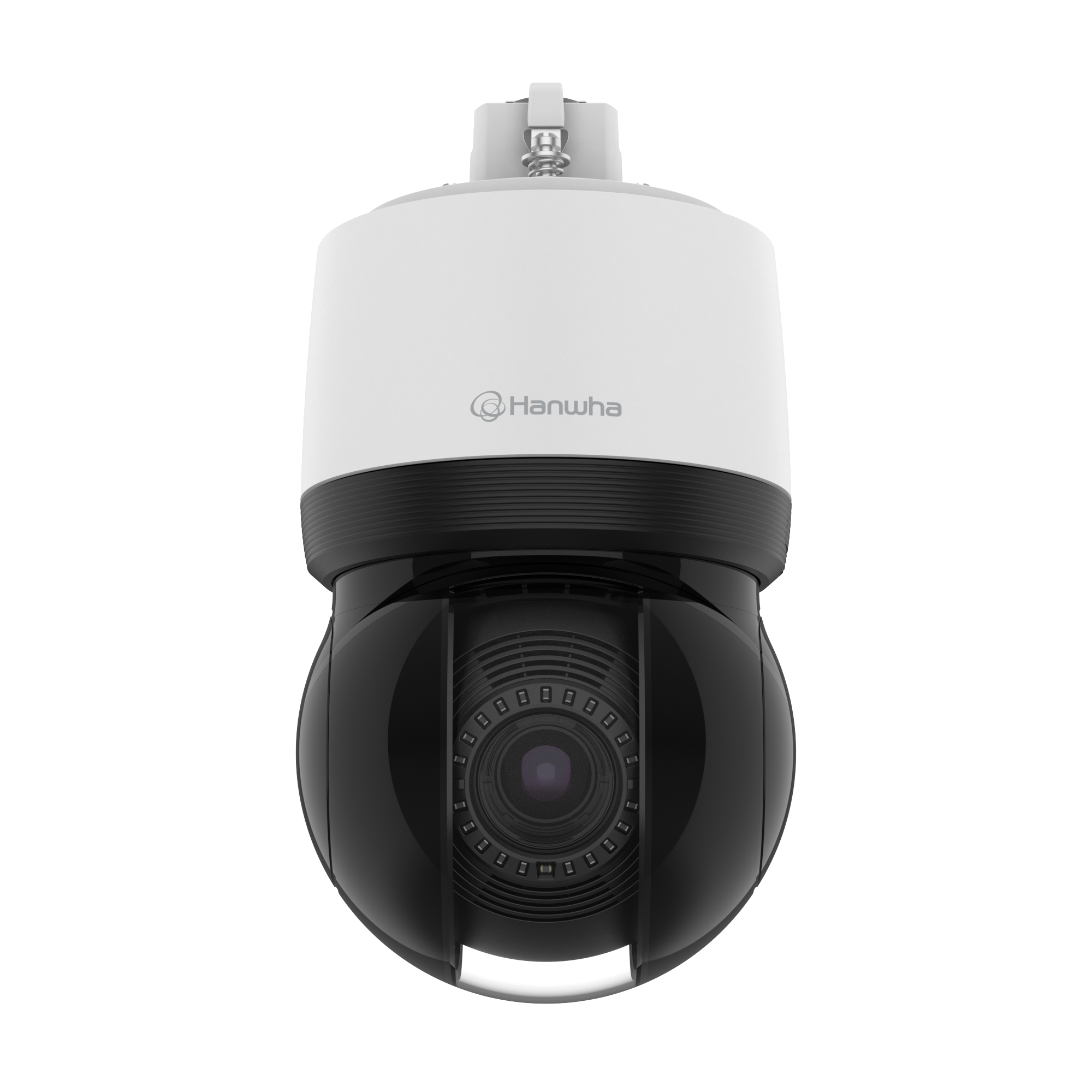

Hanwha XNP-C8253R 6MP AI PTZ 25x Zoom — 200m IR, Auto-Track, Gyro Stabilisation, IP66/IK10/NEMA4X
1 4
Hanwha

Hanwha XNP-C8253R 6MP AI PTZ 25x Zoom — 200m IR, Auto-Track, Gyro Stabilisation, IP66/IK10/NEMA4X

SKU: XNP-C8253R
Description

- 6MP + 25x Optical Zoom: 5-125mm range covers wide-area survey to identification-grade close-up on the same PTZ.
- AI Face + Plate + Auto-Track: Full AI classification with intelligent tracking — meaningful long-range perimeter monitoring with minimal operator input.
- 200m IR + Gyro Image Stabilisation: Long-range night coverage plus vibration compensation for pole and mast mounts.
- Full Environmental Spec: IP66 + IK10 + NEMA4X for critical infrastructure and industrial deployments.
$4,240.05 AUD $4,240.05 AUD $4,371.21 AUD
Sale 3.0% $131.16 AUD (3.0%)
Bulk Price$3,985.65 AUD
Save $254.40 AUD — 6% off orders over $1,500, applied automatically at checkout.
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $4,610.05

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $4,240.05
Bulk Price$3,985.65 6% off orders over $1,500 — applied automatically at checkout.

§ 01Overview

What the XNP-C8253R is

The Hanwha XNP-C8253R is a 6MP AI PTZ on Wisenet7, engineered for mission-critical outdoor sites where long-range identification, intelligent tracking, and continuous operation are all required together.

The 5-125mm lens delivers 25x optical zoom (up to 32x digital, approximately 800x total) — surveying broad areas at 5mm then closing in on activity of interest at 125mm without repositioning.

On-device AI handles person, vehicle, face, and licence plate classification with intelligent auto-tracking and target lock, reducing the operator manual-joystick workload on always-monitored perimeters.

Built-in IR reaches 200m for reliable after-hours coverage across long fence-lines.

Digital plus gyro-based image stabilisation preserves imaging clarity on pole and mast mounts near heavy vehicle traffic or vibration-prone equipment.

IP66 + IK10 + NEMA4X housing supports coastal humidity, industrial-chemical exposure, and temperature extremes.

6MP is the sweet spot when identification detail matters but shared NVR storage is a constraint that rules out 4K streams; the XNP-C9253R is the 4K sibling when detail wins over storage.

§ 02Engineering

XNP-C8253R specifications

- 6MP resolution (3328x1872) at up to 30fps
- 5-125mm motorised varifocal, 25x optical zoom
- Up to 32x digital zoom (approximately 800x total)
- On-device AI person, vehicle, face, licence plate detection and classification
- Intelligent auto-tracking + target lock tracking
- 120dB WDR
- 200m IR illumination
- Digital + gyro-based image stabilisation
- Wisenet7 platform
- IP66 + IK10 + NEMA4X housing
- PoE powered

§ 04Why choose this

Built for the way you actually use the XNP-C8253R

25x Zoom Bridges Wide + Identification

5-125mm covers wide-area monitoring at 5mm through to identification-grade close-up at 125mm on the same PTZ — no need to choose between coverage width and detail range at commissioning.

Face + Plate AI With Auto-Tracking

Full AI classification including face and licence plate detection, plus auto-tracking that follows subjects automatically. Reduces operator manual joystick workload on always-monitored perimeters and public spaces.

200m IR + Gyro Stabilisation

Long-range night coverage plus gyro correction for high-vibration mounts (pole mounts near heavy traffic, industrial mast installations) — the combination that makes 24/7 unattended long-range perimeter deployment practical.

6MP Sweet Spot vs 4K Storage

More identification detail than 2MP PTZ without incurring the 4K storage cost of the C9253R sibling. Fits deployments where detail matters at distance but shared NVR capacity constrains resolution.

§ 05Where it fits

Right at home in these scenarios

Transport Infrastructure

Airports, train stations, and bus interchanges — 25x zoom + 200m IR + face/plate AI enable long-range identification-grade coverage of perimeters and passenger areas from limited mounting points.

Critical Infrastructure Perimeters

Substations, water treatment facilities, and telecommunications sites — IK10 impact resistance, AI-driven perimeter detection, and long-range IR support secure monitoring of geographically distributed assets.

Industrial Site and Yard Perimeters

Gyro stabilisation handles pole mounts near heavy vehicle traffic; auto-tracking follows detected vehicle or personnel movement without operator input on multi-camera stations.

Public Precincts and Council Wide-Area Coverage

City centre precincts and community facility perimeters — one PTZ covers broad monitoring with 6MP resolution supporting identification-grade evidence when incidents occur.

§ 06Setup

Installation & setup

01

What is in the Box

1. Hanwha XNP-C8253R PTZ Camera x 1 2. Mounting Bracket & Hardware x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE — verify switch/injector budget for 6MP PTZ (higher draw than 2MP variants). 2. Mounting: pole, corner, or wall — outdoor PTZ housing. 3. Positioning: allow unobstructed 360° pan sweep. 4. Sealing: preserve IP66 rating by sealing all conduit and cable entries.

03

App/Software Setup

1. Access via web viewer, or add to Hanwha Wisenet WAVE or SSM software. 2. Configure preset positions and patrol routes for baseline automated coverage. 3. Configure AI analytics + auto-tracking parameters. 4. Enable gyro image stabilisation if mounted on vibration-prone poles or masts.

§ 08Questions

Frequently asked about the XNP-C8253R

Q.01

Q: How is this different from the XNP-C9253R sibling?
A: The C8253R is 6MP; the C9253R is 8MP/4K. Both same 25x zoom range and 200m IR. Pick the C8253R when 6MP identification detail is enough at the target distance and shared NVR storage is a constraint; pick C9253R when 4K post-event zoom detail justifies the storage premium.
Q.02

Q: How far can the 25x zoom reach effectively?
A: 5-125mm optical range — from wide 5mm coverage to tight 125mm identification-grade close-up. Combined with up to 32x digital (approximately 800x total), the practical identification range depends on lighting and target size. For reference, on 6MP the 125mm optical setting frames a person at 100m as an identifiable subject.
Q.03

Q: What does gyro image stabilisation do?
A: Compensates for pole and mast vibration — meaningful on transport hub and industrial mounts near heavy vehicle traffic or vibration-prone equipment. Standard digital stabilisation catches slower drift; gyro adds faster mechanical vibration correction.
Q.04

Q: What AI events does the camera detect?
A: Person, vehicle, face, and licence plate detection and classification, plus intelligent auto-tracking and target lock. Configure through web viewer or Wisenet WAVE.
Q.05

Q: What's the IR range?
A: Up to 200m — appropriate for long perimeter runs, transport hub apron areas, and industrial site boundaries where standard 40m IR falls short.
Q.06

Q: Is the housing suitable for harsh outdoor conditions?
A: Yes — IP66 (water jets), IK10 (impact resistance), and NEMA4X (corrosion resistance). Suited to coastal, industrial-chemical, and heavy-weather deployments.
Q.07

Q: What's the pan/tilt speed range?
A: PTZ configuration supports variable pan/tilt speeds tuned to the tracking scenario — fast slew for auto-tracking active subjects, slow scan for scheduled patrol routes.
Q.08

Q: Can this integrate with third-party VMS?
A: Yes — supports ONVIF PTZ profile for standard third-party integration including pan/tilt/zoom control from VMS operator interface. Test PTZ control latency with your specific VMS before large rollouts.
