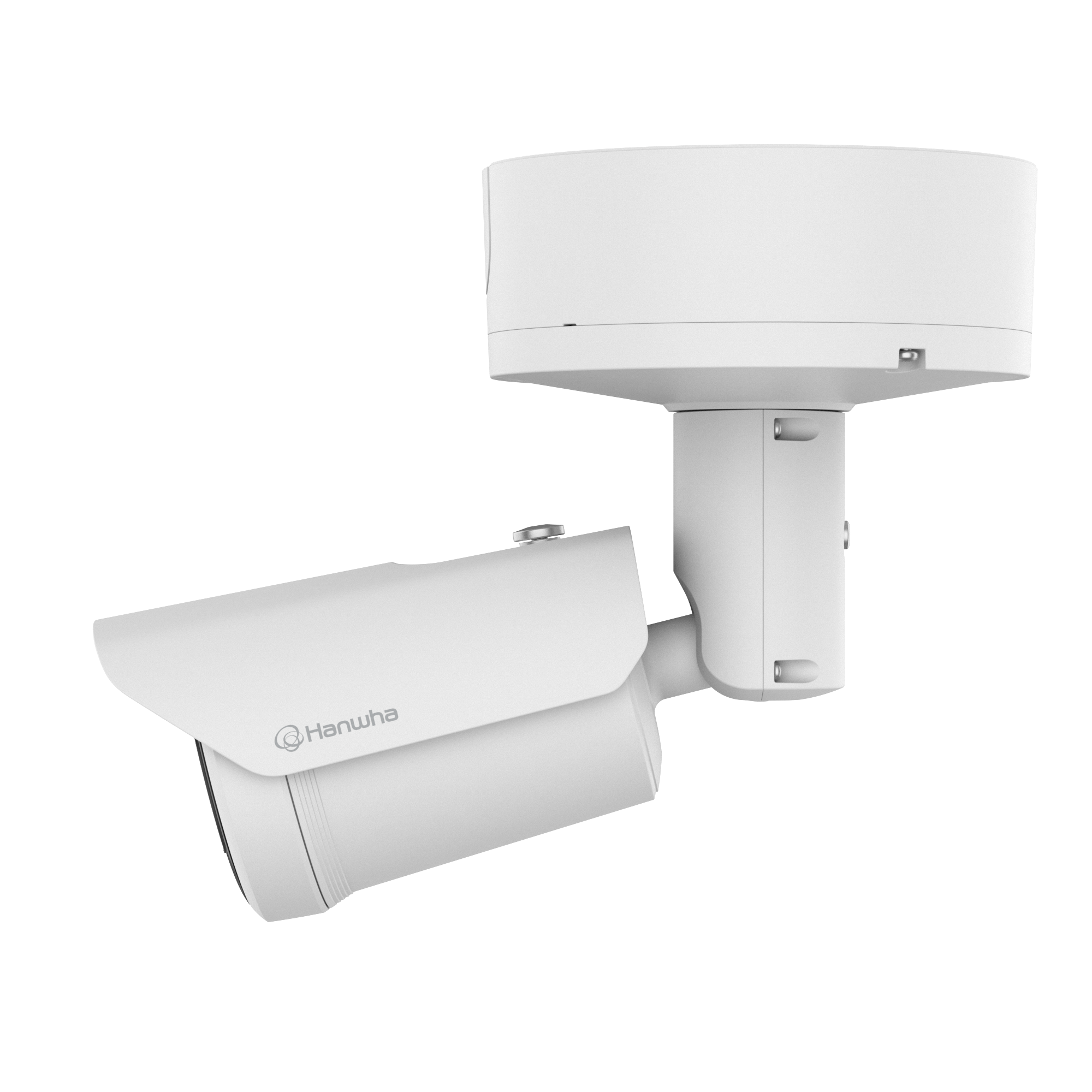

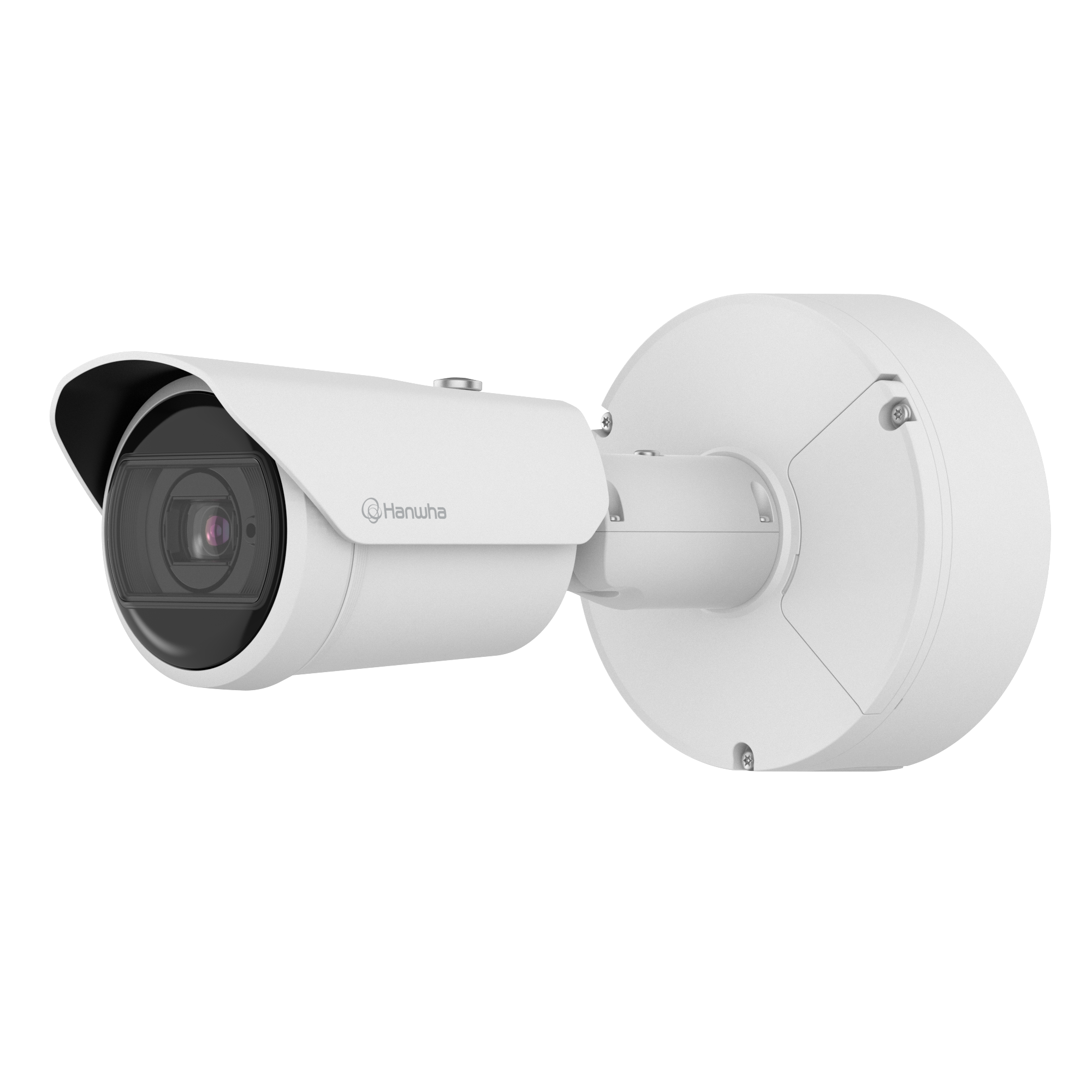

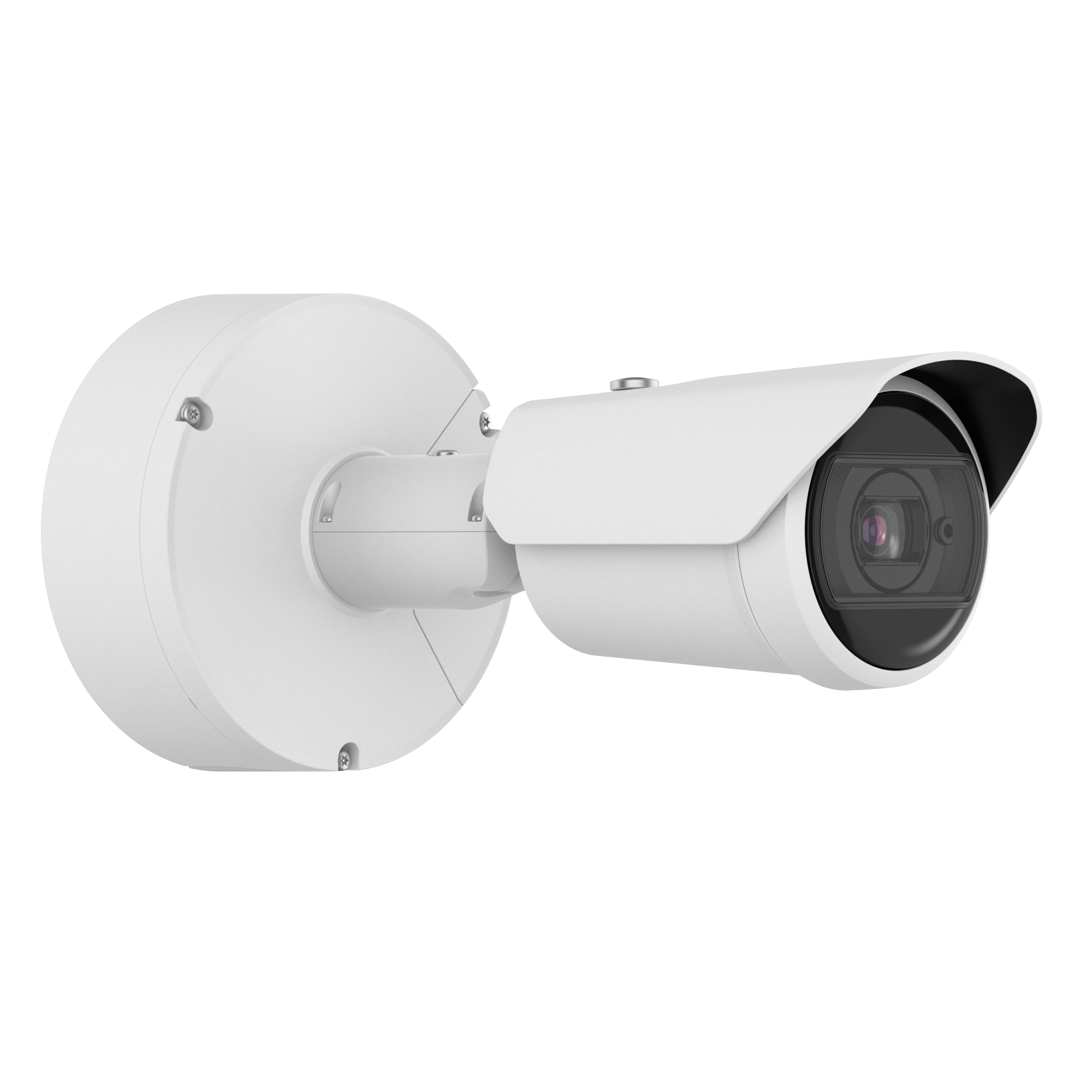

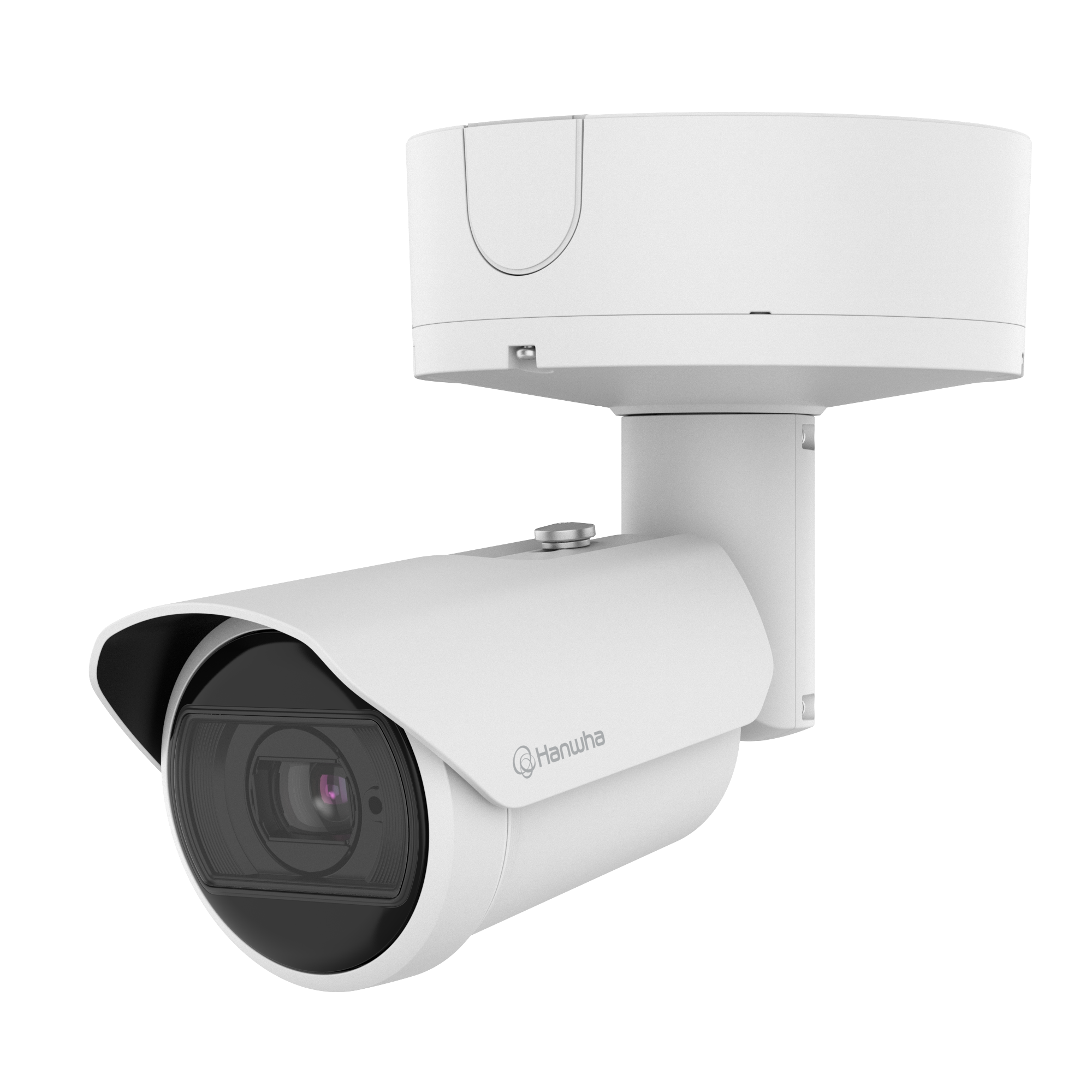

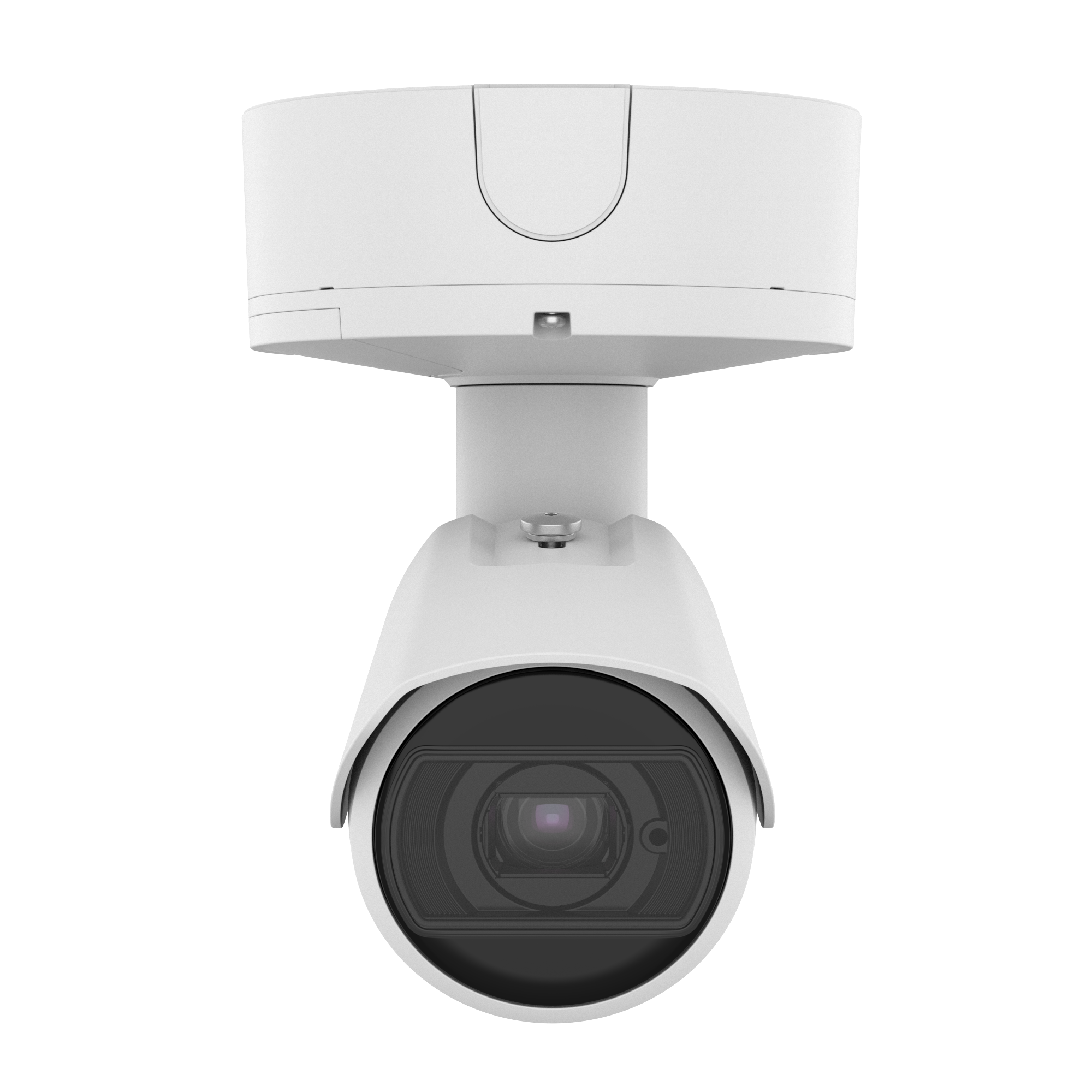

Hanwha XNO-6123R 2MP AI IR Outdoor Bullet 12x Zoom NPU — 90m WiseIR, extremeWDR 150dB, IP66/IP67/IK10/NEMA4X, -40°C
1 5
Hanwha

Hanwha XNO-6123R 2MP AI IR Outdoor Bullet 12x Zoom NPU — 90m WiseIR, extremeWDR 150dB, IP66/IP67/IK10/NEMA4X, -40°C

SKU: XNO-6123R
Description

- Dedicated NPU On-Camera AI: Neural Processing Unit runs person/face/vehicle/plate detection concurrently without slowing the streaming pipeline — perimeter analytics at scale.
- 12x Motorised Zoom + 90m IR: 5.2-62.4mm lens covers wide fence sweep to tight vehicle-approach identification, with 90m WiseIR pushing usable coverage far beyond standard bullet range.
- 120fps for Slow-Motion Review: Highest framerate in Hanwha's outdoor bullet range — supports frame-accurate playback on incident review and fast-vehicle scenes.
- Full Environmental Spec: IP66 + IP67 + IK10 + NEMA4X plus verified -40°C to +60°C — built for Australian outback, coastal, and industrial deployments.
$1,524.45 AUD $1,524.45 AUD $1,571.60 AUD
Sale 3.0% $47.15 AUD (3.0%)
Bulk Price$1,432.98 AUD
Save $91.47 AUD — 6% off orders over $1,500, applied automatically at checkout.
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $1,894.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $1,524.45
Bulk Price$1,432.98 6% off orders over $1,500 — applied automatically at checkout.

§ 01Overview

What the XNO-6123R is

The Hanwha XNO-6123R is a 2MP AI-powered outdoor bullet camera built for perimeter surveillance and critical infrastructure monitoring, combining a 12x motorised varifocal lens with long-range infrared and a dedicated Neural Processing Unit for on-camera analytics.

The 5.2-62.4mm motorised zoom shifts from a broad 54.58° horizontal field of view down to a tight 5.30° for detailed coverage across entry points, fence lines, traffic lanes, and loading zones.

WiseIR delivers up to 90m of IR illumination — materially longer than the 40m WiseIR standard on X-Core siblings — and extremeWDR at 150dB handles high-contrast scenes like backlit vehicle approaches.

AI analytics via NPU cover person, face, vehicle, and licence plate detection and classification, supported by intrusion, loitering, directional detection, virtual line, and area detection.

The dedicated NPU means these analytics run concurrently without slowing the streaming pipeline, and the 120fps framerate — highest in Hanwha's outdoor bullet range — supports slow-motion incident review and fast-vehicle tracking scenarios.

The IP66/IP67/IK10/NEMA4X housing plus verified -40°C to +60°C operating range make the XNO-6123R appropriate for Australian outback, alpine, coastal, and industrial-chemical deployments where standard commercial cameras fail from thermal shock or corrosion.

PoE+ powered.

§ 02Engineering

XNO-6123R specifications

- 2MP Full HD resolution (1920x1080) at up to 120fps H.265/H.264
- 1/2" CMOS sensor
- 12x motorised varifocal lens (5.2-62.4mm)
- 54.58° (wide) to 5.30° (tele) horizontal field of view
- Dedicated NPU for on-camera AI workloads
- AI person, face, vehicle, licence plate detection and classification
- Video analytics: virtual line, area detection, loitering, intrusion, directional
- extremeWDR 150dB — top of Hanwha WDR range
- WiseIR illumination up to 90m
- H.265, H.264, MJPEG codecs
- Outdoor bullet housing
- IP66 + IP67 + IK10 + NEMA4X environmental spec
- -40°C to +60°C verified operating range
- PoE+ (IEEE 802.3at) powered

§ 04Why choose this

Built for the way you actually use the XNO-6123R

Dedicated NPU for Concurrent AI

A separate Neural Processing Unit handles AI workloads, distinct from the general-purpose SoC. Practical impact: heavier concurrent analytics (person + face + vehicle + plate simultaneously) run without slowing the streaming pipeline — a step up from the shared processing on X-Core siblings.

Long-Range Perimeter From One Camera

90m WiseIR plus 12x optical zoom means one XNO-6123R covers what would otherwise need multiple fixed-lens bullets or a full PTZ. Appropriate for fence lines, highway-adjacent perimeters, and long approach lanes where fixed-focal cameras leave coverage gaps.

120fps Framerate for Fast Scenes

Highest framerate in Hanwha's outdoor bullet range — supports slow-motion playback on incident review, and holds motion clarity on fast-vehicle scenes like access roads and truck bays where 30fps loses detail.

Full Environmental Spec Verified

IP66 + IP67 + IK10 + NEMA4X plus verified (not just rated) -40°C to +60°C operating range. Built for Australian outback winters, coastal humidity, and industrial-chemical exposure where standard commercial cameras fail from thermal shock or corrosion.

§ 05Where it fits

Right at home in these scenarios

Industrial Site Perimeters and Fence Lines

12x zoom + 90m IR covers long fence sections from a single mount; NPU-driven AI classification cuts false positives from wildlife and wind-blown vegetation on rural/industrial boundaries.

Highway Access Roads and Vehicle Approaches

120fps framerate holds motion clarity on fast-vehicle scenes, and NPU-based plate detection supports vehicle identification workflows on gated commercial and industrial entries.

Coastal and Chemical-Industrial Installations

NEMA4X corrosion resistance suits coastal properties and chemical-adjacent industrial sites where salt spray or chemical vapours degrade standard IP66 housings within 2-3 years.

Cold-Climate and Outback Deployments

Verified -40°C operating range covers alpine ski resorts, mining sites in high country, and outback outposts where standard commercial cameras suffer from thermal shock during winter start-up.

§ 06Setup

Installation & setup

01

What is in the Box

1. Hanwha XNO-6123R Camera x 1 2. Mounting Screws & Anchors x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE+ (IEEE 802.3at) — higher class than standard PoE (802.3af). Verify switch/injector supports PoE+ class. 2. Mounting: wall or pole — outdoor bullet housing. 3. Sealing: preserve the IP66/IP67 rating by sealing all conduit and cable entries. 4. Positioning: leverage the 12x zoom for long-range perimeter runs; NPU allows heavier concurrent AI without stream degradation.

03

App/Software Setup

1. Access via web viewer, or add to Hanwha Wisenet WAVE or SSM software. 2. Dial in zoom across the 5.2-62.4mm range at commissioning. 3. Configure NPU-driven AI: face, vehicle, plate detection, plus intrusion zones and virtual lines. 4. Consider 120fps mode for fast-vehicle scenes; drop to 30fps if storage constraints matter more than motion clarity.

§ 08Questions

Frequently asked about the XNO-6123R

Q.01

Q: What's the NPU and why does it matter?
A: A Neural Processing Unit is dedicated silicon for AI workloads, separate from the general-purpose SoC. Practical impact on the XNO-6123R: heavier concurrent analytics (person + face + vehicle + plate simultaneously) run without slowing the streaming pipeline, and the 120fps framerate stays available even with all AI classes enabled. On X-Core siblings without dedicated NPU, enabling all AI classes typically reduces framerate or introduces streaming lag.
Q.02

Q: How far does the IR reach?
A: Up to 90m WiseIR — materially longer than the 40m standard on X-Core siblings. Combined with the 12x zoom, this supports long-range fence-line and highway-adjacent perimeter monitoring where one camera covers what would otherwise need multiple.
Q.03

Q: Why 120fps framerate — do I need it?
A: Highest in Hanwha's outdoor bullet range. Practical uses: slow-motion incident review, fast-vehicle tracking on access roads and truck bays, and sports/entertainment venue perimeters. For static perimeter scenes, drop to 30fps to save storage; 120fps is available when the scene calls for it.
Q.04

Q: What field of view can I dial in?
A: The 12x motorised varifocal lens spans 5.2-62.4mm, giving 54.58° horizontal (wide) to 5.30° (tele). Adjust remotely from web viewer — one mount covers wide fence-sweep to tight vehicle-approach identification.
Q.05

Q: What AI events can this camera detect?
A: NPU-driven person, face, vehicle, and licence plate detection and classification, plus video analytics: virtual line crossing, area detection, loitering, intrusion, and directional detection. Configure through the web viewer or Wisenet WAVE.
Q.06

Q: Is the housing rated for extreme environments?
A: Yes — IP66 + IP67 + IK10 + NEMA4X, with verified -40°C to +60°C operating range. Appropriate for Australian outback, alpine, coastal, and industrial-chemical deployments where standard commercial cameras fail from thermal shock or corrosion.
Q.07

Q: What power does it need?
A: PoE+ (IEEE 802.3at) — higher class than standard PoE (802.3af). Verify your switch or injector supports PoE+ before deployment; the higher power budget accommodates the NPU, 12x lens motor, and IR array.
Q.08

Q: Can this integrate with third-party VMS?
A: Yes — the XNO-6123R supports ONVIF for standard third-party integration. For NPU-specific AI event forwarding (face/plate details) into third-party VMS alarm workflows, test event delivery to your recorder before large rollouts.
