Dahua 8 x 6MP DH-IPC-HDW3649H-AS-PV-ANZ TiOC Turret CCTV Kit + 8CH AI NVR + 4TB HDD, Active Deterrence
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua 8 x 6MP DH-IPC-HDW3649H-AS-PV-ANZ TiOC Turret CCTV Kit + 8CH AI NVR + 4TB HDD, Active Deterrence
SKU: DH-IPC-HDW3649H-AS-PV-ANZ
Description
1 x DHI-NVR4108HS-8P-AI/ANZ 8CH PoE NVR with 4TB HDD installed,
8 x DH-IPC-HDW3649H-AS-PV-ANZ 6MP TiOC turret cameras.
Regular price
$2,787.15 AUD
Sale price
$2,787.15 AUD
Regular price
$2,962.00 AUD
Sale
5.9%
$174.85 AUD
(5.9%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Dahua 8 x 6MP DH-IPC-HDW3649H-AS-PV-ANZ TiOC Turret CCTV Kit + 8CH AI NVR + 4TB HDD, Active Deterrence
1
/
of
1
Customize this kit Kit price $2,787.15

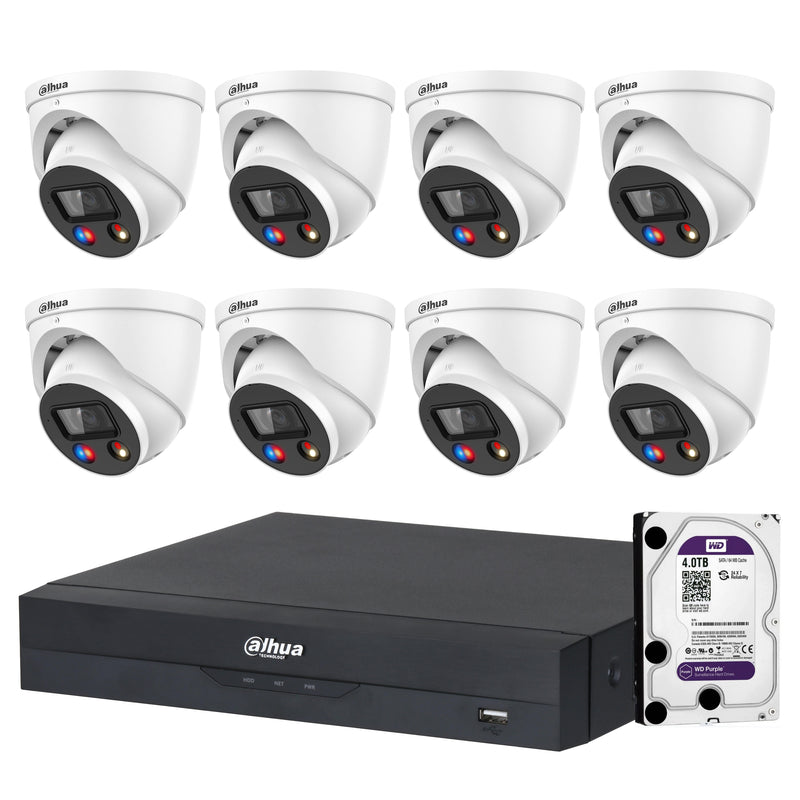

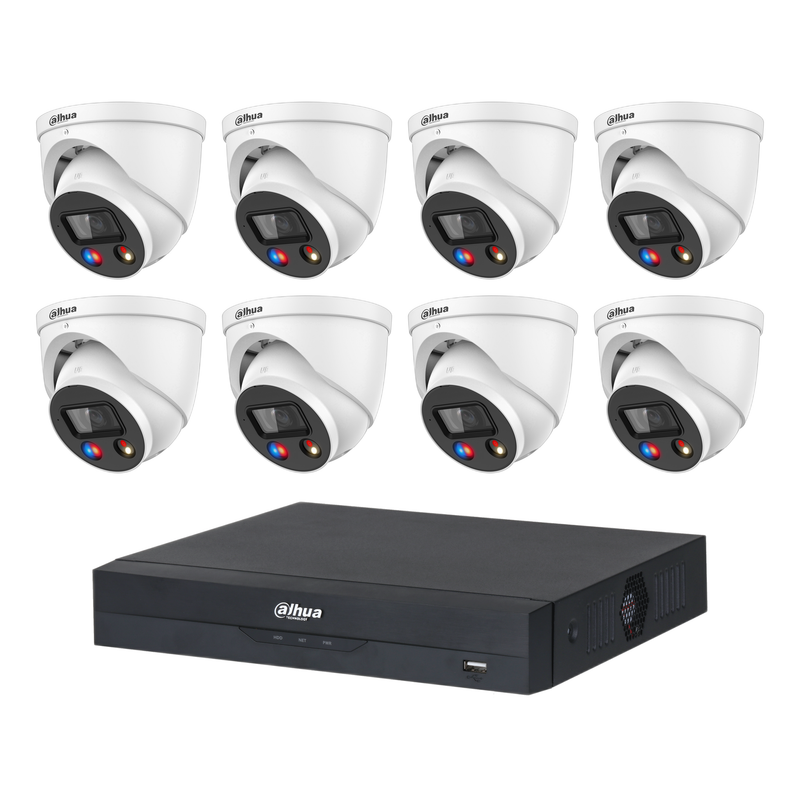

This kit includes:
- 8 × Dahua DH-IPC-HDW3649H-AS-PV-ANZ 6MP TiOC 2.0 Turret Camera 2.8mm, Active Deterrence, Smart Dual Illumination, Two-Way Talk
- 1 × Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder (8ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Lens options: 2.8mm focal length.
Color options: White or Black.
Note: Please indicate your choice in your order message.
This 8-camera TiOC kit pairs eight DH-IPC-HDW3649H-AS-PV-ANZ 6MP turrets with the 8-channel DHI-NVR4108HS-8P-AI/ANZ recorder and a pre-installed 4TB surveillance drive — recording starts as soon as the cameras are plugged in.
Eight cameras is full-perimeter coverage: every wall of a large home or business premises watched, with no blind approach left — and every position fights back. Cross a tripwire and that camera flashes red and blue lights, plays a siren or voice warning, and records the event in full colour under its warm light. The F1.0 lenses rate 0.003 lux, the strongest night colour in the 3 Series.
This kit uses all eight channels, and eight 6MP streams fill the 4TB drive in around 12 days of continuous recording — set motion-only recording, or upgrade the drive with the kit customiser on this page.
§ 02Engineering
Technical specifications
- 8 x 6MP TiOC Turrets: F1.0 sensors rated to 0.003 lux colour — red and blue lights, siren voices and two-way talk on every camera.
- 8CH AI NVR: DHI-NVR4108HS-8P-AI/ANZ with PoE on every channel — each camera runs off a single Ethernet run from the recorder.
- 4TB Surveillance HDD pre-installed: around 12 days of continuous footage from eight cameras — upgrade the drive for longer retention, or use motion-only recording.
- Smart Dual Illuminators: 30m infrared for everyday nights; the warm light captures detected events in full colour.
- SMD 4.0 + Quick Pick: the NVR's AI search pulls every human or vehicle event from a day of recordings in one pass.
- IP67 Metal Housings: rated from -40°C to +60°C for exposed Australian mounting positions.
- 8CH AI NVR: DHI-NVR4108HS-8P-AI/ANZ with PoE on every channel — each camera runs off a single Ethernet run from the recorder.
- 4TB Surveillance HDD pre-installed: around 12 days of continuous footage from eight cameras — upgrade the drive for longer retention, or use motion-only recording.
- Smart Dual Illuminators: 30m infrared for everyday nights; the warm light captures detected events in full colour.
- SMD 4.0 + Quick Pick: the NVR's AI search pulls every human or vehicle event from a day of recordings in one pass.
- IP67 Metal Housings: rated from -40°C to +60°C for exposed Australian mounting positions.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3200 (H) × 1800 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.003 lux@F1.0 (Color, 30 IRE) | 0.0003 lux@F1.0 (B/W, 30 IRE) | 0 lux (illuminator on) |
| S/N Ratio | > 56 dB |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto; manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 8 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Field of View | 2.8 mm: H: 97°; V: 70°; D: 128° | 3.6 mm: H: 78°; V: 58°; D: 102° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 1.5 m (4.92 ft) | 3.6 mm: 2.2 m (7.22 ft) |
| DORI Distance | 2.8 mm: Detect 66.0 m (216.54 ft); Observe 26.4 m (86.61 ft); Recognize 13.2 m (43.31 ft); Identify 6.6 m (21.65 ft) | 3.6 mm: Detect 78.0 m (255.91 ft); Observe 31.2 m (102.36 ft); Recognize 15.6 m (51.18 ft); Identify 7.8 m (25.59 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 30 m (IR) | 30 m (warm light) |
| Illuminator On/Off Control | Auto; manual |
| Illuminator Number | 1 (IR LED) | 1 (warm light) |
| Smart Illumination | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 3200 × 1800@(1 fps–25/30 fps) | Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) | Third stream: 1920 × 1080@(1 fps–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 6M (3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520/2560 × 1440); 3M (2304×1296/2048 × 1536); 1080P (1920×1080); 1.3M (1280 × 960); 720P (1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF (352×288/352×240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32kbps–8192 kbps | H.265:12kbps–8192 kbp |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Tripwire; intrusion (Support the classification and accurate detection of vehicle and human) |
| SMD 4.0 | Less false alarm, longer detection distance |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| AI SSA | Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions. |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; P2P; RTMP |
| User/Host | 20 (Total bandwidth: 72 M) |
| Storage | FTP; SFTP; Micro SD card (Support max. 256 G); NAS |
| Browser | IE: IE8/9/11; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | iOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
Interface
| Feature | Detail |
|---|---|
| Network | RJ-45 (10/100 Base-T) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 1 channel in: 5 mA 3V–5 VDC |
| Alarm Output | 1 channel out: 300 mA 12 VDC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 3.7 W (12 VDC); 4.8 W (PoE) | Max. (pulling stream+warning light+speaker+warm light on): 8.3 W (DC12 V) 8.8 W (POE) |
| Operating Conditions | –40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
| Storage Conditions | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection Grade | IP67 |
| Casing | Metal |
| Dimensions | 110.9 mm × Φ122.0 mm (4.37" × Φ4.80") |
| Net Weight | 745 g (1.64 lb) |
| Gross Weight | 915 g (2.02 lb) |
| Certification | CE-LVD: EN 62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
§ 04Why choose this
Built for the way you actually use it
Full perimeter, every wall defended
Eight cameras watches every wall and corner of a large home or business — and unlike a quiet system, an intruder can't reach the building without being lit up and warned off on the way in.
Alerts that are worth opening
SMD 4.0 classifies humans and vehicles before notifying you, so the 2am alert is a person in your driveway — not a possum, headlights or rain.
Loud on purpose — check it suits your street
Strobes and siren voices confront whoever triggers them. Draw zones to your own boundary and schedule sound overnight — or for tight terrace streets and strata, the quieter 3666 WizSense turret family records the same AI events without the noise.
§ 05Where it fits
Right at home in these scenarios
Large two-storey home
Every external wall covered plus the porch and garage close-ups — no approach to the house goes unchallenged, day or night.
Business premises
Entries, counter, storeroom, rear dock and all external walls on one recorder, with voice warnings at every door after close — check your state's recording rules before enabling the mics.
Acreage homestead
House approaches, carport, machinery shed and the yard between them — SMD 4.0 ignores wildlife and stock movement while the lights and sirens answer people and vehicles.
Rental or dual-occupancy property
Shared driveways and separate entries each get their own camera and their own zones — deterrence at the boundaries without pointing anything into a tenant's private space.
§ 06Setup
Installation & setup
What's in the Box
1. Dahua DH-IPC-HDW3649H-AS-PV-ANZ Camera × 8 2. DHI-NVR4108HS-8P-AI/ANZ NVR with 4TB HDD installed × 1 3. NVR Power Adapter × 1 4. Quick Start Guide × 1
Installation Requirements
1. Each camera needs one Ethernet run back to the NVR — the PoE ports carry power, video and every deterrence feature together, up to 100m per run. 2. Mount on a solid wall or eave; under-eave positions keep lenses clear of direct rain and afternoon sun. 3. Connect the NVR to your router with a short Ethernet patch lead for remote viewing — works on all NBN connection types.
App Setup
1. Download the DMSS app, then scan the QR code shown on the NVR screen (Main Menu → Network → P2P). 2. Enable push notifications in DMSS, and keep one-tap disarming handy for expected visitors. 3. Draw each camera's tripwire and intrusion zones tight to your own property — zones are what fire the lights and siren voices, so keep footpaths and the neighbour's driveway out of them.
§ 07Questions
Frequently asked
Q.01
Is this kit ready to use out of the box?
Yes — the 4TB drive comes installed and formatted, and the PoE ports power all eight cameras including their lights and sirens. Mount the cameras, run one Ethernet line from each to the NVR, and recording starts automatically at default settings.
Q.02
How long will the 4TB drive keep footage?
Around 12 days of continuous recording from eight 6MP cameras (roughly 40GB per camera per day) — or a month or more on motion-only recording. The NVR overwrites the oldest footage automatically. For longer retention, upgrade the drive with the kit customiser before checkout.
Q.03
Can I add more cameras later?
This kit uses all eight PoE channels on the recorder. Adding a ninth camera means moving to a 16-channel NVR — if growth is on the cards, ask about a 16CH base before ordering rather than replacing the recorder later.
Q.04
How does the deterrence actually work across the kit?
Each camera runs its own tripwire and intrusion zones — the one that detects reacts on the spot with red and blue lights, a siren or voice warning through its speaker, and warm light so the event records in full colour. One-tap disarming in the DMSS app stands the system down when you're expecting people.
Q.05
Will the lights and sirens annoy the neighbours?
They can if zones are drawn carelessly — this is a kit that reacts out loud. Draw each camera's zones tight to your own property, schedule sound off overnight, or set individual cameras to light-only. For positions facing a shared driveway or footpath, the quieter 3666 WizSense turret records the same AI events without the noise.
Q.06
How far can the cameras see at night?
Each turret records colour down to 0.003 lux through its F1.0 lens — the strongest low-light rating in the 3 Series — then switches to infrared with a 30-metre range in full darkness. When a person or vehicle is detected, the warm light takes over and that event records in full colour.
Q.07
Can the cameras identify faces and number plates?
With the 2.8mm lens, faces are reliably identifiable to about 6.6 metres — porch and doorway distance. Number plates still need daylight or good lighting: glare and headlights work against any camera at night.
Q.08
Should I have chosen a quieter WizSense kit instead?
Both families run the same Dahua AI — human and vehicle classification, SMD 4.0 and perimeter protection. The difference is the response. These TiOC turrets confront: lights, siren voices, full-colour event capture and two-way talk. A WizSense kit built on the 3666 records quietly and just alerts your phone. Pick this kit where you want intruders challenged at the boundary; pick WizSense where evidence is enough.
Q.09
What's the difference between the 3649, the 3666 and the 3849?
All three are 3 Series turrets with 30m night range. The 3649 (the cameras in this kit) is the 6MP TiOC — the deterrence pick, with the family's best low-light rating (0.003 lux at F1.0). The 3666 is the 6MP value pick: the same AI in a quieter camera that records rather than reacts. The 3849 is the 8MP TiOC — the same deterrence tools with 4K-class resolution and AcuPick search, at a higher price.
Q.10
What does the AI NVR actually do beyond recording?
Three things: it classifies SMD alerts so only humans and vehicles notify you, Quick Pick search pulls every person or vehicle event from hours of footage in one pass, and it runs tripwire and intrusion zones per camera. It also powers all eight cameras over its PoE ports.
Q.11
Does SMD 4.0 really reduce false alarms from animals and weather?
Yes. SMD 4.0 uses AI to distinguish humans and vehicles from small animals, tree movement and rain, and AI SSA re-tunes the image in rain, fog and backlight, so far fewer junk notifications get through than basic motion detection.
Q.12
Do I need to pay any subscription?
No. Recording, AI detection, deterrence and remote viewing through the DMSS app all run on your own hardware — no monthly fees and no cloud account requirement.
Q.13
Can I view the cameras on my phone away from home?
Yes — enable P2P on the NVR, scan the QR code in the DMSS app, and live view plus playback work over the internet. The system also works fully offline if you prefer no outside access.
Q.14
Will it work without internet?
Yes. Cameras record to the NVR on a closed local network, and the lights and sirens still fire on local detection. Internet is only needed for remote viewing and push notifications.
Q.15
Is a Dahua system safe to use in Australia?
Dahua equipment was removed from federal government sites in 2023 as a precaution, and there is no restriction on private or business use. This kit records locally to its own NVR, needs no cloud account, and supports HTTPS and encrypted firmware. On an isolated network it still records normally.
Q.16
What does the 3-year warranty cover?
Defects in the cameras and NVR for 3 years. The hard drive carries its own manufacturer warranty terms, and installation labour is not covered.
§ 08In motion
Dahua Tioc 2.0 - the ultimate 3-in-1 camera
§ 09Bundles
Recommended packages
Need more channels?
Past eight cameras you're into a 16 channel recorder — ask us to spec it as a custom order before you buy twice.
Recording continuously?
Eight 6MP streams fill 4TB in around 12 days. Upgrade to a larger surveillance drive with the kit customiser before checkout if you need longer history.
Add mounts where walls don't suit
The PFA137 junction box keeps connections weatherproof on brick, cladding and fascia boards where a straight mount doesn't fit.
