Dahua HDW2541EMP 4-Camera 5MP Turret CCTV Kit + 4CH PoE NVR, No HDD

SKU: KIT-HDW2541EMP-4CAM-NVR4104-NOHDD
Description

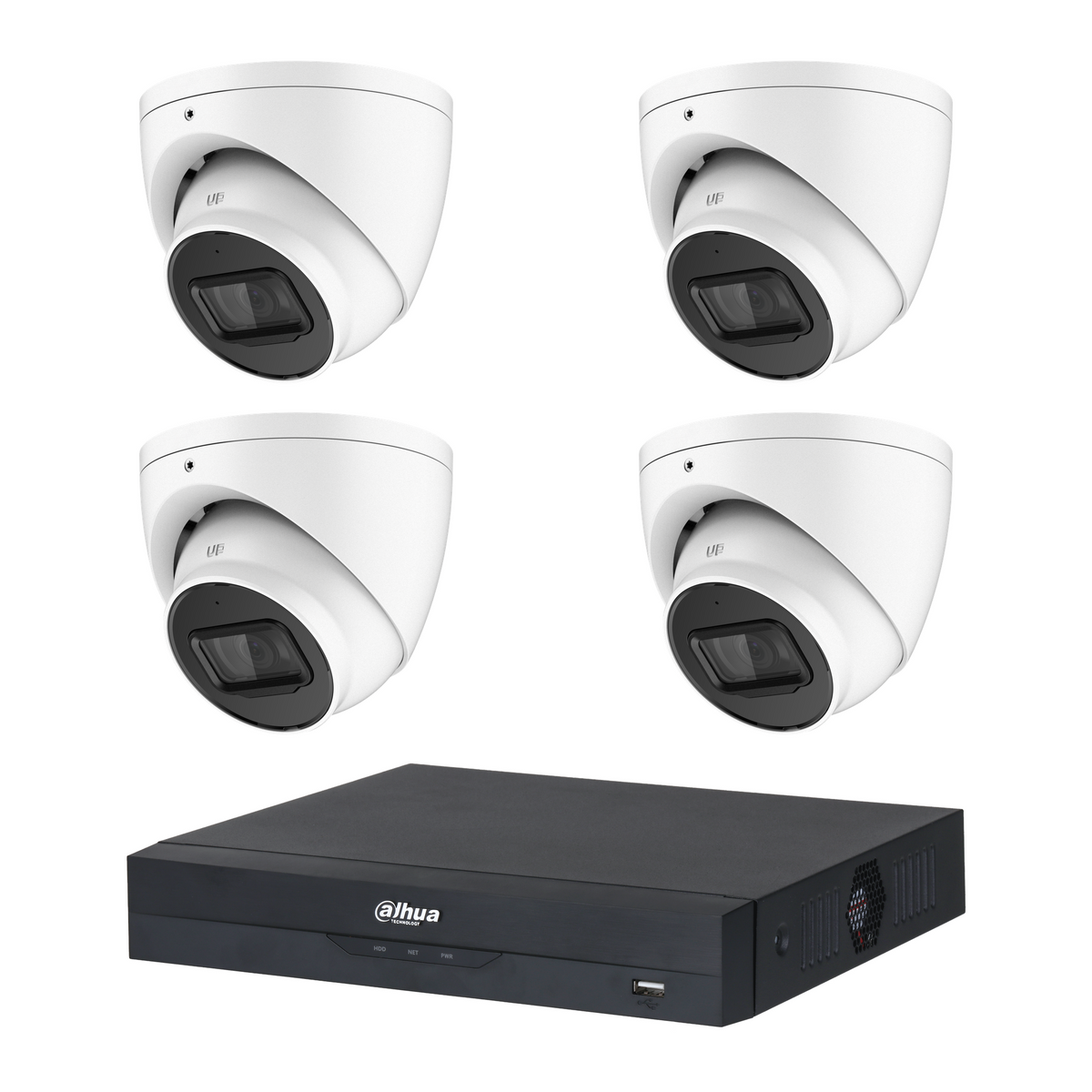

4 white Dahua HDW2541EMP 5MP turret cameras with 2.8 mm lenses pair with one DHI-NVR4104HS-P-AI/ANZ 4-channel PoE NVR for four separate views on a compact four-channel recorder.

The IR turret cameras combine SMD Plus, human/vehicle IVS, built-in microphones and IP67 housings. Infrared night viewing is black-and-white.

No hard drive is included. Add compatible surveillance SATA storage for NVR recording. Network cabling, microSD cards and optional mounting accessories are separate.

4 cameras 5MP Ultra HD IP67 Weatherproof Built-in Microphone 4 x POE PORTS
$645.82 AUD $645.82 AUD $799.00 AUD
Sale 19.17% $153.18 AUD (19.17%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Customize this kit $645.82
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 4 × Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP Network Camera 50m IR 2.8mm Wizsense
  • 1 × Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder (4ch)
  • No HDD included (add one below)
Add extra cameras DH-IPC-HDW2541EMP-AS-ANZ
+$0.00
NVR · channels ≥ your total camera count Base: 4ch · Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • Dahua HDW2541EMP 4-Camera 5MP Turret CCTV Kit + 4CH PoE NVR, No HDD $645.82
Total: $645.82

01Overview

What the KIT-HDW2541EMP-4CAM-NVR4104-NOHDD is

A four-camera perimeter with a dedicated view at each access point. This kit combines 4 white IPC-HDW2541EMP-AS-ANZ 5MP turret cameras with one DHI-NVR4104HS-P-AI/ANZ 4-channel PoE recorder. It suits front and rear access, a driveway and a side passage, or a small shop entrance, counter and stock area. The supplied cameras use 2.8 mm fixed lenses; a hard drive and network cabling are not included.

Each HDW2541EMP camera provides 5MP video at up to 20 fps, or up to 25/30 fps at 2688 × 1520 depending on video standard and stream settings. The supplied 2.8 mm F1.6 lens gives a 111° horizontal view. A built-in microphone, SMD Plus and human/vehicle tripwire and intrusion classification support practical event recording.

These are infrared cameras. Dahua rates IR illumination up to 30 m; in dark scenes with infrared active, the image is black-and-white. Colour needs sufficient visible light. WDR helps manage bright entrances and darker interior areas, while careful positioning remains important for usable facial detail.

One Ethernet run from each camera to a recorder PoE port carries power and video. The camera maximum PoE rating is 5 W each, so the supplied set totals 20 W before cable losses. All camera channels and PoE ports are used by the included cameras. Choose a higher-channel recorder or an additional system if you need more viewpoints. No HDD is included. Choose compatible surveillance SATA storage separately for the camera bitrates, recording schedule and retention you need. Higher camera counts increase storage demand; no fixed number of recording days is promised.

See it in action

What the KIT-HDW2541EMP-4CAM-NVR4104-NOHDD features actually look like

Representative illustrations of how each key feature performs in a real scene.

IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

02Engineering

KIT-HDW2541EMP-4CAM-NVR4104-NOHDD specifications

- 4 × 5MP turret cameras — DH-IPC-HDW2541EMP-AS-ANZ, white, with 2.8 mm fixed lenses.
- Practical 5MP imaging — up to 20 fps at 5MP; up to 25/30 fps at 2688 × 1520, subject to encoding capacity.
- 30 m IR illumination — black-and-white night viewing when infrared is active; this is not an always-colour camera.
- SMD Plus and IVS — human/vehicle classification for motion events, intrusion and tripwire; do not confuse this model with SMD 4.0 cameras.
- Built-in microphone and 120 dB WDR — capture audio and manage scenes with a wide brightness range.
- IP67 camera housings — suitable for correctly installed indoor or outdoor positions; weatherproof exposed cable joints.
- 4-channel PoE NVR — DHI-NVR4104HS-P-AI/ANZ, 4 integrated PoE ports, HDMI and VGA outputs.
- All recorder channels and PoE ports in use — a larger recorder is required for more than 4 cameras.
- Storage chosen separately — one SATA drive bay; no hard drive, microSD card or network cable is included.

03Full datasheet

Detailed specifications

Kit Configuration

Kit Configuration — Dahua HDW2541EMP 4-Camera 5MP Turret CCTV Kit + 4CH PoE NVR, No HDD
FeatureDetail
Cameras 4 × DH-IPC-HDW2541EMP-AS-ANZ, white, 2.8 mm
Recorder 1 × DHI-NVR4104HS-P-AI/ANZ
Hard drive included No
Network cabling included No
Camera body Turret
Unused NVR channels / PoE ports 0 / 0

04Why choose this

Built for the way you actually use the KIT-HDW2541EMP-4CAM-NVR4104-NOHDD

4 defined viewpoints

Use a separate camera for each access path or activity zone. Allocate all four positions before installation: this base recorder has no unused camera channels once the supplied cameras are connected.

Straightforward infrared coverage

The turret body provides a compact installation with a fixed lens and IR illumination. It suits customers who need dependable event views and black-and-white night footage rather than a warm-light colour solution.

PoE cabling back to one recorder

Connect the supplied cameras directly to the 4 recorder PoE ports. Plan cable length, routing, weatherproof joints and access to the recorder before installation.

A fully allocated recording system

All camera channels and PoE ports are used by the included cameras. Choose a higher-channel recorder or an additional system if you need more viewpoints.

Choose storage for your recording plan

No HDD is included. Choose compatible surveillance SATA storage separately for the camera bitrates, recording schedule and retention you need. Higher camera counts increase storage demand; no fixed number of recording days is promised.

05Where it fits

Right at home in these scenarios

Homes and small premises

Plan 4 separate positions for front and rear access, a driveway and a side passage, or a small shop entrance, counter and stock area. Use a camera plan to avoid unnecessary overlap while retaining useful views of each approach.

Indoor areas and outdoor approaches

IP67 applies to the cameras, not the recorder. Weatherproof cable joints, avoid direct strong light in the lens and keep the recorder in a dry, ventilated indoor location.

Sites with a fixed camera plan

Allocate all four positions before installation: this base recorder has no unused camera channels once the supplied cameras are connected. Recording detail, storage demand and live display layout should be configured for the actual site.

06Setup

Installation & setup

  1. Included in this base kit

    • DH-IPC-HDW2541EMP-AS-ANZ, white, 2.8 mm turret camera × 4
    • DHI-NVR4104HS-P-AI/ANZ 4-channel PoE NVR × 1
    • No HDD, microSD cards or network cabling. Optional mounting accessories are separate.

  2. Plan and cable the camera positions

    • Allocate all four positions before installation: this base recorder has no unused camera channels once the supplied cameras are connected.
    • Run one suitable Ethernet cable to each recorder PoE port; label camera locations and both cable ends.
    • Follow the camera installation guide, weatherproof exposed joints and keep the recorder dry and ventilated.

  3. Commission and test recording

    • Fit a compatible surveillance SATA hard drive, initialise devices and set strong passwords.
    • Set the correct date/time, storage and recording schedule; configure main streams, substreams and event zones within recorder limits.
    • Check every daytime and night-time view, test audio where appropriate, and play back sample recordings before relying on the system.

07Documentation

Manuals & guides

Quick Start Guide

08Questions

Frequently asked about the KIT-HDW2541EMP-4CAM-NVR4104-NOHDD

Q.01

Is a hard drive included?
No. This base kit contains 4 cameras and one NVR without a hard drive. Add compatible surveillance SATA storage separately. The single drive bay should be sized for camera bitrates, event or continuous recording and required retention; there is no guaranteed number of recording days.
Q.02

How many cameras can I add later?
All camera channels and PoE ports are used by the included cameras. Choose a higher-channel recorder or an additional system if you need more viewpoints.
Q.03

Do the cameras provide colour video in complete darkness?
These are IR cameras. With infrared active in darkness, the image is black-and-white. Colour video requires sufficient visible light; this kit does not promise warm-light colour illumination or a built-in deterrent light.
Q.04

What detection features are included?
The HDW2541EMP cameras provide SMD Plus and human/vehicle classification for tripwire and intrusion rules. Camera-side analytics and recorder-side AI are separate capabilities; recorder AI channel limits and selected mode still apply. This camera model should not be described as SMD 4.0 simply because other Dahua cameras use that version.
Q.05

Are the cameras suitable for outdoor use?
The cameras are IP67-rated for correctly installed indoor or outdoor use. Protect exposed connections with suitable weatherproofing, avoid aiming into strong light or very close reflective surfaces and keep the lenses clean. The NVR should be installed in a dry, ventilated indoor position.
Q.06

Can every camera show 5MP at 30 fps?
The camera datasheet specifies up to 20 fps at 5MP. It supports up to 25/30 fps at 2688 × 1520, subject to video standard and encoding capacity. Recording settings and the NVR live-view decoding capacity are separate limits; use suitable substreams for multi-camera grids and configure total bitrate for the recorder.
