Dahua 8 x 5MP+ 16 Channels Kit:8x WizColor Turrets with SMD 4.0 + 16CH PoE NVR+ 4TB HDD
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua 8 x 5MP+ 16 Channels Kit:8x WizColor Turrets with SMD 4.0 + 16CH PoE NVR+ 4TB HDD
SKU: DH-IPC-HDW2549EMP-S-PRO-ANZ
Description
Eight 5MP Dahua WizColor cameras on a 16-channel PoE NVR with a 4 TB drive fitted, built for sites that need eight cameras now and serious room to grow. With eight cameras included on a 16-port recorder, you have eight spare PoE channels to double the system without changing hardware.
Key points
- 8 x 5MP WizColor turret cameras (full-colour night vision to ~30 m)
- 16-channel, 16-port PoE NVR with 8 spare channels
- 4 TB surveillance HDD included and fitted
- SMD human/vehicle AI; built-in mic on every camera
- IP67 weatherproof; single-cable PoE; Dahua DMSS app
Regular price
$2,165.25 AUD
Sale price
$2,165.25 AUD
Regular price
$2,028.00 AUD
Member
Sign in to save $43.31 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua 8 x 5MP+ 16 Channels Kit:8x WizColor Turrets with SMD 4.0 + 16CH PoE NVR+ 4TB HDD
1
/
of
1
Customize this kit Kit price $2,165.25

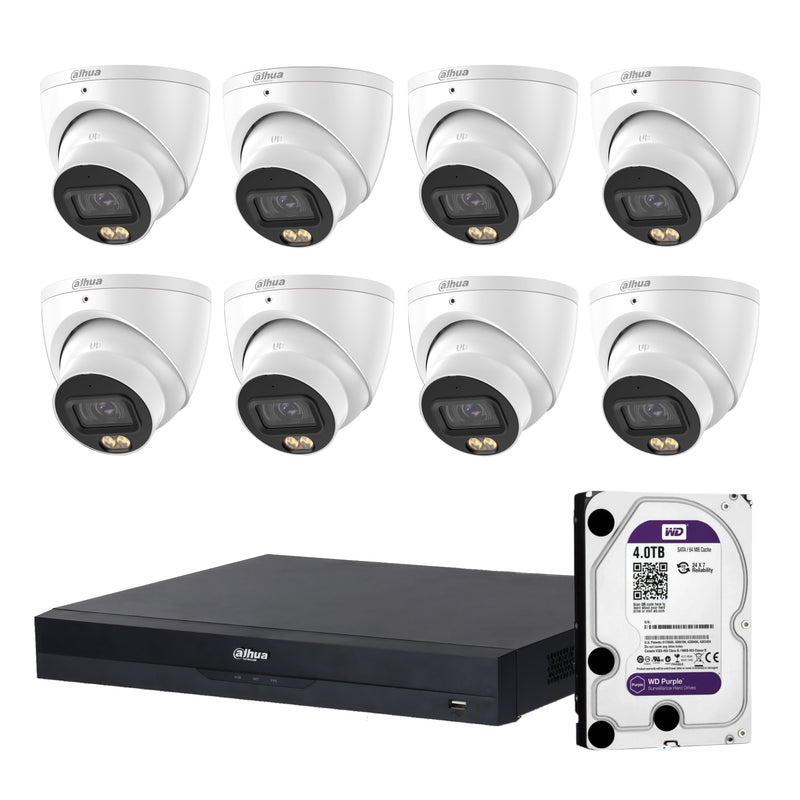

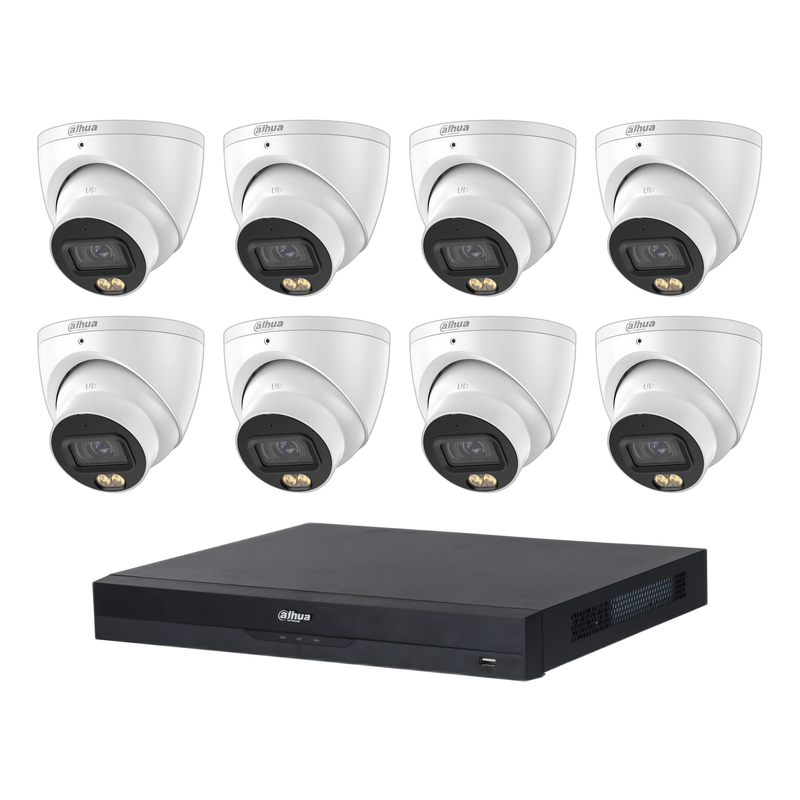

This kit includes: Cabling not included — add cables in the accessories below (one per camera).
- 8 × Dahua DH-IPC-HDW2549EMP-S-PRO-ANZ 5MP WizColor Series Network Camera
- 1 × Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder (16ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DH-IPC-HDW2549EMP-S-PRO-ANZ is
This Dahua WizColor kit puts eight 5MP WizColor turret cameras on a 16-channel PoE NVR with a 4 TB surveillance hard drive already fitted, for sites that need eight cameras today but want plenty of expansion headroom.
Because the recorder has sixteen PoE ports and the kit uses eight, you have eight spare channels, enough to double the number of cameras later without touching the NVR.
The cameras keep footage in full colour at night rather than switching to black-and-white infrared.
WizColor combines a large 1/1.8 inch sensor, an F1.0 lens and a warm LED to light the scene to about 30 m in colour, so vehicle colours, clothing and other detail stay identifiable after dark.
Each camera can also be set to a black-and-white mode or have its warm light dimmed or scheduled where a visible light is unwelcome.
SMD and IVS analytics classify people and vehicles to cut false alarms and let you filter playback by event, and a built-in microphone on every camera records audio with the video; there is no speaker, so the cameras do not offer two-way talk.
All eight cameras are IP67 weatherproof, the NVR powers and records each over a single network cable, and H.265+ compression helps the 4 TB drive stretch across the system.
This kit suits a growing business or a larger property: it gives the same eight-camera coverage as the 8-channel kit but on a 16-channel recorder, so you are not forced into a hardware upgrade when you add the ninth camera and beyond.
If you already need ten cameras, the 10-camera 16-channel kit is the matching step up.
See it in action
What the DH-IPC-HDW2549EMP-S-PRO-ANZ features actually look like
Representative illustrations of how each key feature performs in a real scene.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DH-IPC-HDW2549EMP-S-PRO-ANZ specifications
- 8 x Dahua 5MP WizColor turret cameras (DH-IPC-HDW2549EMP-S-PRO-ANZ), 2960 x 1668 on a 1/1.8" CMOS sensor
- WizColor full-colour night vision: a warm LED lights the scene to about 30 m so footage stays in colour, not black & white, after dark
- SMD and IVS analytics classify people and vehicles to cut false alarms and speed up playback search
- Built-in microphone on every camera records audio with the video (no speaker, so no two-way talk)
- IP67 weatherproof cameras with a fixed 2.8 mm lens for a wide ~112 degree view
- 16-channel 16-port PoE NVR: 8 cameras included with 8 spare PoE channels for future expansion
- 4 TB surveillance-grade HDD included and fitted, plus H.265+ compression for weeks of recording
- Single-cable PoE install, HDMI and VGA output, and remote viewing on the Dahua DMSS phone app
- WizColor full-colour night vision: a warm LED lights the scene to about 30 m so footage stays in colour, not black & white, after dark
- SMD and IVS analytics classify people and vehicles to cut false alarms and speed up playback search
- Built-in microphone on every camera records audio with the video (no speaker, so no two-way talk)
- IP67 weatherproof cameras with a fixed 2.8 mm lens for a wide ~112 degree view
- 16-channel 16-port PoE NVR: 8 cameras included with 8 spare PoE channels for future expansion
- 4 TB surveillance-grade HDD included and fitted, plus H.265+ compression for weeks of recording
- Single-cable PoE install, HDMI and VGA output, and remote viewing on the Dahua DMSS phone app
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" CMOS |
| Max. Resolution | 2960 (H) × 1668 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.0005 lux@F1.0 |
| S/N Ratio | >56 dB |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| LDC | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M16 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 112°; V: 60°; D: 134° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.7 m (5.58 ft) |
| DORI Distance | 2.8 mm: Detect 57.9 m (189.96 ft); Observe 23.2 m (76.12 ft); Recognize 11.6 m (38.06 ft); Identify 5.8 m (19.03 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 2 (Warm light) |
| Smart Illumination | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2960 × 1668@(1–20 fps)/2688 × 1520@(1–25/30 fps) | sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) |
| Stream Capability | 2 streams |
| Resolution | 5M (2960 × 1668); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | VBR;CBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes, built-in Mic |
| Audio Compression | G.711a; G.711Mu; PCM; G.726 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human); |
| SMD | SMD Plus |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registeration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Cyber Security | Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC; PoE |
| Power Consumption | Basic: 2.0 W (12 VDC); 2.5 W (PoE); Max.: 5.3 W (12 VDC); 6.4 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67 |
| Casing Material | Inner core: Metal; Cover: Plastic |
| Product Dimensions | 109.5 mm × Φ109.9 mm (4.31" × Φ4.33") |
| Net Weight | 0.42 kg (0.93 lb) |
| Gross Weight | 0.59 kg (1.30 lb) |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
§ 04Why choose this
Built for the way you actually use the DH-IPC-HDW2549EMP-S-PRO-ANZ
Full colour night footage
WizColor keeps all cameras in colour to about 30 m after dark, with a 4 TB drive fitted so recording starts on day one.
AI that scales
SMD classifies people and vehicles on every camera, keeping alerts meaningful as the system grows.
Single-cable PoE
Each camera runs on one network cable to the NVR for power and data, which keeps a larger install tidy and expandable.
§ 05Where it fits
Right at home in these scenarios
Growing businesses
Cover the key areas with eight cameras now and add to a loading dock, car park or new zone using the spare channels.
Larger properties and acreage
Eight cameras with eight spare ports suit homes and rural blocks that will keep adding cameras at sheds, gates and outbuildings.
Multi-tenant or staged sites
Wire eight cameras for the first stage and provision the rest as later stages are built, all on one recorder.
Retail and warehousing
Colour video, audio and AI search across entries, aisles, stockrooms and perimeters, with room to expand coverage.
§ 06Setup
Installation & setup
What's in the box
8 x DH-IPC-HDW2549EMP-S-PRO-ANZ 5MP WizColor cameras, one DHI-NVR4216-16P 16-channel PoE NVR with a 4 TB surveillance HDD already fitted, camera mounting bases and waterproofing glands, and a power lead for the NVR. Network (Cat5e/Cat6) cable, brackets and junction boxes are not included.
Installation requirements
Mount each camera 2.5 to 3 m high, angled down over the area you want to watch, and run one Cat5e/Cat6 cable from each camera back to a PoE port on the NVR (keep each run under 100 m). The NVR powers and connects every camera over that single cable, so no camera needs a separate power supply within 100 m. Connect the NVR to your TV or monitor by HDMI, run through the start-up wizard, set the recording schedule, and add the DMSS app for remote viewing. Seal each outdoor connector with the supplied gland, and use a Dahua junction box where a tidy, weatherproof cable join is needed.
§ 07Questions
Frequently asked about the DH-IPC-HDW2549EMP-S-PRO-ANZ
Q.01
Why pair eight cameras with a 16-channel NVR?
It gives you eight cameras now and eight spare PoE channels for later, so you can expand to as many as sixteen cameras without replacing the recorder. If you are confident eight cameras is your limit, the 8-channel kit is cheaper; if you expect the system to grow, this 16-channel kit avoids a costly upgrade down the track.
Q.02
How many more cameras can I add?
Up to eight more, for a total of sixteen. The NVR has sixteen PoE ports and this kit uses eight, leaving eight spare channels. Add compatible Dahua PoE cameras whenever you like by plugging them into a free port.
Q.03
Do the cameras record in colour at night?
Yes. These WizColor cameras use a warm LED, a large sensor and a bright F1.0 lens to keep footage in full colour to about 30 m after dark, instead of grey infrared. Any camera can be switched to black-and-white mode if a visible light is a problem at that location.
Q.04
Is the hard drive included, and is 4 TB enough?
Yes, a 4 TB surveillance-grade drive is fitted. For eight 5MP cameras it gives roughly one to two weeks of continuous recording with H.265+, and longer on motion recording. If you expand toward sixteen cameras, fit a larger surveillance drive for sensible retention.
Q.05
Are cables and brackets supplied?
No. Each camera needs its own Cat5e or Cat6 cable back to a PoE port on the NVR, bought to suit your run lengths, and brackets or junction boxes are separate. Keep each run under 100 m for reliable PoE power and data.
Q.06
Do the cameras have two-way audio?
Each camera has a built-in microphone that records audio with the video, but no speaker, so there is no two-way talk through the cameras. The audio adds useful context to recorded events.
Q.07
Can I manage all the cameras remotely?
Yes. The NVR works with the Dahua DMSS app for live and recorded viewing from anywhere with internet, plus push alerts when the AI detects a person or vehicle, across the current eight cameras and any you add.
Q.08
Will the AI keep alerts manageable as I expand?
Yes. SMD 4.0 and WizSense classify human and vehicle movement on every camera, so adding cameras does not flood you with false alarms from pets, weather or foliage. Tripwire and intrusion zones can be set per camera.
§ 08In motion
WizColor HDW2549 Camera Review
Dahua WizColor Series | Turn Night As Bright As Daylight
Dahua WizColor Technologies
§ 09Bundles
Recommended packages
Need more cameras to start?
If you already need ten cameras, the 10-camera 16-channel kit is the matching step up on the same 16-channel recorder.
Smaller or fully-loaded layouts
Need fewer cameras or a full 8-channel system? See the 8-camera 8-channel kit or the 6-camera 8-channel kit.
Expand cameras and storage
Fill the spare ports with extra DH-IPC-HDW2549EMP-S-PRO WizColor cameras, and fit a larger surveillance hard drive as the camera count grows; use the DH-PFA137 junction box for weatherproof joins.
