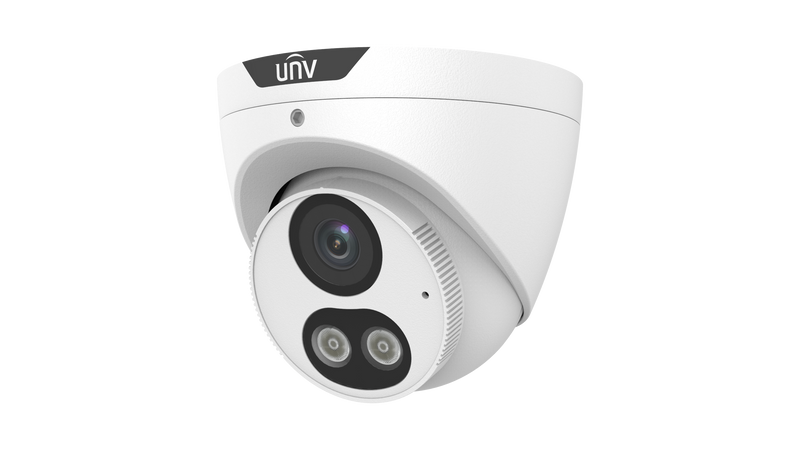

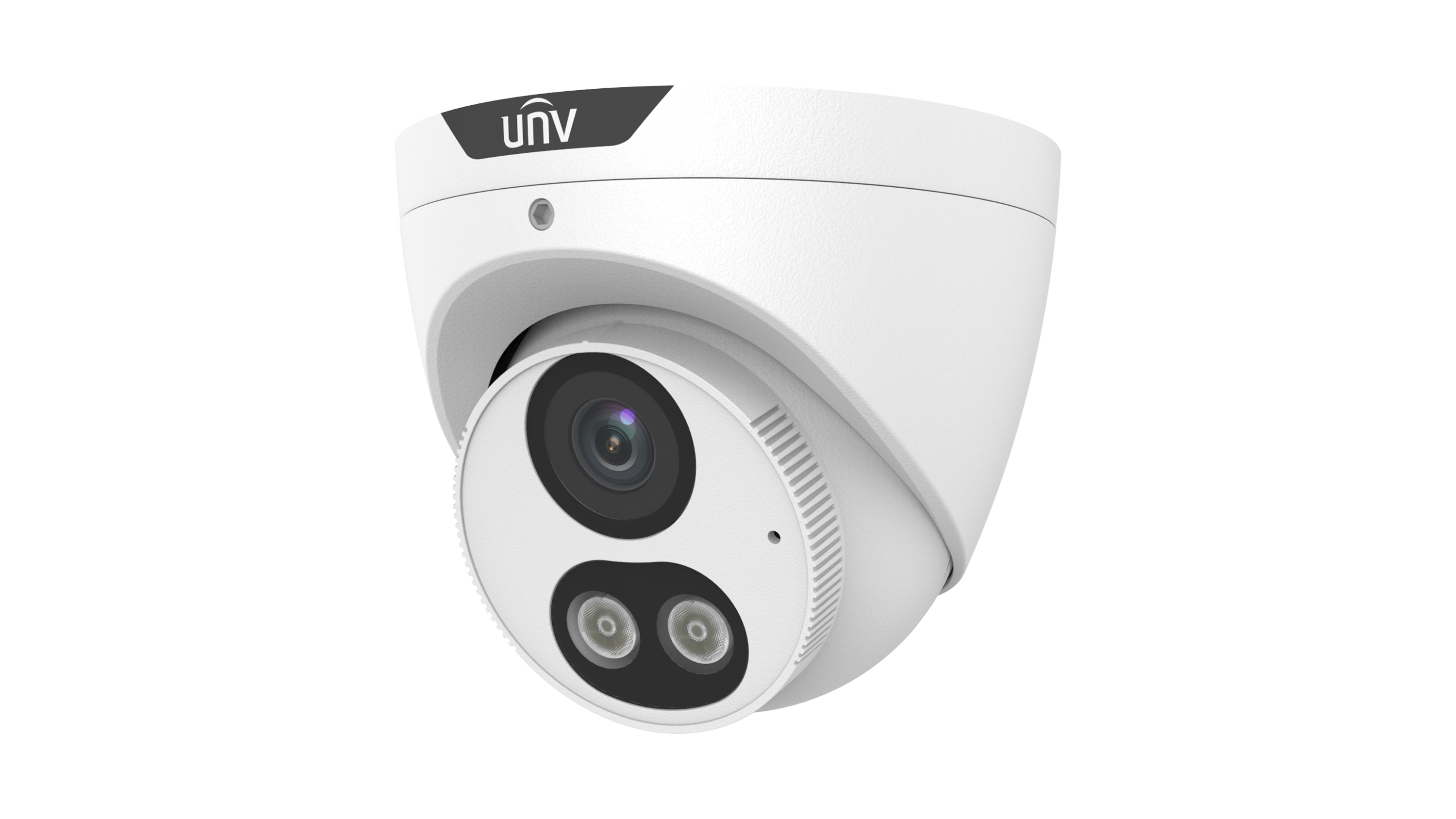

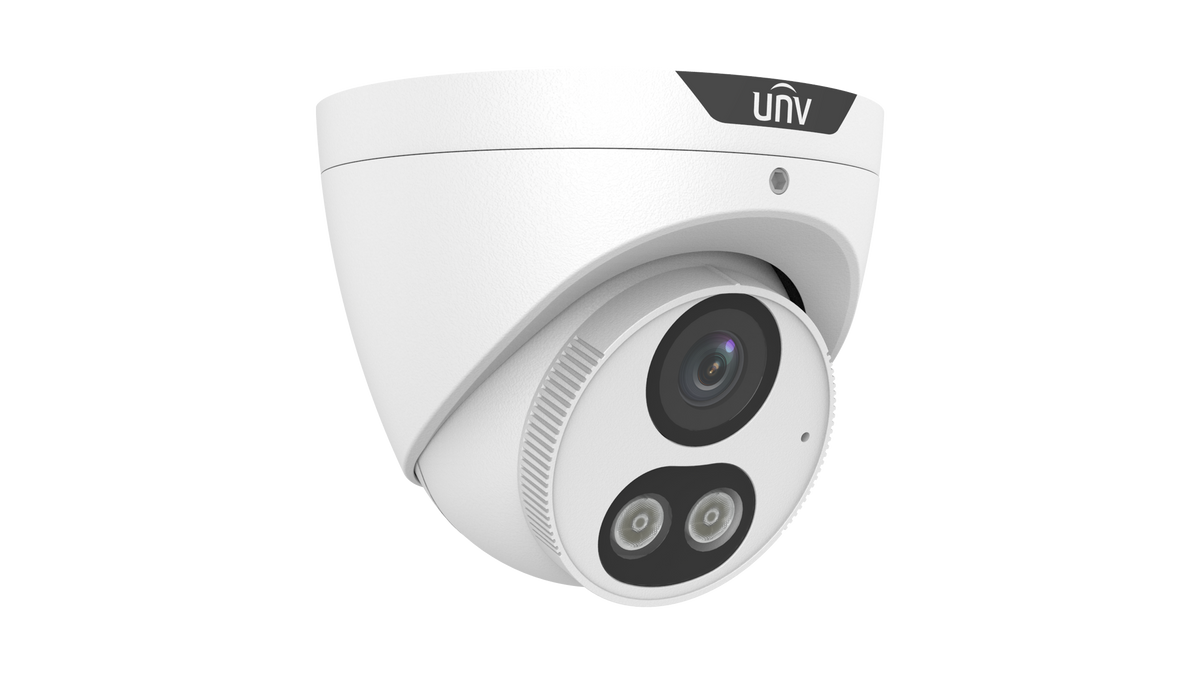

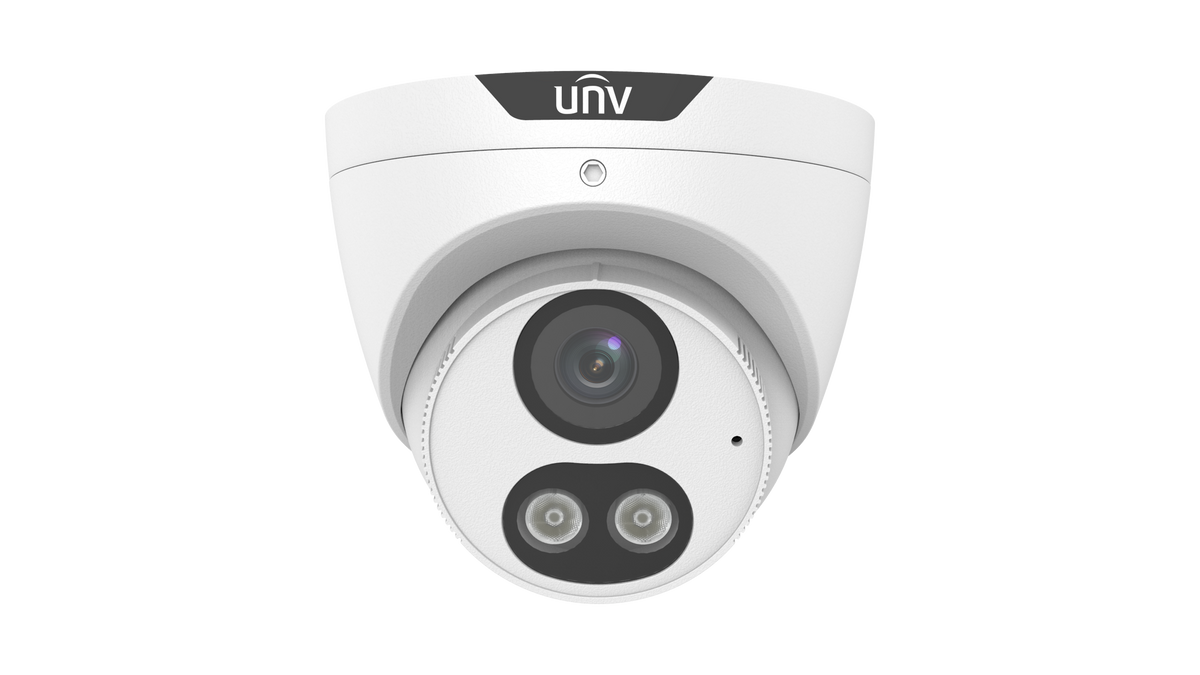

Uniview IPC3616LE-ADF28KM-DL 6MP Dual Light Turret Camera
SKU: IPC3616LE-ADF28KM-DL
Description
The Uniview IPC3616LE-ADF28KM-DL is a 6 MP outdoor turret with two kinds of night light: infrared for a discreet black and white picture, or a warm light for full colour, each reaching 30 m.
What you get
- 1 × IPC3616LE-ADF28KM-DL turret camera with a fixed 2.8 mm lens, built-in microphone and microSD slot, in a metal and plastic housing
You'll also need
- A PoE recorder or PoE switch, or a 12 V supply with a Ø5.5 mm coaxial plug
- One network cable run per camera, Cat5e or Cat6
- Somewhere to record: a microSD card of up to 512 GB in the camera, or a network video recorder
- A bracket if it is not mounting flat to a soffit or ceiling, such as a junction box, wall arm, corner bracket, pole mount or pendant
Regular price
$105.75 AUD
Sale price
$105.75 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Uniview IPC3616LE-ADF28KM-DL 6MP Dual Light Turret Camera
1
/
of
3
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Build your setup
Build a complete CCTV system
—
Complete setup from
$688.55
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
Add accessories
Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
§ 01Overview
What the IPC3616LE-ADF28KM-DL is
The Uniview IPC3616LE-ADF28KM-DL is the dual light camera in Uniview's EASY range, and the choice of light is the point. Infrared at 850 nm reaches 30 m and gives a black and white picture; the warm light reaches the same 30 m and gives full colour that tells you what someone was wearing. Smart illumination and smart IR control both, so a close subject is not blown out.
Resolution is 6 MP at 3200 × 1800 and 25 fps, or 1080P at 30 fps where smoother movement matters more. 120 dB WDR holds a face against a bright doorway, HLC pulls back headlights, BLC lifts a backlit subject, and digital defog with 2D and 3D noise reduction cleans the picture up. The 2.8 mm lens sees 102.73° across and 53.95° vertically.
Distances are worth planning around. Uniview rates it to detect at 63.1 m, observe at 25.2 m, recognise at 12.6 m and identify at 6.3 m, so a camera meant to identify a caller belongs near the door rather than at the end of the drive.
Detection is done in the camera and it is more selective than plain motion. Cross line and intrusion detection are based on human body detection, and ultra motion detection works on human body and vehicle detection, so the alert follows a person or a vehicle rather than any movement at all. Motion, tampering and audio detection run alongside.
What it does not have is worth knowing before ordering. There is a built-in microphone but no speaker, no two-way audio, and no alarm input or output. Storage is a microSD card of up to 512 GB with ANR to a recorder and NAS over NFS; it runs on PoE 802.3af or 12 V DC at no more than 5.1 W; and the metal and plastic housing measures 110.5 mm across by 98.0 mm deep, weighs 0.46 kg, is rated IP67 and works from -30 °C to 60 °C. ONVIF Profile S, G and T are supported for third-party recorders.
See it in action
What the IPC3616LE-ADF28KM-DL features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.
Dual-Light Night Vision
Combines infrared with a warm spotlight so it can light a scene in colour at night rather than relying on black-and-white alone — clearer, more useful footage when there's something to see.
30m IR Night Vision
Built-in infrared lets the camera see in complete darkness up to around 30m — enough for a typical driveway, front yard or entrance. People and vehicles stay clear in black-and-white, brighter the closer they are.
Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
False Alarm Reduction
Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
IPC3616LE-ADF28KM-DL specifications
Uniview IPC3616LE-ADF28KM-DL dual light — infrared and warm light, each to 30 m, with smart IR and smart illumination — a discreet black and white picture, or full colour when you want it
Sensor — 6 MP at 3200 × 1800 and 25 fps, or 1080P at 30 fps — detail when it counts, smoother movement when it does not
Low light — 0.003 Lux at F1.6, and 0 Lux with the light on — usable picture before either light is needed
Dynamic range — 120 dB WDR, HLC, BLC, digital defog, 2D and 3D noise reduction — a face in a bright doorway and headlights at night both stay readable
Lens and view — 2.8 mm F1.6 fixed, 102.73° horizontal and 53.95° vertical — a wide view for a door, a porch or a shopfront
DORI — detect 63.1 m, observe 25.2 m, recognise 12.6 m, identify 6.3 m — plan the mounting distance against the identify figure
Detection — cross line and intrusion on human body detection, ultra motion on human body and vehicle detection — the alert follows a person or a vehicle rather than any movement
Storage — microSD to 512 GB, ANR and NAS over NFS, dual streams, Ultra 265, H.265, H.264 and MJPEG — recording survives a network dropout
Power and housing — PoE 802.3af or 12 V DC at max 5.1 W, 110.5 mm × 98.0 mm, 0.46 kg, IP67, -30 °C to 60 °C — one cable, outdoors, through an Australian summer
Sensor — 6 MP at 3200 × 1800 and 25 fps, or 1080P at 30 fps — detail when it counts, smoother movement when it does not
Low light — 0.003 Lux at F1.6, and 0 Lux with the light on — usable picture before either light is needed
Dynamic range — 120 dB WDR, HLC, BLC, digital defog, 2D and 3D noise reduction — a face in a bright doorway and headlights at night both stay readable
Lens and view — 2.8 mm F1.6 fixed, 102.73° horizontal and 53.95° vertical — a wide view for a door, a porch or a shopfront
DORI — detect 63.1 m, observe 25.2 m, recognise 12.6 m, identify 6.3 m — plan the mounting distance against the identify figure
Detection — cross line and intrusion on human body detection, ultra motion on human body and vehicle detection — the alert follows a person or a vehicle rather than any movement
Storage — microSD to 512 GB, ANR and NAS over NFS, dual streams, Ultra 265, H.265, H.264 and MJPEG — recording survives a network dropout
Power and housing — PoE 802.3af or 12 V DC at max 5.1 W, 110.5 mm × 98.0 mm, 0.46 kg, IP67, -30 °C to 60 °C — one cable, outdoors, through an Australian summer
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Max Resolution | 6 MP |
| Sensor | 1/2.4" CMOS |
| Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| S/N | >52 dB |
| WDR | 120 dB |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Digital Noise Reduction | 2D/3D DNR |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Image Stabilization | N/A |
| Dewarping | N/A |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | 2.8 mm |
| Iris Type | Fixed |
| Iris | F1.6 |
| Lens Type | Fixed |
| Field of View (H) | 102.73° |
| Field of View (V) | 53.95° |
| Field of View (D) | 106.97° |
| DORI Detect | 63.1 m (207.0 ft.) |
| DORI Observe | 25.2 m (82.7 ft.) |
| DORI Recognize | 12.6 m (41.3 ft.) |
| DORI Identify | 6.3 m (20.7 ft.) |
| DORI Distance (Lens) | 2.8 mm |
| DORI Distance (Detect) | 63.1 m (207.0 ft.) |
| DORI Distance (Observe) | 25.2 m (82.7 ft.) |
| DORI Distance (Recognize) | 12.6 m (41.3 ft.) |
| DORI Distance (Identify) | 6.3 m (20.7 ft.) |
Night Vision
| Feature | Detail |
|---|---|
| Supplemental Light | Dual light |
| Illumination Distance (Warm Light) | 30 m (98.4 ft.) |
| Illumination Distance (IR) | 30 m (98.4 ft.) |
| Wavelength | 850 nm |
| Smart IR | Support |
| Smart Illumination | Support |
Video
| Feature | Detail |
|---|---|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Main Stream Frame Rate | 6 MP (3200 × 1800), max. 25 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps |
| Sub Stream Frame Rate | 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Dual streams |
| Frame Rate | Main Stream: 6 MP (3200 × 1800), max. 25 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| Video Output | N/A |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8 kHz |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| Audio I/O | N/A |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Basic Detection | Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection |
Network & Storage
| Feature | Detail |
|---|---|
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | UNV-Link, UNV-Link Pro, EZStation |
| Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| WIFI | N/A |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
Event & Alarm
| Feature | Detail |
|---|---|
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Alarm I/O | N/A |
| Audio I/O | N/A |
Power & Electrical
| Feature | Detail |
|---|---|
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 5.1 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Surge Protection | 4 KV |
General & Environment
| Feature | Detail |
|---|---|
| Dimensions | Ø110.5 mm × 98.0 mm (Ø4.4" × 3.9") (Ø × H) |
| Weight | 0.46 kg (1.01 lb.) |
| Material | Metal + Plastic |
| Protection | IP67 (IEC 60529) |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Reset Button | Support |
| Certification EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) |
| Certification Safety | CE-LVD (EN 62368-1) |
| Certification Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) |
| Web Client Language | 13 Languages |
| Compatible Accessories | TR-JB03-G-IN Junction Box for Mini Fix-dome (Support wiring from behind); TR-JB07/WM03-G-IN Wall Mounting Assembling Bracket for 32 Fix-dome, Mini Fix-dome and Plastic Turret Camera; TR-WM03-D-IN Wall Mounting Bracket for 32 Fix-dome, Mini Fix-dome and Plastic Turret Camera; TR-UM06-E-IN Slant Mounting Bracket for Fixed Dome; TR-A01-IN NPT 3/4 inch Waterproof Cable Gland; TR-UP06-IN Universal Pole Mounting Bracket; TR-UC08-C Bullet and Dome Corner Mounting Bracket; TR-SE24-IN Dome Pendant Mounting Pole 200mm; TR-SE24-A-IN Dome Pendant Mounting Pole 500mm; TR-CM24-IN Dome Pendant Mounting Bracket (Indoor) |
| Series | EASY |
| Colour | WHITE |
| Warranty | 24 Months |
| Model | IPC3616LE-ADF28KM-DL |
| Serial Port | N/A |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) |
| Safety | CE-LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) |
| Camera & Image — Max Resolution | 6 MP |
|---|---|
| Camera & Image — Sensor | 1/2.4" CMOS |
| Camera & Image — Min. Illumination | Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light |
| Camera & Image — Shutter | Auto/Manual, 1 ~ 1/100000s |
| Camera & Image — Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360° |
| Camera & Image — S/N | >52 dB |
| Camera & Image — WDR | 120 dB |
| Camera & Image — White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| Camera & Image — Digital Noise Reduction | 2D/3D DNR |
| Camera & Image — HLC | Support |
| Camera & Image — BLC | Support |
| Camera & Image — Defog | Digital defog |
| Camera & Image — Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Camera & Image — Image Stabilization | N/A |
| Camera & Image — Dewarping | N/A |
| Lens & Distance — Focal Length | 2.8 mm |
| Lens & Distance — Iris Type | Fixed |
| Lens & Distance — Iris | F1.6 |
| Lens & Distance — Lens Type | Fixed |
| Lens & Distance — Field of View (H) | 102.73° |
| Lens & Distance — Field of View (V) | 53.95° |
| Lens & Distance — Field of View (D) | 106.97° |
| Lens & Distance — DORI Detect | 63.1 m (207.0 ft.) |
| Lens & Distance — DORI Observe | 25.2 m (82.7 ft.) |
| Lens & Distance — DORI Recognize | 12.6 m (41.3 ft.) |
| Lens & Distance — DORI Identify | 6.3 m (20.7 ft.) |
| Lens & Distance — DORI Distance (Lens) | 2.8 mm |
| Lens & Distance — DORI Distance (Detect) | 63.1 m (207.0 ft.) |
| Lens & Distance — DORI Distance (Observe) | 25.2 m (82.7 ft.) |
| Lens & Distance — DORI Distance (Recognize) | 12.6 m (41.3 ft.) |
| Lens & Distance — DORI Distance (Identify) | 6.3 m (20.7 ft.) |
| Night Vision — Supplemental Light | Dual light |
| Night Vision — Illumination Distance (Warm Light) | 30 m (98.4 ft.) |
| Night Vision — Illumination Distance (IR) | 30 m (98.4 ft.) |
| Night Vision — Wavelength | 850 nm |
| Night Vision — Smart IR | Support |
| Night Vision — Smart Illumination | Support |
| Video — Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Video — H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video — Main Stream Frame Rate | 6 MP (3200 × 1800), max. 25 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps |
| Video — Sub Stream Frame Rate | 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video — Video Bit Rate | 128 Kbps to 16 Mbps |
| Video — U-code | Support |
| Video — OSD | Up to 4 OSDs |
| Video — Privacy Mask | Up to 4 areas |
| Video — ROI | Support |
| Video — Video Stream | Dual streams |
| Video — Frame Rate | Main Stream: 6 MP (3200 × 1800), max. 25 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps; |
| Video — Video Output | N/A |
| Audio — Audio Compression | G.711U, G.711A |
| Audio — Audio Bitrate | 64 Kbps |
| Audio — Two-way Audio | N/A |
| Audio — Suppression | Support |
| Audio — Sampling Rate | 8 kHz |
| Audio — Built-in Mic | Support |
| Audio — Built-in Speaker | N/A |
| Audio — Audio I/O | N/A |
| AI & Deep Learning — Basic Detection | Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection |
| Network & Storage — Edge Storage | MicroSD, up to 512 GB |
| Network & Storage — Network Storage | ANR, NAS (NFS) |
| Network & Storage — Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS |
| Network & Storage — Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Network & Storage — User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Network & Storage — Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Network & Storage — Client | UNV-Link, UNV-Link Pro, EZStation |
| Network & Storage — Network Interface | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Network & Storage — Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
| Network & Storage — Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Network & Storage — WIFI | N/A |
| Network & Storage — General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Event & Alarm — General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
| Event & Alarm — Alarm I/O | N/A |
| Event & Alarm — Audio I/O | N/A |
| Power & Electrical — Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power & Electrical — Power Consumption | Max. 5.1 W |
| Power & Electrical — Power Interface | Ø5.5 mm coaxial power plug |
| Power & Electrical — Surge Protection | 4 KV |
| General & Environment — Dimensions | Ø110.5 mm × 98.0 mm (Ø4.4" × 3.9") (Ø × H) |
| General & Environment — Weight | 0.46 kg (1.01 lb.) |
| General & Environment — Material | Metal + Plastic |
| General & Environment — Protection | IP67 (IEC 60529) |
| General & Environment — Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| General & Environment — Storage Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| General & Environment — Reset Button | Support |
| General & Environment — Certification EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) |
| General & Environment — Certification Safety | CE-LVD (EN 62368-1) |
| General & Environment — Certification Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) |
| General & Environment — Web Client Language | 13 Languages |
| General & Environment — Compatible Accessories | TR-JB03-G-IN Junction Box for Mini Fix-dome (Support wiring from behind); TR-JB07/WM03-G-IN Wall Mounting Assembling Bracket for 32 Fix-dome, Mini Fix-dome and Plastic Turret Camera; TR-WM03-D-IN Wall Mounting Bracket for 32 Fix-dome, Mini Fix-dome and Plastic Turret Camera; TR-UM06-E-IN Slant Mounting Bracket for Fixed Dome; TR-A01-IN NPT 3/4 inch Waterproof Cable Gland; TR-UP06-IN Universal Pole Mounting Bracket; TR-UC08-C Bullet and Dome Corner Mounting Bracket; TR-SE24-IN Dome Pendant Mounting Pole 200mm; TR-SE24-A-IN Dome Pendant Mounting Pole 500mm; TR-CM24-IN Dome Pendant Mounting Bracket (Indoor) |
| General & Environment — Series | EASY |
| General & Environment — Colour | WHITE |
| General & Environment — Warranty | 24 Months |
| General & Environment — Model | IPC3616LE-ADF28KM-DL |
| General & Environment — Serial Port | N/A |
| General & Environment — EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4) |
| General & Environment — Safety | CE-LVD (EN 62368-1) |
| General & Environment — Environment | CE-RoHS (2011/65/EU ; (EU) 2015/863) ; WEEE (2012/19/EU) |
§ 04Why choose this
Built for the way you actually use the IPC3616LE-ADF28KM-DL
Alerts for people and cars
Cross line and intrusion detection work on human body detection, and ultra motion detection adds vehicle detection. Detection is tied to a person or a vehicle rather than to movement alone.
Faces survive a bright background
120 dB WDR holds the gap between a dark porch and the sky behind it, HLC pulls back headlights and BLC lifts a subject standing against the light. Those are the three situations that ruin a doorway shot.
Recording survives a dropout
A microSD card of up to 512 GB sits in the camera, and ANR caches to it when the link to the recorder fails, transferring the footage back afterwards. A camera running on its own can record to that card alone.
One cable, and it lives outside
PoE 802.3af carries power and video on the same run at no more than 5.1 W. The IP67 metal and plastic housing is rated from -30 °C to 60 °C.
Sound with the picture
A built-in microphone records audio alongside the video, which often settles what happened at a doorway. Note there is no speaker and no two-way audio on this model.
§ 05Where it fits
Right at home in these scenarios
Front door or porch of an Australian home
The Uniview IPC3616LE-ADF28KM-DL under an eave puts a caller inside its 6.3 m identify distance as they reach the door, and the 102.73° view holds the path either side. Choose the warm light if colour matters more than being discreet.
Driveway or front fence
Ultra motion detection based on human body and vehicle detection suits a driveway, where a car arriving is the event worth an alert. Detection is rated to 63.1 m, though a figure is only readable much closer in.
Shopfront or workshop
Above an entry, the built-in microphone records sound with the picture and the dual light keeps the frontage usable after closing. Cross line detection along the doorway raises an alert only for a human body.
§ 06Setup
Installation & setup
What arrives and what does not
The Uniview IPC3616LE-ADF28KM-DL is supplied as the camera itself, with its fixed 2.8 mm lens and cable tail. Check the carton against the delivery note on arrival. The bracket, the memory card and any plug pack are separate products, so have them on site before the install.
Brackets and mounts
The camera fits flat to a soffit or ceiling, or onto the listed accessories: the TR-JB03-G-IN junction box, TR-JB07/WM03-G-IN and TR-WM03-D-IN wall brackets, TR-UM06-E-IN slant bracket, TR-UC08-C corner bracket, TR-UP06-IN pole bracket, TR-A01-IN waterproof cable gland and the TR-SE24-IN, TR-SE24-A-IN or TR-CM24-IN pendant mounts.
Cabling and power
Run one network cable per camera, Cat5e or Cat6, and keep each run under 100 m to the switch or recorder. Power is PoE 802.3af on the same cable, or 12 V DC to the Ø5.5 mm coaxial plug where there is no PoE.
Aiming it
The camera pans through 360°, tilts to 80° and rotates through 360° in its mount, so the picture can be squared up after the bracket is fixed. Point it across an approach rather than straight down it, and keep the light off a wall close to the lens.
Choosing the light
Set the supplemental light to infrared for a discreet black and white picture, or to the warm light for colour. Smart IR and smart illumination manage the level so a close subject is not washed out.
Recording, recorder and screen
Fit a microSD card of up to 512 GB for edge storage, or add the camera to a network video recorder. A recorder needs its own surveillance-rated hard drive and a monitor on its video output, and it belongs in a ventilated indoor spot near the router.
App and clients
The listed clients are UNV-Link and UNV-Link Pro on a phone and EZStation on a computer. Set the camera up on the router first, with an address in the router network segment, then add it in the client and allow a couple of minutes for the connection to settle.
When you need an electrician
Only for a new power point or for cabling inside a wall cavity, and that work is for a licensed electrician. The camera itself runs on PoE or low-voltage DC and needs no mains work.
§ 08Questions
Frequently asked about the IPC3616LE-ADF28KM-DL
Q.01
What is dual light on the Uniview IPC3616LE-ADF28KM-DL?
It has both an infrared light and a warm light, each reaching 30 m. Infrared gives a discreet black and white picture; the warm light gives full colour.
Q.02
How far away can it identify someone?
Identification is rated at 6.3 m, with recognition at 12.6 m, observation at 25.2 m and detection at 63.1 m. Mount it close to the point where a face matters.
Q.03
Does it tell a person from a car?
Cross line and intrusion detection are based on human body detection, and ultra motion detection is based on human body and vehicle detection. Motion, tampering and audio detection also run on the camera.
Q.04
Does it have a speaker or alarm connections?
No. There is a built-in microphone that records sound, but no speaker, no two-way audio and no alarm input or output.
Q.05
Will it work with a recorder from another brand?
It supports ONVIF Profile S, G and T, so a recorder using the same protocol can take it, using the camera IP address, its port and its web login.
Q.06
Can it record without a recorder?
Yes. A microSD card of up to 512 GB gives edge storage, and with a recorder ANR caches to that card through a network dropout and transfers the footage back afterwards.
Q.07
How is it powered?
PoE 802.3af on the network cable, or 12 V DC to the Ø5.5 mm coaxial plug. It draws no more than 5.1 W.
Q.08
Which apps work with it?
UNV-Link and UNV-Link Pro on a phone, and EZStation on a computer. Connect the camera to the router first, with an address in the router network segment.
Q.09
Will it survive outside?
Yes. It is rated IP67 and works from -30 °C to 60 °C at up to 95% non-condensing humidity.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
§ 10Bundles
Recommended packages
Add a PoE recorder or switch
The Uniview IPC3616LE-ADF28KM-DL takes power and video over one cable using PoE 802.3af at no more than 5.1 W. Check the recorder or switch supports 802.3af and has a spare port before ordering.
Add a microSD card
A card of up to 512 GB gives the camera edge storage and lets ANR fill a gap if the network to the recorder drops. Order one per camera, because the slot takes a single card.
Add the right bracket
A soffit or ceiling takes the camera directly, but a wall, corner, pole or pendant run needs a mount from the listed accessories, and an exposed cable joint needs the TR-A01-IN waterproof cable gland. Choose it with the camera so the install is not held up.
