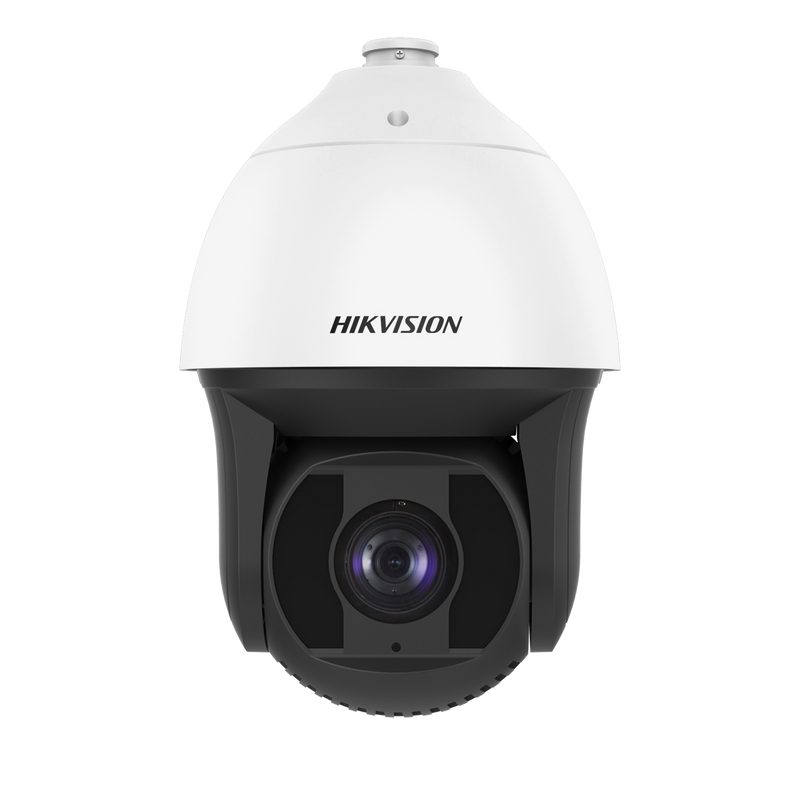

Hikvision DS-2DF8442IXS-AEL 4MP Outdoor HFR PTZ Camera, WDR, 42x Zoom, IP67, 500m IR, HiPoE
Hikvision DS-2DF8442IXS-AEL 4MP Outdoor HFR PTZ Camera 42x Zoom 500m IR
1 1
Hikvision

Hikvision DS-2DF8442IXS-AEL 4MP Outdoor HFR PTZ Camera, WDR, 42x Zoom, IP67, 500m IR, HiPoE

SKU: DS-2DF8442IXS-AEL
Description

The Hikvision DS-2DF8442IXS-AEL is a 4 MP PTZ speed dome with a 42x optical zoom and infrared up to 500 m for ultra-long-range night surveillance. A 140 dB WDR image, smart auto-tracking and a tough IP67 / IK10 body suit large, demanding outdoor sites.

Key points
- 4 MP (2560 x 1440) on a 1/1.8" sensor
- 42x optical zoom (6 to 252 mm) plus 16x digital
- Infrared up to 500 m with Smart IR; 140 dB WDR
- Smart auto-tracking, face capture and vehicle detection
- 360-degree endless pan; 300 presets; gyroscope EIS
- IP67 and IK10 metal body; 24 VAC or Hi-PoE
- High-frame-rate (HFR) PTZ for smooth fast motion
4MP Ultra HD IP67 Weatherproof
$3,569.60 AUD $3,569.60 AUD $4,012.00 AUD
Sale 11.03% $442.40 AUD (11.03%)
Member Sign in to save $71.39 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $4,513.20

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
Bundle total: $3,569.60
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DS-2DF8442IXS-AEL is

The Hikvision DS-2DF8442IXS-AEL is a 4 MP high-frame-rate PTZ speed dome built for ultra-long-range surveillance of large outdoor sites: rivers, roads, railways, airports, ports and open public areas.

A 1/1.8" sensor records 2560 x 1440 video, and the 42x optical zoom (6 to 252 mm) holds a wide overview and then reaches far down the site to pick out a person or a vehicle.

A powerful infrared array lights the scene up to 500 m, with Smart IR dimming close objects, and 140 dB Wide Dynamic Range keeps the picture readable where bright sky meets shaded ground.

The night image under infrared is black and white, as expected for an IR camera.

This model is the high-frame-rate (HFR) version of the 42x dome, so it streams smoother video of fast motion, which helps when you are tracking a moving vehicle at long zoom.

On-camera smart features include face capture, vehicle detection with number-plate, model and colour recognition, and smart events such as line crossing and intrusion.

Smart auto-tracking can lock onto a moving target and follow it, and a built-in gyroscope steadies the long zoom where the smallest vibration is magnified.

300 presets with patrol and pattern scans automate a tour of fixed views, and the 360-degree endless pan covers every direction from the mount.

It is built to sit out in the weather on a demanding site.

The metal housing is rated IP67 against dust and water and IK10 against impact (except the lens), with a heater for cold and damp, lightning and surge protection, and an operating range down to -40 degrees C.

This is a high-power camera: it runs on a 24 VAC supply or Hi-PoE, drawing up to 60 W, not a standard NVR PoE port.

It records to a network recorder or a microSD card up to 256 GB.

Pair it with a high-bandwidth Hikvision NVR for continuous recording.

See it in action

What the DS-2DF8442IXS-AEL features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p.

4MP Ultra HD

4MP captures roughly twice the detail of standard 1080p.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2DF8442IXS-AEL specifications

- 4 MP (2560 x 1440) on a 1/1.8" progressive-scan CMOS sensor
- 42x optical zoom (6 to 252 mm) plus 16x digital zoom
- Infrared up to 500 m with Smart IR; black and white at night
- 140 dB WDR, HLC, BLC and 3D DNR for harsh, mixed light
- High-frame-rate streaming for smoother fast motion
- Smart auto-tracking, face capture and vehicle detection
- 360-degree endless pan, 300 presets, gyroscope EIS
- IP67 / IK10 metal body, heater; 24 VAC or Hi-PoE power

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision DS-2DF8442IXS-AEL 4MP Outdoor HFR PTZ Camera, WDR, 42x Zoom, IP67, 500m IR, HiPoE
FeatureDetail
Image Sensor 1/1.8" progressive scan CMOS
Min. Illumination Color: 0.002 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Day & Night ICR (IR cut filter)
Zoom 42x optical, 16x digital
Max. Resolution 2560 × 1440
Wide Dynamic Range (WDR) 140 dB WDR
Image Enhancement BLC, HLC, 3D DNR, optical defog
Image Stabilization Yes. Built-in gyroscope (EIS).
Rapid Focus Yes

§ 04Why choose this

Built for the way you actually use the DS-2DF8442IXS-AEL

Infrared to 500 m

A powerful infrared array and a 42x optical zoom let you see and identify a target at the far end of a long perimeter in complete darkness.

Smoother long-range tracking

High-frame-rate streaming makes fast motion look smoother at full zoom, so a moving vehicle is easier to follow across a large site.

Smart auto-tracking built in

Auto-tracking locks onto a moving target, while face capture and vehicle detection add detail to an event for review.

Built for demanding sites

IP67 and IK10 with a heater, gyroscope and lightning protection stand up to weather, impact and vibration on exposed perimeters.

§ 05Where it fits

Right at home in these scenarios

Rivers, roads and railways

Watch a long stretch of waterway, road or rail line and zoom onto activity far down it, day or night with 500 m infrared.

Airports and ports

Cover an apron, runway approach or quayside from a high mount and reach along it to read vehicles and people at distance.

Large public areas

Sweep a square, park or stadium surrounds for an overview and zoom into an incident as it happens.

Long perimeters at night

Track a fence line or boundary in the dark and follow anyone who crosses it with smart auto-tracking.

§ 06Setup

Installation & setup

01

In the box

Camera and mounting hardware with the quick start guide. A wall or pole bracket, 24VAC supply or Hi-PoE injector, microSD card and NVR are bought separately.

02

Mounting

Fit it high on a solid pole, wall bracket or corner with a clear line down the site, so the 500 m infrared and 42x zoom are not blocked. A rigid mount keeps the distant view steady.

03

Power and network

This is a high-power PTZ. A standard NVR PoE port (802.3af/at) does not supply enough power, so use a 24 VAC supply or a Hi-PoE injectorat at the camera, bought separately, and run the video back to the recorder over the network.

04

Setup tips

Set preset positions and patrols, enable smart tracking and the smart events you want, and aim the infrared away from nearby walls to avoid glare at long range.

§ 07Questions

Frequently asked about the DS-2DF8442IXS-AEL

Q.01

How far does the infrared on the DS-2DF8442IXS-AEL reach?
The infrared array lights the scene up to 500 metres, with Smart IR dimming close objects so they are not overexposed. The night image under infrared is black and white, and the usable distance depends on the scene, weather and how reflective the target is.
Q.02

What does the smart tracking do on this model?
It supports manual, event and automatic tracking, so it can lock onto a moving target and follow it across the scene. It also captures faces and detects vehicles, including number-plate, model and colour. Note that this is the earlier smart-tracking generation, so we describe it as smart tracking rather than the human-and-vehicle perimeter classification of the newest G1 models.
Q.03

What does 'HFR' mean on this camera?
HFR stands for high frame rate. This dome streams at a higher frame rate than a standard PTZ, so fast motion looks smoother and is easier to follow at long zoom, which helps when tracking a moving vehicle across a large site.
Q.04

How is it powered, and can I use my NVR's PoE port?
It runs on a 24 VAC supply or Hi-PoE, drawing up to 60 W. A standard NVR PoE port (802.3af or at) does not supply enough power, so use a 24 VAC supply or a Hi-PoE injector at the camera and run the video back over the network.
Q.05

How far can it identify a person at full zoom?
At full zoom, under good conditions, it reaches far enough to identify people and vehicles at long range, and the 500 m infrared lets it do so at night. The exact distance depends on light, weather and mounting, but it is built for the longest perimeters and roadways.
Q.06

Does this version have a wiper?
The base DS-2DF8442IXS-AEL listed here does not advertise a wiper; the related -AELW model adds a rain-sensing wiper. All versions have a heater and demist for cold and damp. If a wiper is essential for a very wet site, ask us about the -AELW variant.
Q.07

What should I record it to?
Record it to a high-bandwidth Hikvision NVR over the network for continuous footage, or to a microSD card up to 256 GB inside the camera. Choose an NVR with enough bandwidth for a 4 MP high-frame-rate stream.

§ 09Bundles

Recommended packages

01

Record it on a high-bandwidth NVR

Send it to a Hikvision NVR such as the 16-channel DS-7616NI-M2/16P or, for a larger site, the 32-channel DS-7732NI-M4/24P, and add a surveillance drive like the 8 TB drive for continuous footage.

02

Power it correctly

This is a high-power PTZ. A standard NVR PoE port (802.3af/at) does not supply enough power, so use a Hi-PoE injector or a 24 VAC supply at the camera, bought separately, and run the video back to the recorder over the network.

03

Compare with a DarkFighter G1 dome

If you want human-and-vehicle perimeter classification, look at the DS-2DF8442IXG1-ELWY, which adds deep-learning target detection on top of the long zoom.
