Hikvision 8MP 16CH CCTV Kit: 8 x Outdoor Acusense Turret Cameras + 16CH NVR/4TB
SKU: DS-2CD2386G2-IU
Description
8 x 8MP Hikvision 4K AcuSense Turret Cameras
Model: DS-2CD2386G2-IU
Specs: 8MP 4K Ultra HD resolution, AcuSense human & vehicle detection, Powered-by-DarkFighter low-light technology, Built-in microphone for audio recording
1 x 16CH Hikvision M-Series PoE NVR (4TB HDD)
Model: DS-7616NI-M2/16P
Specs: 16-Port plug & play PoE, Up to 8K resolution support, H.265+ high-efficiency compression, 4TB surveillance-grade HDD
Regular price
$3,210.20 AUD
Sale price
$3,210.20 AUD
Regular price
$4,298.00 AUD
Sale
25.31%
$1,087.80 AUD
(25.31%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision 8MP 16CH CCTV Kit: 8 x Outdoor Acusense Turret Cameras + 16CH NVR/4TB
1
/
of
1
Customize this kit Kit price $3,210.20

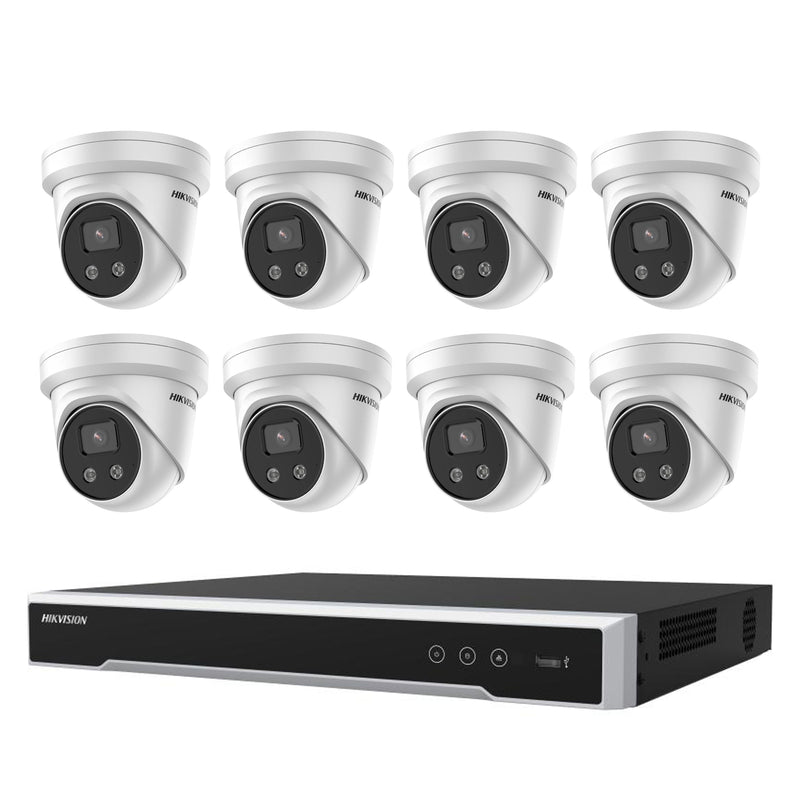

This kit includes:
- 8 × Hikvision Acusense DS-2CD2386G2-IU IP Camera 8MP 4K Turret Network Camera with Mic
- 1 × Hikvision DS-7616NI-M2/16P 16ch M-Series PoE NVR, 256Mbps, H.265, 16 PnP Ports, 2 HDD Bay, 4TB (16ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Hikvision DS-2CD2386G2-IU / DS-7616NI-m2 8MP 4K Turret Camera Kit provides a premium surveillance solution for Australian residential properties and commercial organisations. This package features the model designed for ultra-high-definition monitoring and advanced perimeter security. The kit delivers exceptional clarity and intelligent detection, making it an ideal choice for businesses requiring a professional-grade security deterrent.
§ 02Engineering
Technical specifications
- 8 x 8MP Cameras: Turret-style outdoor 4K cameras with 3840 x 2160 resolution, featuring DarkFighter technology for superior night performance and a built-in microphone for audio capture.
- AcuSense AI Technology: Utilises deep learning algorithms to accurately classify human and vehicle targets, reducing false motion alarms by up to 95%.
- Powered-by-DarkFighter: High-sensitivity image sensors ensure clear-cut, detailed visuals even in the lowest lighting conditions down to 0.003 Lux.
- True Wide Dynamic Range: 120dB WDR technology balances exposure in high-contrast scenes to prevent loss of detail in bright sunlight or deep shadows.
- Weatherproof Durability: IP67-rated housing provides reliable protection against dust and rain, ensuring 24/7 operation in Australian outdoor environments.
- Efficient Video Compression: Supports H.265+ technology which reduces bandwidth and storage requirements by up to 80% while maintaining 4K image quality.
- 16CH NVR System: Base setup includes a powerful 16-channel network video recorder, allowing for future expansion with additional cameras and high-capacity HDD storage.
- AcuSense AI Technology: Utilises deep learning algorithms to accurately classify human and vehicle targets, reducing false motion alarms by up to 95%.
- Powered-by-DarkFighter: High-sensitivity image sensors ensure clear-cut, detailed visuals even in the lowest lighting conditions down to 0.003 Lux.
- True Wide Dynamic Range: 120dB WDR technology balances exposure in high-contrast scenes to prevent loss of detail in bright sunlight or deep shadows.
- Weatherproof Durability: IP67-rated housing provides reliable protection against dust and rain, ensuring 24/7 operation in Australian outdoor environments.
- Efficient Video Compression: Supports H.265+ technology which reduces bandwidth and storage requirements by up to 80% while maintaining 4K image quality.
- 16CH NVR System: Base setup includes a powerful 16-channel network video recorder, allowing for future expansion with additional cameras and high-capacity HDD storage.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC, HLC, 3D DNR |
| Target Cropping | Yes |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131° | 4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102° | 6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m | 4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m | 6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| IR Range | Up to 30 m |
Video
| Feature | Detail |
|---|---|
| Max. Resolution | 3840 × 2160 |
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 24 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) | 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | -U: mono sound |
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection; Supports human and vehicle targets classification |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR); Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+; Local service: Chrome 57.0+, Firefox 52.0+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Built-in Microphone | -U: Yes |
| Hardware Reset | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Camera Material | Metal |
| Camera Dimension | Ø138.3 mm × 126.3 mm (Ø5.4" × 5") |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.9" × 6.9" × 5.9") |
| Camera Weight | Approx. 740 g (1.6 lb.) |
| With Package Weight | Approx. 1020 g (2.2 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
| Web Client Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Firmware Version | V5.5.112 |
| Software Reset | Yes |
| Power Consumption and Current | 12 VDC, 0.48 A, max. 5.8 W; PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W |
| Power Supply | 12 VDC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3 |
| Power Interface | Ø5.5 mm coaxial power plug |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
