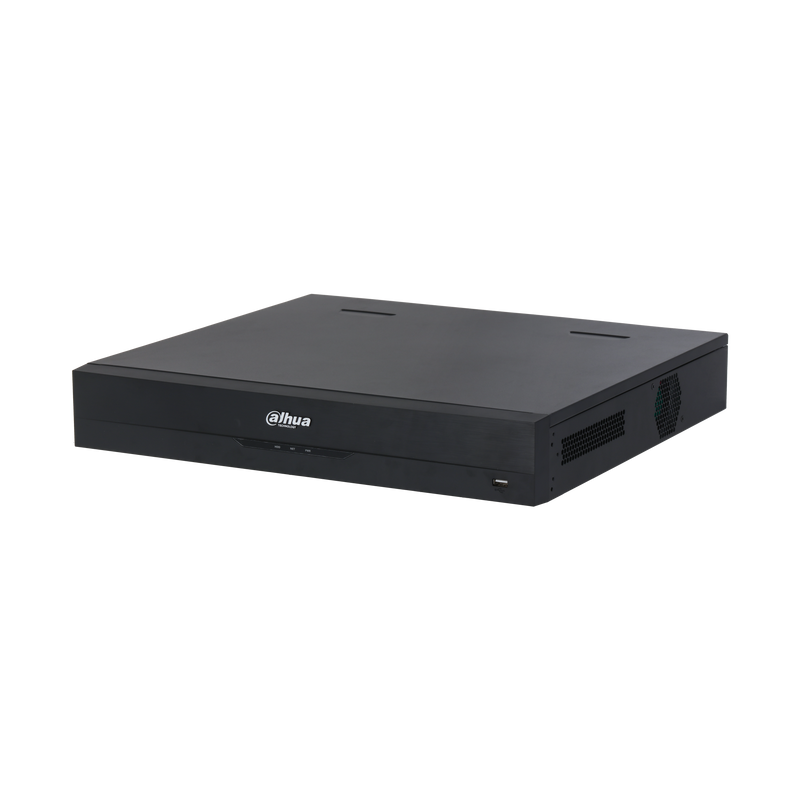

Dahua DHI-NVR5432-AI/ANZ 32 Channel 1.5U 16 Channel 4k Wizsense Network Video Recorder NVR No POE
SKU: DHI-NVR5432-AI/ANZ
Description
The Dahua DHI-NVR5432-AI/ANZ is a 32-channel 1.5U Pro WizSense network video recorder without built-in PoE — cameras connect through your own network switches. It records up to 32 cameras at resolutions up to 32MP, has four SATA bays, runs recorder-side AI including face recognition, perimeter protection and SMD Plus, and drives dual HDMI and dual VGA outputs. Hard drives are supplied separately.
Key points
- 32 IP channels in a 1.5U chassis; no built-in PoE (cameras via network switches)
- Records cameras up to 32MP; 384 Mbps incoming (200 Mbps with AI on)
- Four SATA bays up to 16TB each (up to 64TB); plus eSATA; HDD not included
- AI by recorder: face detection & recognition, perimeter protection, SMD Plus
- Rich camera-side AI: video metadata, ANPR, people counting and more
- Dual HDMI + dual VGA, 4K display; Smart H.265+; remote view via DMSS
Regular price
$820.00 AUD
Sale price
$820.00 AUD
Regular price
$858.00 AUD
Sale
4.43%
$38.00 AUD
(4.43%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua DHI-NVR5432-AI/ANZ 32 Channel 1.5U 16 Channel 4k Wizsense Network Video Recorder NVR No POE
1
/
of
1
3-Year WarrantyOn all cameras
Free ShippingOn orders over $300
30-Day ReturnsUnopened items
Fast Delivery1–5 days Australia-wide
Build your setup Build a complete CCTV system Complete setup from $1,190.00
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the DHI-NVR5432-AI/ANZ is
The Dahua DHI-NVR5432-AI/ANZ is a Pro-series 32-channel recorder in a 1.5U chassis, built for sites where cameras are already powered from managed network switches rather than the recorder. It has no built-in PoE, so every camera connects over your network — the usual arrangement on a larger installation where cameras are spread across the site and fed by separate PoE switches. It records up to 32 cameras at resolutions as high as 32MP.
It runs the same recorder-side WizSense AI as the 16P version — face detection and recognition on two channels, perimeter protection on four channels and SMD Plus on eight channels — and supports rich camera-side analytics such as video metadata, ANPR, people counting and stereo analysis with capable cameras. With AI off it handles 384 Mbps of incoming bandwidth, dropping to around 200 Mbps with AI running, so plan camera count and bitrates for your mode. Dual HDMI and dual VGA outputs with 4K display suit a multi-screen monitoring position.
It has four SATA bays, each taking a surveillance drive up to 16TB for up to 64TB total, plus an eSATA port, and it is supplied without drives so you can plan capacity to suit your retention.
§ 02Engineering
DHI-NVR5432-AI/ANZ specifications
- 32-channel 1.5U Pro WizSense NVR with 16 built-in PoE ports (IEEE 802.3af/at, ePoE on ports 1–8)
- Records IP cameras up to 32MP; 384 Mbps incoming (200 Mbps with AI enabled)
- Four SATA bays up to 16TB each (up to 64TB) plus eSATA — drives supplied separately
- AI by recorder: 2-channel face detection and recognition, 4-channel perimeter, 8-channel SMD Plus
- Camera-side AI support: video metadata, ANPR, people counting, stereo analysis and more
- Dual HDMI and dual VGA outputs with 4K display for multi-screen layouts
- RS-485 interface for PTZ camera control and third-party integration
- Smart H.265+ compression to extend recording time and cut bandwidth
- Remote live view and playback via the free DMSS app; genuine Australian stock, 3-year warranty
- Records IP cameras up to 32MP; 384 Mbps incoming (200 Mbps with AI enabled)
- Four SATA bays up to 16TB each (up to 64TB) plus eSATA — drives supplied separately
- AI by recorder: 2-channel face detection and recognition, 4-channel perimeter, 8-channel SMD Plus
- Camera-side AI support: video metadata, ANPR, people counting, stereo analysis and more
- Dual HDMI and dual VGA outputs with 4K display for multi-screen layouts
- RS-485 interface for PTZ camera control and third-party integration
- Smart H.265+ compression to extend recording time and cut bandwidth
- Remote live view and playback via the free DMSS app; genuine Australian stock, 3-year warranty
§ 03Full datasheet
Detailed specifications
Video
| Feature | Detail |
|---|---|
| Access Channel | 32 |
| Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing | AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Decoding Capability | AI disabled: 2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps | AI enabled: 1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps |
| Video Output | 2-channel VGA, 2-channel HDMI video output. | Heterogeneous video source output for HDMI1 and HDMI2 | Simultaneous video source output for VGA1 and HDMI1 | Simultaneous video source output for VGA2 and HDMI2 | Supports 4K display |
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36 | Sub screen: 1/4/8/9/16 |
| Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Multi-channel Playback | Up to 16 channels |
| Record Mode | General, motion detection; intelligent; alarm; POS |
| Backup Method | USB device and network |
| Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711a; G.711u; PCM; G726 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus |
| AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Perimeter Performance AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| Perimeter Performance of AI by Camera (Number of Channels) | 16 channels |
| Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| Face Detection Performance of AI by Camera (Number of Channels) | 16 channels |
| Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| Face Recognition Performance of AI by Recorder (Number of Channels) | 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s | 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| Face Recognition Performance of AI by Camera (Number of Channels) | 16 channels |
| SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| SMD Plus by Camera | 16 channels |
| Metadata Performance of AI by Camera (Number of Channels) | 8 channels |
| Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
| Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. |
| Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. |
| ANPR by Camera (Number of Channels) | 8 channels |
| License Plate Database Capacity | 1. Create up to 20,000 plate numbers. | 2. Blocklist and allowlist |
Network & Storage
| Feature | Detail |
|---|---|
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web, Local GUI |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration |
| Mobile Phone Access | iOS; Android |
| Interoperability | ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK |
| Browser | Chrome | IE 9 or later | Firefox |
| Network Mode | Multi-address mode, load balance, fault tolerance and other network port binding modes |
| HDD Interface | 4 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature. |
| Disk Group | YES |
Event & Alarm
| Feature | Detail |
|---|---|
| General Alarm | Motion detection; privacy masking; local alarm |
| Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception |
| Intelligent Alarm | Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email |
Interface
| Feature | Detail |
|---|---|
| Audio Input | 1-channel RCA |
| Audio Output | 2-channel RCA |
| Alarm Input | 16 channels |
| Alarm Output | 6 channels (1-channel 12 V 1 A output) |
| eSATA | 1 |
| RS-232 | 1 |
| RS-485 | 1 (half-duplex serial communication) |
| USB | 3(1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| HDMI | 2 |
| VGA | 2 |
| Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 100–240 VAC, 50-60 Hz |
| Power Consumption | Total output of NVR is ≤ 13 W (without HDD) |
| Net Weight | 4.74 kg (10.45 lb) |
| Gross Weight | 6.11 kg (13.47 lb) |
| Product Dimensions | 440.0 mm × 415.1 mm x 70.0 mm (17.32" × 16.34" × 2.76") (W ×D × H) |
| Packaging Dimensions | 530.0 mm × 500.0 mm × 210.0 mm (20.87" × 19.69" × 8.27")(W × D × H) |
| Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Operating Humidity | 10%–93% (RH) |
| Installation | Rack or desktop |
| Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A | CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 | CE-LVD: EN 62368-1: 2014 |
| Video — Access Channel | 32 |
|---|---|
| Video — Network Bandwidth | AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing | AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing |
| Video — Resolution | 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF |
| Video — Decoding Capability | AI disabled: 2-channel 32 MP@20 fps; 2-channel 24 MP@20 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps | AI enabled: 1-channel 32 MP@20 fps; 1-channel 24 MP@20 fps; 2-channel 16 MP@30 fps; 4-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 8-channel 5 MP@30 fps; 12-channel 4 MP@30 fps; 24-channel 1080p@30 fps |
| Video — Video Output | 2-channel VGA, 2-channel HDMI video output. | Heterogeneous video source output for HDMI1 and HDMI2 | Simultaneous video source output for VGA1 and HDMI1 | Simultaneous video source output for VGA2 and HDMI2 | Supports 4K display |
| Video — Multi-screen Display | Main screen: 1/4/8/9/16/25/36 | Sub screen: 1/4/8/9/16 |
| Video — Third-party Camera Access | ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung |
| Video — Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Video — Multi-channel Playback | Up to 16 channels |
| Video — Record Mode | General, motion detection; intelligent; alarm; POS |
| Video — Backup Method | USB device and network |
| Video — Playback Mode | Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection) |
| Audio — Audio Compression | G.711a; G.711u; PCM; G726 |
| AI & Deep Learning — AI by Recorder | Face detection; face recognition; perimeter protection; SMD Plus |
| AI & Deep Learning — AI by Camera | Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| AI & Deep Learning — Perimeter Performance AI by Recorder (Number of Channels) | 4 channels, 10 IVS rules for each channel |
| AI & Deep Learning — Perimeter Performance of AI by Camera (Number of Channels) | 16 channels |
| AI & Deep Learning — Face Attributes | Gender; age group; glasses; expressions; face mask; beard |
| AI & Deep Learning — Face Detection Performance of AI by Recorder (Number of Channels) | 2 channels (up to 12 face images/s each channel) |
| AI & Deep Learning — Face Detection Performance of AI by Camera (Number of Channels) | 16 channels |
| AI & Deep Learning — Face Database Capacity | Up to 20 face databases with 20,000 images, with a total capacity of 2.5 G. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image. |
| AI & Deep Learning — Face Recognition Performance of AI by Recorder (Number of Channels) | 1. 16-channel FD (by camera) + FR (by recorder), image stream: 16 face images/s | 2. 2-channe FD (by recorder) + FR (by recorder), video stream: 12 face images/s |
| AI & Deep Learning — Face Recognition Performance of AI by Camera (Number of Channels) | 16 channels |
| AI & Deep Learning — SMD Plus by Recorder | 8 channels: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change |
| AI & Deep Learning — SMD Plus by Camera | 16 channels |
| AI & Deep Learning — Metadata Performance of AI by Camera (Number of Channels) | 8 channels |
| AI & Deep Learning — Human Attributes | Top color, top type, bottom color, bottom type, hat, bag, age, gender and umbrella |
| AI & Deep Learning — Motor Vehicle Attributes | License plate, plate color, vehicle body, vehicle model, vehicle logo, calling, seatbelt, vehicle interior, vehicle registration location. |
| AI & Deep Learning — Non-motor Vehicle Attributes | Vehicle model, vehicle color, number of persons, helmet. |
| AI & Deep Learning — ANPR by Camera (Number of Channels) | 8 channels |
| AI & Deep Learning — License Plate Database Capacity | 1. Create up to 20,000 plate numbers. | 2. Blocklist and allowlist |
| Network & Storage — Main Processor | Industrial-grade processor |
| Network & Storage — Operating System | Embedded Linux |
| Network & Storage — Operating Interface | Web, Local GUI |
| Network & Storage — Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SNMP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration |
| Network & Storage — Mobile Phone Access | iOS; Android |
| Network & Storage — Interoperability | ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK |
| Network & Storage — Browser | Chrome | IE 9 or later | Firefox |
| Network & Storage — Network Mode | Multi-address mode, load balance, fault tolerance and other network port binding modes |
| Network & Storage — HDD Interface | 4 SATA ports, up to 16 TB.The maximum HDD capacity varies with environment temperature. |
| Network & Storage — Disk Group | YES |
| Event & Alarm — General Alarm | Motion detection; privacy masking; local alarm |
| Event & Alarm — Anomaly Alarm | Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception |
| Event & Alarm — Intelligent Alarm | Face detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map |
| Event & Alarm — Alarm Linkage | Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email |
| Interface — Audio Input | 1-channel RCA |
| Interface — Audio Output | 2-channel RCA |
| Interface — Alarm Input | 16 channels |
| Interface — Alarm Output | 6 channels (1-channel 12 V 1 A output) |
| Interface — eSATA | 1 |
| Interface — RS-232 | 1 |
| Interface — RS-485 | 1 (half-duplex serial communication) |
| Interface — USB | 3(1 front USB 2.0 port, 2 rear USB 3.0 ports) |
| Interface — HDMI | 2 |
| Interface — VGA | 2 |
| Interface — Network Port | 2 (10/100/1000 Mbps Ethernet port, RJ-45) |
| General & Environment — Power Supply | 100–240 VAC, 50-60 Hz |
| General & Environment — Power Consumption | Total output of NVR is ≤ 13 W (without HDD) |
| General & Environment — Net Weight | 4.74 kg (10.45 lb) |
| General & Environment — Gross Weight | 6.11 kg (13.47 lb) |
| General & Environment — Product Dimensions | 440.0 mm × 415.1 mm x 70.0 mm (17.32" × 16.34" × 2.76") (W ×D × H) |
| General & Environment — Packaging Dimensions | 530.0 mm × 500.0 mm × 210.0 mm (20.87" × 19.69" × 8.27")(W × D × H) |
| General & Environment — Operating Temperature | –10 °C to +55 °C (14 °F to +131 °F) |
| General & Environment — Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| General & Environment — Operating Humidity | 10%–93% (RH) |
| General & Environment — Installation | Rack or desktop |
| General & Environment — Certifications | FCC: 47 CFR FCC Part15, SubpartB, Class A | CE-EMC: EN 55032: 2015+A1: 2020; EN IEC 61000-3-2: 2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2: 2021; EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014 | CE-LVD: EN 62368-1: 2014 |
§ 04Why choose this
Built for the way you actually use the DHI-NVR5432-AI/ANZ
High channel count and resolution
Thirty-two channels and support for cameras up to 32MP cover a large or detailed camera estate.
Storage that scales
Four SATA bays up to 16TB each (up to 64TB) plus eSATA give the capacity a busy 32-channel system needs.
AI and multi-screen control
Recorder-side face, perimeter and SMD Plus analytics with dual HDMI and dual VGA outputs suit a staffed monitoring room.
§ 05Where it fits
Right at home in these scenarios
Switch-based commercial sites
Aggregate up to 32 cameras already powered by network switches into one Pro recorder.
Multi-building and campus
Bring cameras from many switches and buildings back to a single 32-channel unit.
High-resolution estates
Run high-megapixel cameras up to 32MP with the bandwidth and storage a Lite NVR does not offer.
Long-retention installations
Fill four bays with high-capacity drives for weeks of recording across many channels.
§ 06Setup
Installation & setup
What's in the box
One DHI-NVR5432-AI/ANZ 1.5U recorder, power lead and mouse. Hard drives, network switches, cameras and monitors are not included.
Installation requirements
Fit surveillance-grade SATA drives across the four bays to suit your retention, connect cameras through managed PoE switches on the network (the recorder has no built-in PoE), then connect monitors over HDMI/VGA and the network for remote access and add it to DMSS. Plan camera bitrates against the AI-on bandwidth limit; a UPS is recommended on a system this size. Professional installation is recommended.
§ 07Questions
Frequently asked about the DHI-NVR5432-AI/ANZ
Q.01
Does this NVR have built-in PoE ports?
No. The NVR5432-AI has no built-in PoE, so cameras connect through your own network switches. This is normal on a larger 32-channel system where cameras are spread across the site and powered by separate PoE switches. If you want some cameras powered directly from the recorder, choose the NVR5432-16P version with sixteen built-in PoE ports.
Q.02
Does it come with hard drives?
No. It is supplied without drives so you can plan capacity to suit the site. It has four SATA bays, each taking a surveillance-grade drive up to 16TB for up to 64TB in total, plus an eSATA port for further expansion.
Q.03
How many cameras and what resolution can it handle?
It records up to 32 IP channels at resolutions up to 32MP. With AI off it handles 384 Mbps of incoming bandwidth, dropping to around 200 Mbps with AI features running, so plan camera count and bitrates against the mode you will use.
Q.04
What AI features does the recorder provide?
On board it offers face detection and recognition on two channels, perimeter protection on four channels and SMD Plus on eight channels to filter people and vehicles from other motion. With capable WizSense cameras it also supports camera-side analytics such as video metadata, ANPR, people counting and stereo analysis.
Q.05
What switches do I need for the cameras?
Use managed or unmanaged PoE switches sized for your cameras, then connect those switches to the NVR over the network. Plan total switch PoE budget for the number and type of cameras, the same way you would for any non-PoE recorder.
Q.06
How many monitors can it drive?
It has dual HDMI and dual VGA outputs with 4K display support, so you can spread cameras across several screens for a monitoring position.
Q.07
Can I view it on my phone?
Yes. Connect the NVR to your router and add it to the free Dahua DMSS app to watch live and play back recordings from a phone or tablet, at home or away.
Q.08
Is this the Australian model?
Yes. The /ANZ suffix indicates Australia and New Zealand firmware, and it is supplied as genuine Australian Dahua stock with local warranty and support.
§ 08In motion
Dahua NVR NEXT 5.0 | Smarter. Faster. Seamless.
§ 09Bundles
Recommended packages
Add hard drives (required)
Fit the four bays with surveillance drives such as 8TB, 10TB or 6TB units, sized to your retention.
Add WizSense cameras
Pair it with Dahua WizSense cameras such as the 8MP HFW3866 bullet or the 8MP HDBW3867 dome, powered from your network switches.
Want built-in PoE instead?
If you want up to sixteen cameras powered directly from the recorder, compare the NVR5432-16P.
Need even more channels?
For a 64-channel enterprise recorder with eight bays and RAID, step up to the DHI-NVR5864-AI/ANZ.
