DAHUA DH-IPC-HDBW3466R-AS-P 4MP – 180-degree camera Dome WizSense ,IR, IP67, 12v / PoE, 2.1mm lens
1 1
Dahua

DAHUA DH-IPC-HDBW3466R-AS-P 4MP – 180-degree camera Dome WizSense ,IR, IP67, 12v / PoE, 2.1mm lens

SKU: DH-IPC-HDBW3466R-AS-P
Description

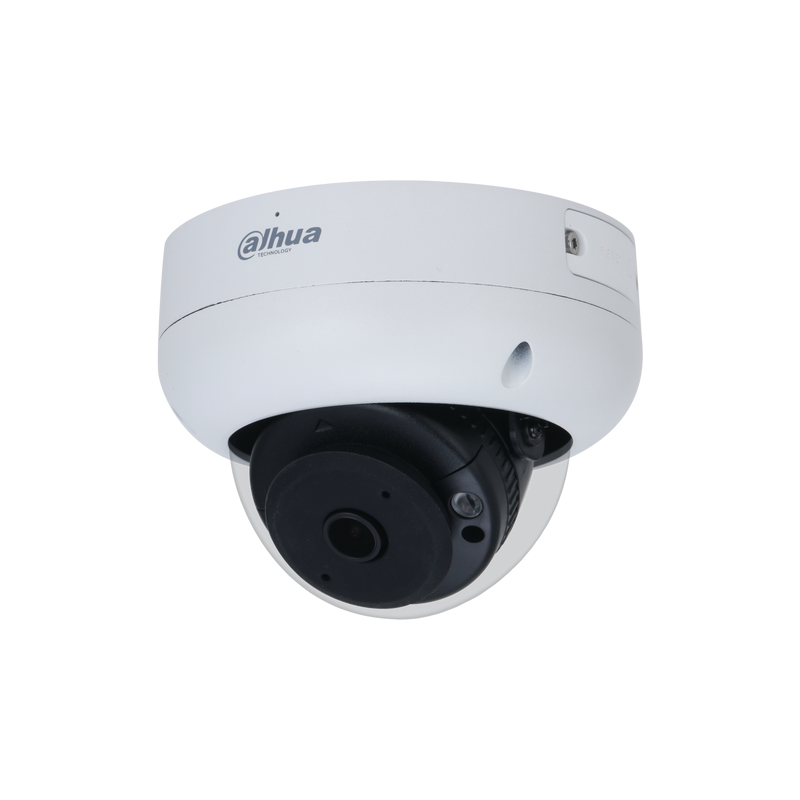

The Dahua DH-IPC-HDBW3466R-AS-P is a 4 MP WizSense dome with an ultra-wide 2.1 mm lens that delivers a 180-degree horizontal view, covering a whole room or frontage from one position. Lens distortion correction straightens the panorama, SMD detection classifies people and vehicles, and the IP67, IK10 housing with a built-in microphone suits entrances, retail floors and wide indoor spaces.

Key points
- 4 MP (2880 x 1620) 1/2.7" CMOS, fixed 2.1 mm ultra-wide lens
- 180-degree horizontal field of view (170 degrees with distortion correction)
- Lens distortion correction (LDC) straightens the wide image
- SMD with human and vehicle classification; perimeter protection
- Built-in microphone for audio recording
- 15 m infrared for close-range night coverage
- 120 dB WDR; IP67 weatherproof and IK10 vandal resistant; PoE or 12 VDC
4MP Ultra HD False Alarm Reduction Human/Vehicle Detection Built-in Microphone
$201.85 AUD $201.85 AUD $247.00 AUD
Sale 18.28% $45.15 AUD (18.28%)
Installation in Sydney & Melbourne Through licensed local installers
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $797.25

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $201.85

01Overview

What the DH-IPC-HDBW3466R-AS-P is

The Dahua DH-IPC-HDBW3466R-AS-P is a 4 MP wide-angle dome built to cover a large area from a single camera. Its fixed 2.1 mm lens captures a full 180-degree horizontal view, so one unit can watch an entire room, forecourt or building frontage and remove the blind spots you would get from a narrow lens. On-board lens distortion correction straightens the panorama, giving a 170-degree corrected view by default with less barrel distortion.

WizSense intelligence brings SMD detection with human and vehicle classification plus perimeter rules such as tripwire and intrusion, so alarms focus on real activity across the wide scene. 120 dB WDR balances bright entrances against darker interiors, and a built-in microphone records audio. The housing is rated IP67 against dust and rain and IK10 against impact, so it suits public entrances and exposed positions.

Two honest notes so it suits your site: the wide 2.1 mm lens is designed for close-to-medium coverage of a broad area, not for reaching a distant point, and its infrared illuminator covers about 15 m, which suits indoor rooms and close entrances rather than long outdoor distances. It also has a built-in microphone but no speaker, so it records audio rather than offering two-way talk. Power it from PoE or 12 VDC and record it to a Dahua WizSense NVR.

See it in action

What the DH-IPC-HDBW3466R-AS-P features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p.

4MP Ultra HD

4MP captures roughly twice the detail of standard 1080p.
False Alarm Reduction — Filtering helps separate real activity from harmless movement like rain, leaves or ...

False Alarm Reduction

Filtering helps separate real activity from harmless movement like rain, leaves or pets, so you get fewer pointless notifications and the alerts that matter stand out.
Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying...

Human/Vehicle Detection

Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.

Illustrative — simulated for demonstration

02Engineering

DH-IPC-HDBW3466R-AS-P specifications

- 4 MP (2880 x 1620) 1/2.7" CMOS at up to 25/30 fps
- Fixed 2.1 mm ultra-wide lens, 180-degree horizontal field of view
- Lens distortion correction (LDC) for a straighter 170-degree image
- SMD with human and vehicle classification; tripwire and intrusion
- Built-in microphone for audio recording (no built-in speaker)
- 15 m infrared night vision for close-range coverage (black-and-white)
- 120 dB WDR and 3D NR; IP67 weatherproof and IK10 vandal resistant
- Powered by PoE or 12 VDC; microSD up to 256 GB

03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — DAHUA DH-IPC-HDBW3466R-AS-P 4MP – 180-degree camera Dome WizSense ,IR, IP67, 12v / PoE, 2.1mm lens
FeatureDetail
Image Sensor 1/2.7" CMOS
Max. Resolution 2880 (H) × 1620 (V)
ROM 128 MB
RAM 512 MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio >56 dB
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; Manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower)
Mirror Yes
Privacy Masking 4 areas

04Why choose this

Built for the way you actually use the DH-IPC-HDBW3466R-AS-P

One camera, whole area

A 180-degree lens covers an entire room or frontage from one position and removes the blind spots of a narrow lens.

Straighter wide image

Lens distortion correction tidies the ultra-wide view to a more natural 170-degree picture.

Smart wide-scene alerts

WizSense human and vehicle classification keeps alarms on people and cars across the broad field.

Tough where it counts

IP67 and IK10 ratings suit public entrances and exposed positions.

05Where it fits

Right at home in these scenarios

Retail floors

Cover a shop floor or counter area with one wide camera instead of several narrow ones.

Receptions and lobbies

Watch a whole entrance area from a single ceiling or wall position.

Building frontages

Capture a wide view across the front of a property at close to medium range.

Large indoor rooms

Monitor an open-plan room or hall with no blind spots from one camera.

06Setup

Installation & setup

  1. What's in the box

    One DH-IPC-HDBW3466R-AS-P 4MP 180-degree dome camera with mounting template and fixings. The microSD card, power supply or PoE source and any NVR are supplied separately.

  2. Installation requirements

    Mount it centrally over the wide area to cover, on a wall or ceiling, and power it from a PoE switch or NVR or a 12 VDC supply. Connect the network, enable lens distortion correction if you want the straightened view, set the SMD rules, and add it to a Dahua NVR for recording and event search. Because the infrared covers about 15 m, position it for close-to-medium scenes.

08Questions

Frequently asked about the DH-IPC-HDBW3466R-AS-P

Q.01

How wide a view does the HDBW3466R-AS-P give?
Its fixed 2.1 mm lens captures a full 180-degree horizontal field of view, so one camera can cover an entire room, forecourt or building frontage. With lens distortion correction enabled the corrected view is about 170 degrees with less barrel distortion.
Q.02

Does the wide lens cause a fisheye or distorted image?
There is some barrel distortion with such a wide lens, but the camera includes lens distortion correction that straightens the image. By default it gives a corrected 170-degree view that looks more natural than an uncorrected panorama.
Q.03

How far does the night vision reach?
It has a 15 m infrared illuminator. That suits indoor rooms, lobbies and close entrances, which is what an ultra-wide camera is designed to cover, rather than long outdoor distances. The night image is black-and-white like any infrared camera.
Q.04

Does it tell people and vehicles apart?
Yes. Its WizSense detection supports human and vehicle classification on tripwire and intrusion rules, so alarms focus on people and vehicles and ignore other movement across the wide scene.
Q.05

Does it have two-way audio?
It has a built-in microphone so it records audio with the video, but it does not have a built-in speaker, so it is not a two-way talk camera on its own.
Q.06

Is it weatherproof and vandal resistant?
Yes. It is rated IP67 against dust and rain and IK10 against impact, so it suits public entrances and exposed positions as well as indoor areas.
Q.07

Where is this camera best used?
It suits places where you want one camera to see a whole wide area at close to medium range, such as a shop floor, a reception, a building frontage or a large room, rather than a long driveway where a standard lens with longer infrared would be better.
Q.08

How is it powered?
It runs on PoE (802.3af) or a 12 VDC supply, so you can power and network it over one cable from a PoE NVR or switch, or use a local 12 VDC source.
