Dahua 4-Camera 8MP CCTV Kit: 2x HDW3849H-S2 + 2x HFW3849T1-S2, 4CH NVR, No HDD
Email us
1 1
Dahua

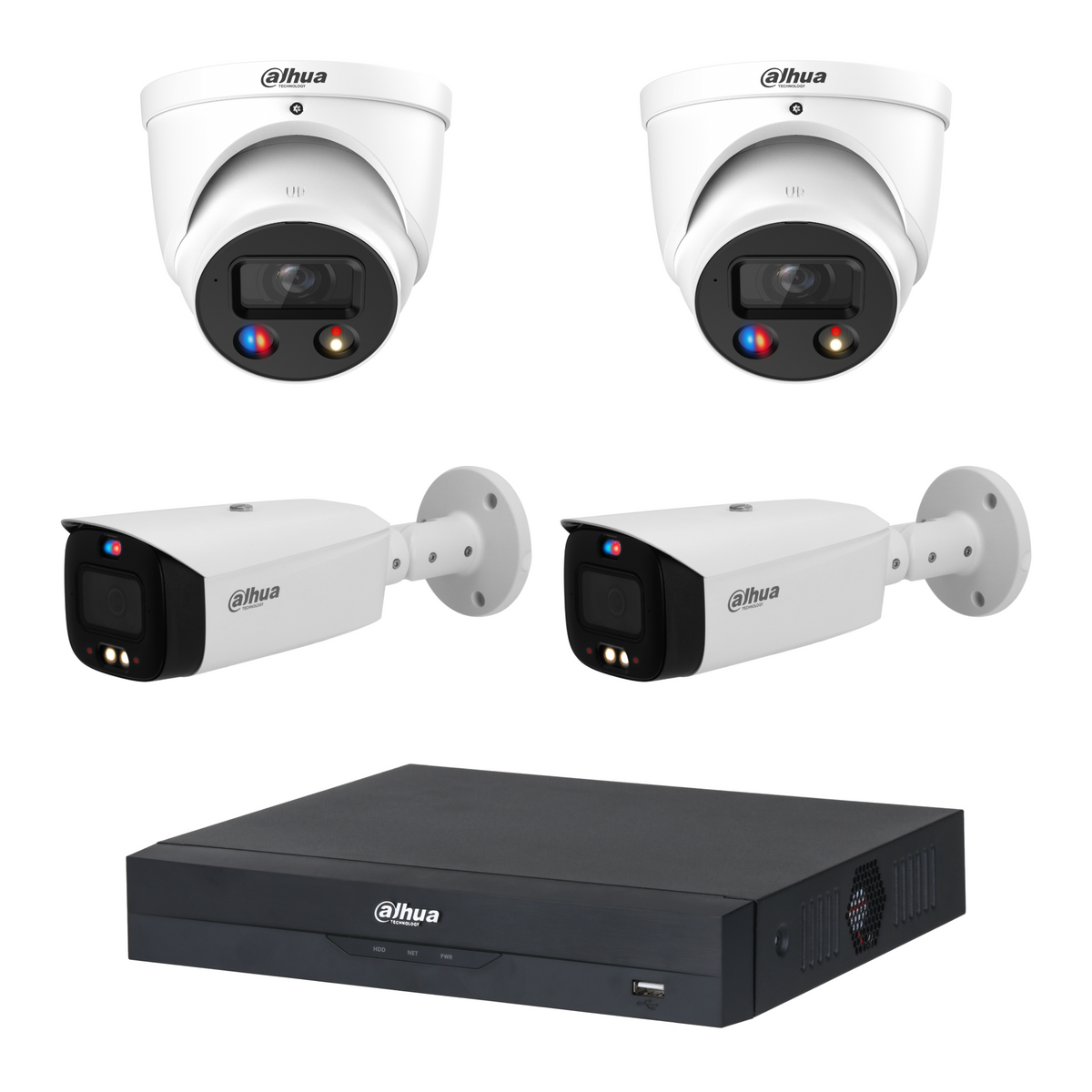

Dahua 4-Camera 8MP CCTV Kit: 2x HDW3849H-S2 + 2x HFW3849T1-S2, 4CH NVR, No HDD

SKU: KIT-HDW3849H-S2-2CAM-HFW3849T1-S2-2CAM-NVR4104-NOHDD
Description

2 × HDW3849H-S2 8MP TiOC S2 + 2 × HFW3849T1-S2 8MP TiOC S2, supplied in white with 2.8 mm fixed lenses, plus one DHI-NVR4104HS-P-AI/ANZ 4-channel PoE recorder.

The 2 TiOC S2 + 2 TiOC S2 combination lets you assign different camera types to different locations. HDW3849H-S2: IR and warm light, each rated up to 30 m. HFW3849T1-S2: IR and warm light, each rated up to 30 m.

No HDD included. Surveillance storage, network cabling, microSD cards and optional mounting accessories are separate.

4 cameras 8MP Ultra HD IP67 Weatherproof Human/Vehicle Detection Two-Way Audio 4 x POE PORTS
$1,601.32 AUD $1,601.32 AUD $1,634.00 AUD
Sale 2.0% $32.68 AUD (2.0%)
Bulk Price$1,505.24 AUD
6% off $1,500+ · Auto at checkout

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Customize this kit Kit price$1,601.32 Bulk Price $1,505.24
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 2 × Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP TiOC AcuPick Turret
  • 2 × Dahua DH-IPC-HFW3849T1-AS-PV-ANZ-S2 8MP TiOC Bullet Camera, White, 2.8mm
  • 1 × Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder (4ch)
  • No HDD included (add one below)
Add extra cameras DH-IPC-HDW3849H-AS-PV-ANZ-S2
+$0.00
DH-IPC-HFW3849T1-AS-PV-ANZ-S2
+$0.00
NVR · channels ≥ your total camera count Base: 4ch · Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • Dahua 4-Camera 8MP CCTV Kit: 2x HDW3849H-S2 + 2x HFW3849T1-S2, 4CH NVR, No HDD $1,601.32
Total: $1,601.32
Bulk Price$1,505.24 6% off $1,500+ · Auto at checkout

01Overview

What the KIT-HDW3849H-S2-2CAM-HFW3849T1-S2-2CAM-NVR4104-NOHDD is

Plan each position around the type of coverage it needs. This 4-camera kit combines 2 white DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP turret cameras with 2 white DH-IPC-HFW3849T1-AS-PV-ANZ-S2 8MP bullet cameras and one DHI-NVR4104HS-P-AI/ANZ 4-channel PoE recorder. All supplied camera lenses are 2.8 mm.

HDW3849H-S2 (2 included): 8MP 3840 × 2160 at up to 25/30 fps, subject to stream settings; Smart Dual Light with IR and warm light, each rated up to 30 m; SMD 4.0 and human/vehicle classification for tripwire and intrusion; Red/blue warning lights, voice alarm, built-in microphone and speaker with two-way talk; 120 dB WDR and IP67 metal housing. Smart Dual Light uses IR for black-and-white viewing and can enable warm light for a detected target to capture colour. Red/blue warning lights, voice alarms and two-way talk are available on this TiOC S2 camera; configure event rules for the site.

HFW3849T1-S2 (2 included): 8MP 3840 × 2160 at up to 25/30 fps, subject to stream settings; Smart Dual Light with IR and warm light, each rated up to 30 m; SMD 4.0 and human/vehicle classification for tripwire and intrusion; Red/blue warning lights, voice alarm, dual microphones and speaker with two-way talk; 120 dB WDR and IP67 metal/plastic housing. Smart Dual Light uses IR for black-and-white viewing and can enable warm light for a detected target to capture colour. Red/blue warning lights, voice alarms and two-way talk are available on this TiOC S2 camera; configure event rules for the site.

The recorder provides 4 camera inputs, 4 built-in PoE ports, HDMI and VGA outputs, and one SATA drive bay. The supplied cameras use all 4 recorder channels and PoE ports. Plan a larger or additional recording system if more cameras are required. Its live display decoding capacity and AI processing limits are separate from the number of cameras it can record; choose suitable substreams for a multi-camera grid.

Connect one suitable Ethernet cable from each camera to a recorder PoE port. The specified maximum camera PoE loads total 39 W before cable losses. Allow for remaining power and bandwidth when adding cameras. No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 4 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Network cabling and optional mounting accessories are separate.

Use the current NVR4104HS-P-AI/ANZ recorder revision rated for 45 W total PoE. Older/store revisions quote 36 W; verify the supplied hardware and cable losses.

See it in action

What the KIT-HDW3849H-S2-2CAM-HFW3849T1-S2-2CAM-NVR4104-NOHDD features actually look like

Representative illustrations of how each key feature performs in a real scene.

Driveway at night

Monitoring · warning off

TiOC warning

8MP detail. Red/blue lights + voice warning.

Applies to: 2 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 (base kit cameras)

02Engineering

KIT-HDW3849H-S2-2CAM-HFW3849T1-S2-2CAM-NVR4104-NOHDD specifications

- 2 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 — 8MP TiOC S2 turret, white, 2.8 mm lens; IR and warm light, each rated up to 30 m.
- 2 × DH-IPC-HFW3849T1-AS-PV-ANZ-S2 — 8MP TiOC S2 bullet, white, 2.8 mm lens; IR and warm light, each rated up to 30 m.
- HDW3849H-S2 — 3840 × 2160 up to 25/30 fps; SMD 4.0; built-in microphone and speaker; two-way talk; IP67.
- HFW3849T1-S2 — 3840 × 2160 up to 25/30 fps; SMD 4.0; built-in dual microphones and speaker; two-way talk; IP67.
- 4CH PoE recorder — DHI-NVR4104HS-P-AI/ANZ, 4 integrated PoE ports, HDMI and VGA.
- Fully allocated recorder — The supplied cameras use all 4 recorder channels and PoE ports. Plan a larger or additional recording system if more cameras are required.
- Camera-set maximum PoE: 39 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.

03Full datasheet

Detailed specifications

Kit Configuration

Kit Configuration — Dahua 4-Camera 8MP CCTV Kit: 2x HDW3849H-S2 + 2x HFW3849T1-S2, 4CH NVR, No HDD
FeatureDetail
Camera composition 2 × HDW3849H-S2 8MP TiOC S2 + 2 × HFW3849T1-S2 8MP TiOC S2
Recorder 1 × DHI-NVR4104HS-P-AI/ANZ
Hard drive included No
Network cabling included No
Supplied colour / lens White / 2.8 mm fixed
Unused NVR channels / PoE ports 0 / 0

04Why choose this

Built for the way you actually use the KIT-HDW3849H-S2-2CAM-HFW3849T1-S2-2CAM-NVR4104-NOHDD

Different camera types for different positions

Allocate the 2 TiOC S2 + 2 TiOC S2 mix deliberately. Put each camera where its illumination and audio capabilities meet the actual scene rather than distributing them at random.

One recorder for the supplied views

Connect the 4 cameras to the recorder's built-in PoE ports. The supplied cameras use all 4 recorder channels and PoE ports. Plan a larger or additional recording system if more cameras are required.

Choose lighting deliberately

HDW3849H-S2: Smart Dual Light uses IR for black-and-white viewing and can enable warm light for a detected target to capture colour. Red/blue warning lights, voice alarms and two-way talk are available on this TiOC S2 camera; configure event rules for the site. HFW3849T1-S2: Smart Dual Light uses IR for black-and-white viewing and can enable warm light for a detected target to capture colour. Red/blue warning lights, voice alarms and two-way talk are available on this TiOC S2 camera; configure event rules for the site.

Plan recording and playback

No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 4 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Set event zones and recording schedules, then play back sample recordings before relying on the installation.

05Where it fits

Right at home in these scenarios

Entrances and points of activity

Assign the 2 TiOC S2 cameras to the positions that benefit most from their documented features, then use the 2 TiOC S2 cameras for the remaining routes or activity areas. Test detail at the target distance and check the image after dark.

Shops, offices and warehouses

Map the camera positions around entries, counters, loading access, stock areas or corridors. Keep views clear of shelving and ensure the lighting arrangement suits each camera.

Outdoor approaches

The camera housings are IP67-rated. Weatherproof exposed connections, avoid direct strong light in the lens and keep lenses clean. Install the NVR in a dry, ventilated indoor position.

06Setup

Installation & setup

  1. Included in the base configuration

    • 2 × DH-IPC-HDW3849H-AS-PV-ANZ-S2, white, 2.8 mm turret camera
    • 2 × DH-IPC-HFW3849T1-AS-PV-ANZ-S2, white, 2.8 mm bullet camera
    • 1 × DHI-NVR4104HS-P-AI/ANZ 4CH PoE recorder
    • No HDD, microSD cards or network cabling. Optional mounting accessories are separate.

  2. Prepare the site and cabling

    • Allocate all 4 camera positions and label their intended views.
    • Route one suitable Ethernet cable to a recorder PoE port for each supplied camera; label both ends.
    • Use the exact camera installation guide for mounts and sealing; weatherproof exposed connectors and leave access for maintenance.

  3. Commission and test recording

    • Fit compatible surveillance SATA storage and initialise the devices with strong passwords.
    • Set the correct time, recording schedule, main/substreams and event zones within recorder limits.
    • Verify every daylight and night-time view, test relevant audio functions and play back sample recordings.

07Documentation

Manuals & guides

Quick Start Guide

08Questions

Frequently asked about the KIT-HDW3849H-S2-2CAM-HFW3849T1-S2-2CAM-NVR4104-NOHDD

Q.01

Does this kit include a hard drive?
No. The base configuration contains 2 × HDW3849H-S2 8MP TiOC S2 + 2 × HFW3849T1-S2 8MP TiOC S2 and one DHI-NVR4104HS-P-AI/ANZ recorder, without storage. The recorder has one SATA bay. Select compatible surveillance storage separately for bitrate, recording schedule and retention.
Q.02

How should I assign the different cameras?
Choose positions by the required image, lighting and audio. 2 × HDW3849H-S2: Smart Dual Light uses IR for black-and-white viewing and can enable warm light for a detected target to capture colour. Red/blue warning lights, voice alarms and two-way talk are available on this TiOC S2 camera; configure event rules for the site. 2 × HFW3849T1-S2: Smart Dual Light uses IR for black-and-white viewing and can enable warm light for a detected target to capture colour. Red/blue warning lights, voice alarms and two-way talk are available on this TiOC S2 camera; configure event rules for the site. Test the actual mounting angle and night scene before finalising each position.
Q.03

Can I add more cameras?
The supplied cameras use all 4 recorder channels and PoE ports. Plan a larger or additional recording system if more cameras are required.
Q.04

Will all cameras provide colour images in darkness?
HDW3849H-S2: Smart Dual Light uses IR for black-and-white viewing and can enable warm light for a detected target to capture colour. Red/blue warning lights, voice alarms and two-way talk are available on this TiOC S2 camera; configure event rules for the site. HFW3849T1-S2: Smart Dual Light uses IR for black-and-white viewing and can enable warm light for a detected target to capture colour. Red/blue warning lights, voice alarms and two-way talk are available on this TiOC S2 camera; configure event rules for the site.
Q.05

How are the cameras powered?
The supplied set connects to 4 of the recorder's 4 built-in PoE ports, using one suitable Ethernet cable per camera for power and video. Cabling is not included. The calculated maximum camera-set PoE demand is 39 W before cable losses.
Q.06

What should I check when setting recording quality?
HDW3849H-S2: 3840 × 2160 up to 25/30 fps. HFW3849T1-S2: 3840 × 2160 up to 25/30 fps. Frame-rate limits depend on stream settings and video standard. NVR recording bandwidth, AI processing limits and simultaneous live-view decoding are separate considerations; use suitable substreams for multi-camera grids.
Q.07

What PoE power allowance does this full camera set need?
Use the current NVR4104HS-P-AI/ANZ recorder revision rated for 45 W total PoE. Older/store revisions quote 36 W; verify the supplied hardware and cable losses.
Q.08

Does this kit include AcuPick smart search?
The selected recorder is the standard NVR4104 AI model. Quick Pick can help search for people and vehicles in suitable SMD event videos when used with compatible cameras and firmware. AcuPick is a separate end-to-end search capability that requires a compatible recorder and camera configuration; the NVR5208 AcuPick upgrade shown on the comparison listing is not included in this base kit. Select by camera coverage, recording needs and event search requirements rather than treating AcuPick as necessary for ordinary recording.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

10Bundles

Recommended packages

01

Choose the mix and recorder capacity

This base kit contains 2 × HDW3849H-S2 8MP TiOC S2 + 2 × HFW3849T1-S2 8MP TiOC S2 and a 4-channel recorder. The supplied cameras use all 4 recorder channels and PoE ports. Plan a larger or additional recording system if more cameras are required. Select a different camera count or mix if the site's required views differ.
