Dahua HDW2541EMP 3-Camera 5MP CCTV Kit + 4CH PoE NVR, No HDD

SKU: KIT-HDW2541EMP-3CAM-NVR4104-NOHDD
Description

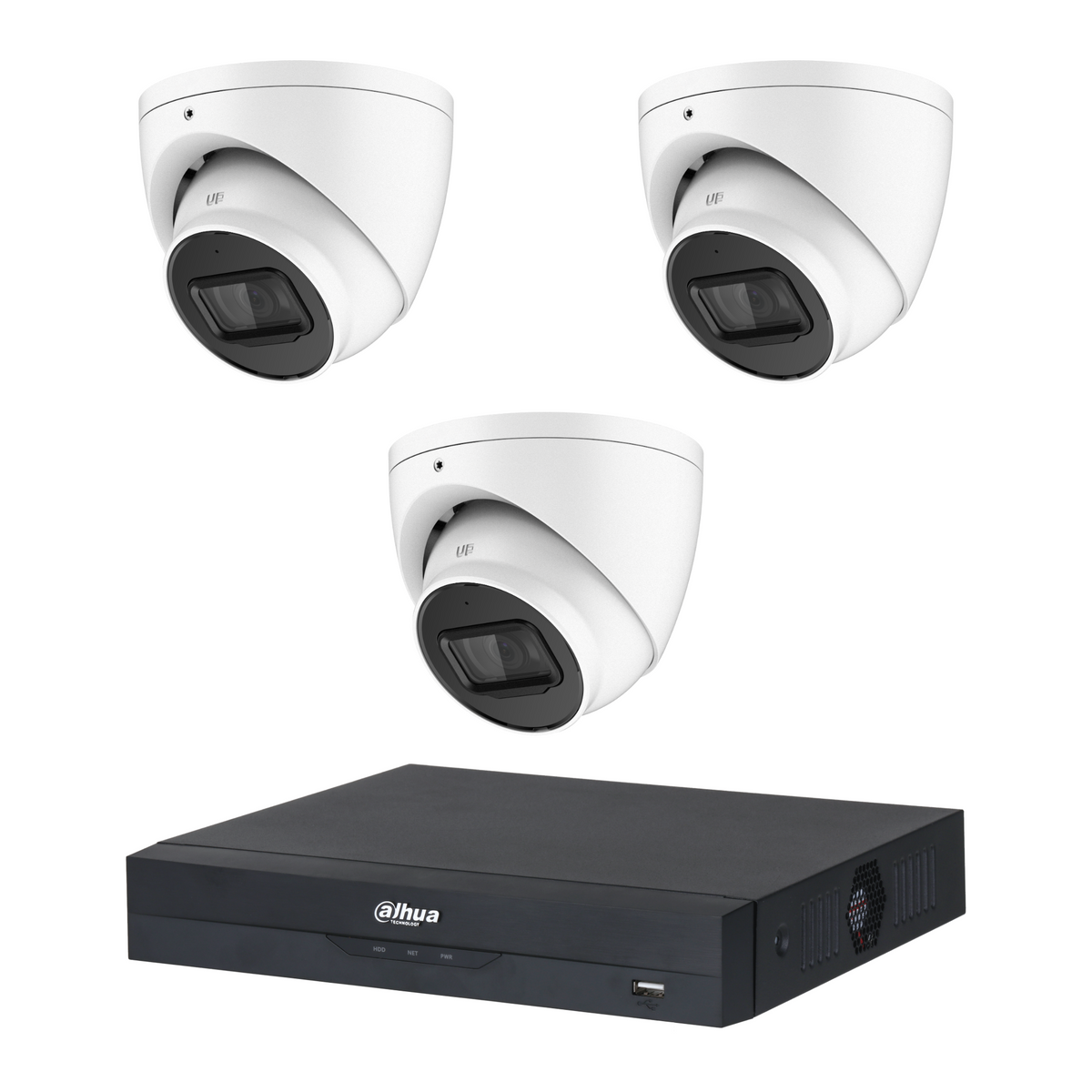

3 × HDW2541EMP 5MP IR, supplied in white with 2.8 mm fixed lenses, plus one DHI-NVR4104HS-P-AI/ANZ 4-channel PoE recorder.

IR cameras provide coordinated views across 3 positions. HDW2541EMP: IR up to 30 m.

No HDD included. Surveillance storage, network cabling, microSD cards and optional mounting accessories are separate.

5MP Ultra HD IP67 Weatherproof Human/Vehicle Detection Built-in Microphone 4 x POE PORTS
$517.44 AUD $517.44 AUD $528.00 AUD
Sale 2.0% $10.56 AUD (2.0%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Customize this kit $517.44
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 3 × Dahua DH-IPC-HDW2541EMP-AS-ANZ 5MP Network Camera 50m IR 2.8mm Wizsense
  • 1 × Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder (4ch)
  • No HDD included (add one below)
Add extra cameras DH-IPC-HDW2541EMP-AS-ANZ
+$0.00
NVR · channels ≥ your total camera count Base: 4ch · Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • Dahua HDW2541EMP 3-Camera 5MP CCTV Kit + 4CH PoE NVR, No HDD $517.44
Total: $517.44

01Overview

What the KIT-HDW2541EMP-3CAM-NVR4104-NOHDD is

Give each access route or activity area its own camera view. This 3-camera kit combines 3 white DH-IPC-HDW2541EMP-AS-ANZ 5MP turret cameras and one DHI-NVR4104HS-P-AI/ANZ 4-channel PoE recorder. All supplied camera lenses are 2.8 mm.

HDW2541EMP (3 included): 5MP at up to 20 fps with a fixed2.8mm lens; Infrared illumination rated up to 30 m; SMD Plus and human/vehicle intrusion and tripwire classification; Built-in microphone, 120dB WDR and IP67 housing. Black-and-white imagery with infrared active in darkness; colour requires sufficient visible light.

The recorder provides 4 camera inputs, 4 built-in PoE ports, HDMI and VGA outputs, and one SATA drive bay. One recording input and PoE port remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings. Its live display decoding capacity and AI processing limits are separate from the number of cameras it can record; choose suitable substreams for a multi-camera grid.

Connect one suitable Ethernet cable from each camera to a recorder PoE port. The specified maximum camera PoE loads total 15 W before cable losses. Allow for remaining power and bandwidth when adding cameras. No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 3 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Network cabling and optional mounting accessories are separate.

The 3 camera maxima total 15 W before cable losses. The recorder allows 45 W total PoE; any expansion also needs bitrate, channel and cable-loss checks.

02Engineering

KIT-HDW2541EMP-3CAM-NVR4104-NOHDD specifications

- 3 × DH-IPC-HDW2541EMP-AS-ANZ — 5MP IR turret, white, 2.8 mm lens; IR up to 30 m.
- HDW2541EMP — 5MP up to 20 fps; 2688×1520 up to 25/30 fps; SMD Plus; built-in microphone; IP67.
- 4CH PoE recorder — DHI-NVR4104HS-P-AI/ANZ, 4 integrated PoE ports, HDMI and VGA.
- 1 spare camera inputs — One recording input and PoE port remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
- Camera-set maximum PoE: 15 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.

03Full datasheet

Detailed specifications

Kit Configuration

Kit Configuration — Dahua HDW2541EMP 3-Camera 5MP CCTV Kit + 4CH PoE NVR, No HDD
FeatureDetail
Camera composition 3 × HDW2541EMP 5MP IR
Recorder 1 × DHI-NVR4104HS-P-AI/ANZ
Hard drive included No
Network cabling included No
Supplied colour / lens White / 2.8 mm fixed
Unused NVR channels / PoE ports 1 / 1

04Why choose this

Built for the way you actually use the KIT-HDW2541EMP-3CAM-NVR4104-NOHDD

A defined camera plan

Plan 3 views around entrances, approaches and activity areas. Identify the detail required at each position before choosing mounting height and angle.

One recorder for the supplied views

Connect the 3 cameras to the recorder's built-in PoE ports. One recording input and PoE port remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.

Choose lighting deliberately

HDW2541EMP: Black-and-white imagery with infrared active in darkness; colour requires sufficient visible light.

Plan recording and playback

No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 3 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Set event zones and recording schedules, then play back sample recordings before relying on the installation.

05Where it fits

Right at home in these scenarios

Entrances and points of activity

Use the 3 cameras to give each entrance, driveway or activity area a separate view. Test detail at the target distance and check the image after dark.

Shops, offices and warehouses

Map the camera positions around entries, counters, loading access, stock areas or corridors. Keep views clear of shelving and ensure the lighting arrangement suits each camera.

Outdoor approaches

The camera housings are IP67-rated. Weatherproof exposed connections, avoid direct strong light in the lens and keep lenses clean. Install the NVR in a dry, ventilated indoor position.

06Setup

Installation & setup

  1. Included in the base configuration

    • 3 × DH-IPC-HDW2541EMP-AS-ANZ, white, 2.8 mm turret camera
    • 1 × DHI-NVR4104HS-P-AI/ANZ 4CH PoE recorder
    • No HDD, microSD cards or network cabling. Optional mounting accessories are separate.

  2. Prepare the site and cabling

    • Allocate all 3 camera positions and label their intended views.
    • Route one suitable Ethernet cable to a recorder PoE port for each supplied camera; label both ends.
    • Use the exact camera installation guide for mounts and sealing; weatherproof exposed connectors and leave access for maintenance.

  3. Commission and test recording

    • Fit compatible surveillance SATA storage and initialise the devices with strong passwords.
    • Set the correct time, recording schedule, main/substreams and event zones within recorder limits.
    • Verify every daylight and night-time view, test relevant audio functions and play back sample recordings.

07Documentation

Manuals & guides

Quick Start Guide

08Questions

Frequently asked about the KIT-HDW2541EMP-3CAM-NVR4104-NOHDD

Q.01

What is included, and what storage do I need?
The base contains 3 white 2.8 mm DH-IPC-HDW2541EMP-AS-ANZ cameras and one DHI-NVR4104HS-P-AI/ANZ recorder, without a hard drive. It has 1 SATA bay. Choose compatible surveillance storage for the combined bitrates, schedule and retention. Network cables and microSD cards are separate.
Q.02

Does Starlight mean colour images in complete darkness?
Colour needs sufficient visible light. The exact ANZ camera has infrared supplementation up to 30 m and produces black-and-white night images with IR active. Check the actual lighting, mounting angle and desired detail at each position.
Q.03

Can it record 5MP at 30 fps?
The stated maximum at 5MP is 20 fps. The 2688 × 1520 mode supports up to 25/30 fps. Set camera streams within the recorder’s incoming bandwidth and its separate display decoding limits.
Q.04

Can I expand the camera count?
There are 1 unused recording inputs and PoE ports. The 3 camera maxima total 15 W before cable losses. The recorder allows 45 W total PoE; any expansion also needs bitrate, channel and cable-loss checks.
Q.05

What audio and detection functions are included?
The cameras have built-in microphones, SMD Plus and human/vehicle classification for supported tripwire and intrusion events. Configure event zones for the actual scene and test audio and event playback during commissioning.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

10Bundles

Recommended packages

01

Choose the mix and recorder capacity

This base kit contains 3 × HDW2541EMP 5MP IR and a 4-channel recorder. One recording input and PoE port remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings. Select a different camera count or mix if the site's required views differ.
