HiLook IPC-T289PH-MU/SL 8MP 180° Turret Camera with Active Blue/Red Strobe and Two-Way Audio, IR 30m 2mm
- 8MP Panoramic Resolution: Captures ultra-high-definition video at 4256×1888 with H.265+ compression technology.
- Active Deterrence: Features built-in red and blue strobe lights and 97 dB alarm for immediate intrusion prevention.
- Integrated Audio System: Includes a noise-filtering microphone and loudspeaker for real-time two-way talk.
- AI Motion Detection: Leverages deep learning for precise human and vehicle classification with minimal false alarms.
- IP67 Weatherproofing: Offers robust outdoor protection against harsh environmental conditions.
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
01Overview
What the IPC-T289PH-MU/SL is

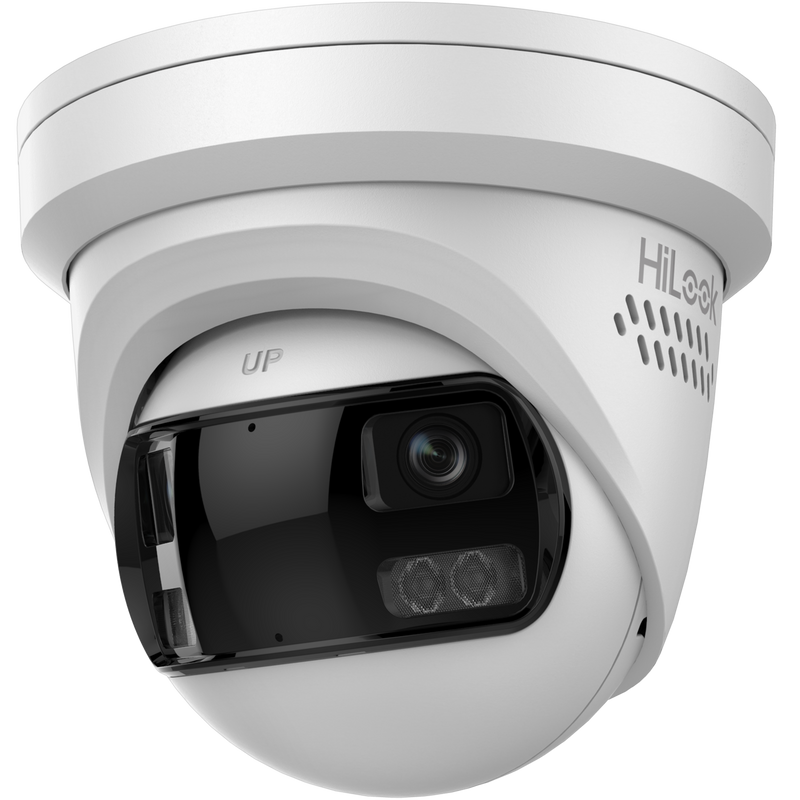

The HiLook IPC-T289PH-MU/SL is a high-performance 8MP all-in-one turret network camera for delivering ultra-wide 180° panoramic coverage in carparks, public spaces, and perimeter monitoring.
Equipped with Smart Hybrid Light technology, AI-based human and vehicle detection, built-in two-way audio, active deterrence with strobe light and alarm, and IP67-rated weatherproof housing.
See it in action
What the IPC-T289PH-MU/SL features actually look like
Representative illustrations of how each key feature performs in a real scene.
8MP Ultra HD
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.
30m IR Night Vision
Dual-Light Night Vision
Full Color Night Vision
False Alarm Reduction
Human/Vehicle Detection
IP67 Weatherproof
Two-Way Audio
02Engineering
IPC-T289PH-MU/SL specifications
- Active Deterrence: Red and blue strobe lights with a 97dB siren alarm activated upon motion detection.
- H.265+ Compression: Efficient video encoding technology for optimized storage.
- Built-in Microphone & Speaker: Noise-filtered audio supporting two-way communication.
- Two-Way Audio: Real-time interaction via integrated 97dB speaker and microphone.
- IP67 Weatherproof: Robust housing for outdoor durability in harsh conditions.
- AI Human/Vehicle Detection: Deep learning-based filtering to reduce false alarms from irrelevant motion.
03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 4256 × 1888 |
| Shutter Time | 1 s to 1/100,000 s |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Day & Night | IR cut filter |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2 mm |
| Focal Length & FOV | 2 mm, horizontal FOV 180°, vertical FOV 77° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2 mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 20 fps (4256 × 1888) | 60 Hz: 20 fps (4256 × 1888) |
| Sub-Stream | 50 Hz: 20 fps (1200 × 536, 960 × 432) | 60 Hz: 20 fps (1200 × 536, 960 × 432) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 | Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Environment Noise Filtering | Yes |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Built-in Microphone | Yes, 1 built-in microphone |
| Built-in Speaker | Yes, 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB. |
Network & Storage
| Feature | Detail |
|---|---|
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 11 | Local service: Chrome 80+, Firefox 80+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), line crossing, intrusion, video tampering alarm, exception |
| Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.83 A, max. 10 W, Ø 5.5 mm coaxial power plug, reverse polarity protection | PoE: IEEE 802.3af, Class 3, max. 11.5 W |
| Material | Metal except for trim ring |
| Dimension | Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5") |
| Package Dimension | 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
| Weight | Approx. 790 g (1.7 lb.) |
| With Package Weight | Approx. 1100 g (2.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian |
| General Function | Heartbeat, anti-banding, password protection, password reset via email |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 | IC: ICES-003: Issue 7 | KC: KN32: 2015, KN35: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11 | BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU | WEEE: 2012/19/EU | Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
| Camera & Image — Image Sensor | 1/2.4" Progressive Scan CMOS |
|---|---|
| Camera & Image — Max. Resolution | 4256 × 1888 |
| Camera & Image — Shutter Time | 1 s to 1/100,000 s |
| Camera & Image — Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with light |
| Camera & Image — Day & Night | IR cut filter |
| Camera & Image — Wide Dynamic Range (WDR) | 120 dB |
| Camera & Image — SNR | ≥ 52 dB |
| Camera & Image — Day/Night Switch | Day, Night, Auto, Schedule |
| Camera & Image — Image Enhancement | BLC, HLC, 3D DNR |
| Camera & Image — Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Camera & Image — Privacy Mask | 4 programmable polygon privacy masks |
| Lens & Distance — Lens Type | Fixed focal lens, 2 mm |
| Lens & Distance — Focal Length & FOV | 2 mm, horizontal FOV 180°, vertical FOV 77° |
| Lens & Distance — Lens Mount | M12 |
| Lens & Distance — Iris Type | Fixed |
| Lens & Distance — Aperture | F1.6 |
| Lens & Distance — DORI | 2 mm, D: 50 m, O: 20 m, R: 10 m, I: 5 m |
| Lens & Distance — Pan Range | 0° to 360° |
| Lens & Distance — Tilt Range | 0° to 75° |
| Lens & Distance — Rotation Range | 0° to 360° |
| Night Vision — Supplement Light Type | IR, White Light |
| Night Vision — Supplement Light Range | Up to 30 m |
| Night Vision — Smart Supplement Light | Yes |
| Night Vision — IR Wavelength | 850 nm |
| Video — Main Stream | 50 Hz: 20 fps (4256 × 1888) | 60 Hz: 20 fps (4256 × 1888) |
| Video — Sub-Stream | 50 Hz: 20 fps (1200 × 536, 960 × 432) | 60 Hz: 20 fps (1200 × 536, 960 × 432) |
| Video — Video Compression | Main stream: H.265+/H.265/H.264+/H.264 | Sub-stream: H.265/H.264/MJPEG |
| Video — Video Bit Rate | 32 Kbps to 16 Mbps |
| Video — H.264 Type | Baseline Profile, Main Profile, High Profile |
| Video — H.265 Type | Main Profile |
| Video — Bit Rate Control | CBR, VBR |
| Video — Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Video — Region of Interest (ROI) | 1 fixed region for main stream |
| Audio — Audio Type | Mono sound |
| Audio — Audio Sampling Rate | 8 kHz/16 kHz |
| Audio — Environment Noise Filtering | Yes |
| Audio — Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio — Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Audio — Built-in Microphone | Yes, 1 built-in microphone |
| Audio — Built-in Speaker | Yes, 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB. |
| Network & Storage — Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Network & Storage — Simultaneous Live View | Up to 6 channels |
| Network & Storage — API | ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK |
| Network & Storage — Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv4, IPv6, UDP, QoS, FTP, SMTP, HTTPS, DDNS |
| Network & Storage — User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Network & Storage — Client | iVMS-4200, Hik-Connect |
| Network & Storage — Web Browser | Plug-in required live view: IE 11 | Local service: Chrome 80+, Firefox 80+, Edge 89+ |
| Event & Alarm — Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), line crossing, intrusion, video tampering alarm, exception |
| Event & Alarm — Linkage | Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing |
| Interface — Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Interface — On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Interface — Reset Key | Yes |
| General & Environment — Power | 12 VDC ± 25%, 0.83 A, max. 10 W, Ø 5.5 mm coaxial power plug, reverse polarity protection | PoE: IEEE 802.3af, Class 3, max. 11.5 W |
| General & Environment — Material | Metal except for trim ring |
| General & Environment — Dimension | Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5") |
| General & Environment — Package Dimension | 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9") |
| General & Environment — Weight | Approx. 790 g (1.7 lb.) |
| General & Environment — With Package Weight | Approx. 1100 g (2.4 lb.) |
| General & Environment — Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General & Environment — Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General & Environment — Language | English, Turkish, Polish, Romanian, Czech, Slovak, Traditional Chinese, Thai, Vietnamese, Croatian, Slovenian, Serbian, Ukrainian |
| General & Environment — General Function | Heartbeat, anti-banding, password protection, password reset via email |
| General & Environment — EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 | IC: ICES-003: Issue 7 | KC: KN32: 2015, KN35: 2015 |
| General & Environment — Safety | CB: IEC 62368-1: 2014+A11 | BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| General & Environment — Environment | CE-RoHS: 2011/65/EU | WEEE: 2012/19/EU | Reach: Regulation (EC) No 1907/2006 |
| General & Environment — Protection | IP67: IEC 60529-2013 |
04Why choose this
Built for the way you actually use the IPC-T289PH-MU/SL
Smart Hybrid Light — IR + White 30 m
Switches between IR and warm white automatically. Colour footage when someone is detected, IR when quiet. Both reach 30 m.
Active Deterrence with Blue/Red Strobe
Flashing red and blue strobe lights plus siren trigger on human or vehicle detection. More eye-catching than white light alone.
Built-in Mic and Speaker
Two-way audio through the HiLookVision or Hik-Connect app. Speak to visitors or warn off intruders.
120 dB WDR + 512 GB SD
Handles high-contrast scenes. Supports up to 512 GB microSD for local recording.
05Where it fits
Right at home in these scenarios
Front of House Panoramic
Mount under the eave facing outward. One camera covers the full front yard from fence to fence. Smart hybrid light gives colour footage of visitors.
Small Shopfront Entry
Wall-mount above the door. 180° view captures both sides of the entrance. Red/blue strobe deters after-hours visitors.
Driveway and Garage
Covers both car spaces and the footpath. Two-way talk lets you speak to couriers.
Side Passage or Gate
180° view captures anyone approaching from either direction. 30 m IR covers the full length.
06Setup
Installation & setup
-
01
What's in the Box
- HiLook IPC-T289PH-MU/SL Camera × 1
- Mounting Screws & Anchors × 1 set
- Quick Start Guide × 1
-
02
Installation Requirements
- Power: PoE (IEEE 802.3af, max ~11.5 W) or 12V DC.
- Cable: Cat5e or Cat6, max 100 m.
- Mounting: Wall or soffit. Ensure the dual lenses are level for correct stitching. 2 mm ultra-wide lens — mount at the centre of the area to cover.
- Height: 2.5–3.5 m for best panoramic coverage.
-
03
App Setup
- Download Hik-Connect or HiLookVision app (iOS or Android). Create an account.
- Power the camera via PoE. Wait about 60 seconds.
- Scan the QR code or add by serial number.
- Set detection zones, strobe alarm rules, and push notifications.
08Questions
Frequently asked about the IPC-T289PH-MU/SL
Q.01
Is this the same as the Hikvision panoramic turret?
Q.02
Does it work with Hikvision NVRs?
Q.03
What is the lens focal length?
Q.04
Does it have colour night vision?
Q.05
How much SD storage does it support?
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
