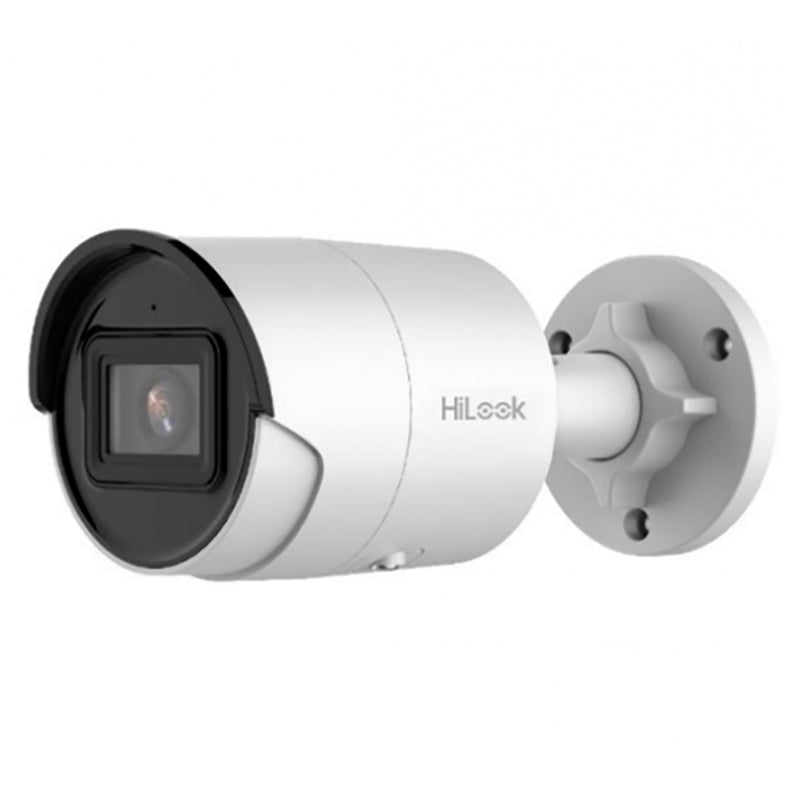

HiLook by Hikvision 6MP IPC-B261H-MU Acusense Bullet IP Camera with Mic
- 6MP Resolution: Delivers high-definition imaging with 6 megapixels for detailed surveillance.
- AcuSense AI Detection: Employs deep learning to identify humans and vehicles, reducing false alarms.
- H.265+ Compression: Minimizes bandwidth and storage usage while maintaining image quality.
- Built-in Microphone & 40m IR Night Vision: Features integrated microphone and infrared LEDs for audio recording and low-light visibility.
- IP67 Weatherproof: Provides robust outdoor protection against rain, dust, and harsh environments.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $558.25
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The IPC-B261H-MU is a 6MP AcuSense bullet IP camera for high-performance monitoring and reliable security.
Equipped with AcuSense AI detection, built-in microphone, 40m night vision, and IP67 weatherproofing.
§ 02Engineering
Technical specifications
- AcuSense Detection: Utilizes deep learning to distinguish humans/vehicles, minimizing false alarms.
- Built-in Microphone: Captures environmental audio alongside video for enhanced monitoring.
- 40m Night Vision: IR LEDs provide visibility in complete darkness up to 40 metres.
- IP67 Weatherproof: Dust and water-resistant housing for outdoor durability.
- H.265+ Compression: Reduces bandwidth and storage requirements while maintaining quality.
- 120dB WDR: Ensures clear imaging in high-contrast lighting conditions.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| P/N | P/N |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Image Parameters Switch | Yes |
| Image Settings | Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 mm |
| Focal Length & FOV | 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.6 |
| DORI | 2.8 mm: D: 73 m, O: 29 m, R: 15 m, I: 7 m |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| IR Range | Up to 40 m |
Video
| Feature | Detail |
|---|---|
| Max. Resolution | 3200 × 1800 |
| Main Stream | 50 Hz: 20 fps (3200 × 1800); 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 960×540, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ | Sub-stream: H.265/H.264/MJPEG | Third stream: H.265/H.264; Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Detection | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection | Supports human and vehicle targets classification |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+ | Local service: Chrome 57.0+, Firefox 52.0+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Linkage Method | Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Built-in Microphone | -U: Yes |
| Hardware Reset | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Camera Material | Aluminum alloy body | IR cover: plastic |
| Camera Dimension | Ø 70 mm × 161.7 mm (Ø 2.8" × 6.4") |
| Package Dimension | 216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7") |
| Camera Weight | Approx. 485 g (1.1 lb.) |
| With Package Weight | Approx. 744 g (1.6 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Web Client Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, password reset via email, pixel counter |
| Firmware Version | V5.5.113 |
| Software Reset | Yes |
| Power Consumption and Current | 12 VDC, 0.5 A, max. 6 W | PoE (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, max. 7.2 W |
| Power Supply | 12 VDC ± 25%, reverse polarity protection | PoE: 802.3af, Class 3 |
| Power Interface | Ø5.5 mm coaxial power plug |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
§ 04Why choose this
Built for the way you actually use it
AcuSense Human & Vehicle Detection
Deep learning separates people and cars from animals and leaves. Fewer false alerts than basic motion detection.
40 m IR Night Vision
Longer range than most budget bullets. Covers a full driveway or backyard fence line in the dark.
120 dB True WDR
Handles bright doorways and shaded areas in the same shot. Useful where a sensor light creates contrast.
Built-in Microphone
Records ambient audio. Adds context to footage — hear a door slam, glass break, or conversation.
§ 05Where it fits
Right at home in these scenarios
Driveway or Fence Line
Bullet shape aims naturally down a long run. 40 m IR covers the full length of most residential driveways.
Side of House or Gate
Compact and discreet. IP67 handles rain and sprinklers. AcuSense ignores cats and possums.
Small Warehouse or Yard
Mount on the wall above the roller door. 6 MP gives enough detail for identifying visitors. PoE simplifies the cable run.
Backyard and Shed Area
Point at the back fence or shed. 120 dB WDR handles the contrast between a lit patio and dark lawn.
§ 06Setup
Installation & setup
What's in the Box
1. HiLook IPC-B261H-MU Camera × 1 2. Mounting Screws & Anchors × 1 set 3. Quick Start Guide × 1
Installation Requirements
1. Power: PoE (IEEE 802.3af, max 7.2 W) or 12V DC (max 6 W). 2. Cable: Cat5e or Cat6, max 100 m. 3. Mounting: Wall or soffit. Camera weighs 485 g — light enough for timber eaves. Drill template included. 4. Height: 2.5–3 m for best AI detection.
App Setup
1. Download Hik-Connect or HiLookVision app (iOS or Android). Create an account. 2. Power the camera via PoE. Wait about 60 seconds. 3. Scan the QR code or add by serial number. 4. Set detection zones and push notification preferences.
