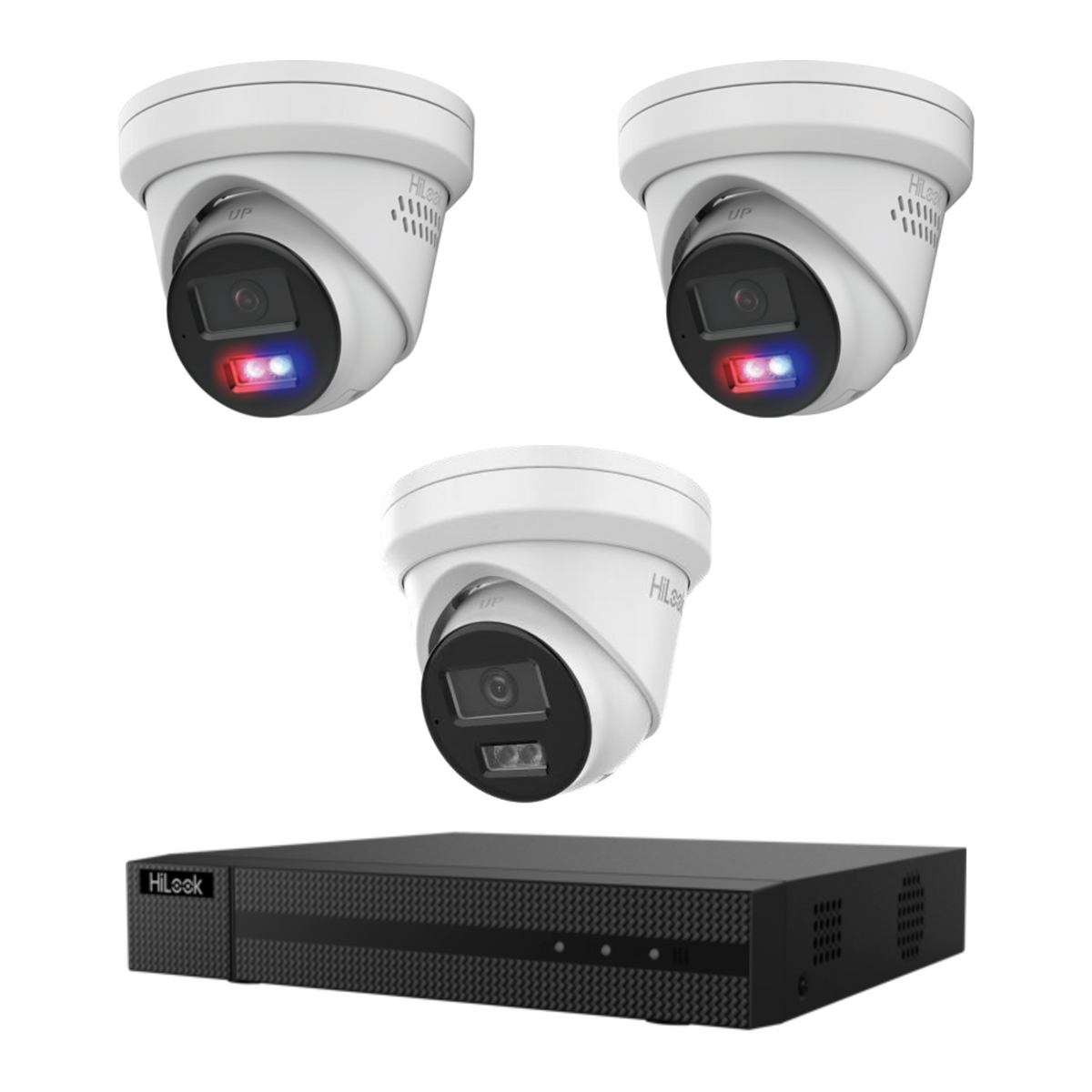

HiLook 3-Camera 6MP CCTV Kit: 2x T269H-SL + 1x T361H, 4CH NVR, No HDD
SKU: KIT-T269H-SL-2CAM-T361H-1CAM-NVR104C-NOHDD
Description
2 × T269H-SL 6MP Smart Dual Light with red/blue warning + 1 × T361H 6MP Intelligent Dual IR, supplied in white with 2.8 mm fixed lenses, plus one NVR-104MH-C-4P 4-channel PoE recorder.
The 2 Smart Dual Light with red/blue warning + 1 Intelligent Dual IR combination lets you assign different camera types to different locations. T269H-SL: Infrared and white supplemental light, up to 30 m. T361H: Infrared illumination up to 30 m.
No HDD included. Surveillance storage, network cabling, microSD cards and optional mounting accessories are separate.
Regular price
$573.30 AUD
Sale price
$573.30 AUD
Regular price
$1,085.00 AUD
Sale
47.16%
$511.70 AUD
(47.16%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
HiLook 3-Camera 6MP CCTV Kit: 2x T269H-SL + 1x T361H, 4CH NVR, No HDD
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Customize this kit
—
$573.30
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
- 2 × HiLook by Hikvision 6MP IPC-T269H-MU/SL All in One Camera with Blue / Red Strobe / Audio (ACDC)
- 1 × HiLook by Hikvision 6MP IPC-T361H-MU Acusense Turret IP Camera with Mic
- 1 × HiLook NVR-104MH-C-4P 4xPoE 4 Channel 4K HDMI, 1x SATA Network Video Recorder
- No HDD included (add one below)
No hard drive selected
Without a hard drive the system cannot record footage.
01Overview
What the KIT-T269H-SL-2CAM-T361H-1CAM-NVR104C-NOHDD is
Plan each position around the type of coverage it needs. This 3-camera kit combines 2 white IPC-T269H-MU/SL 6MP turret cameras with 1 white IPC-T361H-MU 6MP turret cameras and one NVR-104MH-C-4P 4-channel PoE recorder. All supplied camera lenses are 2.8 mm.
T269H-SL (2 included): 6MP 3200 × 1800 at 25/30 fps according to video standard; 2.8 mm F1.6 lens and 105.1° horizontal field of view; IR and white supplementation up to 30 m; Smart Dual-light switching; Human/vehicle classification for supported motion and line-crossing detection; Red and blue strobe warning, audio warning and two-way audio; 120 dB WDR and IP67 housing. Infrared night viewing is black and white. Colour requires sufficient visible light; Smart Dual-light can switch from IR to white supplementation on configured events. Set and test the lighting and warning behaviour for the actual scene.
T361H (1 included): 6MP 3200 × 1800 at 25/30 fps according to video standard; 2.8 mm F1.6 lens and 105° horizontal field of view; Infrared illumination up to 30 m; Human/vehicle classification for supported motion, line-crossing and intrusion detection; Built-in microphone for recorded audio; 120 dB WDR and IP67 metal housing. IR night viewing is black and white. Colour imaging needs sufficient visible light. Place this camera where monochrome night coverage meets the scene requirements.
The recorder provides 4 camera inputs, 4 built-in PoE ports, HDMI and VGA outputs, and one SATA drive bay. 1 recording input and PoE port remain. The three camera maxima total 28.9 W before cable losses, within the recorder’s 50 W PoE allowance. One recording input remains; adding one T269H totals 38.6 W, or one T361H totals 38.4 W, before cable losses. Keep combined camera bitrates within 40 Mbps and check display decoding separately. Its live display decoding capacity and AI processing limits are separate from the number of cameras it can record; choose suitable substreams for a multi-camera grid.
Connect one suitable Ethernet cable from each camera to a recorder PoE port. The specified maximum camera PoE loads total 28.9 W before cable losses. Allow for remaining power and bandwidth when adding cameras. No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 3 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Network cabling and optional mounting accessories are separate.
The three camera maxima total 28.9 W before cable losses, within the recorder’s 50 W PoE allowance. One recording input remains; adding one T269H totals 38.6 W, or one T361H totals 38.4 W, before cable losses. Keep combined camera bitrates within 40 Mbps and check display decoding separately.
02Engineering
KIT-T269H-SL-2CAM-T361H-1CAM-NVR104C-NOHDD specifications
- 2 × IPC-T269H-MU/SL — 6MP Smart Dual Light with red/blue warning turret, white, 2.8 mm lens; Infrared and white supplemental light, up to 30 m.
- 1 × IPC-T361H-MU — 6MP Intelligent Dual IR turret, white, 2.8 mm lens; Infrared illumination up to 30 m.
- T269H-SL — 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz); human and vehicle; built-in microphone and speaker; two-way audio; IP67.
- T361H — 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz); human and vehicle; built-in microphone; IP67.
- 4CH PoE recorder — NVR-104MH-C-4P, 4 integrated PoE ports, HDMI and VGA.
- 1 spare camera inputs — 1 recording input and PoE port remain. The three camera maxima total 28.9 W before cable losses, within the recorder’s 50 W PoE allowance. One recording input remains; adding one T269H totals 38.6 W, or one T361H totals 38.4 W, before cable losses. Keep combined camera bitrates within 40 Mbps and check display decoding separately.
- Camera-set maximum PoE: 28.9 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.
- 1 × IPC-T361H-MU — 6MP Intelligent Dual IR turret, white, 2.8 mm lens; Infrared illumination up to 30 m.
- T269H-SL — 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz); human and vehicle; built-in microphone and speaker; two-way audio; IP67.
- T361H — 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz); human and vehicle; built-in microphone; IP67.
- 4CH PoE recorder — NVR-104MH-C-4P, 4 integrated PoE ports, HDMI and VGA.
- 1 spare camera inputs — 1 recording input and PoE port remain. The three camera maxima total 28.9 W before cable losses, within the recorder’s 50 W PoE allowance. One recording input remains; adding one T269H totals 38.6 W, or one T361H totals 38.4 W, before cable losses. Keep combined camera bitrates within 40 Mbps and check display decoding separately.
- Camera-set maximum PoE: 28.9 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.
03Full datasheet
Detailed specifications
Kit Configuration
| Feature | Detail |
|---|---|
| Camera composition | 2 × T269H-SL 6MP Smart Dual Light with red/blue warning + 1 × T361H 6MP Intelligent Dual IR |
| Recorder | 1 × NVR-104MH-C-4P |
| Hard drive included | No |
| Network cabling included | No |
| Supplied colour / lens | White / 2.8 mm fixed |
| Unused NVR channels / PoE ports | 1 / 1 |
T269H-SL Camera
| Feature | Detail |
|---|---|
| Included quantity | 2 |
| Model | IPC-T269H-MU/SL |
| Resolution | 6MP |
| Image sensor | 1/2.4-inch progressive scan CMOS |
| Video frame rates | 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz) |
| Supplied lens | 2.8 mm, F1.6 |
| Horizontal field of view | 105.1° |
| Illumination | Infrared and white supplemental light, up to 30 m |
| Smart motion detection | human and vehicle |
| Audio | Built-in microphone and speaker; two-way audio |
| Protection | IP67 |
| Maximum PoE per camera | 9.7 W |
T361H Camera
| Feature | Detail |
|---|---|
| Included quantity | 1 |
| Model | IPC-T361H-MU |
| Resolution | 6MP |
| Image sensor | 1/2.4-inch progressive scan CMOS |
| Video frame rates | 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz) |
| Supplied lens | 2.8 mm, F1.6 |
| Horizontal field of view | 105° |
| Illumination | Infrared illumination up to 30 m |
| Smart motion detection | human and vehicle |
| Audio | Built-in microphone |
| Protection | IP67 |
| Maximum PoE per camera | 9.5 W |
Recorder & Installation
| Feature | Detail |
|---|---|
| Channels | 4 |
| Integrated PoE ports | 4 |
| Video outputs | HDMI; VGA |
| Drive bays | 1 SATA; drives not included |
| Camera-set maximum PoE | 28.9 W before cable losses |
| Installation | NVR indoors; weatherproof exposed camera connections |
| Incoming bandwidth | 40 Mbps |
| Recorder PoE budget | 50 W |
| Recorder Motion Detection 2.0 | 1 channel; camera-side classification is separately specified |
| Kit Configuration — Camera composition | 2 × T269H-SL 6MP Smart Dual Light with red/blue warning + 1 × T361H 6MP Intelligent Dual IR |
|---|---|
| Kit Configuration — Recorder | 1 × NVR-104MH-C-4P |
| Kit Configuration — Hard drive included | No |
| Kit Configuration — Network cabling included | No |
| Kit Configuration — Supplied colour / lens | White / 2.8 mm fixed |
| Kit Configuration — Unused NVR channels / PoE ports | 1 / 1 |
| T269H-SL Camera — Included quantity | 2 |
| T269H-SL Camera — Model | IPC-T269H-MU/SL |
| T269H-SL Camera — Resolution | 6MP |
| T269H-SL Camera — Image sensor | 1/2.4-inch progressive scan CMOS |
| T269H-SL Camera — Video frame rates | 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz) |
| T269H-SL Camera — Supplied lens | 2.8 mm, F1.6 |
| T269H-SL Camera — Horizontal field of view | 105.1° |
| T269H-SL Camera — Illumination | Infrared and white supplemental light, up to 30 m |
| T269H-SL Camera — Smart motion detection | human and vehicle |
| T269H-SL Camera — Audio | Built-in microphone and speaker; two-way audio |
| T269H-SL Camera — Protection | IP67 |
| T269H-SL Camera — Maximum PoE per camera | 9.7 W |
| T361H Camera — Included quantity | 1 |
| T361H Camera — Model | IPC-T361H-MU |
| T361H Camera — Resolution | 6MP |
| T361H Camera — Image sensor | 1/2.4-inch progressive scan CMOS |
| T361H Camera — Video frame rates | 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz) |
| T361H Camera — Supplied lens | 2.8 mm, F1.6 |
| T361H Camera — Horizontal field of view | 105° |
| T361H Camera — Illumination | Infrared illumination up to 30 m |
| T361H Camera — Smart motion detection | human and vehicle |
| T361H Camera — Audio | Built-in microphone |
| T361H Camera — Protection | IP67 |
| T361H Camera — Maximum PoE per camera | 9.5 W |
| Recorder & Installation — Channels | 4 |
| Recorder & Installation — Integrated PoE ports | 4 |
| Recorder & Installation — Video outputs | HDMI; VGA |
| Recorder & Installation — Drive bays | 1 SATA; drives not included |
| Recorder & Installation — Camera-set maximum PoE | 28.9 W before cable losses |
| Recorder & Installation — Installation | NVR indoors; weatherproof exposed camera connections |
| Recorder & Installation — Incoming bandwidth | 40 Mbps |
| Recorder & Installation — Recorder PoE budget | 50 W |
| Recorder & Installation — Recorder Motion Detection 2.0 | 1 channel; camera-side classification is separately specified |
04Why choose this
Built for the way you actually use the KIT-T269H-SL-2CAM-T361H-1CAM-NVR104C-NOHDD
One recorder for the supplied views
Connect the 3 cameras to the recorder's built-in PoE ports. 1 recording input and PoE port remain. The three camera maxima total 28.9 W before cable losses, within the recorder’s 50 W PoE allowance. One recording input remains; adding one T269H totals 38.6 W, or one T361H totals 38.4 W, before cable losses. Keep combined camera bitrates within 40 Mbps and check display decoding separately.
Choose lighting deliberately
T269H-SL: Infrared night viewing is black and white. Colour requires sufficient visible light; Smart Dual-light can switch from IR to white supplementation on configured events. Set and test the lighting and warning behaviour for the actual scene. T361H: IR night viewing is black and white. Colour imaging needs sufficient visible light. Place this camera where monochrome night coverage meets the scene requirements.
Plan recording and playback
No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 3 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Set event zones and recording schedules, then play back sample recordings before relying on the installation.
05Where it fits
Right at home in these scenarios
Entrances and points of activity
Assign the 2 Smart Dual Light with red/blue warning cameras to the positions that benefit most from their documented features, then use the 1 Intelligent Dual IR cameras for the remaining routes or activity areas. Test detail at the target distance and check the image after dark.
Shops, offices and warehouses
Map the camera positions around entries, counters, loading access, stock areas or corridors. Keep views clear of shelving and ensure the lighting arrangement suits each camera.
Outdoor approaches
The camera housings are IP67-rated. Weatherproof exposed connections, avoid direct strong light in the lens and keep lenses clean. Install the NVR in a dry, ventilated indoor position.
06Setup
Installation & setup
-
01
Included in the base configuration
- 2 × IPC-T269H-MU/SL, white, 2.8 mm turret camera
- 1 × IPC-T361H-MU, white, 2.8 mm turret camera
- 1 × NVR-104MH-C-4P 4CH PoE recorder
- No HDD, microSD cards or network cabling. Optional mounting accessories are separate.
-
02
Prepare the site and cabling
- Allocate all 3 camera positions and label their intended views.
- Route one suitable Ethernet cable to a recorder PoE port for each supplied camera; label both ends.
- Use the exact camera installation guide for mounts and sealing; weatherproof exposed connectors and leave access for maintenance.
-
03
Commission and test recording
- Fit compatible surveillance SATA storage and initialise the devices with strong passwords.
- Set the correct time, recording schedule, main/substreams and event zones within recorder limits.
- Verify every daylight and night-time view, test relevant audio functions and play back sample recordings.
08Questions
Frequently asked about the KIT-T269H-SL-2CAM-T361H-1CAM-NVR104C-NOHDD
Q.01
Is a hard drive included?
No. This base contains 2 × IPC-T269H-MU/SL and 1 × IPC-T361H-MU in white with 2.8 mm lenses, plus one NVR-104MH-C-4P recorder. It has 1 SATA bay. Choose compatible surveillance disks for all camera bitrates, the schedule and retention. Network cables and microSD cards are separate.
Q.02
How should I assign the different cameras?
T269H-SL: Infrared night viewing is black and white. Colour requires sufficient visible light; Smart Dual-light can switch from IR to white supplementation on configured events. Set and test the lighting and warning behaviour for the actual scene. T361H: IR night viewing is black and white. Colour imaging needs sufficient visible light. Place this camera where monochrome night coverage meets the scene requirements.
Q.03
Can I add more cameras?
1 recording input and PoE port remain. The three camera maxima total 28.9 W before cable losses, within the recorder’s 50 W PoE allowance. One recording input remains; adding one T269H totals 38.6 W, or one T361H totals 38.4 W, before cable losses. Keep combined camera bitrates within 40 Mbps and check display decoding separately.
Q.04
What recording limits should I check?
T269H-SL: 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz). T361H: 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz). Keep combined camera bitrates within the recorder’s 40 Mbps incoming limit. Recording capacity and simultaneous live-view decoding are separate; use suitable substreams for a multi-camera grid.
Q.05
Which audio and warning features are supplied?
2 × T269H-SL: Built-in microphone and speaker; two-way audio. Red and blue strobe warning, audio warning and two-way audio. 1 × T361H: Built-in microphone. Configure only the supported responses and test audio, events and playback during commissioning.
