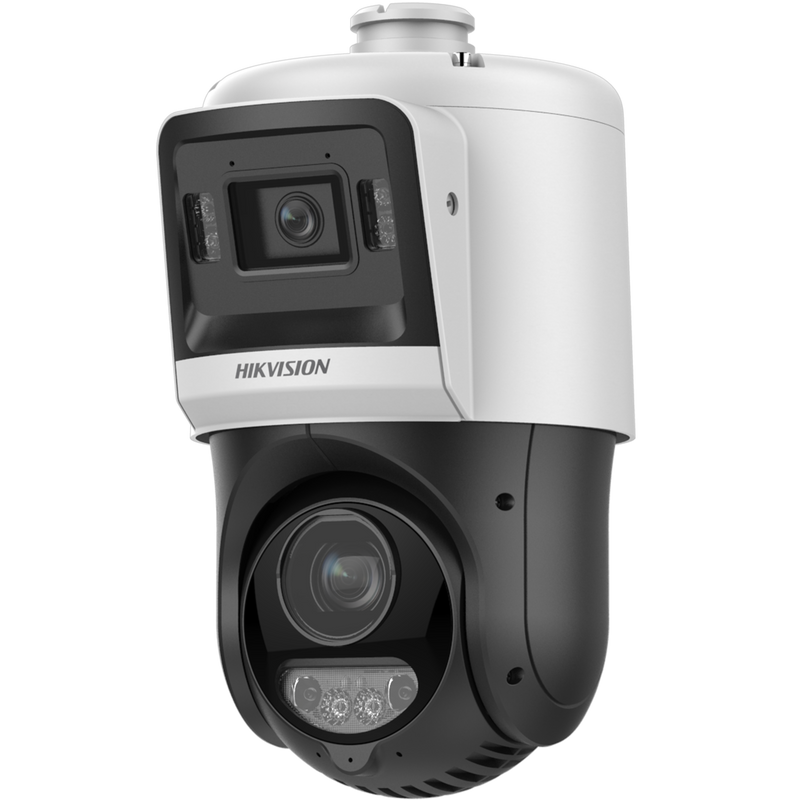

Hikvision DS-2SE4C425MWG-E/14(F0) 4MP TandemVu ColorVu PTZ
SKU: DS-2SE4C425MWG-E/14(F0)
Description
Provides a simultaneous wide-angle overview and a powerful 25x zoomed-in view using a dual-lens system to monitor large areas without blind spots.
Regular price
$865.25 AUD
Sale price
$865.25 AUD
Regular price
$1,138.00 AUD
Sale
23.97%
$272.75 AUD
(23.97%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision DS-2SE4C425MWG-E/14(F0) 4MP TandemVu ColorVu PTZ
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $1,808.85
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Hikvision DS-2SE4C425MWG-E14F0 4MP TandemVu PTZ Camera utilizes innovative dual-lens technology to deliver both panoramic and detailed surveillance for carparks, campuses, and warehouses. It combines ColorVu and DarkFighter technology to ensure vivid colour imaging and exceptional clarity even in extremely low-light conditions.
§ 02Engineering
Technical specifications
- TandemVu Dual-Lens System: Capture a wide-angle 2.8mm overview and high-detail zoomed shots simultaneously to maximize site coverage.
- 25x Optical Zoom: Zoom into distant objects with incredible precision to identify faces, licence plates, and specific security events.
- Superior Low-Light Performance: Deliver full-colour night-time footage using DarkFighter and ColorVu technology, supported by a 100m infrared and 30m white light range.
- AI-Powered Detection: Filter out false alarms by specifically identifying human and vehicle targets through advanced deep-learning algorithms.
- 4MP High-Definition Imaging: Ensure sharp and clear visuals from both lenses to provide reliable evidence for detection and observation.
- Advanced Image Optimisation: Maintain clear footage in challenging weather and lighting with integrated WDR, defog, and 3D digital noise reduction.
- 25x Optical Zoom: Zoom into distant objects with incredible precision to identify faces, licence plates, and specific security events.
- Superior Low-Light Performance: Deliver full-colour night-time footage using DarkFighter and ColorVu technology, supported by a 100m infrared and 30m white light range.
- AI-Powered Detection: Filter out false alarms by specifically identifying human and vehicle targets through advanced deep-learning algorithms.
- 4MP High-Definition Imaging: Ensure sharp and clear visuals from both lenses to provide reliable evidence for detection and observation.
- Advanced Image Optimisation: Maintain clear footage in challenging weather and lighting with integrated WDR, defog, and 3D digital noise reduction.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | [Bullet channel] 1/2.8" Progressive Scan CMOS, [PTZ channel] 1/2.8" Progressive Scan CMOS |
| Max. Resolution | [Bullet channel] 2560 × 1440, [PTZ channel] 2560 × 1440 |
| Min. Illumination | [Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; [PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Shutter Speed | 1 s to 1/30,000 s |
| Day & Night | ICR |
| Zoom | [PTZ channel] 25 × optical, 16 × digital |
| Slow Shutter | yes |
| Image Parameters Switch | Yes |
| Image Settings | sharpness, saturation, brightness, contrast |
| Day/Night Switch | day, night, auto, scheduled-switch |
| Wide Dynamic Range (WDR) | True WDR |
| SNR | ＞52dB |
| Defog | Digital defog |
| Image Stabilization | EIS |
| Image Enhancement | BLC, HLC, 3D DNR |
| Privacy Mask | [Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable |
| Regional Focus | yes |
| Regional Exposure | yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | [Bullet channel] 2.8 mm, [PTZ channel] 5 to 125 mm |
| FOV | [Bullet channel] horizontal field of view: 96.1°, vertical field of view: 52.1°, diagonal field of view: 113.3°, [PTZ channel] horizontal field of view: 55° to 2.4°, vertical field of view: 33° to 1.4°, diagonal field of view: 61.5° to 2.8° |
| Focus | auto, manual, semi-auto |
| Aperture | [Bullet channel]: F1.0; [PTZ channel]: F1.6 |
| Zoom Speed | [PTZ channel]: approx. 2.3 s |
| Movement Range (Pan) | 360° endless |
| Movement Range (Tilt) | [Bullet channel] 9° to 21° (manually adjust), [PTZ channel] -15° to 90° |
| Pan Speed | Pan speed: configurable from 0.1° to 80°/s, preset speed: 80°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s |
| Proportional Pan | yes |
| Presets | 300 |
| Preset Freezing | yes |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans |
| Park Action | preset, frame scan, tilt scan, patrol scan, random scan, auto scan, pattern scan, panorama scan |
| 3D Positioning | yes |
| PTZ Status Display | yes |
| Scheduled Task | Preset, pattern scan, patrol scan, tilt scan, auto scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Power-off Memory | yes |
| DORI Distance | Detect 960.0 m (3149.61 ft); Observe 381.0 m (1250.0 ft); Recognize 192.0 m (629.92 ft); Identify 96.0 m (314.96 ft) |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | [PTZ channel]: IR; [Bullet channel]: White Light |
| Supplement Light Range | [PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m |
| Smart Supplement Light | Yes |
Video
| Feature | Detail |
|---|---|
| Main Stream | [Bullet channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), [PTZ channel] 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720), 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub-Stream | [Bullet channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | [Bullet channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) [PTZ channel]: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | H.265, H.264, MJPEG |
| Video Bit Rate | 32 kbps to 16384 kbps |
| H.264 Type | main profile, baseline profile, high profile |
| H.265 Type | main profile |
| Scalable Video Coding (SVC) | yes |
| Region of Interest (ROI) | 8 fixed regions for each stream |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 192 Kbps (MP2L2), 16 to 64Kbps (AAC-LC), 8 to 320 Kbps (MP3) |
| Audio Sampling Rate | MP2L2: 16 kHz, 32kHz, 48 kHz, AAC-LC: 16 kHz, 32kHz, 48 kHz, PCM: 8 kHz, 16 kHz, 32kHz, 48 kHz, MP3: 8 kHz, 16 kHz, 32kHz, 48 kHz |
| Environment Noise Filtering | yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Detects up to 5 faces simultaneously, Uploads face with background and closed-up face pictures, Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
| Regional People Counting | Supports up to 8 detection regions, and independent arming schedule and linkage method. Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection |
| Smart Linkage | manual tracking, linked tracking capture, tracking in turn |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | DHCP, FTP, HTTPS, TCP/IP, ICMP, HTTP, SFTP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, WebSocket, WebSockets |
| Simultaneous Live View | 20 |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | 32 |
| Security | 802.1X authenticated access, MAC address binding, Authenticated username and password, IP address filter, HTTPS encryption |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Client | iVMS-4200, HikCentral Pro, Hik-Connect |
| Web Browser | IE 11, Chrome 80+, Firefox 80+, Safari 13+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output, audio exception detection |
| Smart Event | audio exception detection, region exiting detection, region entrance detection, intrusion detection, Line crossing detection |
| Linkage | [Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, strobe light and audio alarm, and PTZ actions (such as preset, patrol scan, pattern scan) |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | RJ45, self-adaptive 10M/100M Ethernet port |
| On-board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Audio | 1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%, 1 audio output, line level, impedance: 600 Ω |
| Alarm | 1 alarm input, 1 alarm output |
| Reset | yes |
| Built-in Microphone | 2 built-in microphones, picking up sounds in the radius up to 8 m |
| Built-in Speaker | 1 built-in speaker, with effective distance reaching max. 20 m |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC, 3.33 A | PoE: IEEE 802.3at, 42.5 to 57.2 V, 0.6 A |
| Dimension | Ø166 mm × 294.8 mm (Ø6.5" × 11.6") |
| Weight | Approx. 3.0 kg (16.5 lb.) |
| Material | ADC12 |
| Operating Condition | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing) |
| General Function | mirror, password protection, watermark, IP address filter |
| Demist | Demist by heating the glass |
| Protection | IP67 (IEC 60529-2013), TVS 6000 V lightning protection, surge protection and voltage transient protection |
