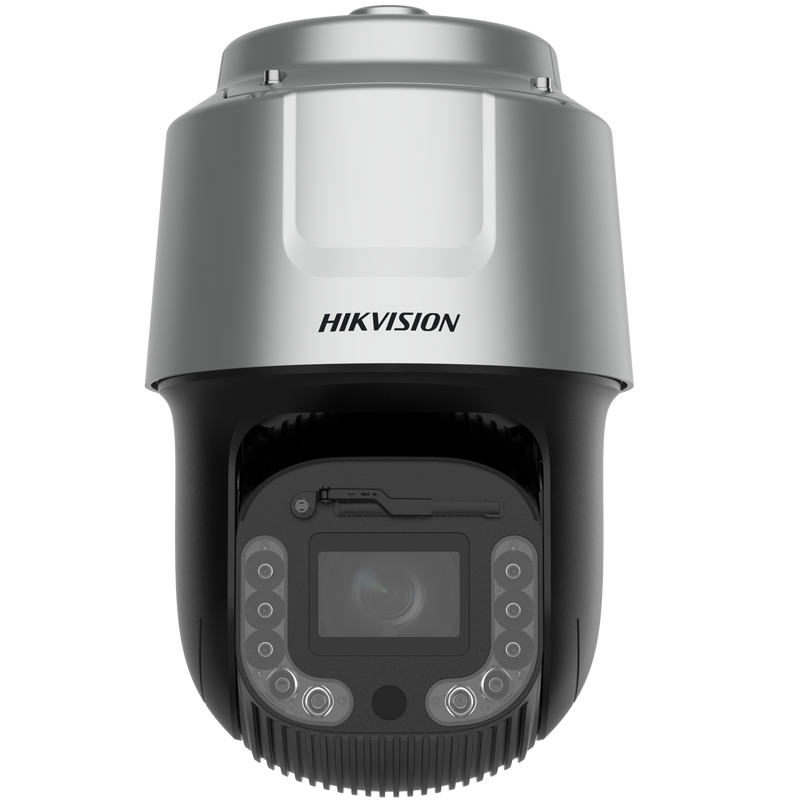

Hikvision DS-2DF8C260I5XG1-ELW 2MP 60× DarkFighter Laser Network Speed Dome, Up to 500m Laser, IP67 IK10
SKU: DS-2DF8C260I5XG1-ELW
Description
The Hikvision DS-2DF8C260I5XG1-ELW is a 2 MP DarkFighter PTZ speed dome with an extreme 60x optical zoom and a laser illuminator up to 500 m. A large 1/1.2" sensor, optical image stabilisation and deep-learning auto-tracking suit the longest-range night surveillance.
Key points
- 2 MP (1920 x 1080) on a large 1/1.2" sensor
- 60x optical zoom (6 to 360 mm) plus 16x digital
- Laser illuminator up to 500 m; 150 dB WDR
- Human and vehicle detection with auto-tracking 3.0
- Optical image stabilisation for steady extreme zoom
- Built-in wiper; IP67 and IK10; PoE 802.3bt or 36 VDC
Regular price
$6,111.00 AUD
Sale price
$6,111.00 AUD
Regular price
$8,300.00 AUD
Sale
26.37%
$2,189.00 AUD
(26.37%)
Member
Sign in to save $122.22 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision DS-2DF8C260I5XG1-ELW 2MP 60× DarkFighter Laser Network Speed Dome, Up to 500m Laser, IP67 IK10
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $7,054.60
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2DF8C260I5XG1-ELW is
The Hikvision DS-2DF8C260I5XG1-ELW is a long-range specialist: a 2 MP DarkFighter PTZ speed dome with an extreme 60x optical zoom (6 to 360 mm) and a laser illuminator that reaches up to 500 m in the dark.
It is made for ports, borders, highways, coastlines and large open grounds where you need to pick out a person or a vehicle at a distance no ordinary camera can cover.
The resolution is a deliberate trade: a large 1/1.2" sensor at 2 MP gathers far more light per pixel than a higher-megapixel chip, which is what makes the extreme low-light and long-range reach possible, rather than chasing pixel count.
A laser illuminator concentrates its light into a tight beam that follows the zoom, so it lights a distant target far more effectively than a flood of infrared; the night image is black and white under the laser.
Optical image stabilisation steadies the picture at 60x, where the smallest movement is hugely magnified, and 150 dB Wide Dynamic Range copes with bright water or sky against shade.
On-camera deep learning classifies people and vehicles, so auto-tracking 3.0 can lock onto a target and follow it, and the perimeter rules alarm on real targets rather than weather.
It is built for exposed, unattended sites.
A built-in wiper with rain-sensing auto control clears the window so the long zoom stays usable in rain, a heater and demist handle cold and damp, and the metal housing is rated IP67 against dust and water and IK10 against impact, with an operating range down to -40 degrees C.
This is a high-power camera that runs on PoE 802.3bt or a 36 VDC supply, not a standard NVR PoE port, and records to a network recorder or a microSD card.
Pair it with a high-bandwidth Hikvision NVR.
See it in action
What the DS-2DF8C260I5XG1-ELW features actually look like
Representative illustrations of how each key feature performs in a real scene.
Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2DF8C260I5XG1-ELW specifications
- 2 MP (1920 x 1080) on a large 1/1.2" progressive-scan CMOS sensor
- 60x optical zoom (6 to 360 mm) plus 16x digital zoom
- Laser illuminator up to 500 m; black and white at night
- 150 dB WDR and DarkFighter for extreme low light
- Optical image stabilisation for steady extreme zoom
- Human and vehicle detection with auto-tracking 3.0
- Built-in wiper (rain-sensing), heater and demist
- IP67 / IK10 body; PoE 802.3bt or 36 VDC power
- 60x optical zoom (6 to 360 mm) plus 16x digital zoom
- Laser illuminator up to 500 m; black and white at night
- 150 dB WDR and DarkFighter for extreme low light
- Optical image stabilisation for steady extreme zoom
- Human and vehicle detection with auto-tracking 3.0
- Built-in wiper (rain-sensing), heater and demist
- IP67 / IK10 body; PoE 802.3bt or 36 VDC power
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.2" progressive scan CMOS |
| Min. Illumination | Color: 0.0005 Lux @ (F1.6, AGC ON), B/W: 0.0001 Lux @ (F1.6, AGC ON), 0 Lux with Laser |
| Shutter Speed | 1/1 s to 1/30,000 s |
| Slow Shutter | Yes |
| Day & Night | IR cut filter |
| Zoom | 60x optical, 16x digital |
| Max. Resolution | 1920 × 1080 |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Day/Night Switch | Day, night, auto, scheduled-switch |
| Image Enhancement | BLC, HLC, 3D DNR |
| Wide Dynamic Range (WDR) | 150 dB WDR |
| Image Stabilization | OIS |
| Regional Exposure | Yes |
| Regional Focus | Yes |
| Privacy Mask | Up to 24 masks, polygon region, mosaic mask, mask color configurable |
| SNR | ≥ 52 dB |
| Gyroscope | Yes |
| Satellite Positioning | No |
| Compass | No |
Lens & Distance
| Feature | Detail |
|---|---|
| Focus | Auto, semi-auto, manual, rapid focus |
| Focal Length | 6.0 mm to 360 mm, 60× Optical |
| Zoom Speed | Approx. 9 s (optical, wide-tele) |
| FOV | Horizontal field of view: 61.0° to 1.3° (wide-tele), Vertical field of view: 35.9° to 0.8° (wide-tele), Diagonal field of view: 68.5° to 1.5° (wide-tele) |
| Aperture | Max. F1.6 |
| Movement Range (Pan) | 360°, Smart Pan-Tilt Correction |
| Movement Range (Tilt) | -20° to 90° (auto flip), Smart Pan-Tilt Correction |
| Pan Speed | Pan speed: configurable from 0.1° to 210°/s; preset speed: 280°/s |
| Tilt Speed | Tilt speed: configurable from 0.1° to 150°/s, preset speed 250°/s |
| Proportional Pan | Yes |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 32 presets for each patrol |
| Pattern Scan | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Yes |
| Park Action | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan |
| 3D Positioning | Yes |
| PTZ Status Display | Yes |
| Preset Freezing | Yes |
| Scheduled Task | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| DORI Distance | Detect 4965.5m (16291.0 ft); Observe 1970.4m (6464.6 ft); Recognize 993.1m (3258.2 ft); Identify 496.6m (1629.3 ft) |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | Laser |
| Supplement Light Range | Laser Distance: up to 500 m |
| Smart Supplement Light | Yes |
| Defog | Optical defog |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 100 fps（1920 × 1080，1280 × 960，1280 × 720） 60 Hz: 120 fps（1920 × 1080，1280 × 960，1280 × 720） *High frame rate is supported under monitoring mode only. |
| Sub-Stream | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16384 Kbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
| Target Cropping | No |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM |
| Audio Bit Rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2) |
| Audio Sampling Rate | MP2L2: 16kHz, 32kHz, 48kHz AAC-LC: 16kHz, 32kHz, 48kHz PCM: 8kHz, 16kHz, 32kHz, 48kHz MP3: 8kHz, 16KHz, 32KHz, 48KHz |
| Environment Noise Filtering | Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Perimeter Protection | Line crossing detection, region entrance detection, intrusion detection, region exiting detection |
| Multi-Target-Type Detection | Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, 14 human body features and 8 vehicle features |
| Face Capture | Detects up to 30 faces simultaneously, Uploads face with background and closed-up face pictures, Supports detecting, tracking, capturing, grading, selecting of face in motion, and outputs the best face picture |
| Face Comparison | Up to 10 face libraries. 30000 faces for each library. 150000 faces in total, Recognizes face identity via face modeling, grading and comparing to those in face library, Supports face library encryption |
| Road Traffic and Vehicle Detection | Smart Function: Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario); Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.; Support vehicle and non-vehicle counting; Blocklist and allowlist: up to 10,000 records | LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions | Accuracy (Under recommended installation and lighting conditions): License plate recognition rate ≥98%; Capture rate ≥99%; Driving direction accuracy rate ≥98% | Vehicle Capture Speed: Front installation in checkpoint scenario: up to 120 km/h; Side installation: up to 80 km/h | Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode |
| Smart Tracking | Manual tracking, auto-tracking 3.0 |
| Object Tracking | Support person arming. When the device detects the armed face or human body in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded. Support vehicle arming. When the device detects the armed vehicles in the monitoring scene, it triggers alarms, and tracks and captures the target. During the tracking, the target location and other related information are uploaded. |
Network & Storage
| Feature | Detail |
|---|---|
| Smooth Streaming | Yes |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.3, host authentication (MAC address), TPM 2.0 (FIPS 140-2 level 2) |
| Network Storage | NAS (NFS, SMB/ CIFS), ANR |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour |
| API | ISUP, ISAPI, Hikvision SDK, Open Network Video Interface (Profile S, Profile G, Profile T, Profile M), OTAP |
| Simultaneous Live View | Up to 20 channels |
| User/Host | Up to 32 users. 3 levels: Administrator, Operator and User |
| Client | HikCentral, iVMS-4200, Hik-Connect |
| Web Browser | IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), alarm input and output, vandal-proof alam, audio exception detection, unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan) |
Interface
| Feature | Detail |
|---|---|
| Reset | Yes |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board Storage | Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC, up to 1 TB |
| Alarm | 7 inputs, 2 outputs |
| Audio | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Video Output | 1.0V[p-p]/75Ω, PAL, NTSC, BNC connector |
| RS-485 | Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive |
General & Environment
| Feature | Detail |
|---|---|
| Vandal-proof Alarm | No |
| Heater | Yes |
| Wiper | Yes. Rain-sensing auto control |
| De-icing | No |
| Demist | Yes |
| General Function | Mirror, password protection, watermark, IP address filter |
| Power | 36 VDC (Max. 60 W, including max. 12 W for IR and max. 8 W for heater), PoE 802.3bt, type3, class6 (Max. 60 W, including max. 12 W for IR and max. 8 W for heater) |
| Operating Condition | Temperature: -40°C to 70°C (-40°F to 158°F), Humidity: ≤ 95% |
| Dimension | Ø 267 mm × 430 mm (Ø 10.51" × 16.93") |
| Weight | Approx. 9.6 kg (21.16 lb.) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2019); KC (KN 32: 2015, KN 35: 2015) |
| Safety | CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014+A11:2017), BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (SANS IEC60950-1) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 Standard, Lightning Protection, Surge Protection and Voltage Transient Protection, ±6kV Line to Gnd, ±3kV Line to Line, IEC61000-4-5, IK10 |
§ 04Why choose this
Built for the way you actually use the DS-2DF8C260I5XG1-ELW
Built for the lowest light
A large 1/1.2 inch 2 MP sensor and DarkFighter gather light where higher-megapixel cameras give up, for clean low-light video.
Steady at full zoom
Optical image stabilisation holds the picture at 60x, where the smallest vibration would otherwise make the view unusable.
Tracks targets, ignores weather
Human and vehicle detection drives auto-tracking 3.0 and keeps alarms to real targets, not rain, wind or sea spray.
§ 05Where it fits
Right at home in these scenarios
Ports and coastlines
Watch a harbour or shoreline and identify a vessel, vehicle or person far out, with the laser reaching across the dark water.
Borders and highways
Cover a long border line or motorway from a high mount and lock onto a distant target with auto-tracking.
Quarries and open grounds
One camera with a 60x zoom and 500 m laser covers a vast open site that would need many fixed cameras.
Critical infrastructure perimeters
Give a control room an extreme-range eye over an airport, plant or reservoir boundary, day and night.
§ 06Setup
Installation & setup
In the box
Camera and mounting hardware with the quick start guide. A solid wall or pole bracket, an 802.3bt injector or 36VDC supply, microSD card and NVR are bought separately.
Mounting
A rigid mount is essential at 60x zoom. Fit it high on a solid pole, heavy wall bracket or corner with a clear, unobstructed line down the site so the laser and zoom can reach.
Power and network
This is a high-power PTZ. A standard NVR PoE port (802.3af/at) does not supply enough power, so use an 802.3bt (PoE++) injector or a 36 VDC supply at the camera, bought separately, and run the video back to the recorder over the network.
Setup tips
Set preset positions and patrols for the views you want, enable human and vehicle detection and auto-tracking, and aim the laser along a clear line to its target for the best night reach.
§ 07Questions
Frequently asked about the DS-2DF8C260I5XG1-ELW
Q.01
Why is the DS-2DF8C260I5XG1-ELW only 2 MP if it is a high-end camera?
The 2 MP resolution is a deliberate choice. A large 1/1.2 inch sensor at 2 MP collects much more light per pixel than a higher-megapixel chip, which is what gives the extreme low-light sensitivity and long-range reach. At 60x zoom and 500 m laser range, that light-gathering matters more than raw pixel count.
Q.02
How does the laser night vision differ from infrared?
A laser illuminator focuses its light into a tight beam that follows the zoom, so it lights a distant target far more effectively than a wide flood of infrared. That is why it reaches up to 500 metres. The night image is black and white under the laser, like an infrared camera.
Q.03
How far can it really see?
Hikvision rates it to detect movement at around 4965 metres and to identify a person at about 497 metres at full zoom, under good conditions. The 60x zoom and 500 m laser are built for the longest perimeters, coastlines and open grounds.
Q.04
Is the image steady at 60x zoom?
Yes, as far as a camera can manage at that magnification. It has optical image stabilisation, which steadies the picture where the smallest vibration is hugely magnified, and a rigid pole or wall mount is essential to get the best from the extreme zoom.
Q.05
Does it track people and vehicles?
Yes. On-camera deep learning classifies people and vehicles, and auto-tracking 3.0 can lock onto a target and follow it across the scene. The perimeter rules alarm on real targets rather than wind or weather.
Q.06
How is it powered?
It runs on PoE 802.3bt or a 36 VDC supply, drawing up to 60 W. A standard NVR PoE port (802.3af or at) does not supply enough power, so use an 802.3bt injector or a 36 VDC supply at the camera and run the video over the network.
Q.07
Is it suitable for a coastal or wet site?
Yes. A built-in wiper with rain-sensing control keeps the window clear, and the IP67 / IK10 body with a heater and demist handles rain, cold and impact, with an operating range down to -40 degrees C.
§ 09Bundles
Recommended packages
Record it on a high-bandwidth NVR
Send it to a Hikvision NVR such as the 16-channel DS-7616NI-M2/16P or, for a larger site, the 32-channel DS-7732NI-M4/24P, and add a surveillance drive like the 8 TB drive for continuous footage.
Power it correctly
This is a high-power PTZ. A standard NVR PoE port (802.3af/at) does not supply enough power, so use an 802.3bt (PoE++) injector or a 36 VDC supply at the camera, bought separately, and run the video back to the recorder over the network.
Add a high-resolution companion
Where you also want 4K detail at long range, pair it with the 8 MP DS-2DF8A836IX-AEL on the same recorder.
