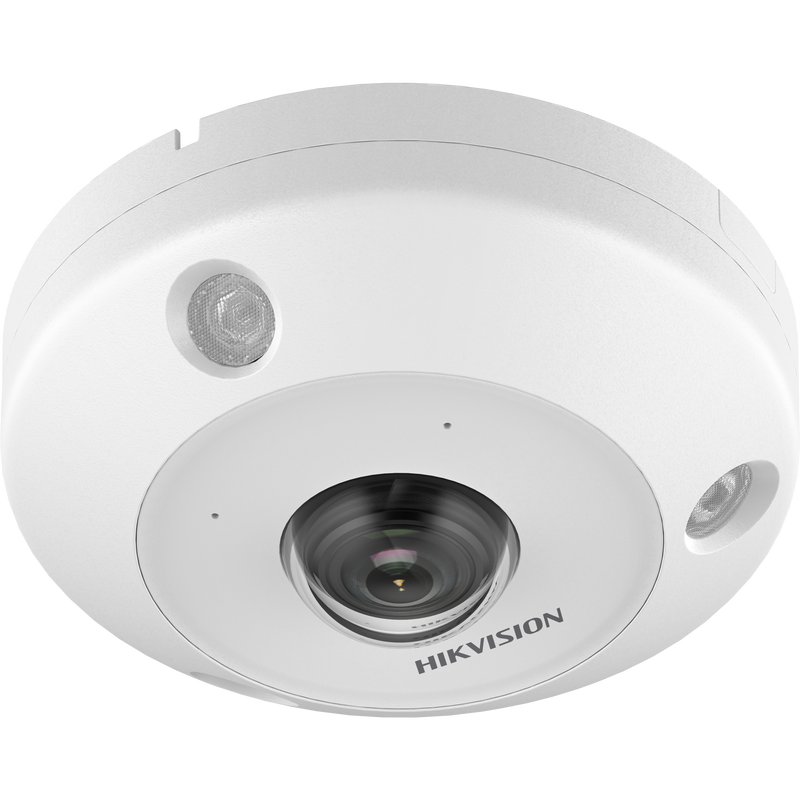

Hikvision DS-2CD6395G1E-IVS 9MP Fisheye Network Camera 360° Panoramic, IR, Heat Map, IK10, IP67
SKU: DS-2CD6395G1E-IVS
Description
The Hikvision DS-2CD6395G1E-IVS is a 9 MP DeepinView fisheye camera that covers a full 360° from a single ceiling or wall position. A 2 mm fisheye lens and a 3024 x 3024 sensor capture an entire room or open area, multiple dewarp display modes turn the circular image into usable panoramas and virtual PTZ views, and the DeepinView AI engine adds heat mapping and people counting. Built-in two-way audio, infrared up to 15 m and an IP67, IK10 housing round it out.
Key points
- 9 MP (3024 x 3024) 1/1.8" CMOS, 360° fisheye view
- Fixed 2 mm lens; multiple dewarp modes (panorama, multi-PTZ)
- DeepinView AI: heat map and people counting
- Two-way audio: two built-in microphones and a built-in speaker
- Infrared up to 15 m for night coverage
- IP67 weatherproof, IK10 vandal resistant; microSD up to 512 GB
- PoE (802.3af) or 12 VDC
Regular price
$833.25 AUD
Sale price
$833.25 AUD
Regular price
$877.92 AUD
Sale
5.09%
$44.67 AUD
(5.09%)
Member
Sign in to save $16.67 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Hikvision DS-2CD6395G1E-IVS 9MP Fisheye Network Camera 360° Panoramic, IR, Heat Map, IK10, IP67
1
/
of
1
Build your setup Build a complete CCTV system Complete setup from $1,776.85
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2CD6395G1E-IVS is
The Hikvision DS-2CD6395G1E-IVS is a 9 MP DeepinView fisheye that watches a whole room or open area from one point.
A 2 mm fisheye lens and a 3024 x 3024 sensor take in a full 360° circle, and the camera offers a range of dewarp display modes - panorama, double panorama and several virtual PTZ layouts - so you can flatten the circular image into the views that suit the space, all from a single device and a single cable.
Beyond surveillance, it is a business-intelligence tool.
The DeepinView AI engine produces people-counting figures and heat maps that show where visitors go and how long they dwell, which is useful for retail layout, queue management and space planning.
It has genuine two-way audio - two built-in microphones and a built-in speaker - so you can listen and speak through the camera, and infrared up to 15 m keeps the overview visible in the dark.
A note on coverage so you place it well.
A 360° fisheye is made for wide overhead overview, not long-distance detail, and its 15 m infrared suits indoor and near-field outdoor areas.
Mount it centrally over the space you want to watch.
The housing is IP67 and IK10 for indoor or outdoor use, it runs on standard 802.3af PoE or 12 VDC, and it records to a Hikvision NVR or a microSD card up to 512 GB.
See it in action
What the DS-2CD6395G1E-IVS features actually look like
Representative illustrations of how each key feature performs in a real scene.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD6395G1E-IVS specifications
- 9 MP (3024 x 3024) 1/1.8" CMOS with a 360 degree fisheye view
- Fixed 2 mm lens with multiple dewarp modes (panorama and virtual PTZ)
- DeepinView AI engine: heat map and people counting
- Two-way audio with two built-in microphones and a built-in speaker
- Infrared up to 15 m for night-time overview
- IP67 weatherproof and IK10 vandal resistant housing
- microSD up to 512 GB for on-board recording
- PoE (802.3af) or 12 VDC
- Fixed 2 mm lens with multiple dewarp modes (panorama and virtual PTZ)
- DeepinView AI engine: heat map and people counting
- Two-way audio with two built-in microphones and a built-in speaker
- Infrared up to 15 m for night-time overview
- IP67 weatherproof and IK10 vandal resistant housing
- microSD up to 512 GB for on-board recording
- PoE (802.3af) or 12 VDC
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3024 × 3024 |
| Min. Illumination | Color: 0.01 Lux @ (F2.25, AGC ON), B/W: 0.005 Lux @ (F2.25, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Wide Dynamic Range (WDR) | Digital WDR |
| Image Enhancement | BLC, HLC, 3D DNR, Distortion Correction, Defog |
| Image Settings | saturation, brightness, contrast, sharpness, white balance, AGC, adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day, Night, Auto, Schedule, Alarm Trigger |
| Privacy Mask | 8 programmable polygon privacy masks |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2 mm |
| Focal Length & FOV | 2 mm, 360° panoramic view |
| Iris Type | Fixed |
| Aperture | F2.25 |
| Depth of Field | 0.2 m to ∞ |
| DORI | D: 23.2 m | O: 9.2 m | R: 4.6 m | I: 2.3 m |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Supplement Light Range | Up to 15 m |
| Supplement Light Number | 3 |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 3024 × 3024, 2560 × 2560, 2048 × 2048; 180 Panorama View: 3072 × 2304, 2048 × 1536; 180 Dual Channel Panorama View: 3072 × 1152; Panorama View: 3072 × 2304, 2048 × 1536; 4PTZ View: camera 01/camera 02/camera 03/camera 04: 1600 × 1200; Fisheye + 3PTZ View: camera 01: 2560 × 2560, 2048 × 2048, 1280 × 1280; camera 02/camera 03/camera 04: 1600 × 1200; 4PTZ Fusion View: 3200 × 2400, 2048 × 1536 |
| Sub-Stream | 50 Hz: 25 fps/60 Hz: 30 fps: Fisheye View: 720 × 720, 480 × 480; 180 Panorama View: 640 × 480, 320 × 240; 180 Dual Channel Panorama View: 640 × 480, 320 × 240; Panorama View: 640 × 360, 320 × 240; 4PTZ View: camera 01/camera 02/camera 03/camera 04: 640 × 480, 320 × 240; Fisheye + 3PTZ View: camera 01: 720 × 720; camera 02/camera 03/camera 04: 640 × 480, 320 × 240 |
| Video Compression | Main stream: H.265+/H.265/H.264+/ H.264; Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed regions for each stream |
| Mount Type | Support wall/table/ceiling mounting |
| Decoding Mode | Support hardware decoding and software decoding |
| Display Mode | 20 display modes in total | Software decoding: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere, cylinder | Hardware decoding: fisheye view, 180 panorama view, 180 dual channel panorama, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Heat Map | A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area. | Two report types are available, space heat map and time heat map line chart. |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP |
| Simultaneous Live View | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP | Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address), TPM 2.0 (FIPS 140-2 level 2) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) | Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | Plug-in required live view: IE 10, IE 11 | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+ | Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection, video tampering alarm, alarm input and output, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Smart Event | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | Yes, 2 built-in microphones |
| Built-in Speaker | Yes, 1 built-in speaker |
| Audio Input | 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium |
| Audio Output | 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm Input | 1 inputs (max. 24 VDC, 1 A) |
| Alarm Output | 1 outputs (max. 24 VDC, 1 A) |
| RS-485 | 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Reset Key | 1 Reset Key |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 20%, 0.8 A, max. 9.6 W, two-core terminal block | PoE: IEEE 802.3af, Class 3, max. 9.6 W |
| Material | Metal |
| Dimension | Ø140.3 mm × 59.4 mm (Ø5.5" × 2.3") |
| Package Dimension | 260 mm × 230 mm × 135 mm (10.2" × 9.1" × 5.3") |
| Weight | Approx. 715 g (1.58 lb.) |
| With Package Weight | Approx. 1206 g (2.66 lb.) |
| Storage Conditions | -30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Heartbeat, flash log, password reset via email, password protection, one-key reset, anti-banding |
| Cable Length | 0.31 m (1.02 ft.) |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019 | RCM: AS/NZS CISPR 32: 2015 | IC: ICES-003: Issue 7 | KC: KN32: 2015, KN35: 2015 |
| Safety | UL: UL 62368-1 | CB: IEC 62368-1: 2014+A11 | CE-LVD: EN 62368-1: 2014/A11: 2017 | BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013; IK10: IEC 62262:2002 |
§ 04Why choose this
Built for the way you actually use the DS-2CD6395G1E-IVS
Business insight built in
DeepinView heat maps and people counting turn footage into layout and traffic data.
Genuine two-way audio
Two built-in mics and a speaker let you listen and talk through the camera.
Indoor or outdoor
An IP67, IK10 housing and PoE power suit lobbies, courtyards and entrances alike.
§ 05Where it fits
Right at home in these scenarios
Retail floors
Cover a whole shop from one ceiling mount and use heat maps to study customer flow.
Lobbies and receptions
Watch an entire entrance area and speak to visitors through the two-way audio.
Warehouses and open offices
Monitor a large open space and count people for occupancy and safety.
Courtyards and forecourts
Cover an open outdoor area centrally with one 360 degree camera.
§ 06Setup
Installation & setup
What's in the box
One DS-2CD6395G1E-IVS 9MP fisheye camera with mounting hardware and documentation. The PoE switch or NVR, network cable and any microSD card or bracket are supplied separately.
Installation requirements
Mount it centrally on the ceiling, or on a wall or table, over the area you want to cover so the 360 degree view takes in the whole space. Run one network cable to an 802.3af PoE source or NVR, fit a microSD card if you want on-board recording, and set the dewarp display mode and the heat map or people-counting rules in the software.
§ 07Questions
Frequently asked about the DS-2CD6395G1E-IVS
Q.01
How much area does the DS-2CD6395G1E-IVS cover?
Its 2 mm fisheye lens and 9 MP sensor capture a full 360 degree view, so a single camera mounted centrally can cover an entire room or open area with no blind spots. Dewarp modes then flatten the circular image into panoramas and virtual PTZ views.
Q.02
Does it really do two-way audio?
Yes. The datasheet confirms two built-in microphones and a built-in speaker, so you can listen to and speak through the camera for live communication and audio alerts, without adding an external mic or speaker.
Q.03
What are the heat map and people counting for?
The DeepinView AI engine counts people and builds heat maps that show where visitors go and how long they stay. Retailers use this for store layout and queue management, and facilities teams use it to understand how busy a space gets.
Q.04
How good is the night vision?
It has built-in infrared up to 15 m, which suits the wide overhead overview a fisheye is made for. In infrared the picture is black-and-white. For long-distance identification at night, pair it with a dedicated zoom or bullet camera.
Q.05
Can I use it outdoors?
Yes. It is rated IP67 against dust and heavy rain and IK10 against impact, so it works indoors or outdoors. Mounted centrally over the area you want to watch, it suits entrances, lobbies, courtyards and similar open spaces.
Q.06
How is it powered?
It runs on standard 802.3af PoE or a 12 VDC supply and draws under 10 W, so a regular PoE switch or NVR port powers and networks it over one cable, with no special high-power injector needed.
Q.07
Does it need special software to view the 360 image?
The camera dewarps the fisheye image into panorama and virtual PTZ views itself, and Hikvision clients and compatible NVRs support those modes. A microSD card up to 512 GB also lets it record on board.
§ 09Bundles
Recommended packages
Record and analyse it
Connect it to a Hikvision DS-7608NI-M2/8P NVR, or a larger DS-7616NI-M2/16P, for recording and to keep the people-counting and heat-map data.
Add zoom for detail
Pair the 360 overview with the DS-2DF8C435MHS-DELW DarkFighterX PTZ to read faces and plates the fisheye cannot resolve at range.
Compare fisheye options
Also consider the 6MP DS-2CD6365G1-IVS DeepinView fisheye where 9 MP is more than you need.
