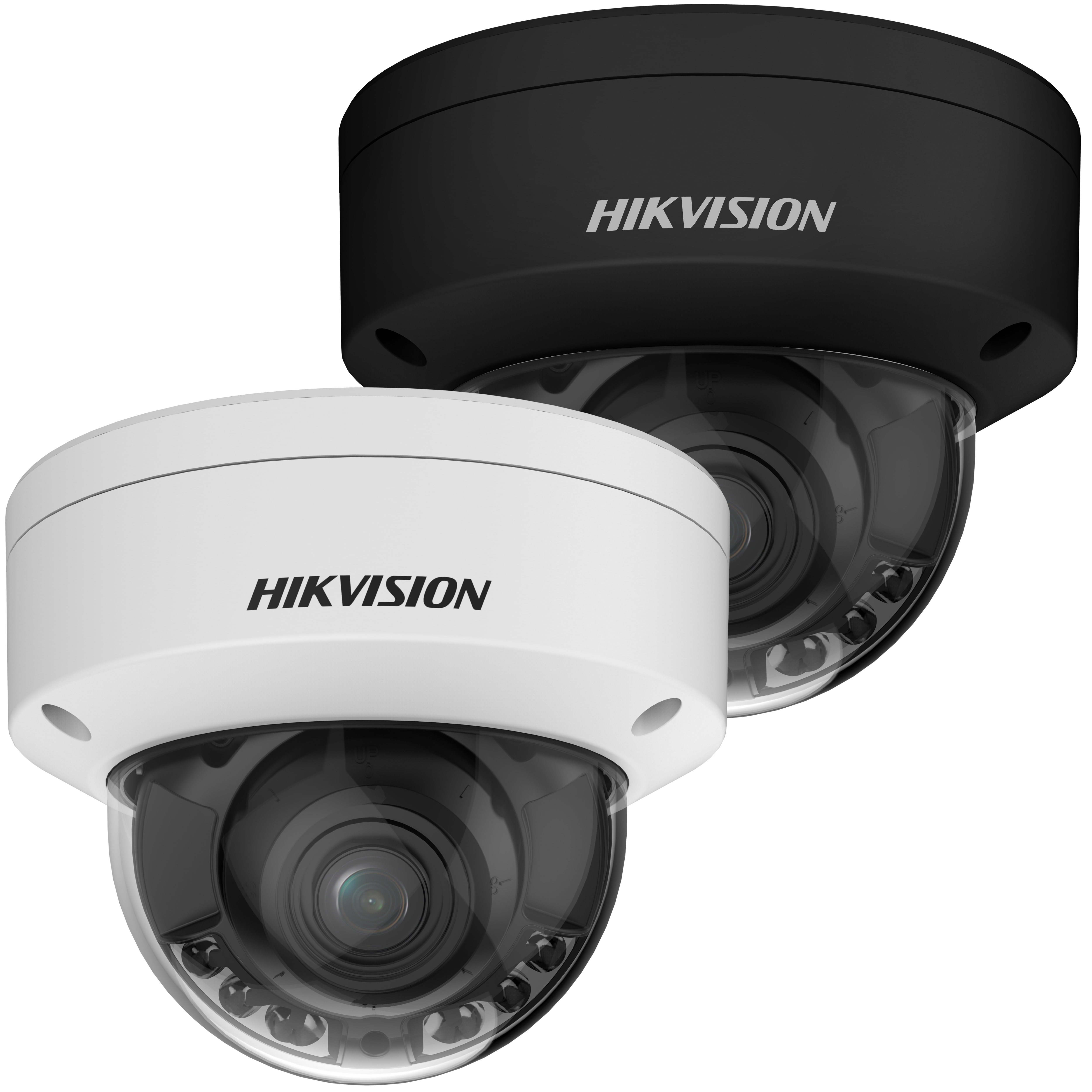

Hikvision DS-2CD2787G2HT-LIZS 8MP 4K Smart Hybrid Light with Colorvu Motorised VF Dome CCTV Camera
SKU: DS-2CD2786G2T-IZS-2
Description
Provides ultra-high-definition 4K video with smart hybrid lighting that switches to full colour the moment a person or vehicle is detected.
Regular price
$565.55 AUD
Sale price
$565.55 AUD
Regular price
$711.00 AUD
Sale
20.46%
$145.45 AUD
(20.46%)
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Hikvision DS-2CD2787G2HT-LIZS 8MP 4K Smart Hybrid Light with Colorvu Motorised VF Dome CCTV Camera
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $1,509.15
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The Hikvision DS-2CD2786G2T-IZS-2 8MP Smart Hybrid Light Motorised Varifocal Dome Camera offers professional-grade Product performance with versatile night vision modes. It is a top-tier choice for Australian businesses and homes requiring flexible Features and crystal-clear evidence in any lighting condition.
§ 02Engineering
Technical specifications
- 8MP 4K Ultra-HD: Captures incredibly detailed 3840 x 2160 resolution video to ensure every detail is recorded with absolute clarity.
- Motorised Varifocal Lens: Features a 2.8mm to 12mm adjustable lens that allows you to remotely zoom in and out for the perfect field of view.
- Smart Hybrid Light: Automatically switches from discreet infrared to bright white light when an event is triggered to capture vivid colour details.
- Super Confocal Lens: Designed with an F1.0 large aperture to guarantee equally sharp imaging in both infrared and visible light modes.
- ColorVu Technology: Delivers vibrant and colourful imaging in ultra-low light conditions, ensuring superior night-time surveillance.
- Industrial-Grade Protection: Features a rugged housing designed to withstand the harsh Australian climate and resist physical tampering.
- Deep Learning AI: Smartly classifies human and vehicle targets to focus on real security threats and minimise irrelevant motion alerts.
- Motorised Varifocal Lens: Features a 2.8mm to 12mm adjustable lens that allows you to remotely zoom in and out for the perfect field of view.
- Smart Hybrid Light: Automatically switches from discreet infrared to bright white light when an event is triggered to capture vivid colour details.
- Super Confocal Lens: Designed with an F1.0 large aperture to guarantee equally sharp imaging in both infrared and visible light modes.
- ColorVu Technology: Delivers vibrant and colourful imaging in ultra-low light conditions, ensuring superior night-time surveillance.
- Industrial-Grade Protection: Features a rugged housing designed to withstand the harsh Australian climate and resist physical tampering.
- Deep Learning AI: Smartly classifies human and vehicle targets to focus on real security threats and minimise irrelevant motion alerts.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min. Illumination | Color: 0.0028 Lux @ (F1.2, AGC ON), 0 Lux with light |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Image Parameters Switch | Yes |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 130 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 112.3° to 41.2°, vertical FOV 58.1°to 23.1°, diagonal FOV 137.4°to 47.3° |
| Lens Mount | Integrated |
| Iris Type | Fixed |
| Aperture | Max. F1.2 |
| Depth of Field | 1 m to ∞ |
| DORI | Wide: D: 87 m, O: 35 m, R: 17 m, I: 9 m | Tele: D: 216 m, O: 86 m, R: 43 m, I: 22 m |
| Pan Range | 0° to 355° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 355° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 40 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360); *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering | Yes |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting. Support alarm triggering by specified target types (human and vehicle) |
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning, trigger alarm output |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Audio Input | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium |
| Audio Output | 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm Input | 1 input |
| Alarm Output | 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.9 A, max. 10.8 W, Ø 5.5 mm coaxial power plug, reverse polarity protection; PoE: IEEE 802.3af, Class 3, max. 12.9 W |
| Material | Metal |
| Dimension | Ø 141 mm × 112 mm (Ø 5.55" × 4.41") |
| Package Dimension | 244 mm × 174 mm × 173 mm (9.6" × 6.9" × 6.8") |
| Weight | Approx. 820 g (1.8 lb.) |
| With Package Weight | Approx. 1200 g (2.6 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC: ICES-003: Issue 7 |
| Safety | UL: UL 62368-1; CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU |
| Protection | IP67: IEC 60529-2013, IK10: IEC 62262:2002 |
